Home >> Honda >> 2004 >> S2000 L4-2.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Variable Valve Timing Pressure Switch >> Locations

Variable Valve Timing Pressure Switch: Locations

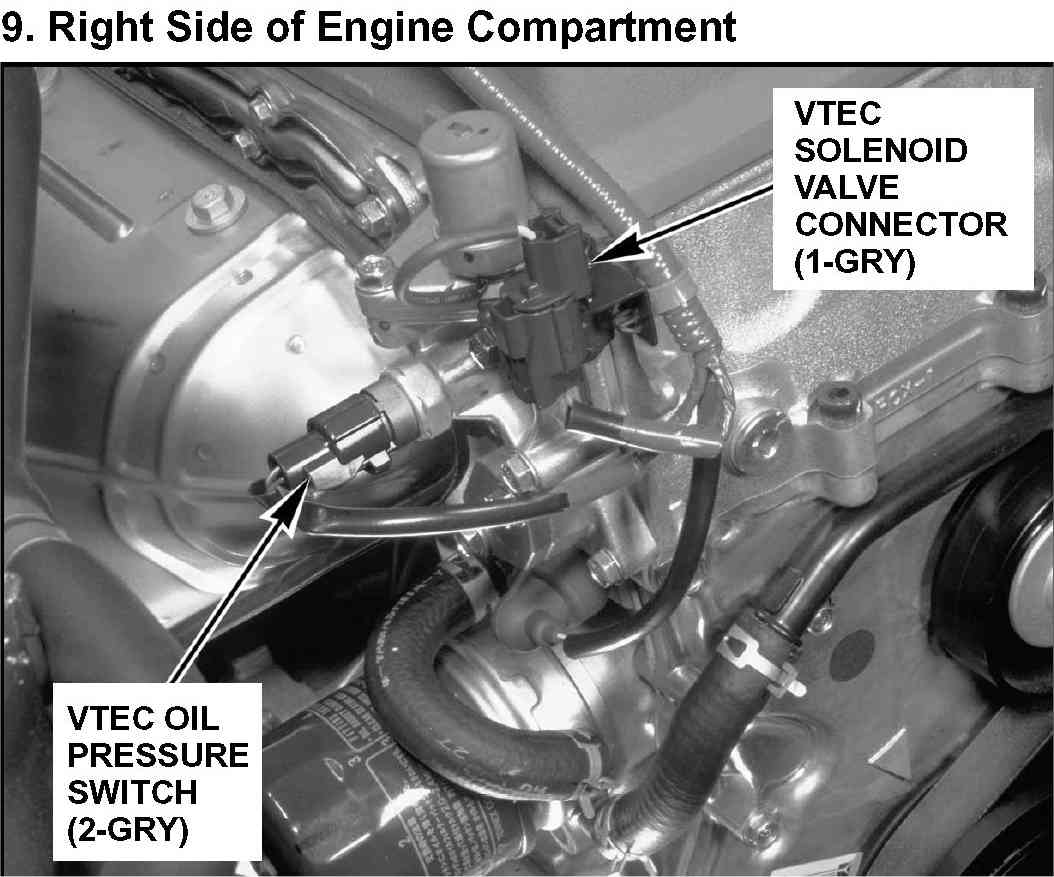

9. Right Side of Engine Compartment:
