Mode 6 Data



SAE J1979 Mode $06 Test Information: All 2004 Hondas

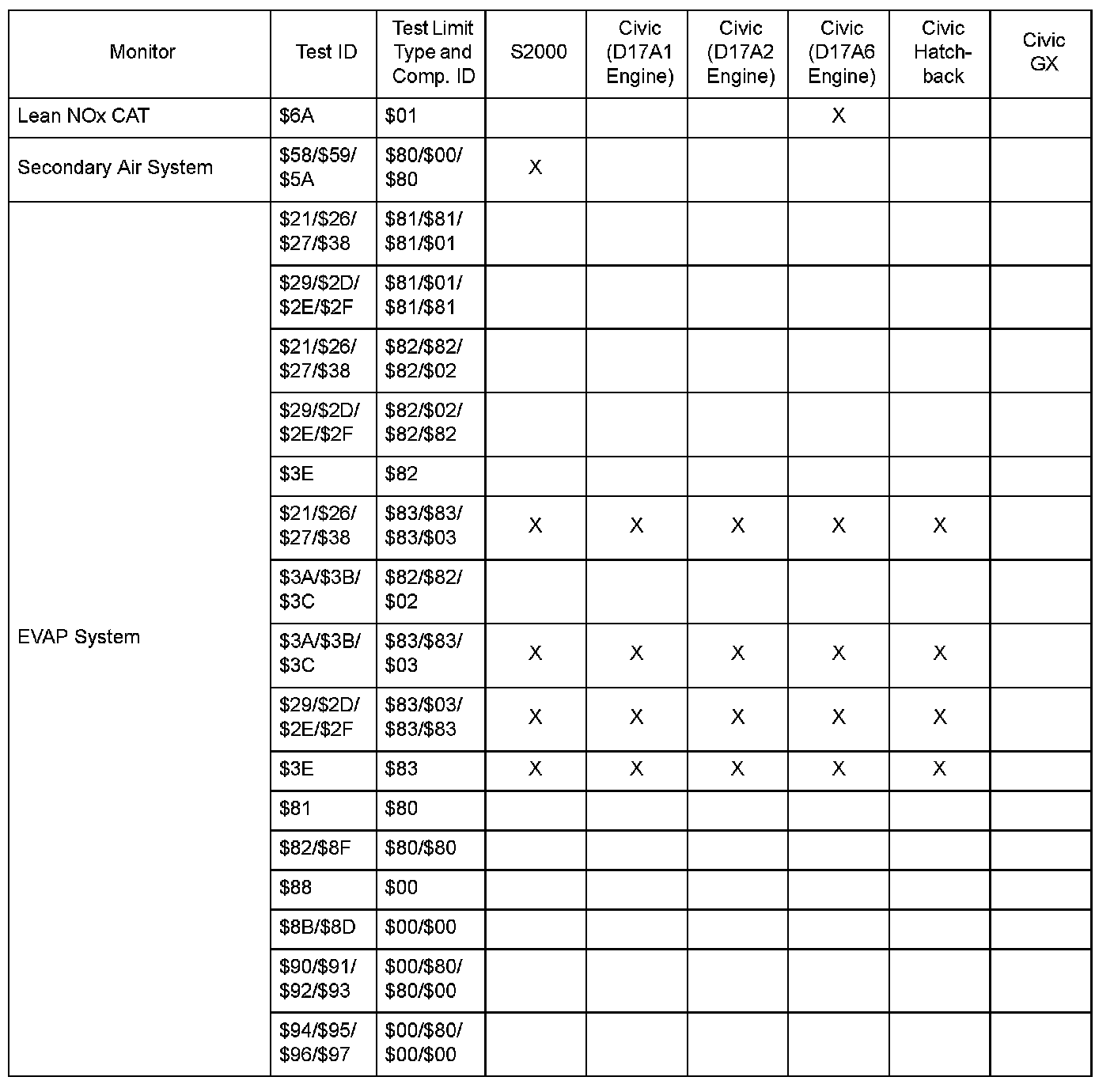

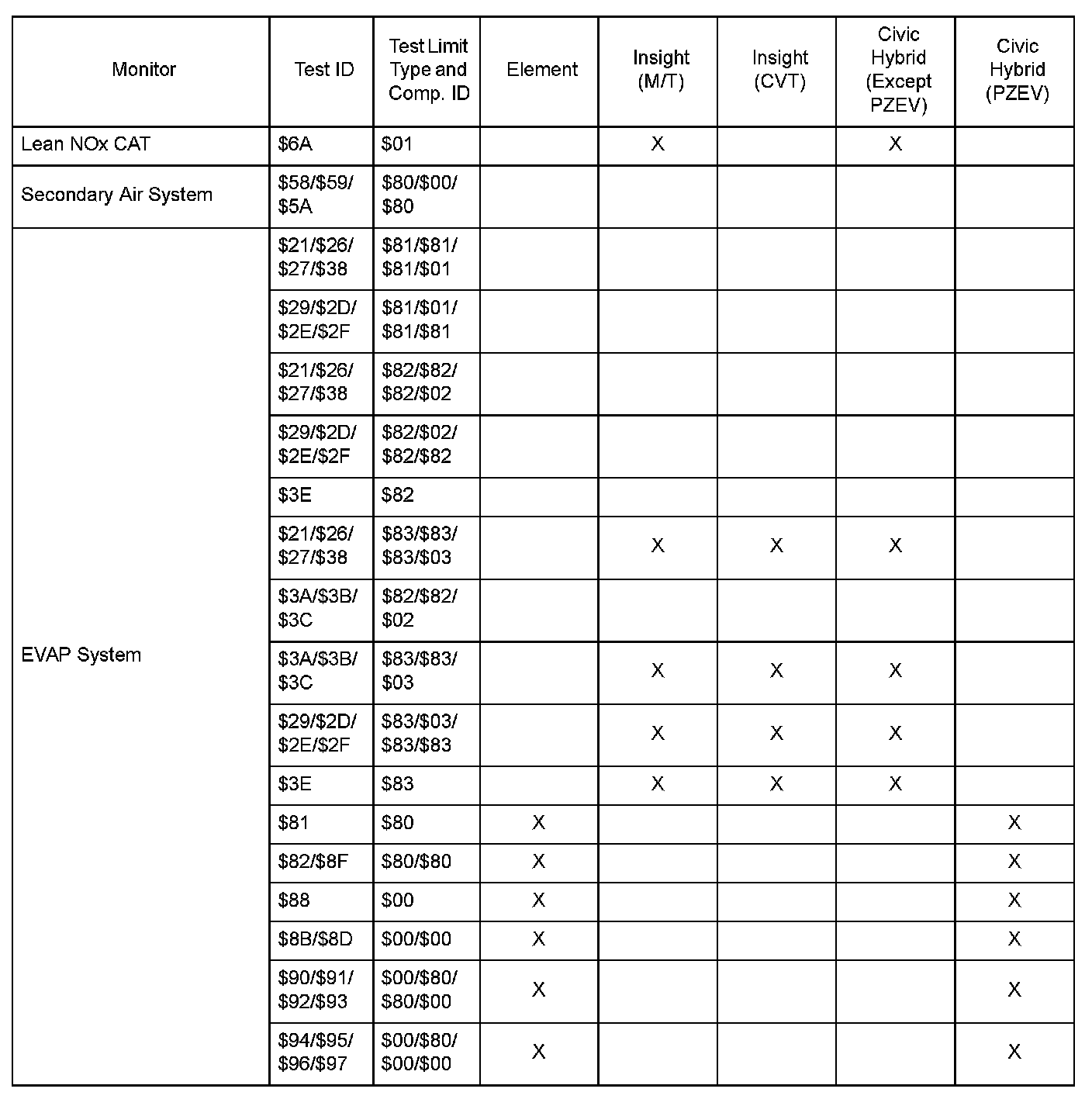

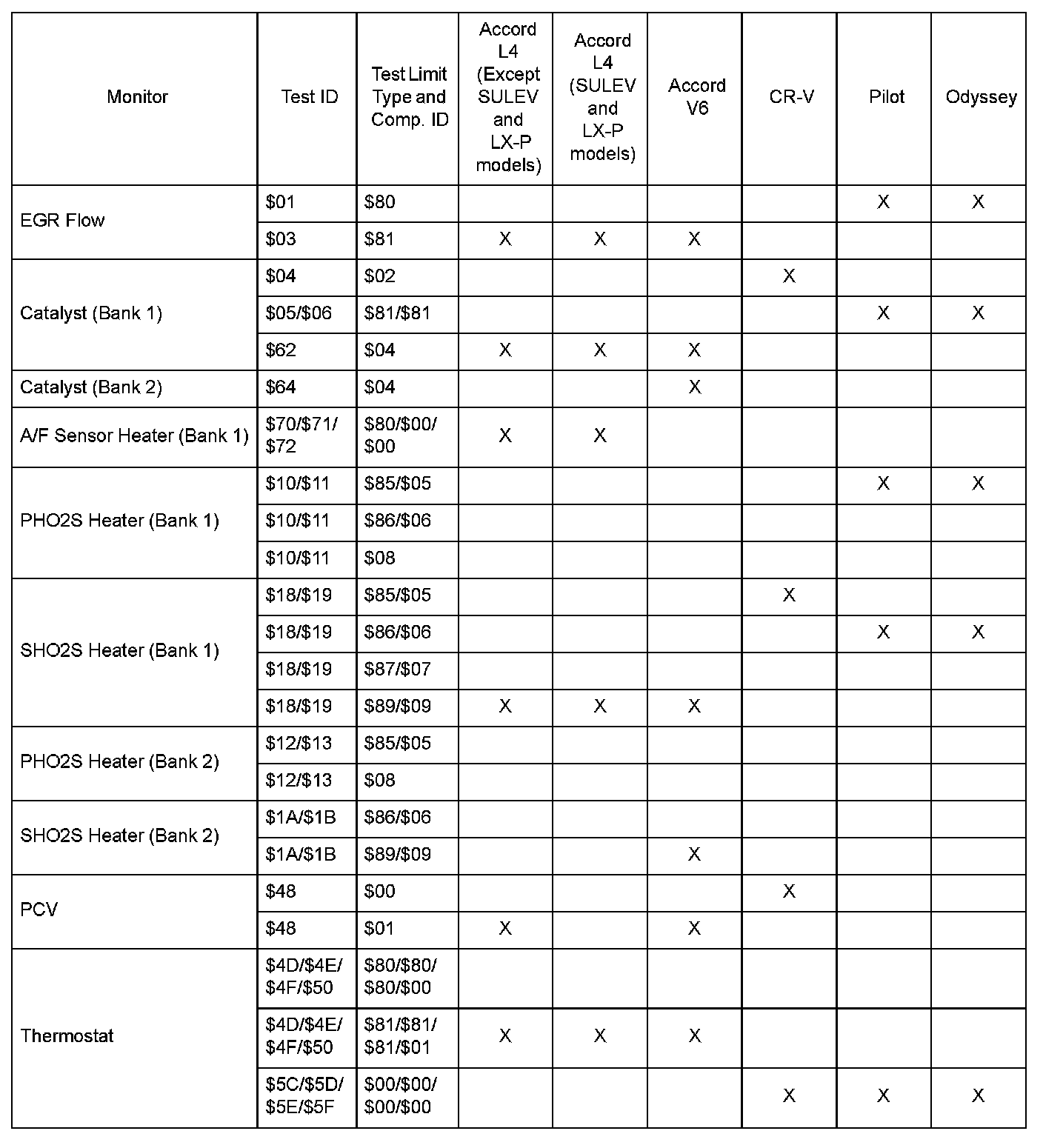

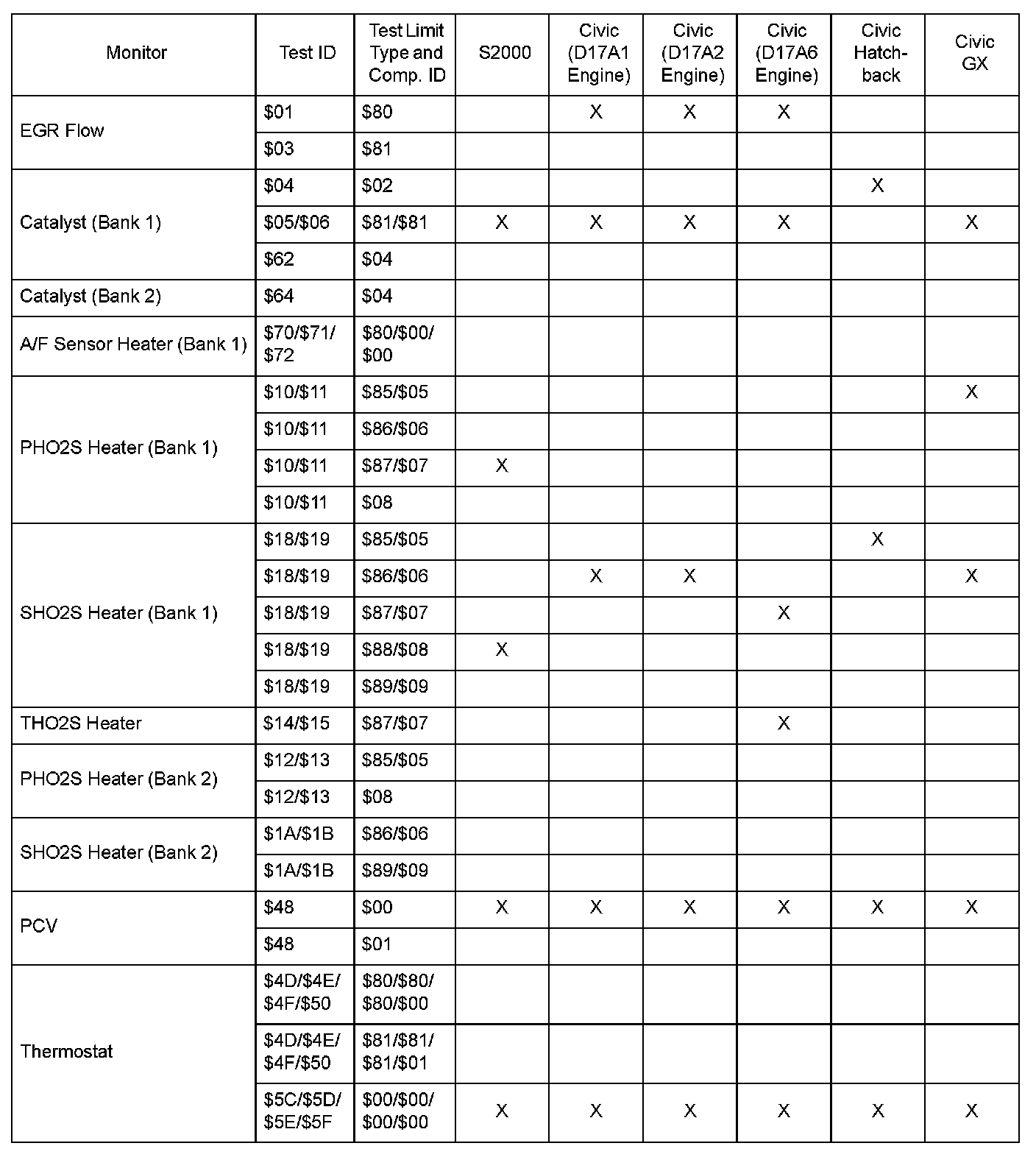

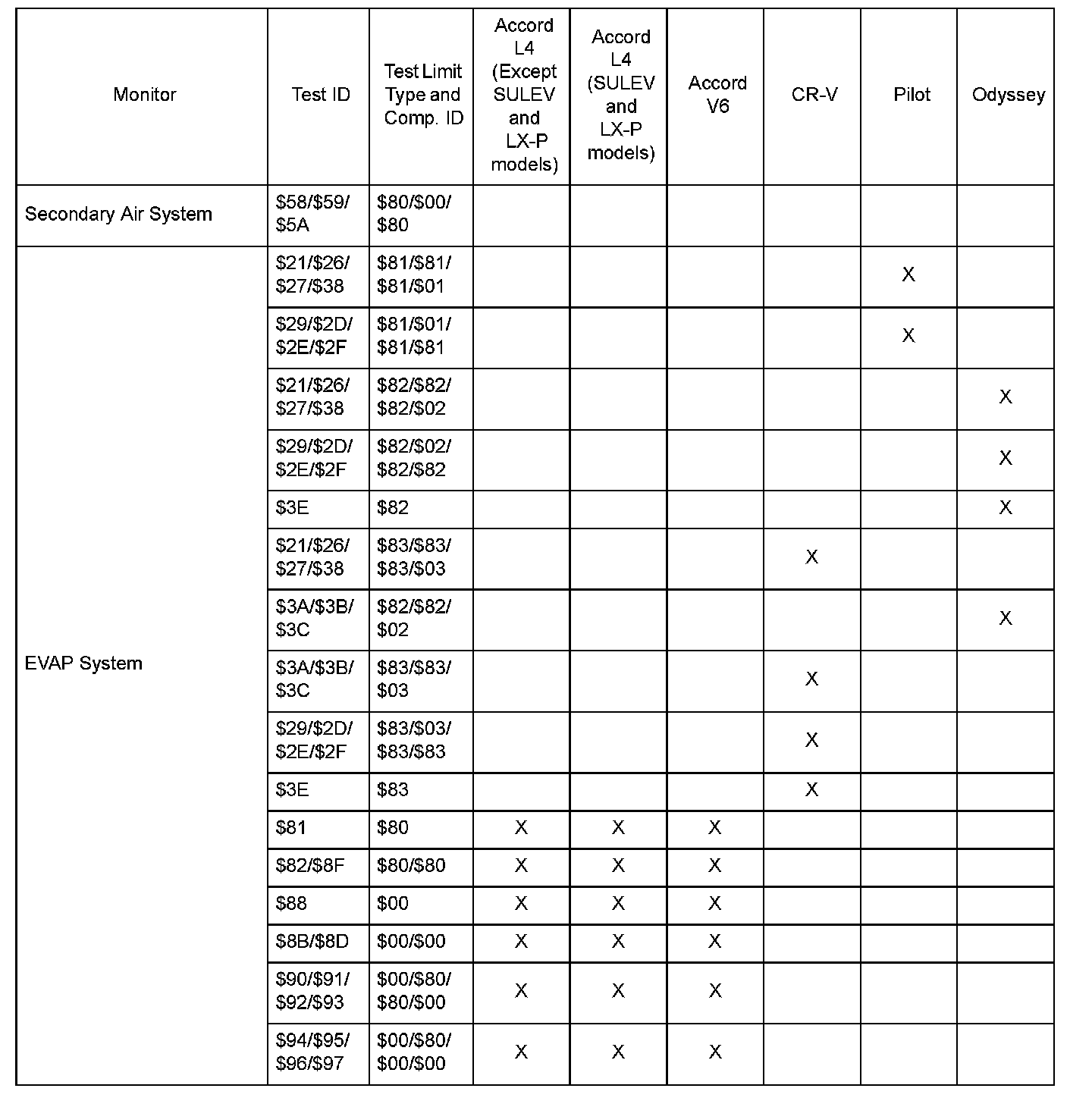

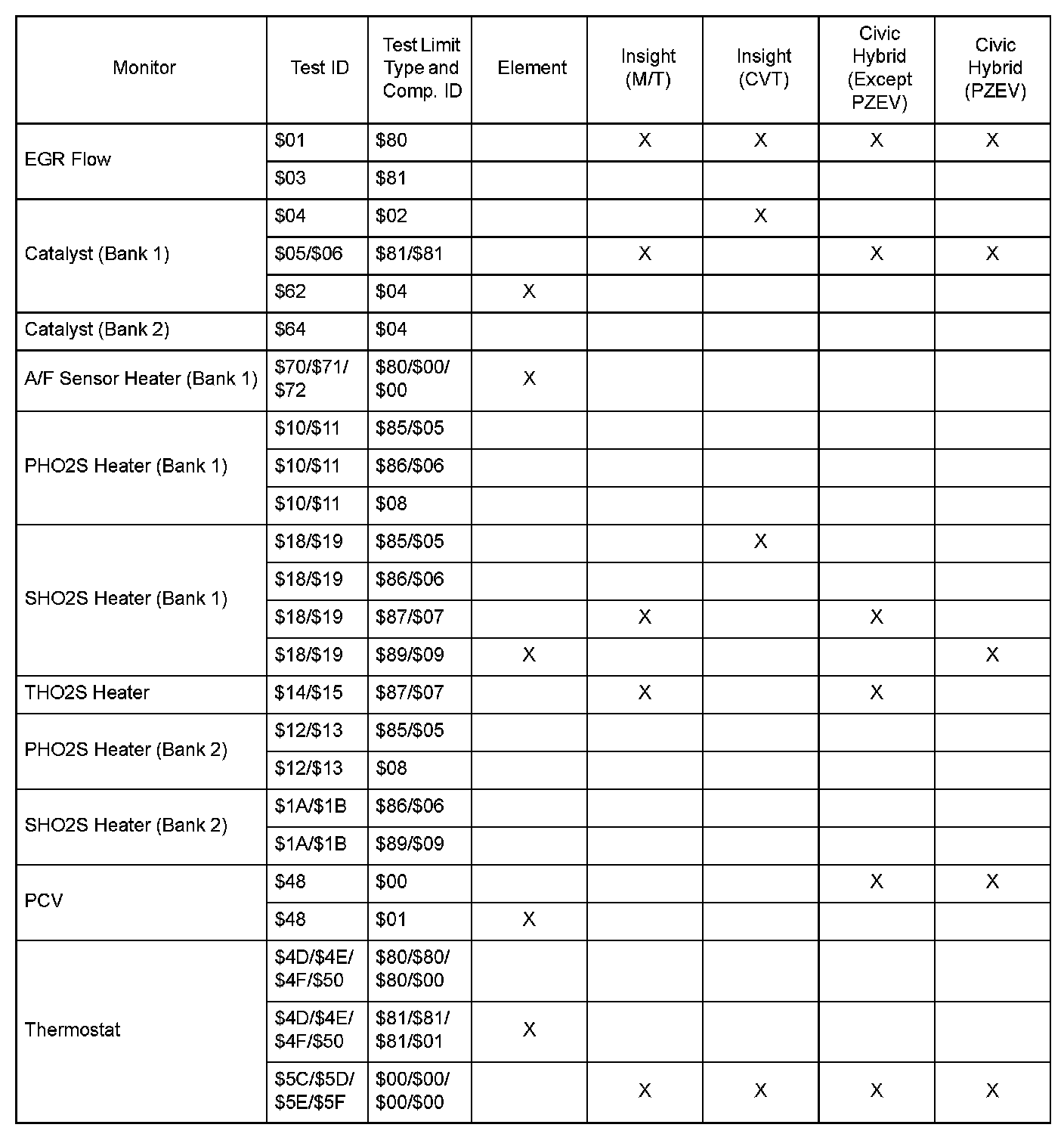

Mode $06 Test ID by Model: Group I










Mode $06 Test ID by Model: Group 2










Mode $06 Test ID by Model: Group 3

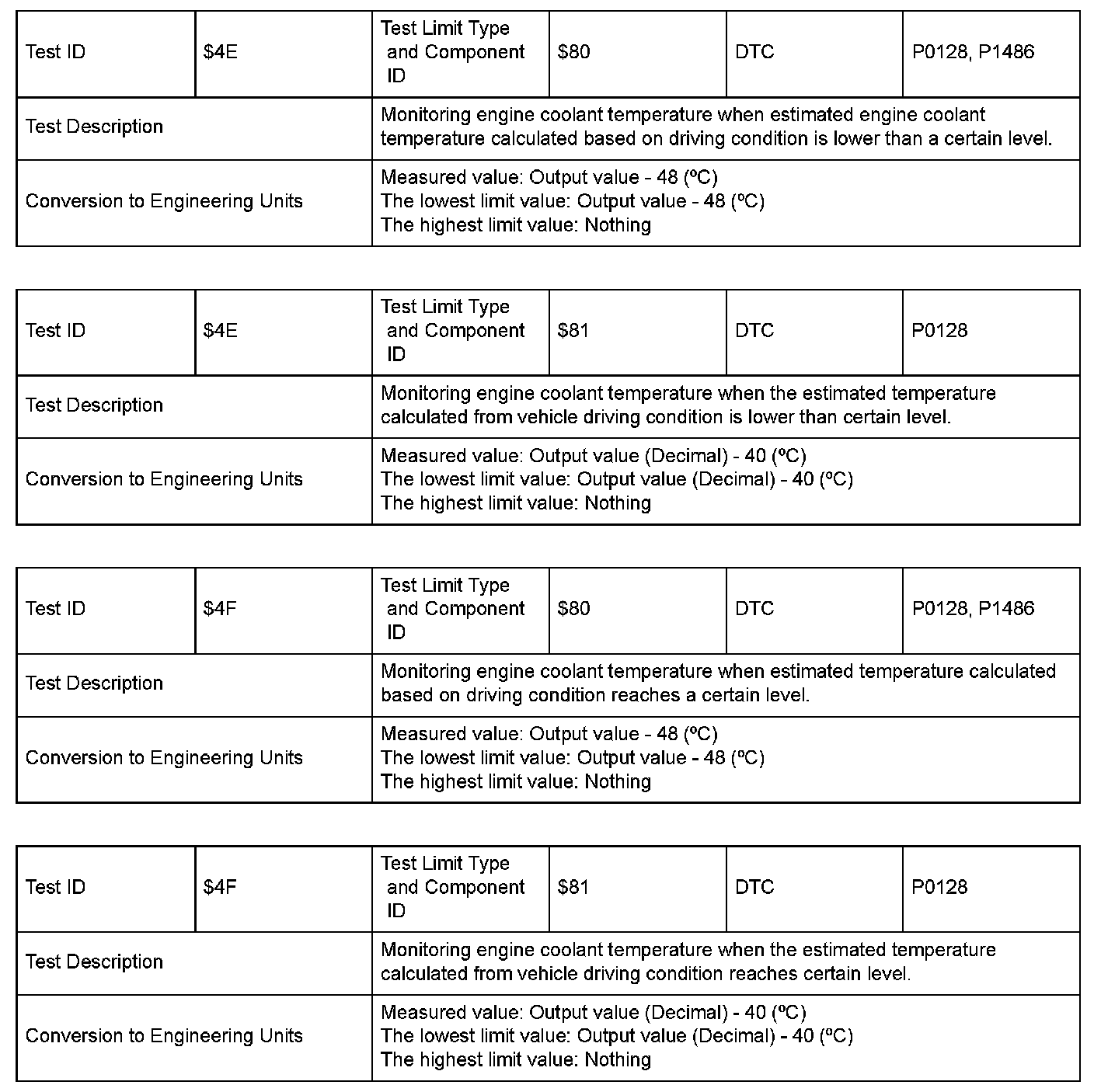

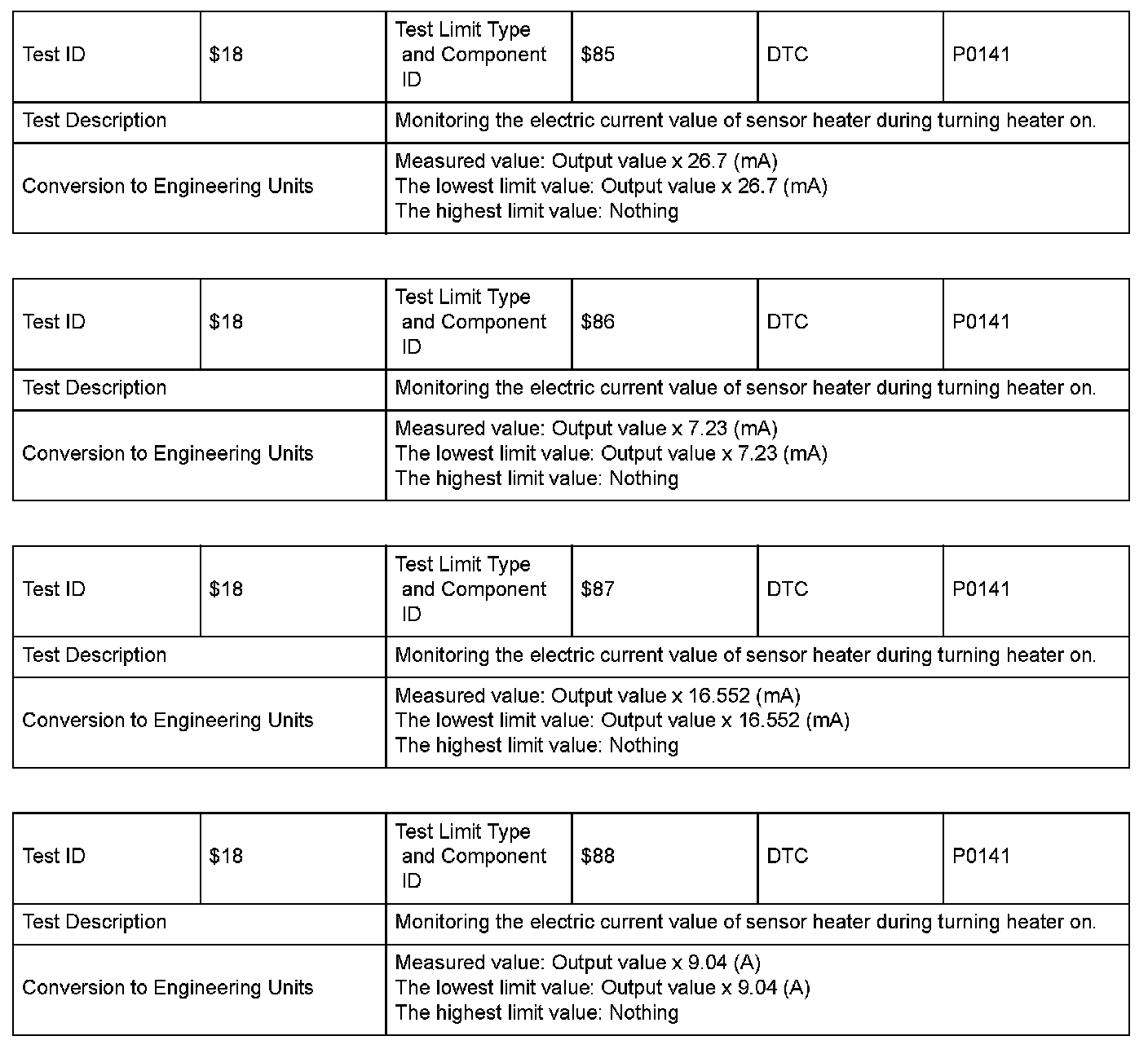

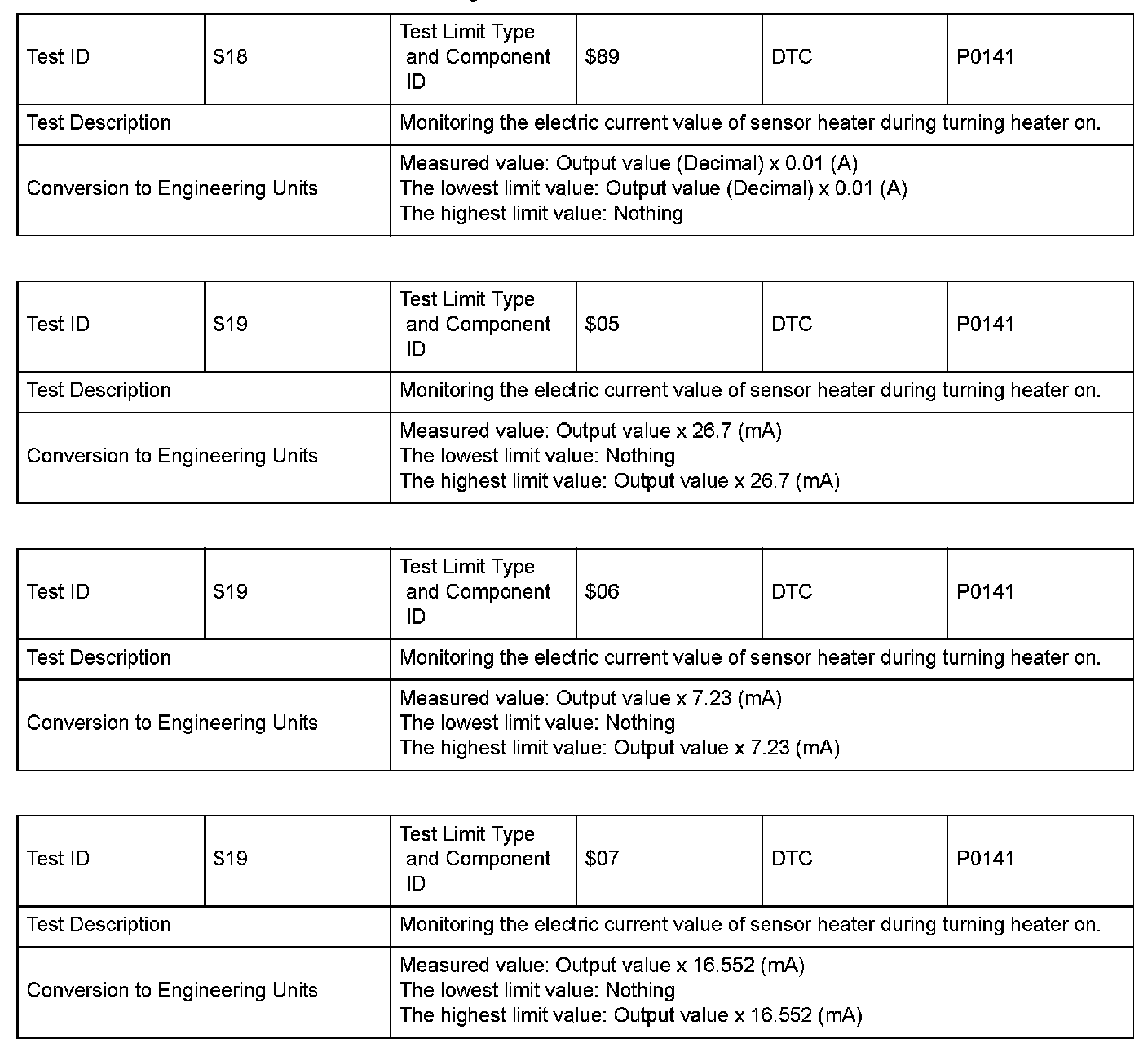

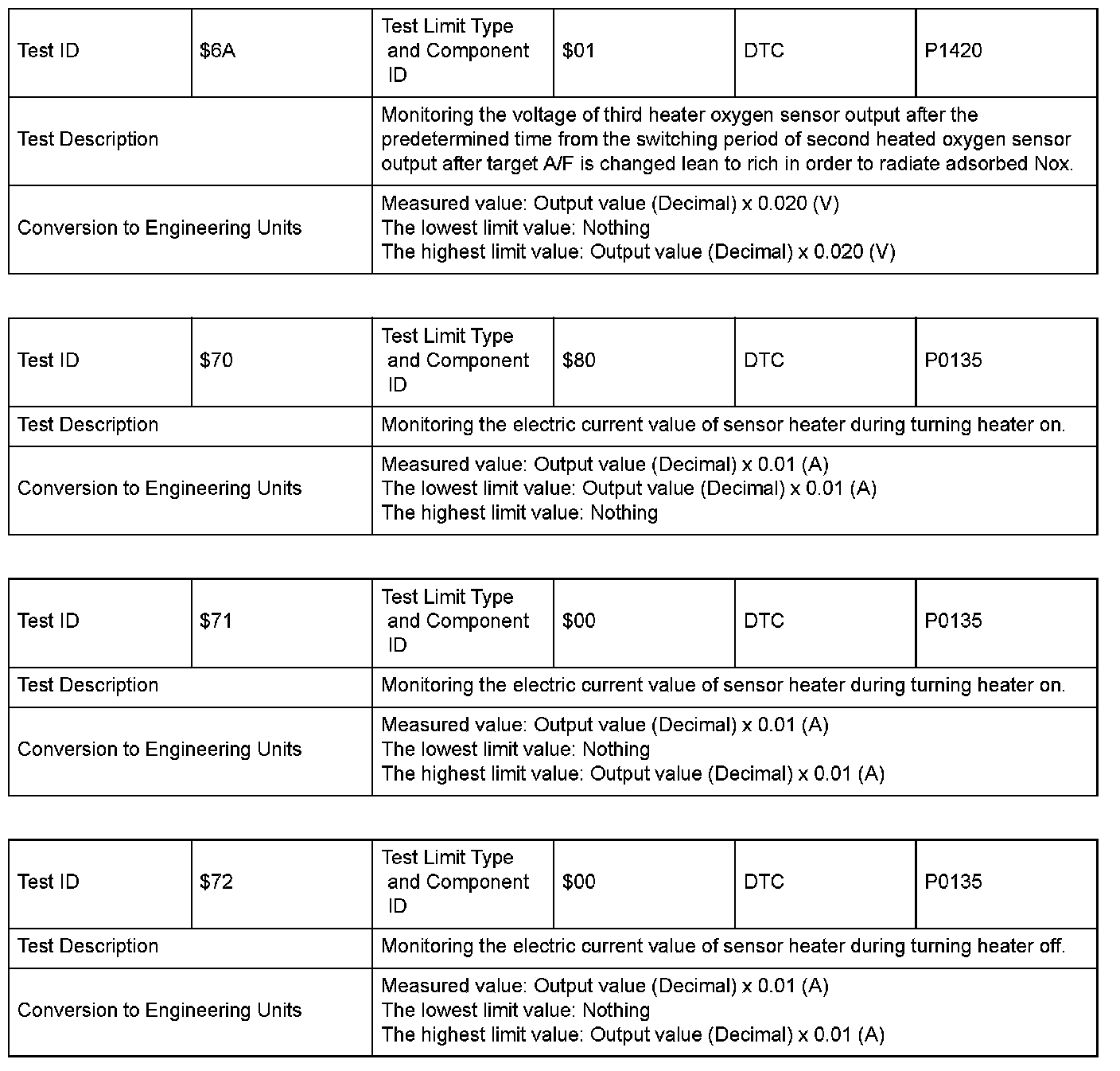

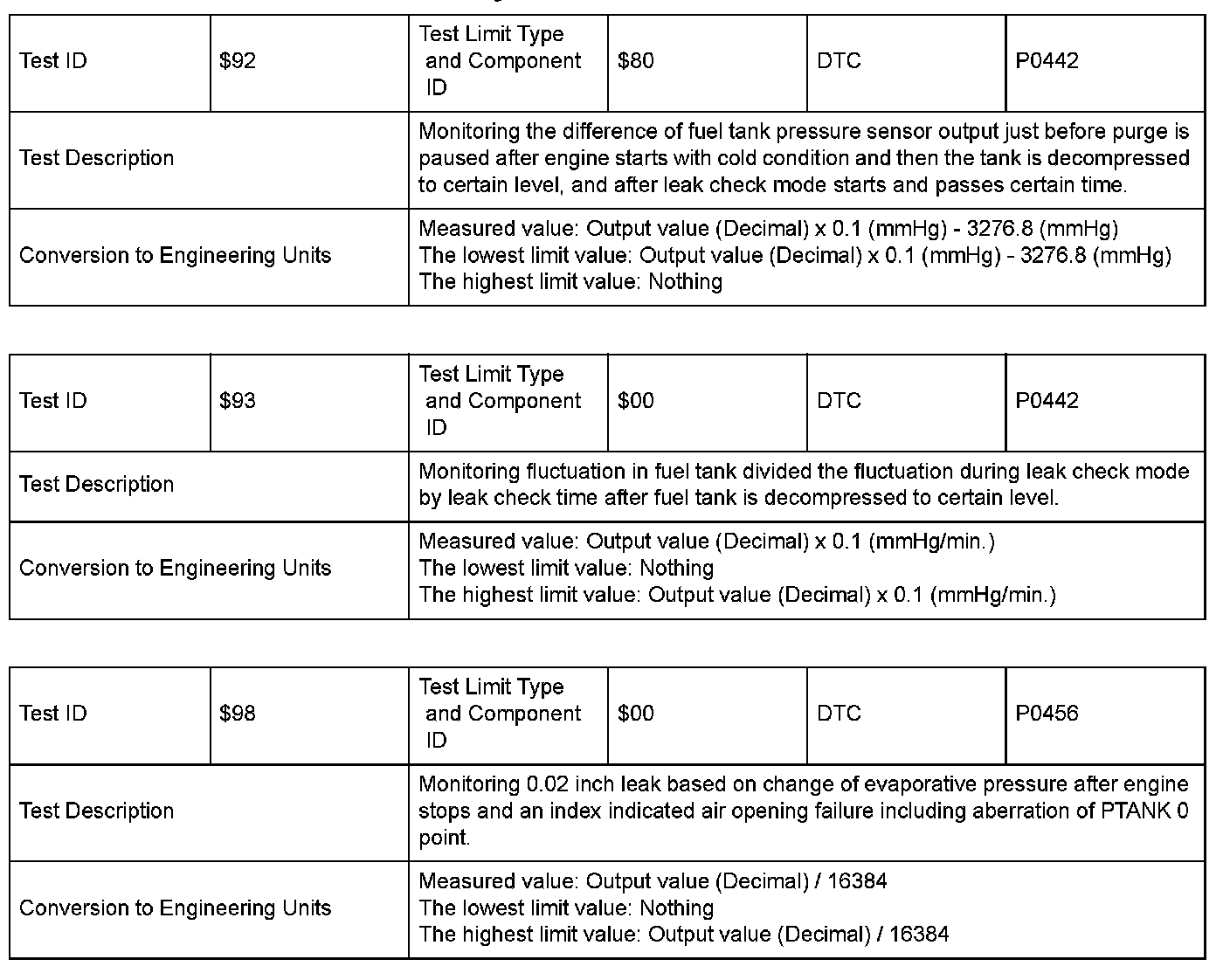

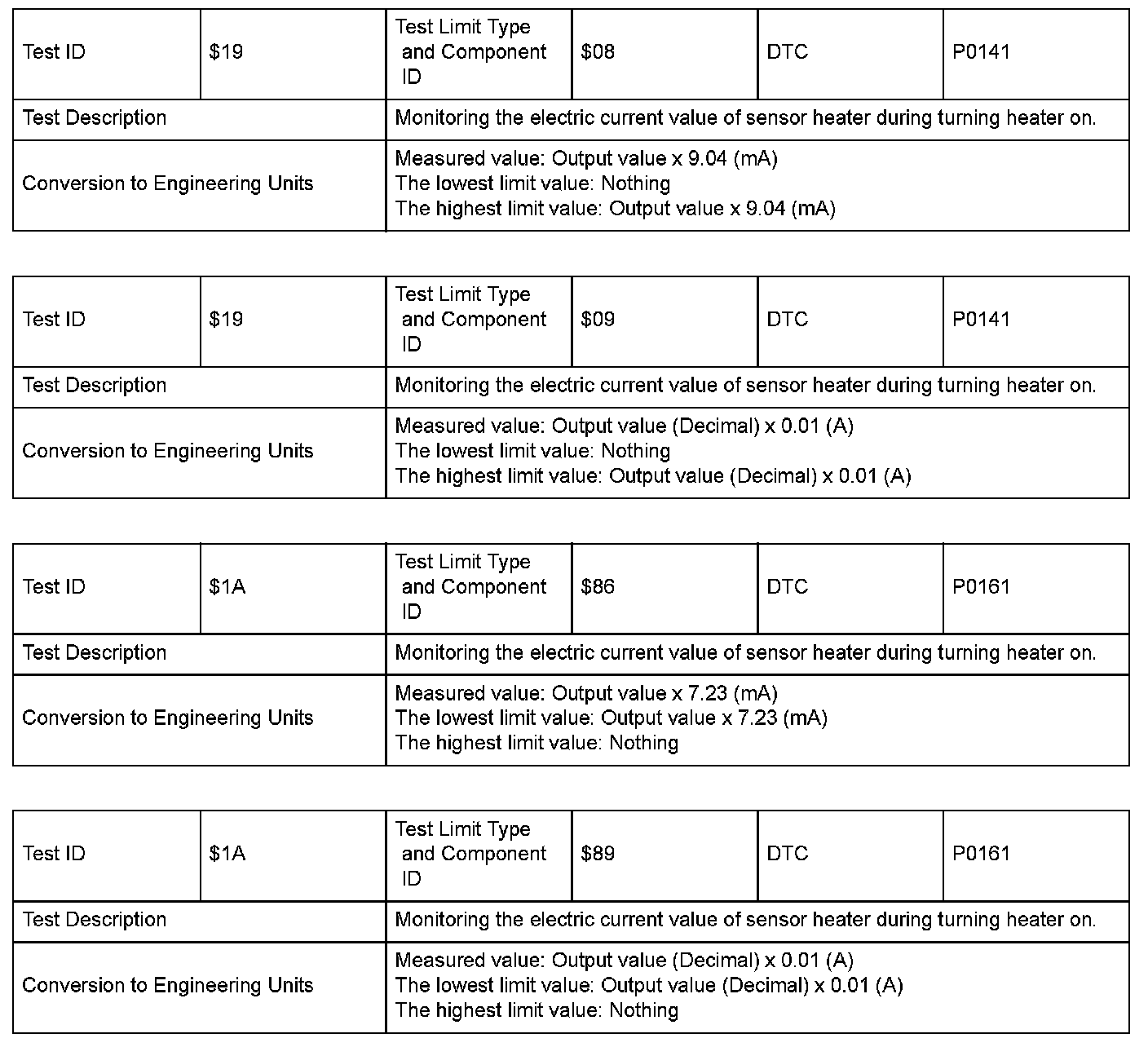

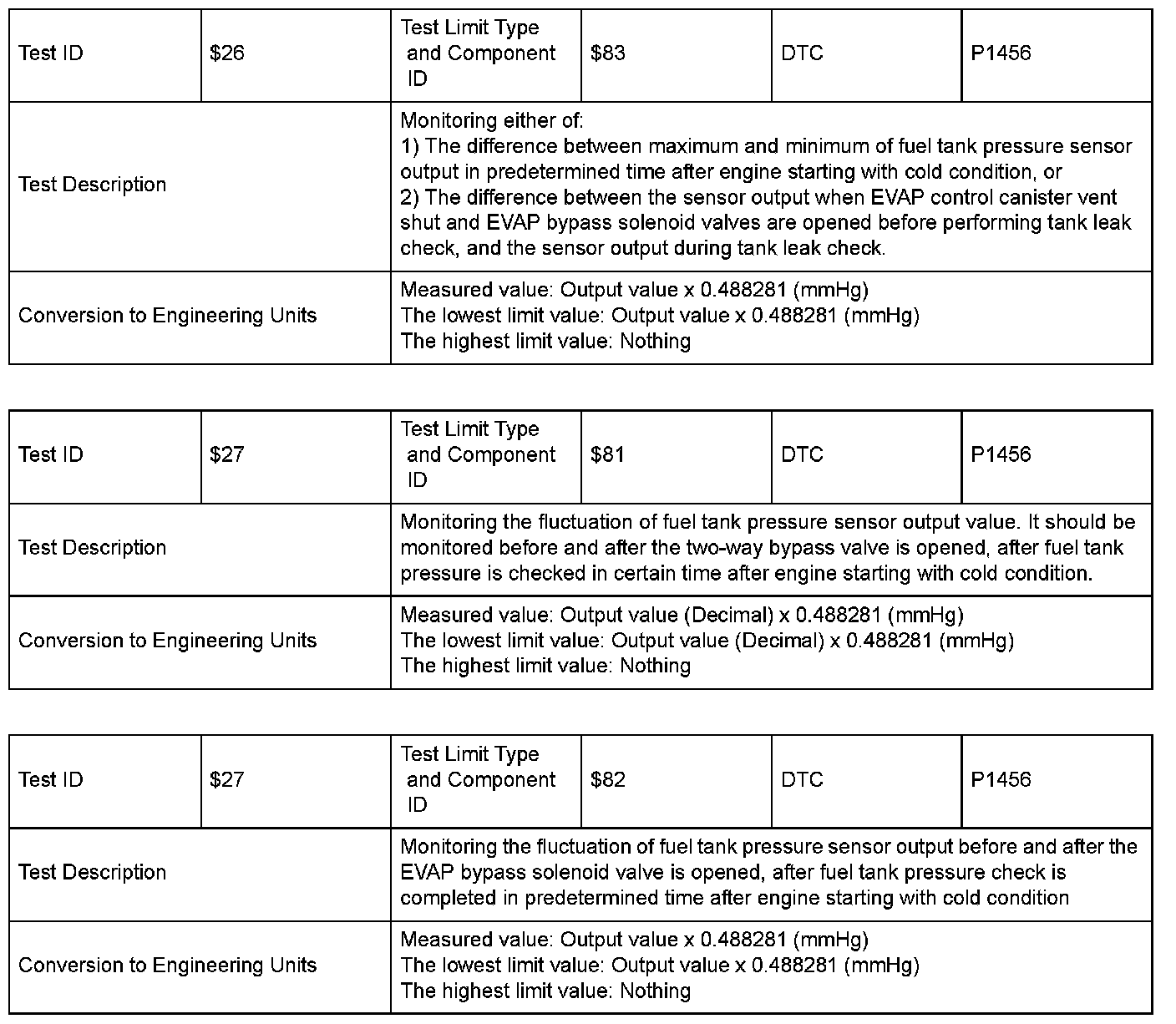

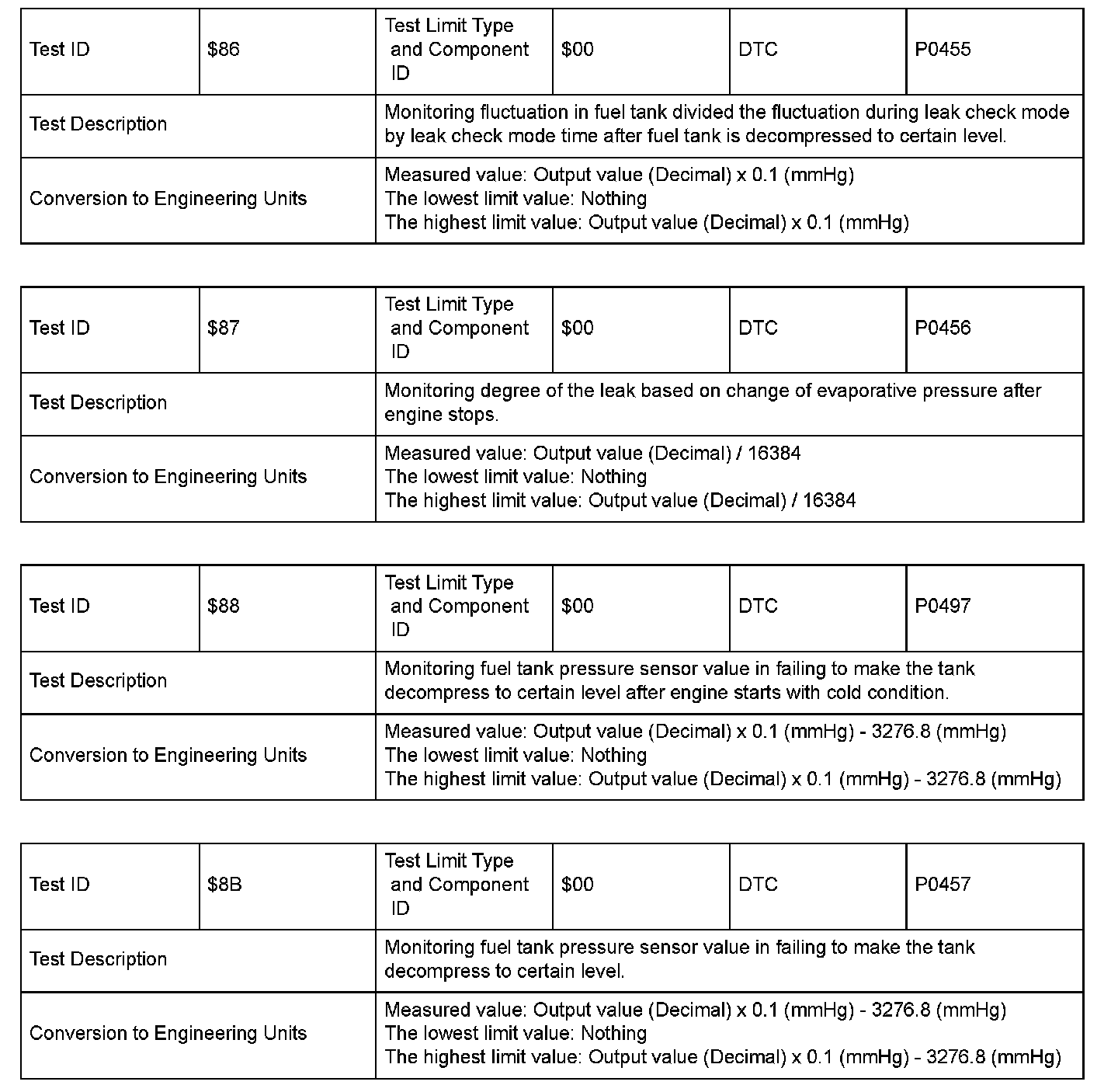

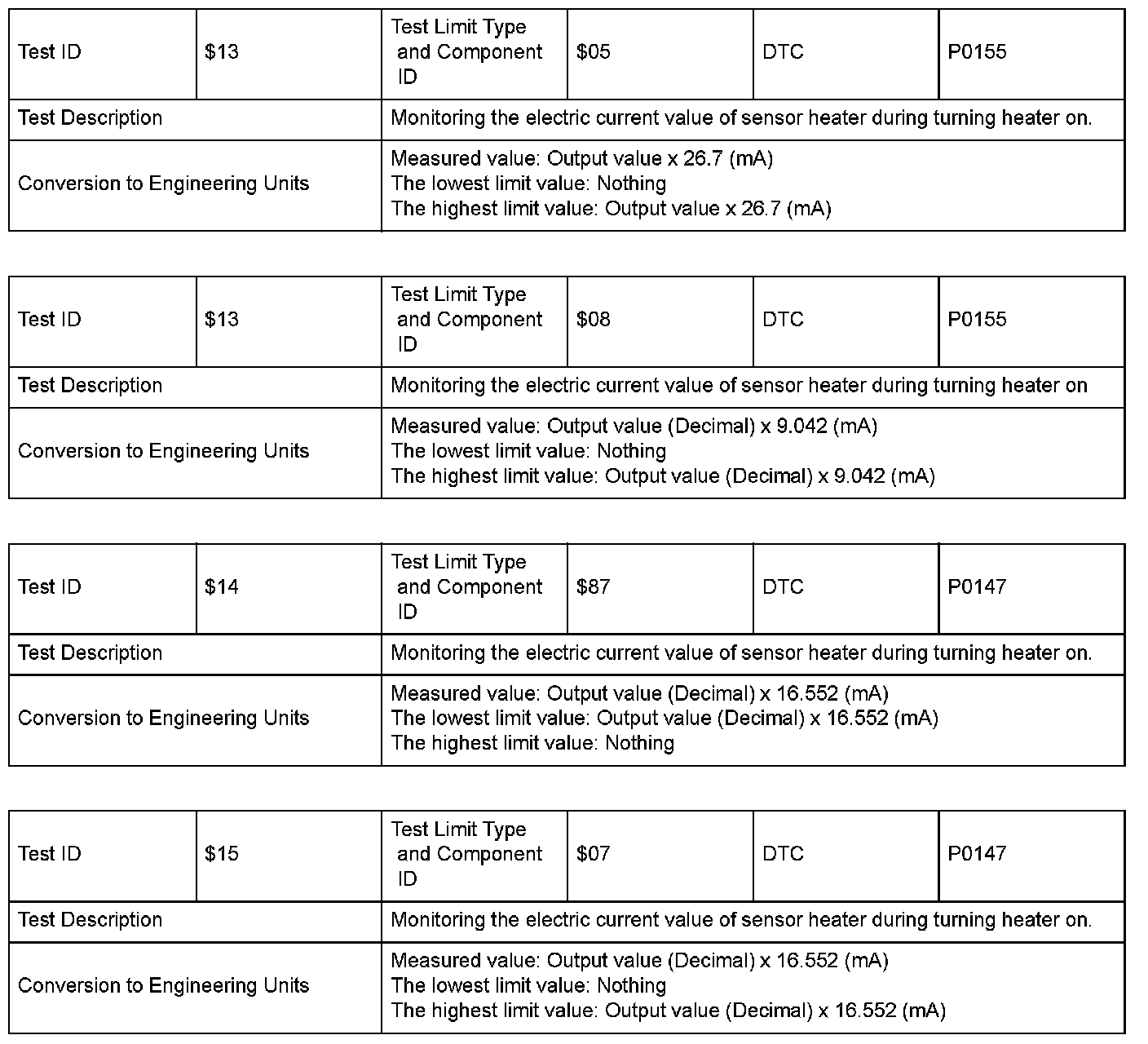

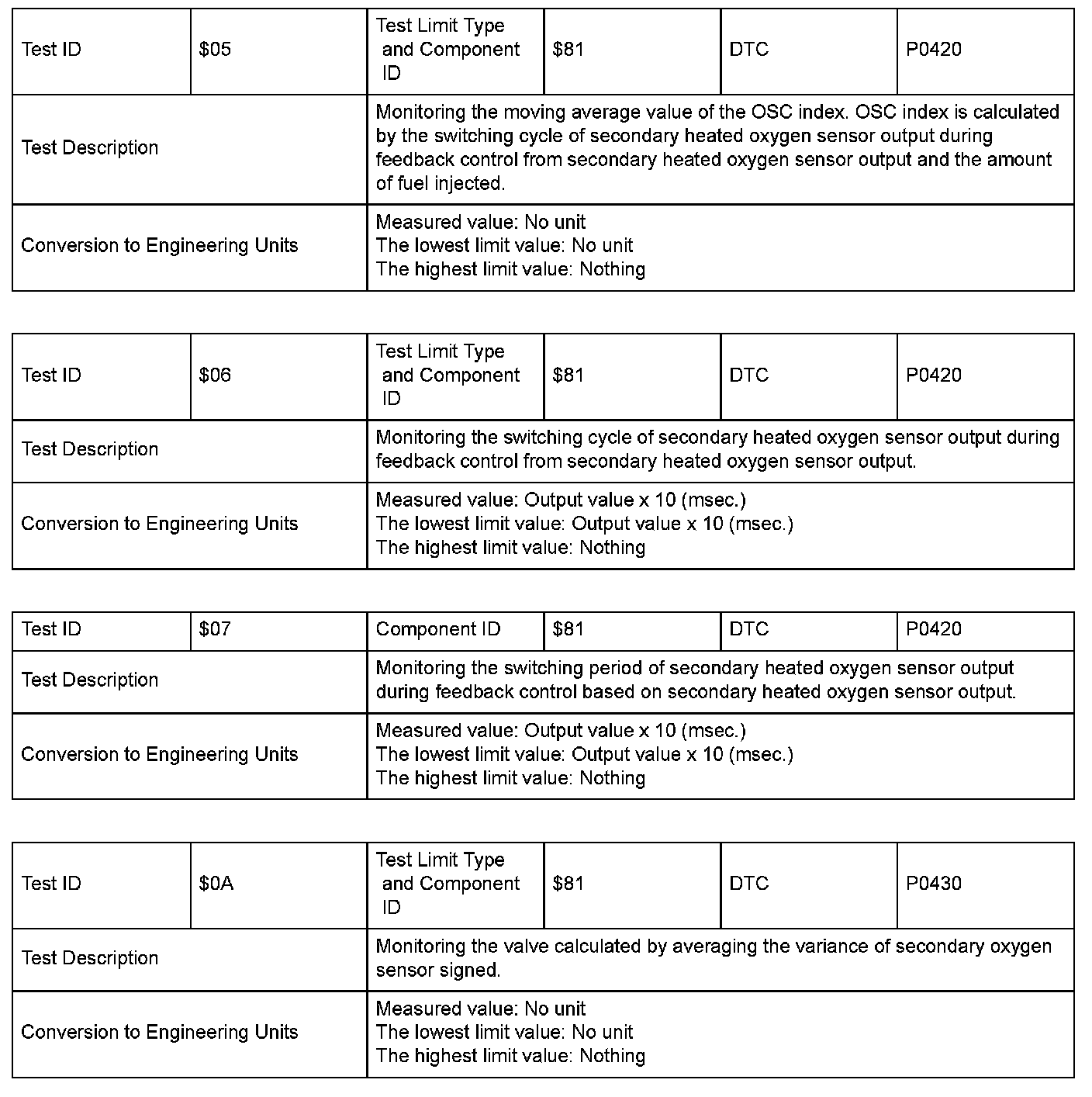

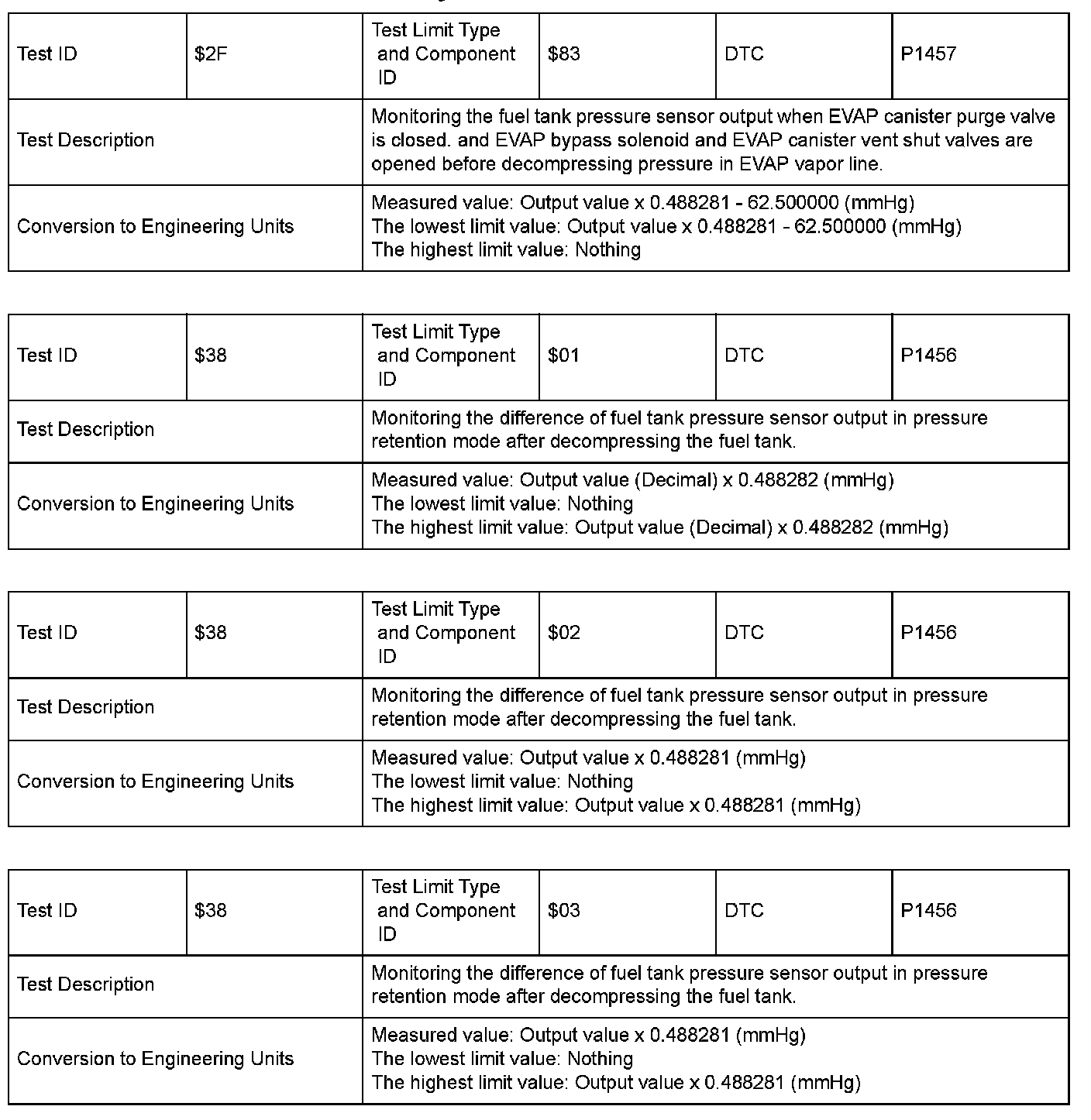

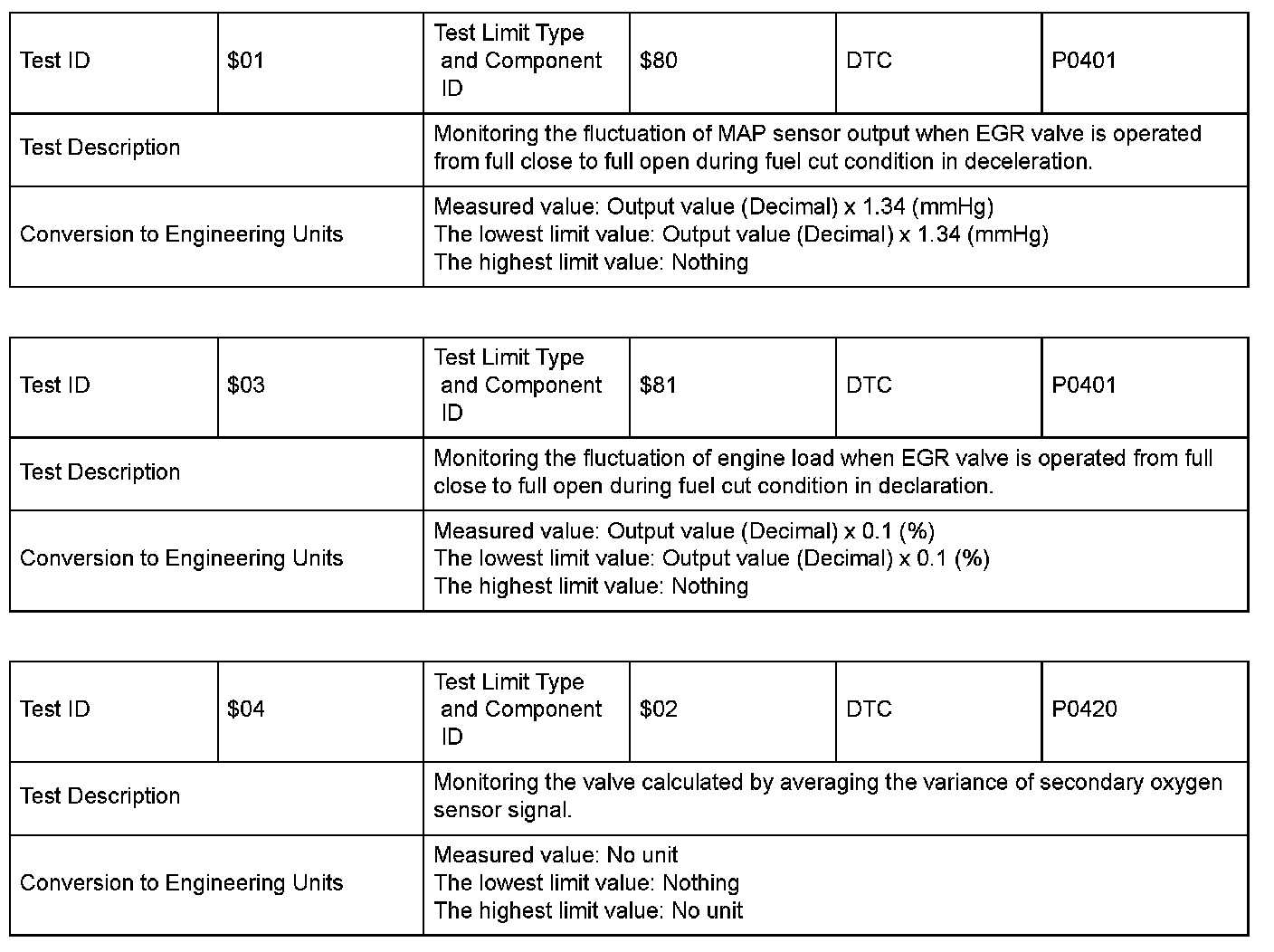

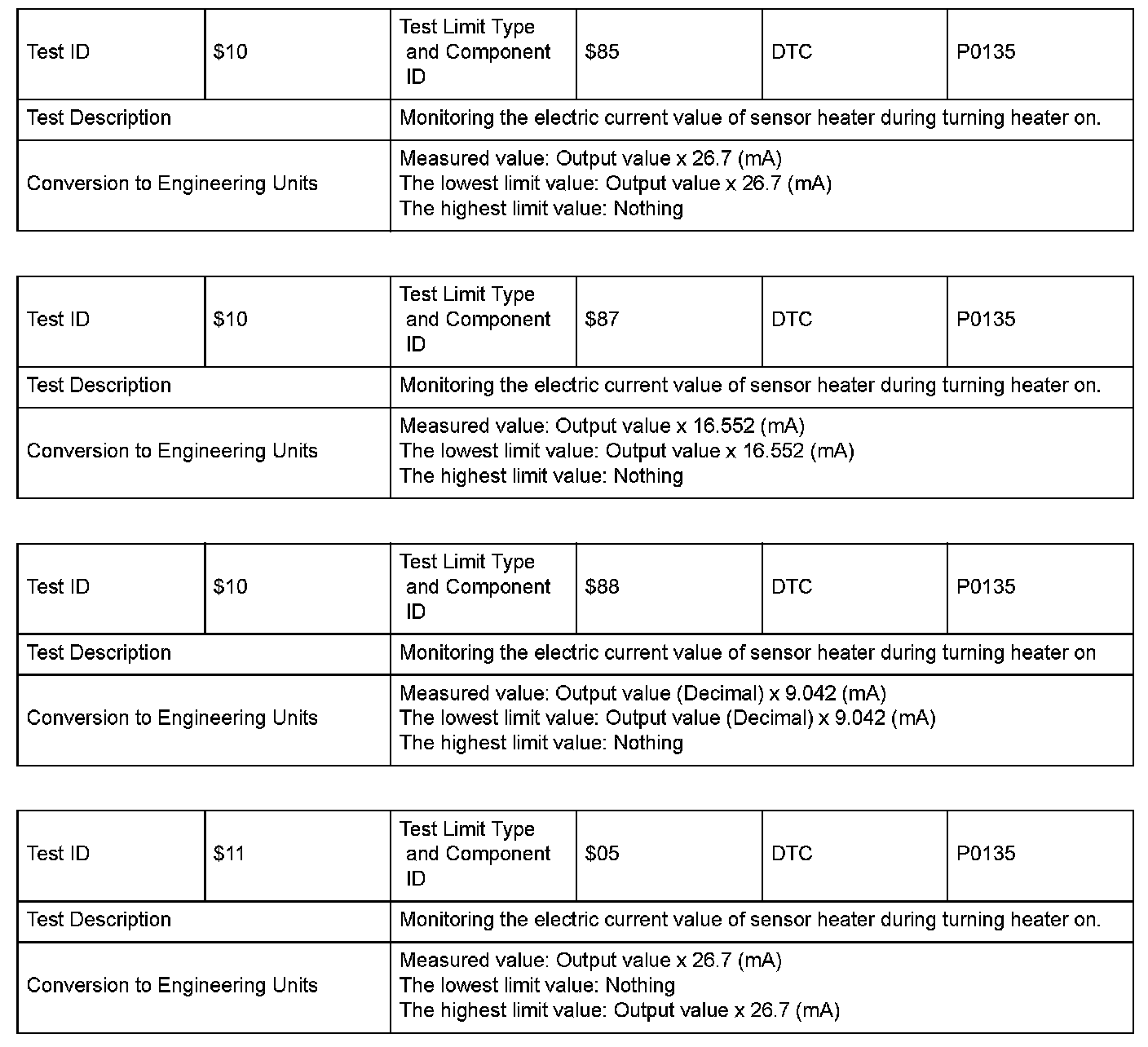

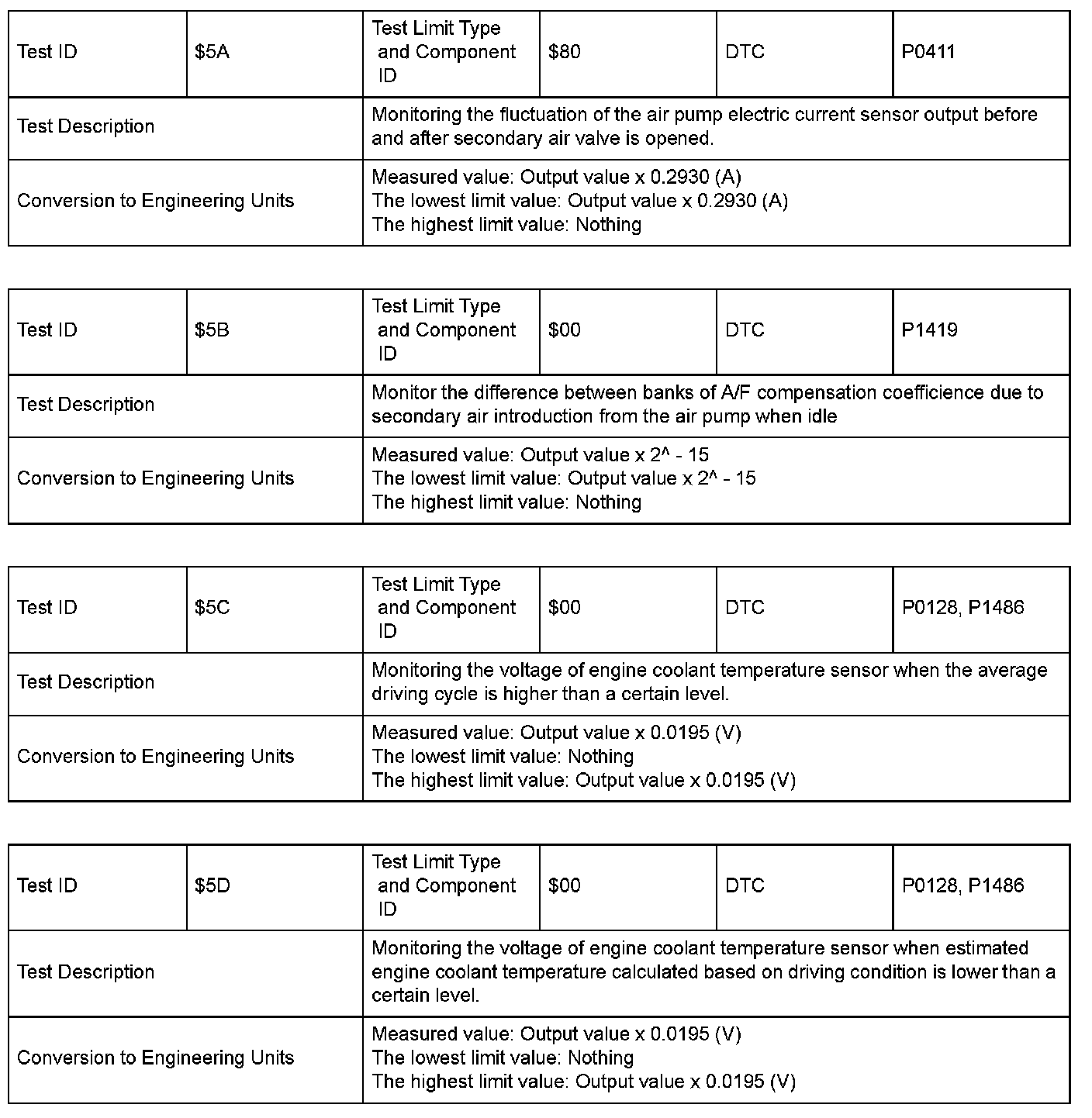

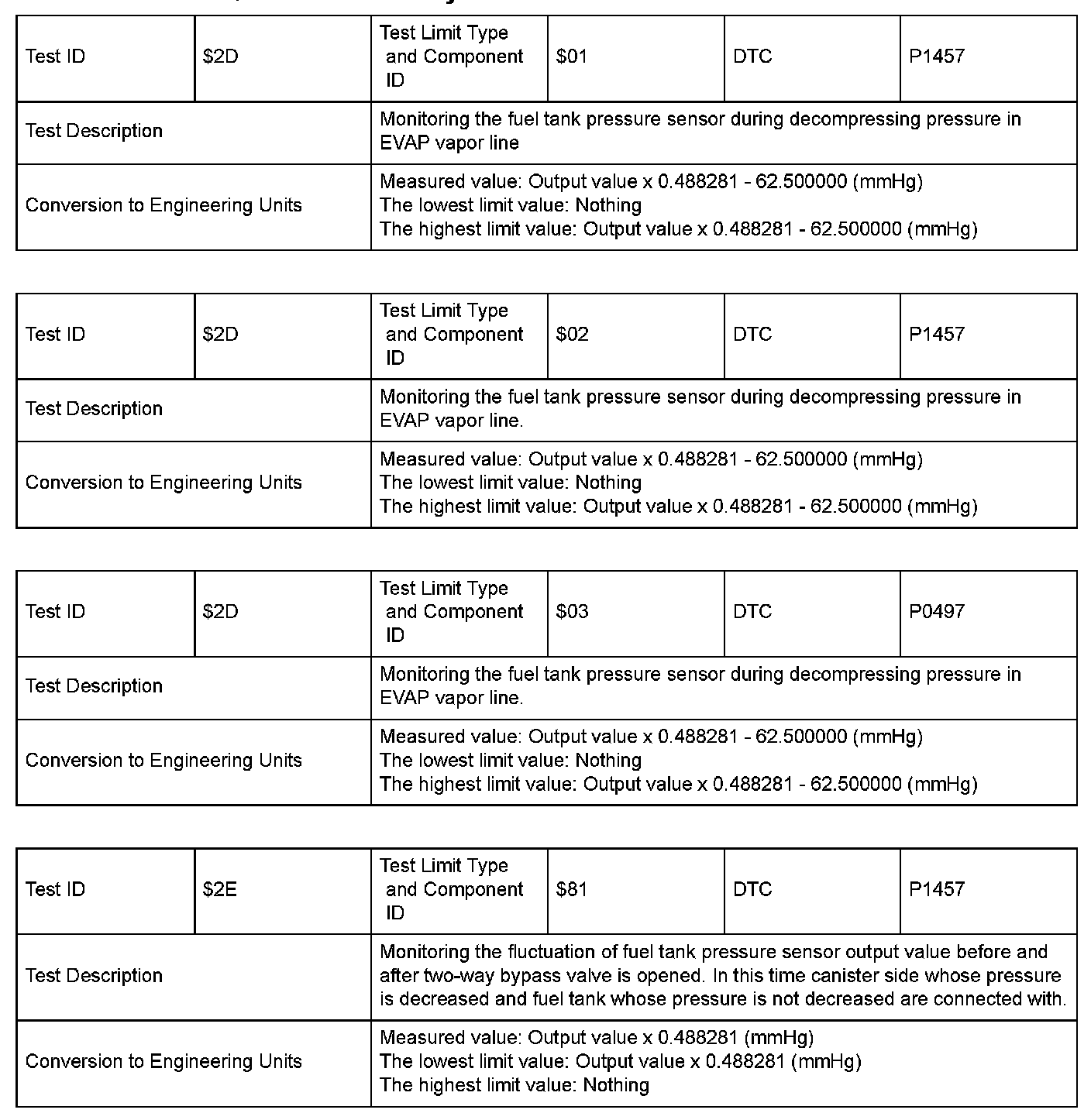

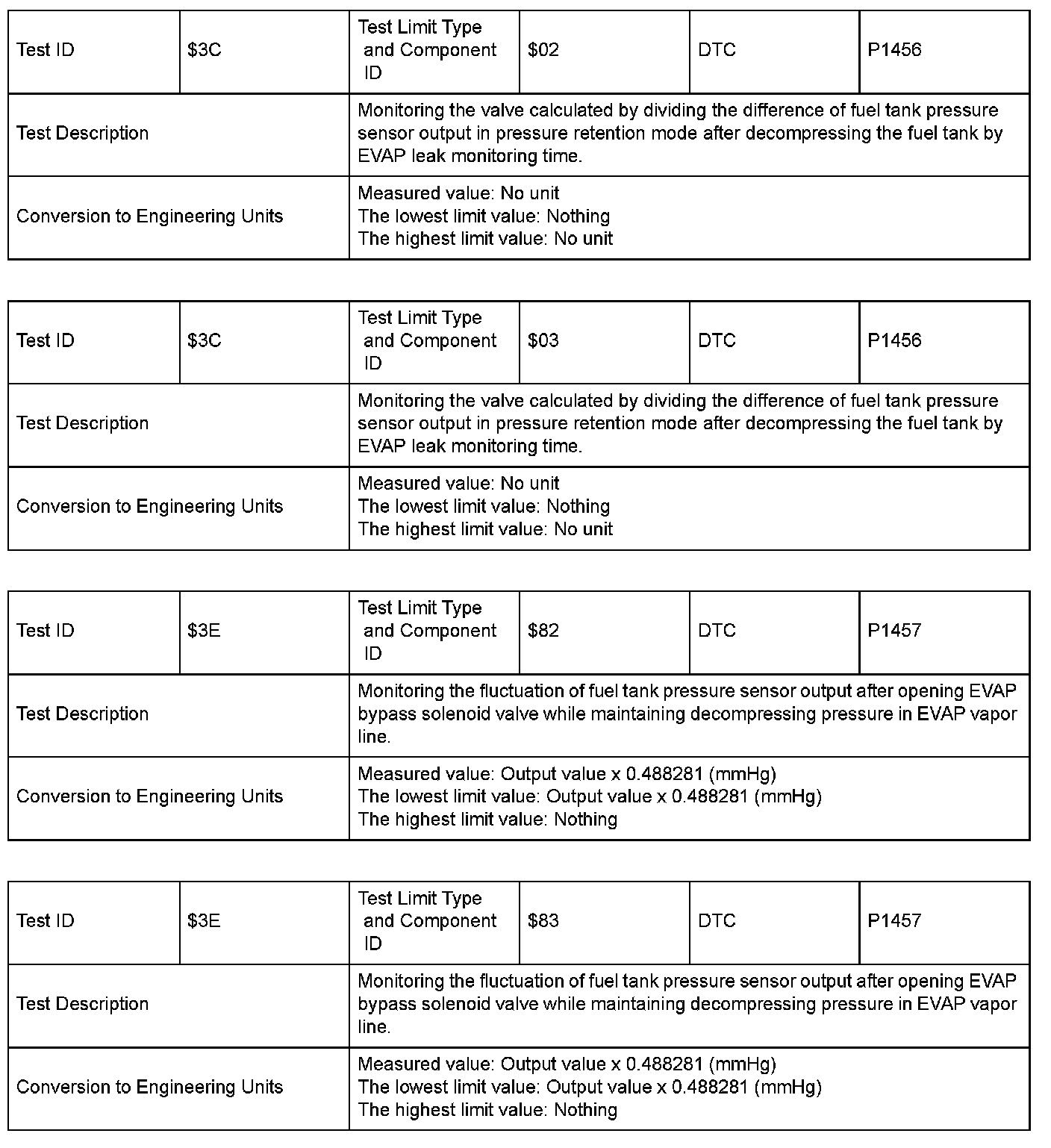

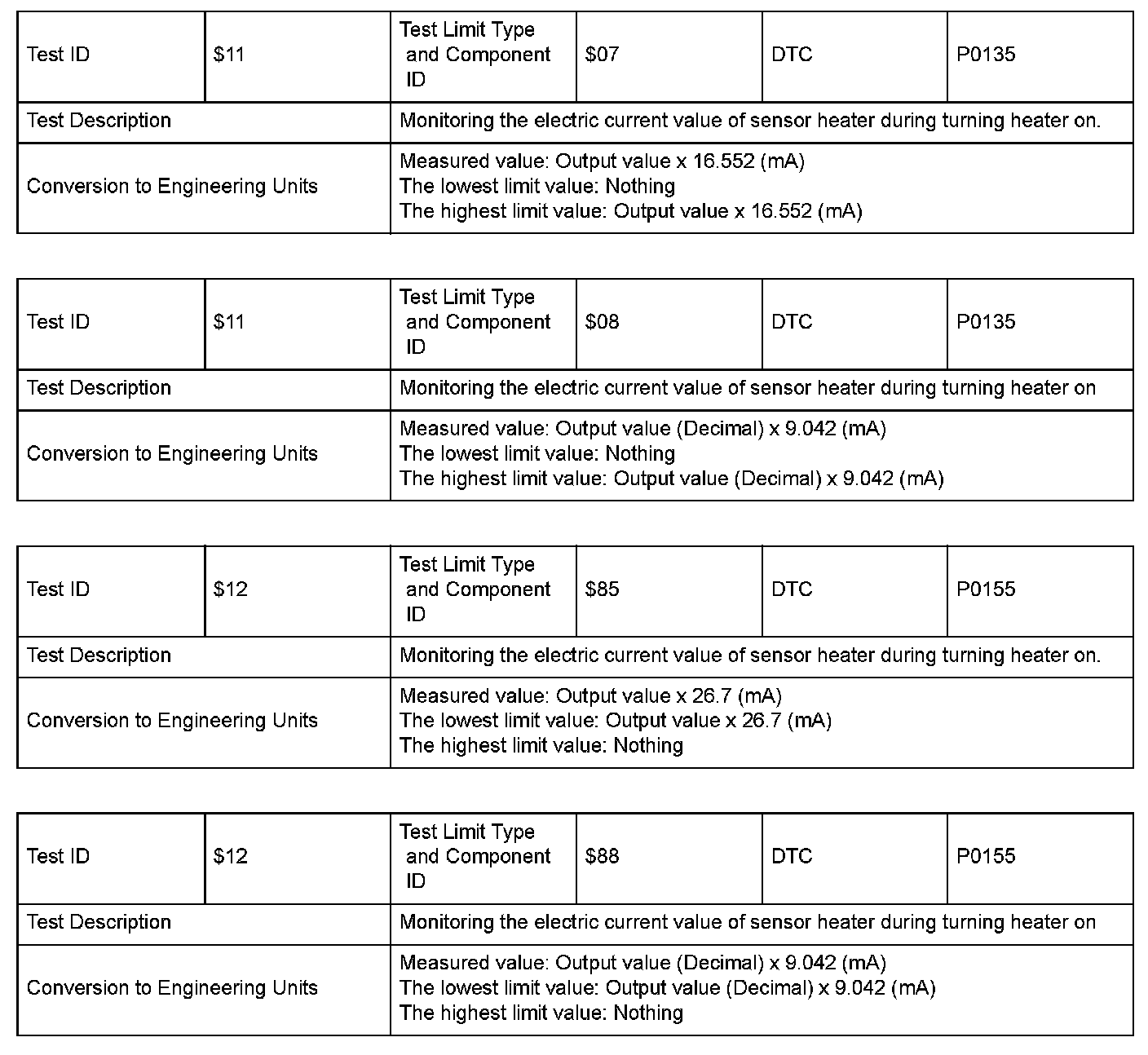

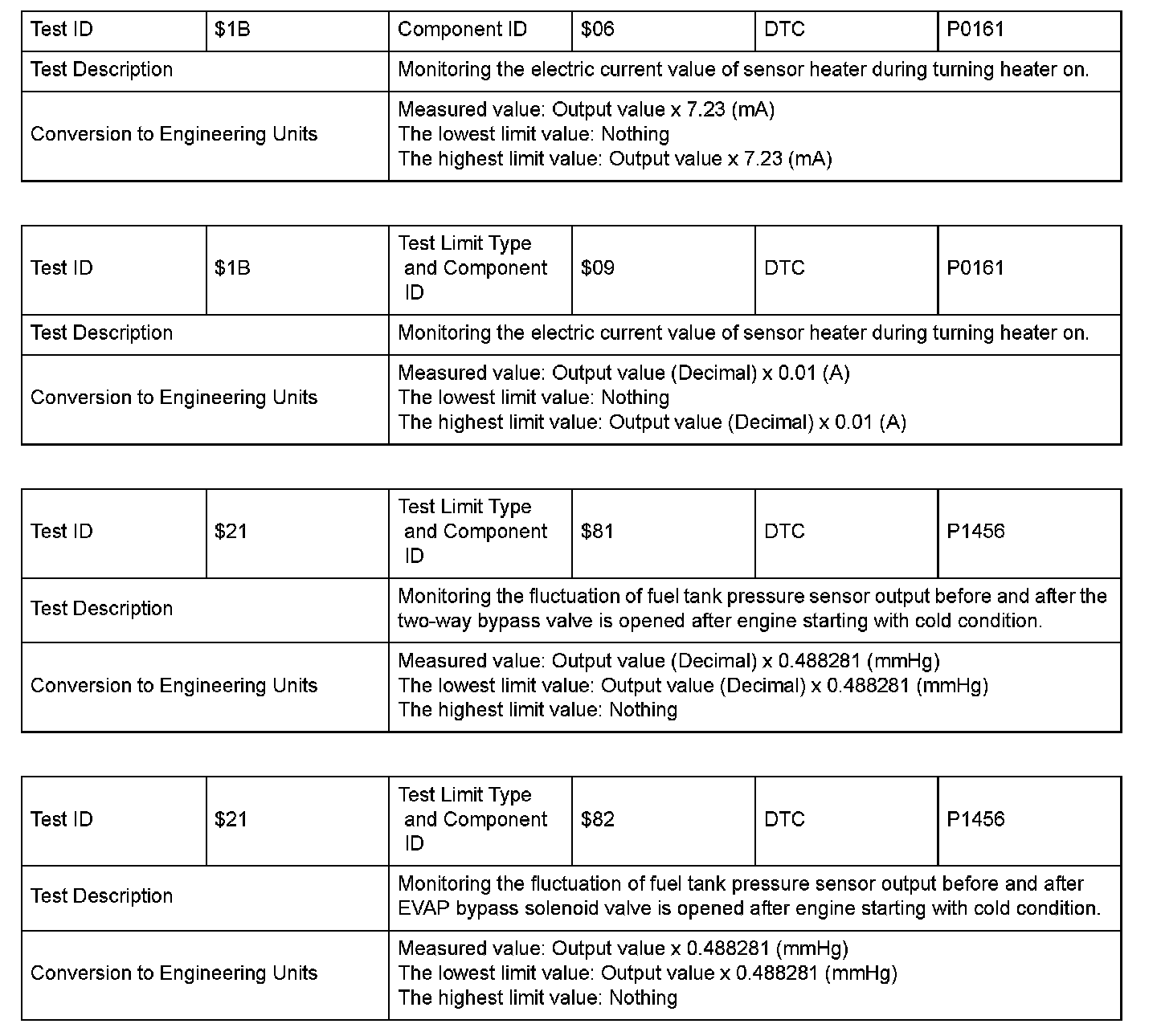

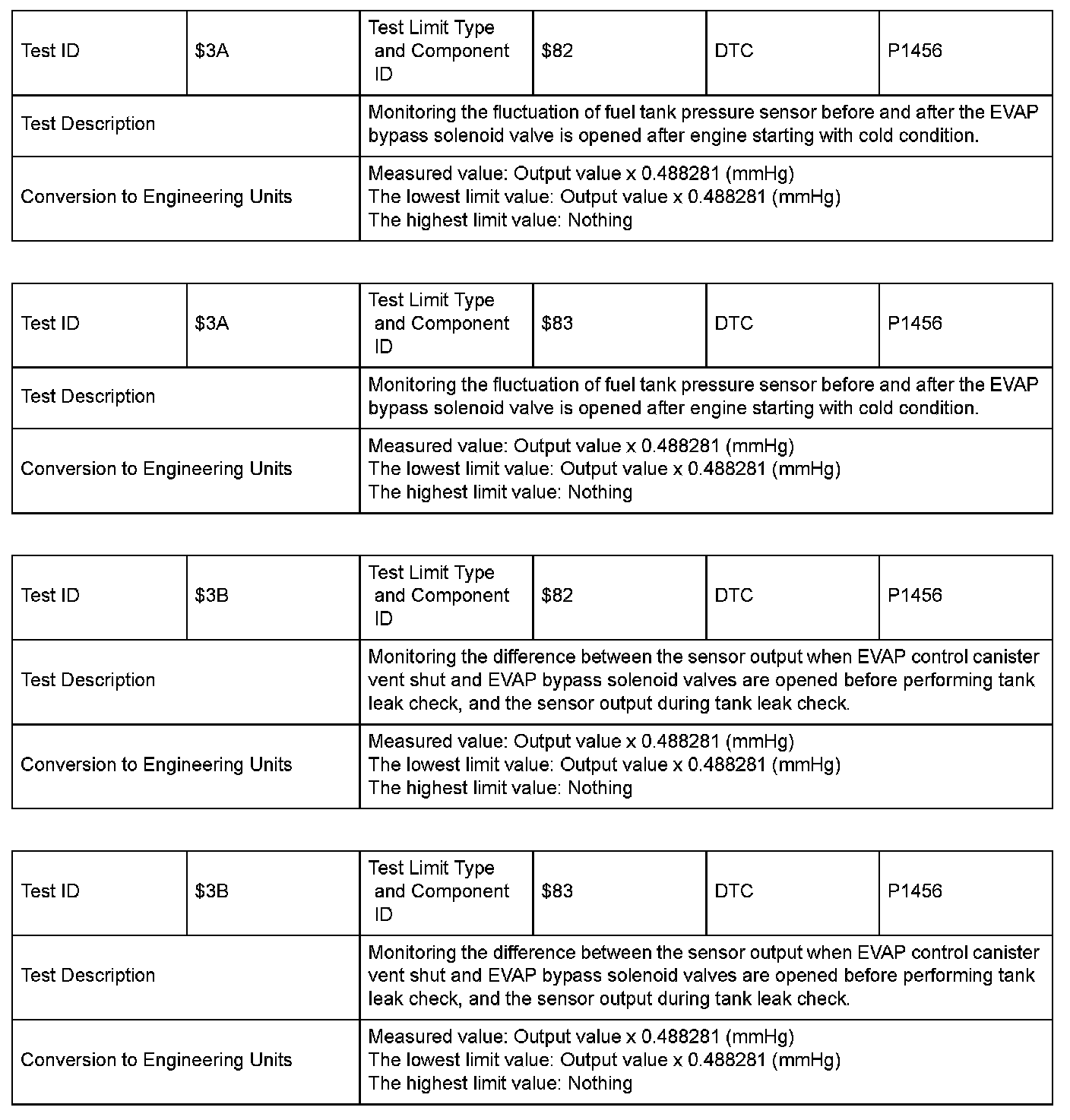

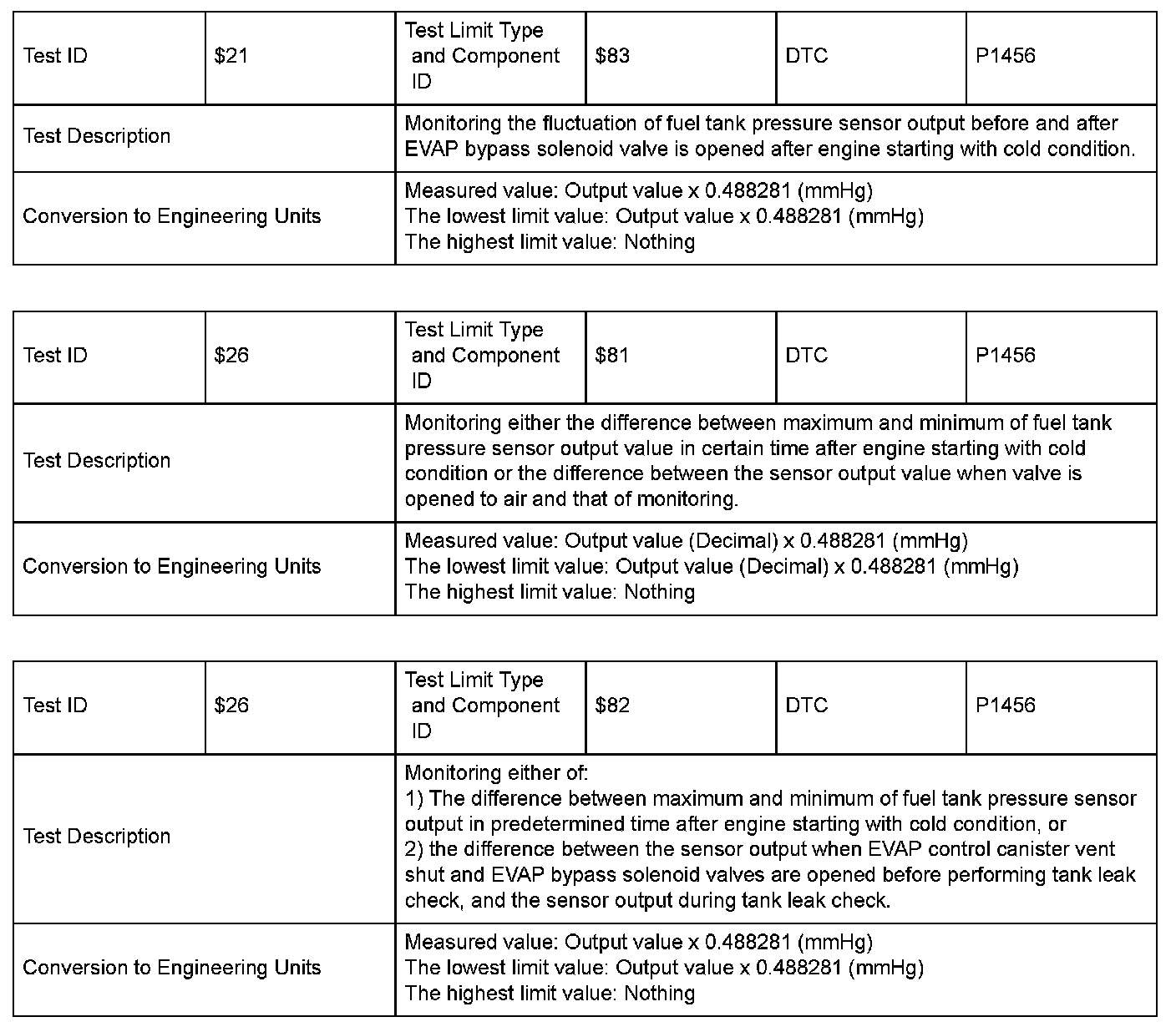

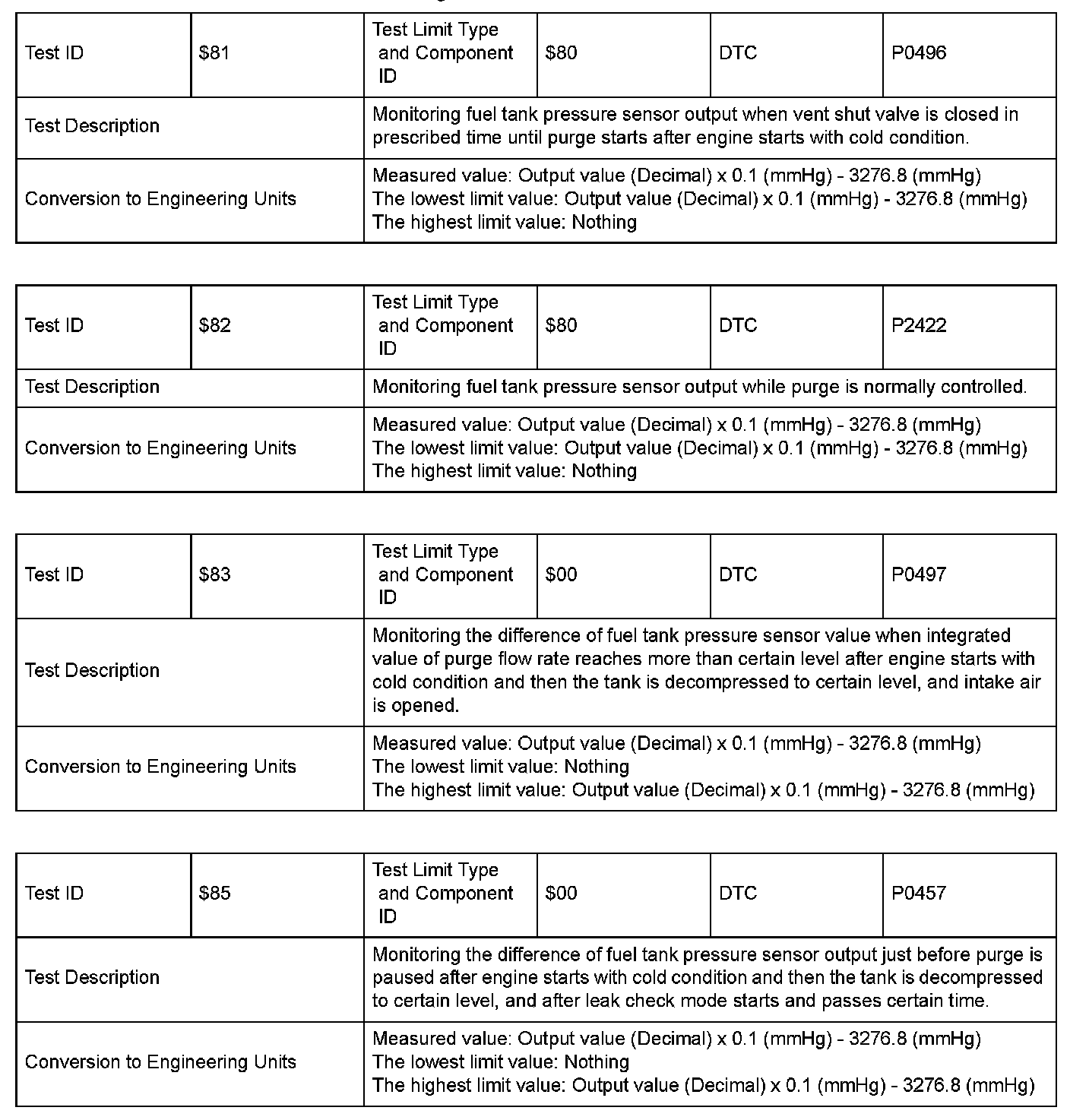

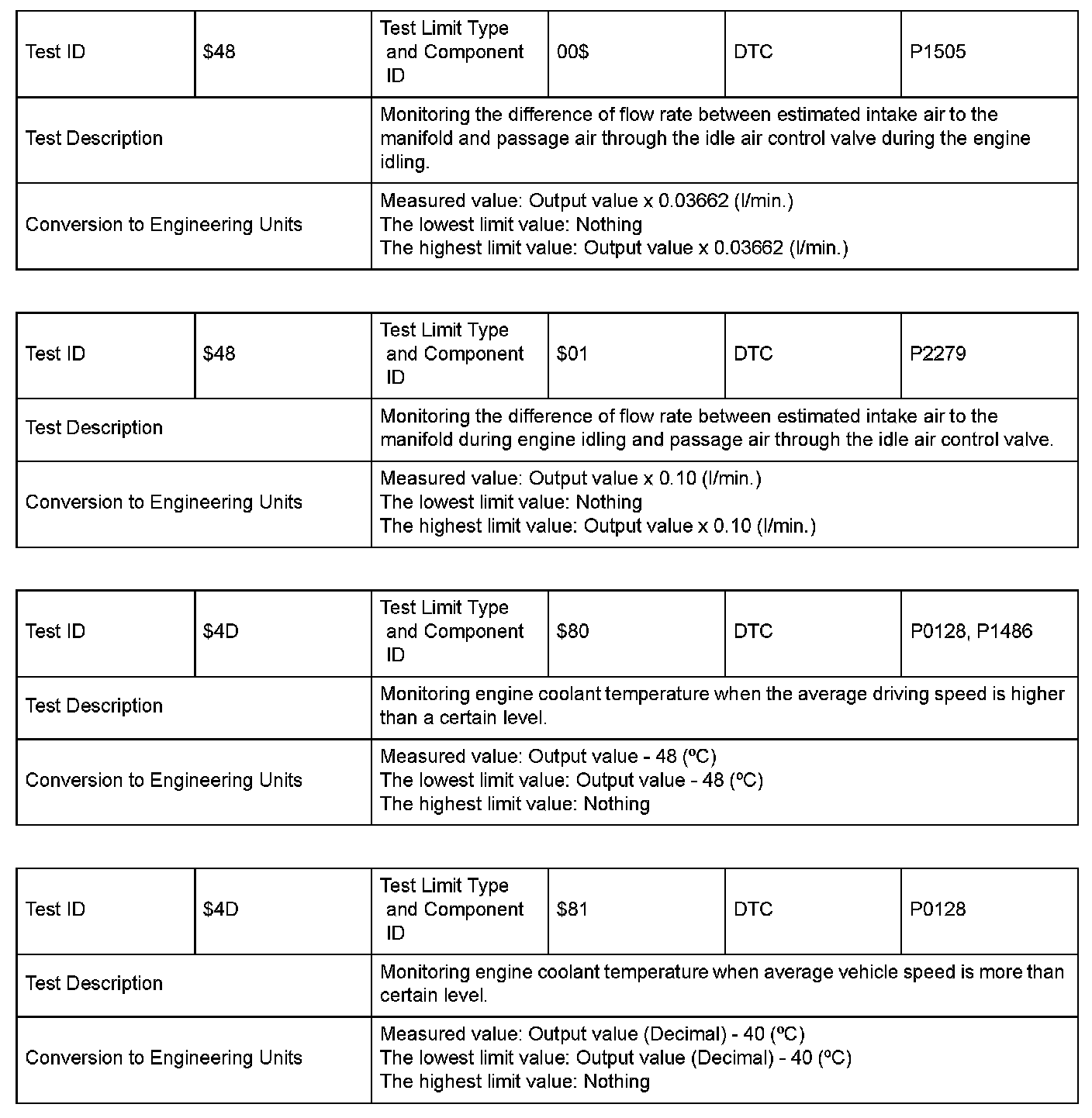

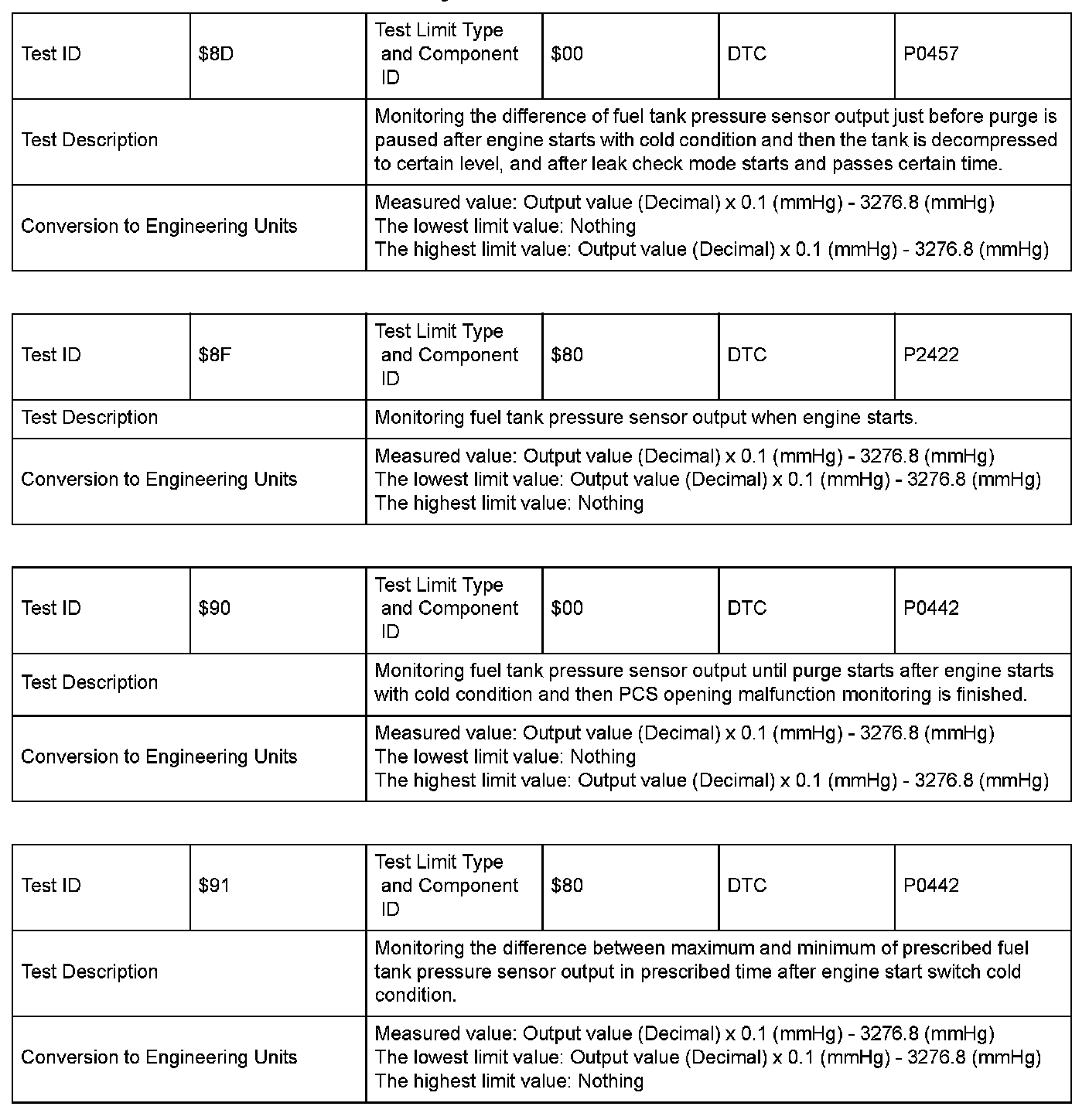

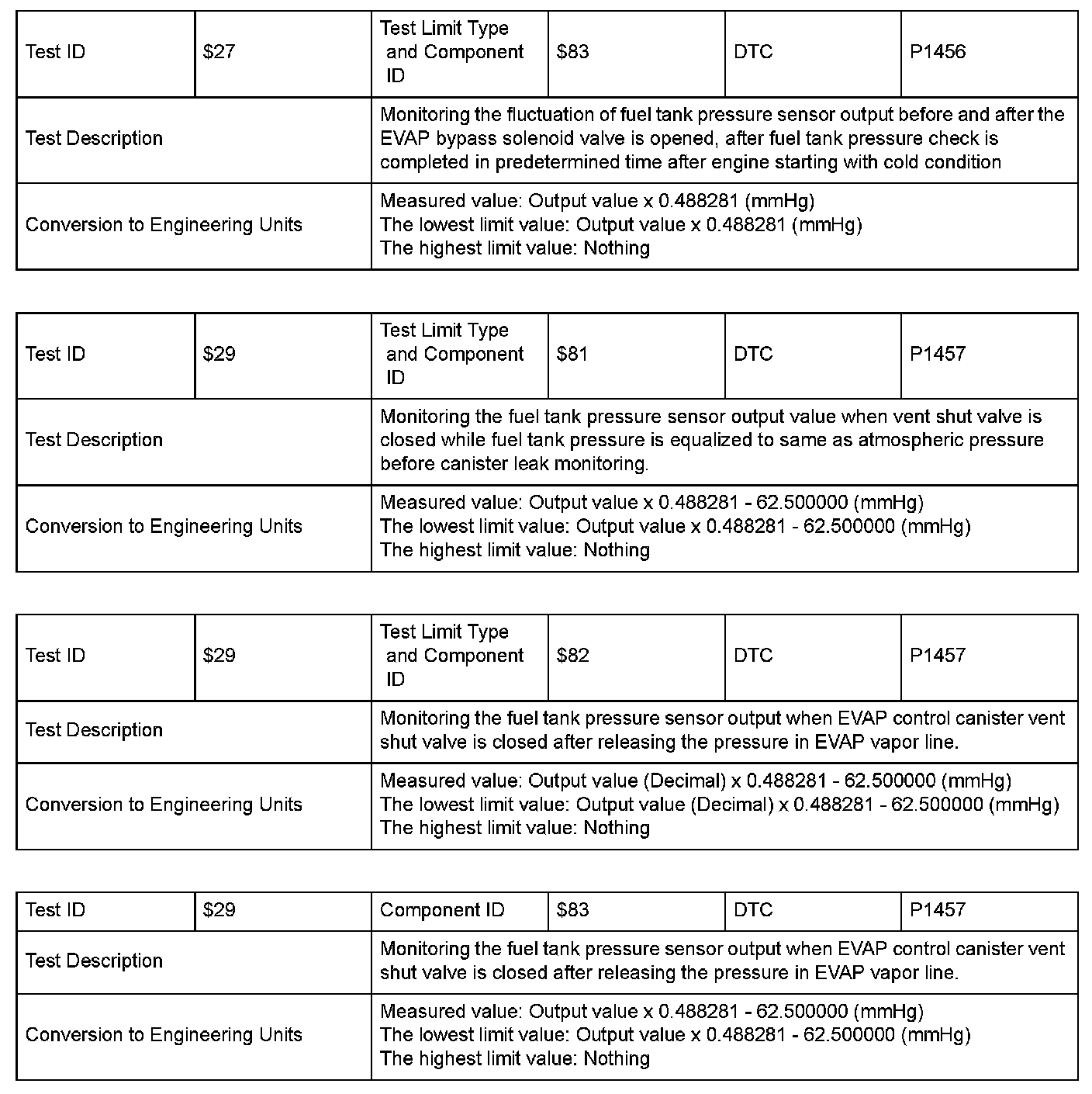

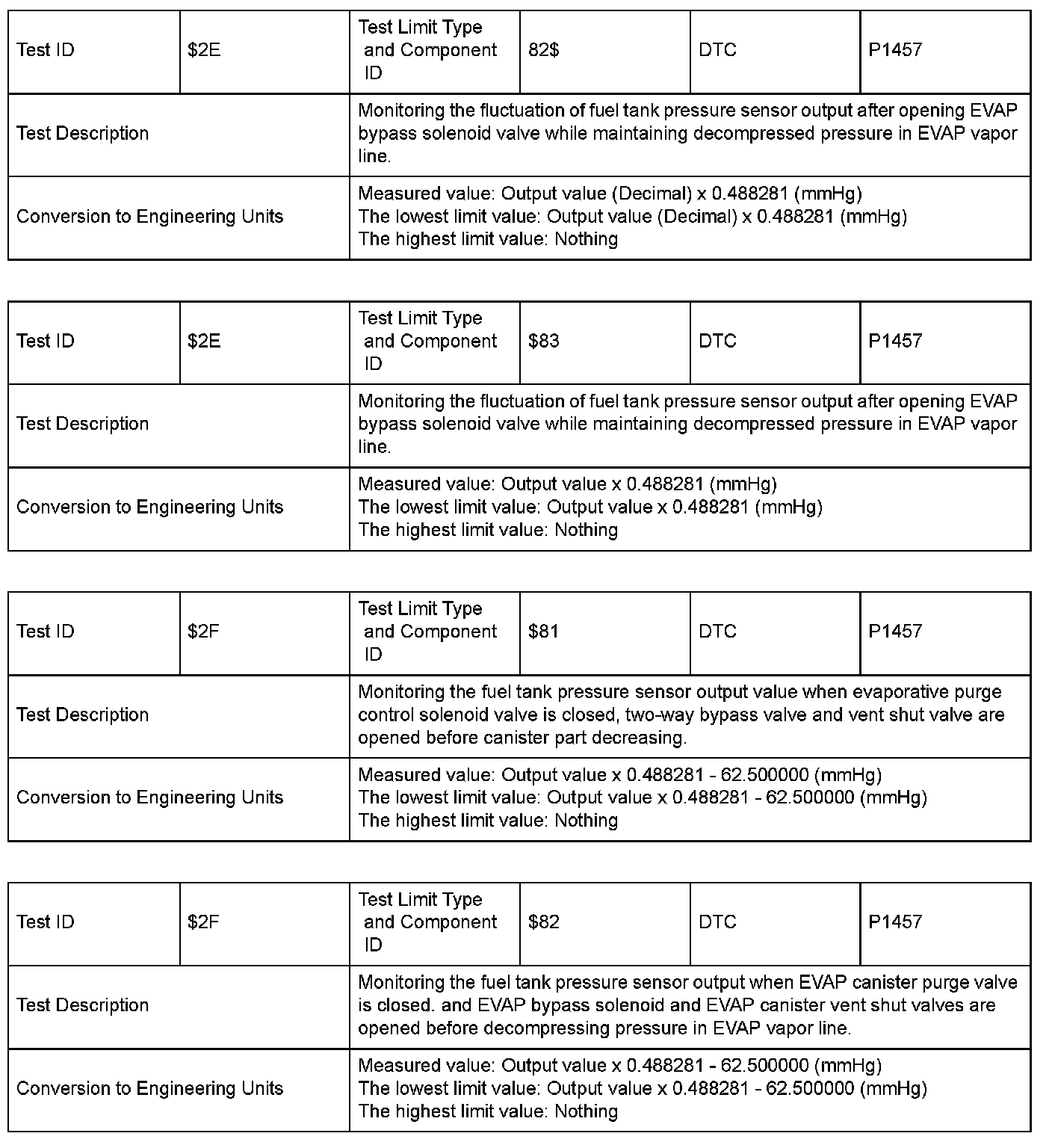

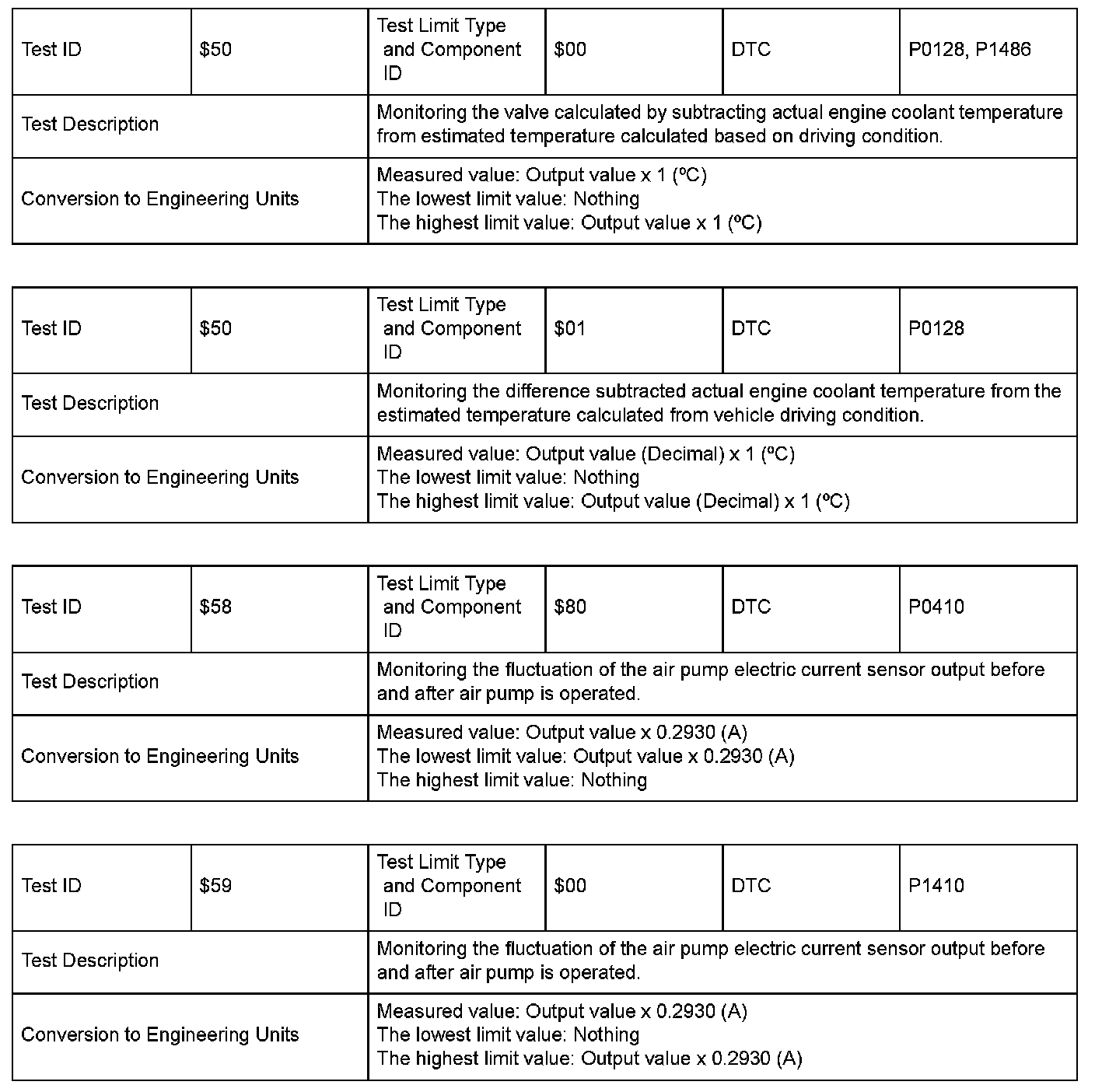

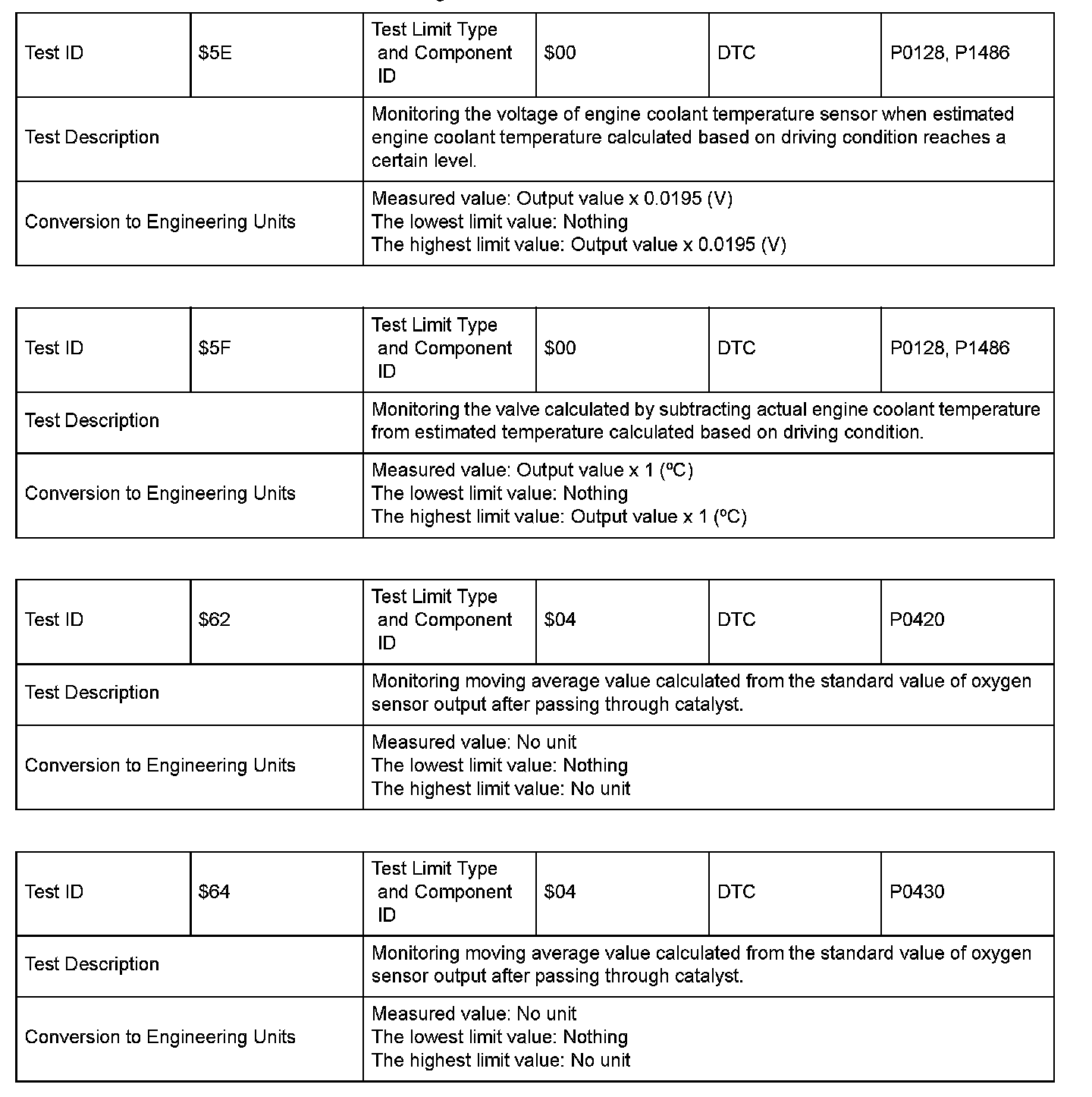

SAE J1979 Mode $06 Information by Test ID
