Home >> Honda >> 2004 >> S2000 L4-2.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electric Load Sensor >> Locations

Electric Load Sensor: Locations

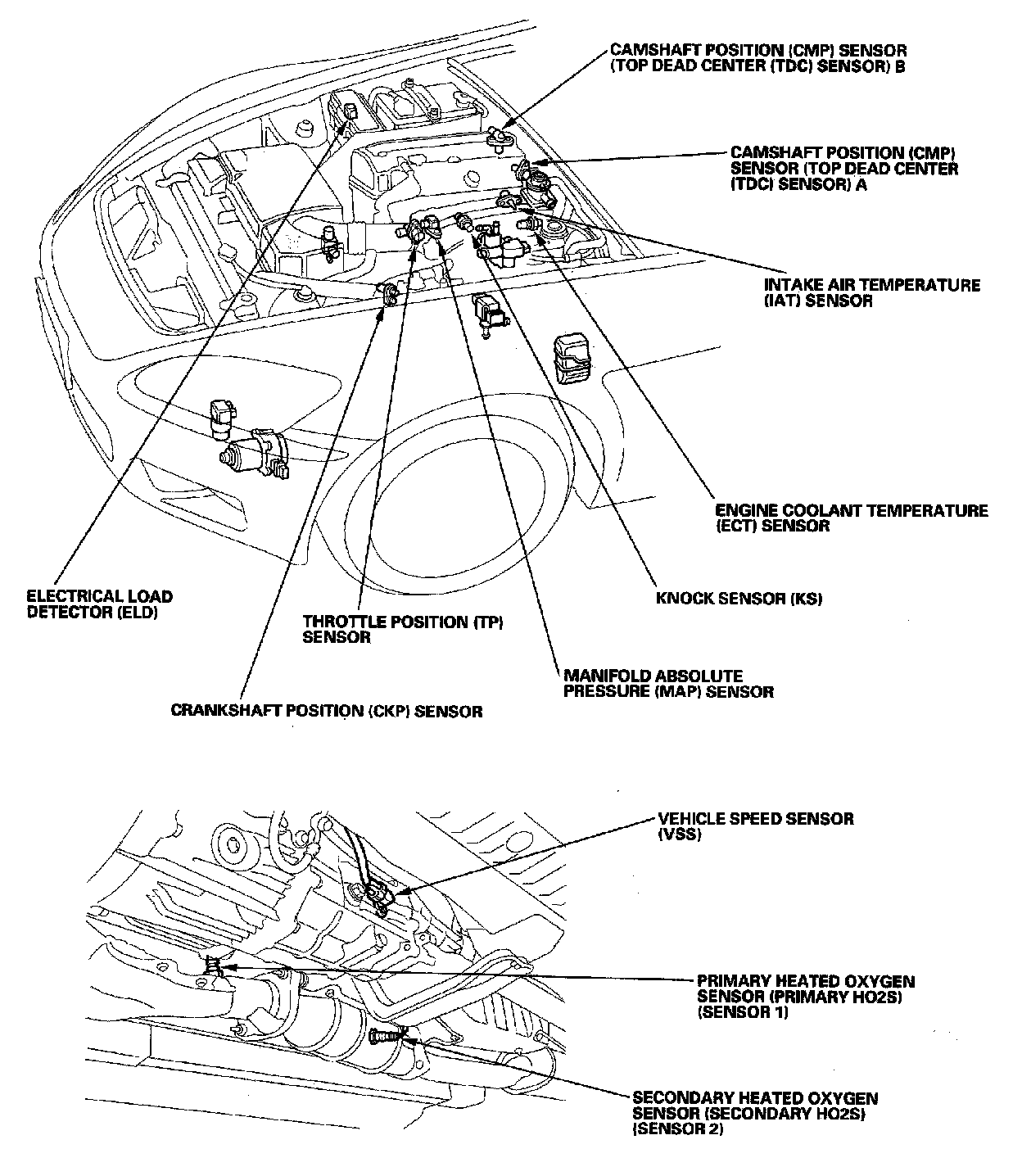

PGM-FI System - Component Location Index:



Pulsed Secondary Air Injection System - Component Location Index:

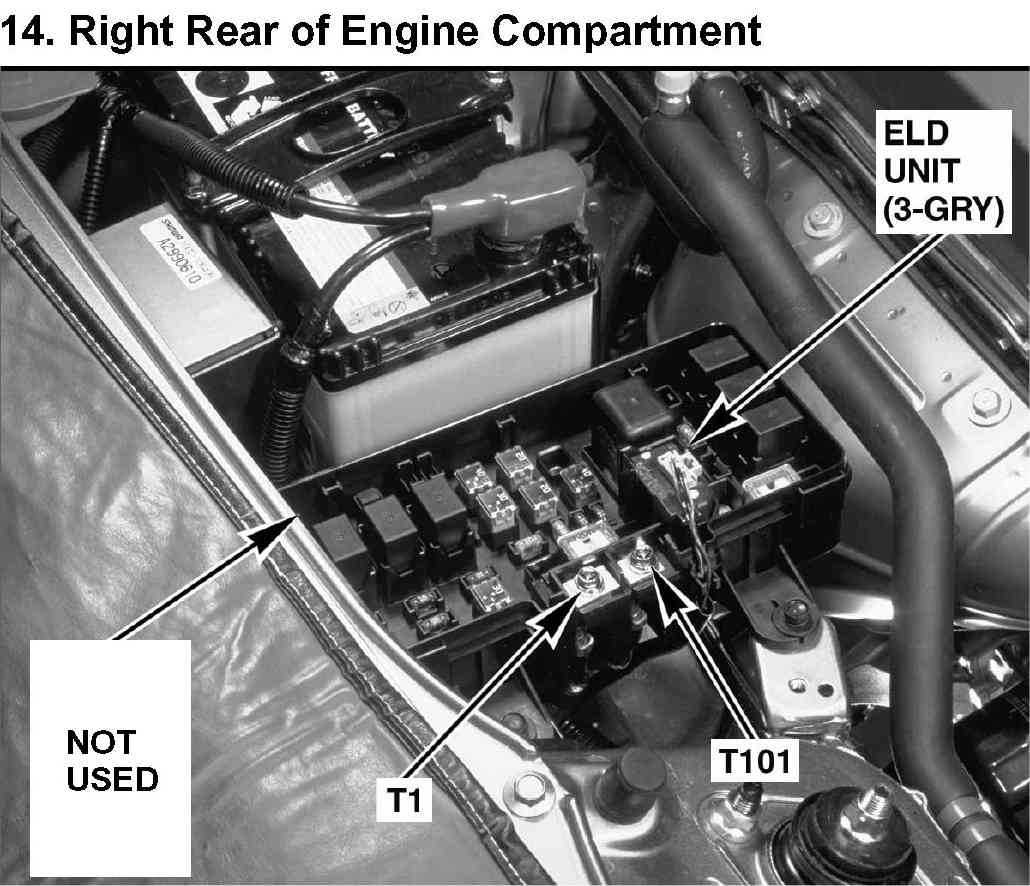

14. Right Rear of Engine Compartment:
