Honda
>>
2004
>>
S2000 L4-2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Under-Dash Fuse/Relay Box
Under-Dash Fuse/Relay Box

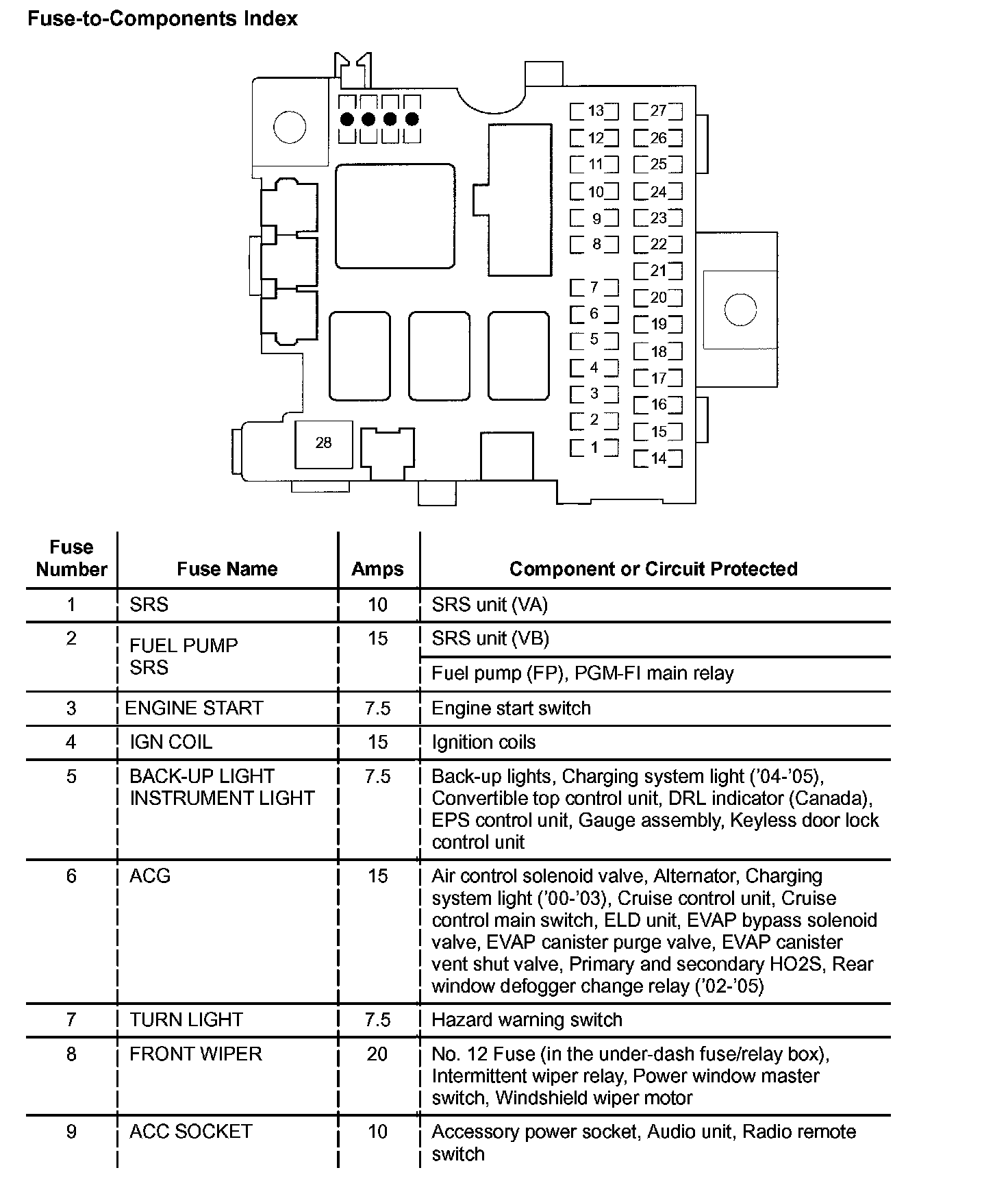

Under-dash Fuse/Relay Box Part 1:

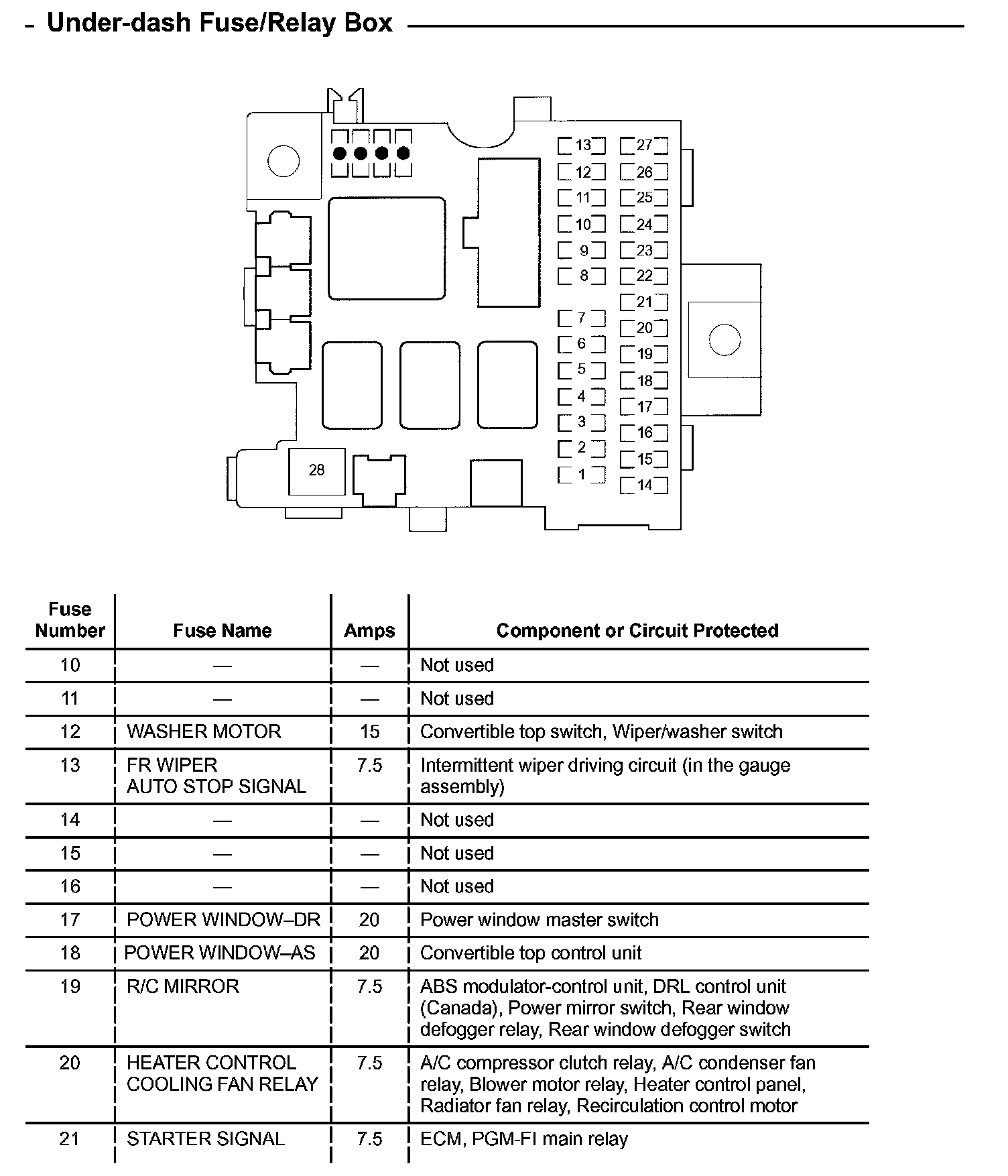

Under-dash Fuse/Relay Box Part 2:

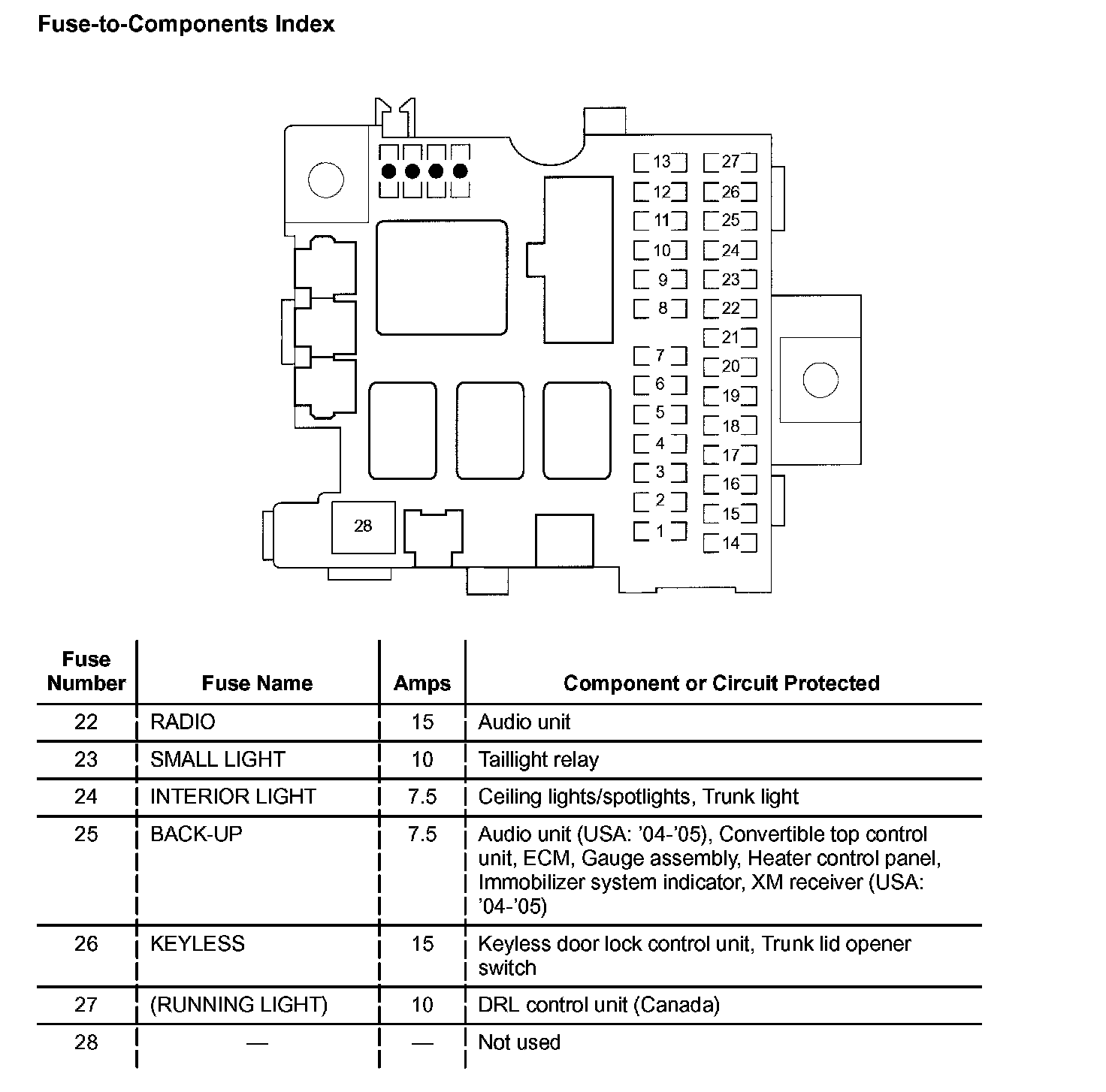

Under-dash Fuse/Relay Box Part 3:

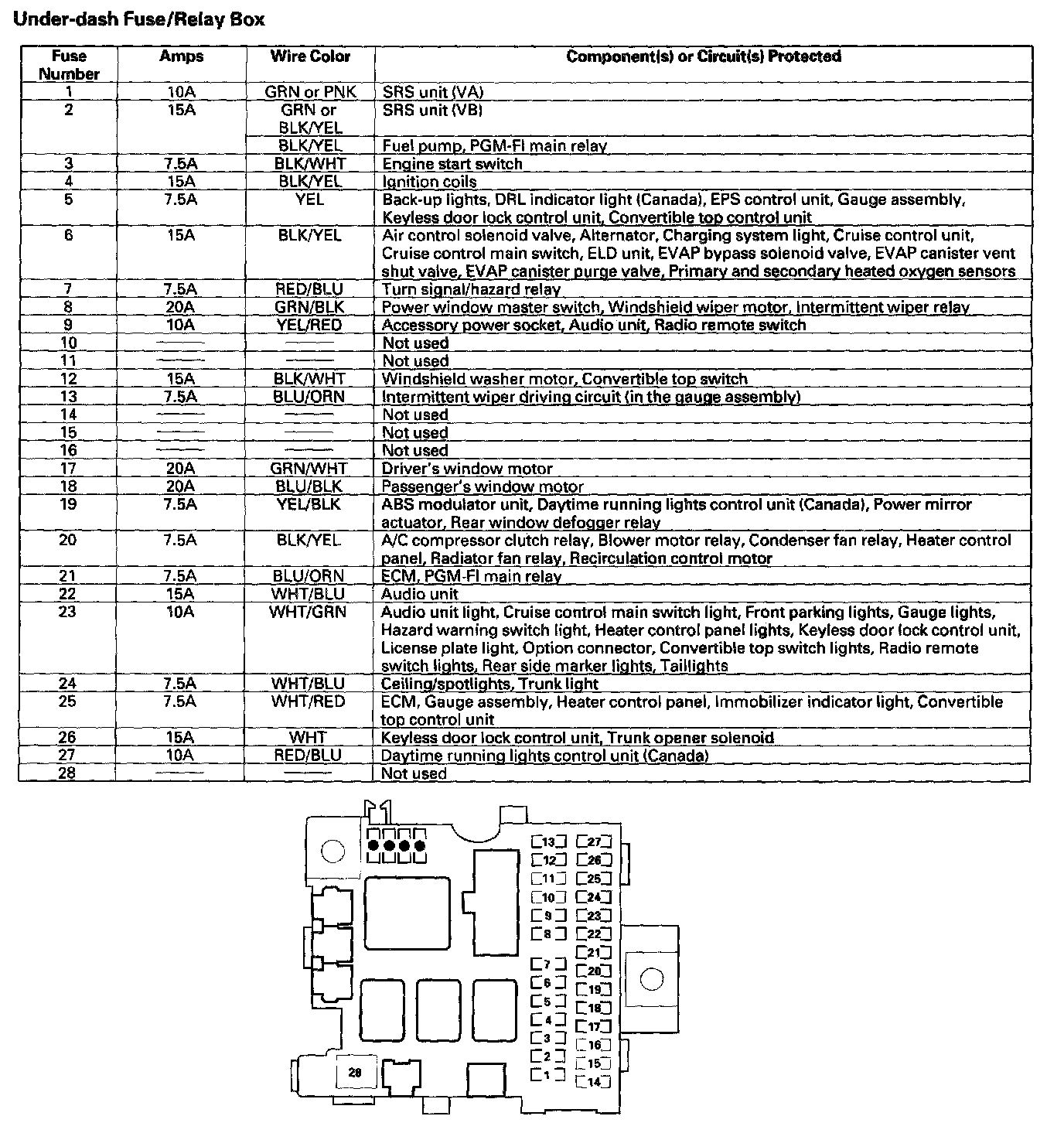

Under-dash Fuse/Relay Box:
