Home >> Honda >> 2004 >> S2000 L4-2.2L >> Repair and Diagnosis >> Locations >> Harness Locations >> Engine Ground Cable

Engine Ground Cable

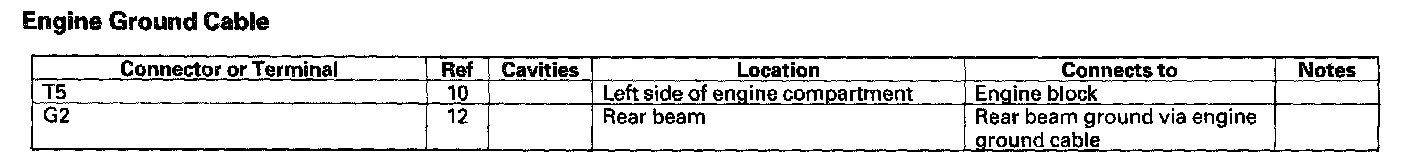

Engine Ground Cable:

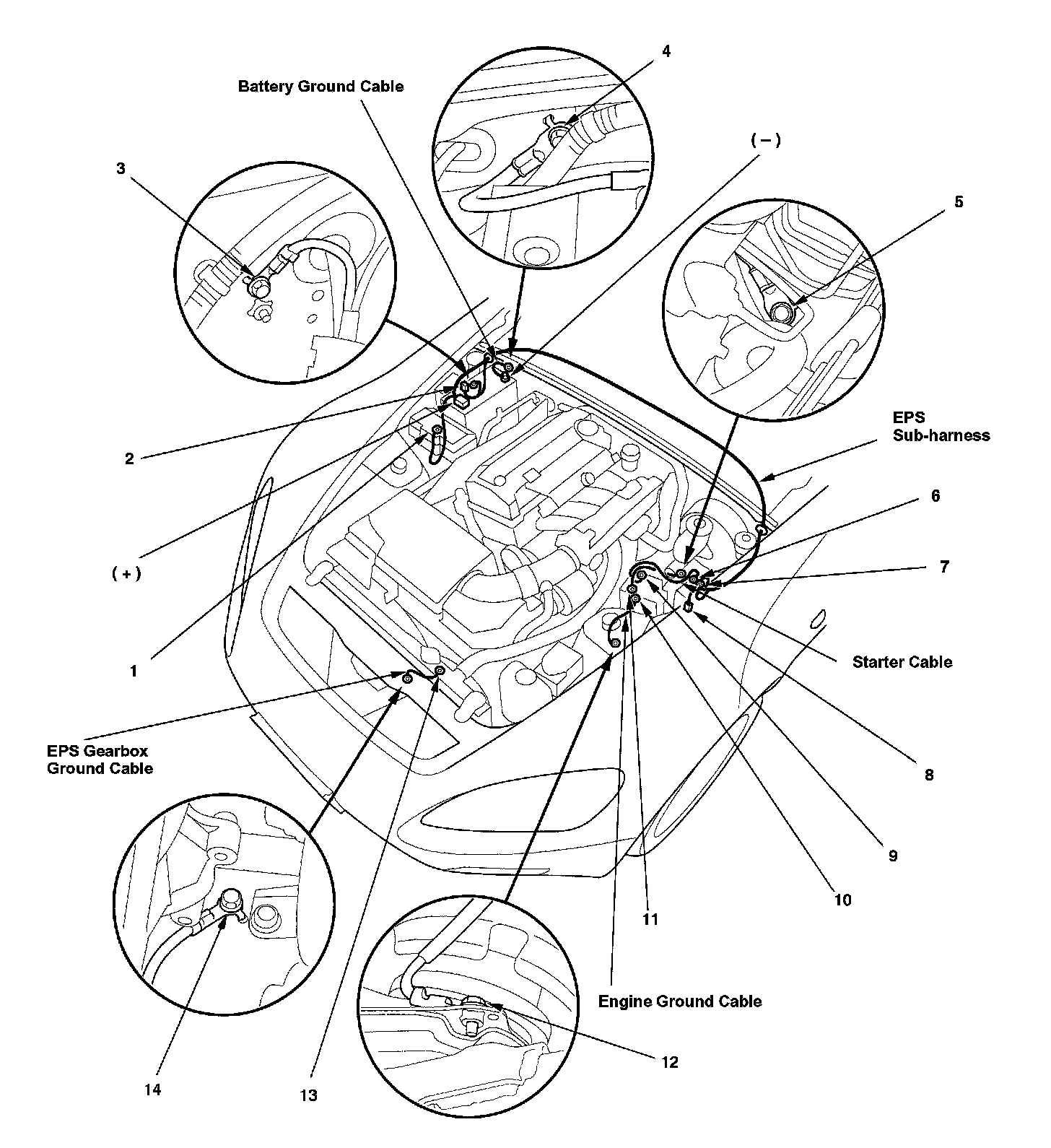

Harness Location View:

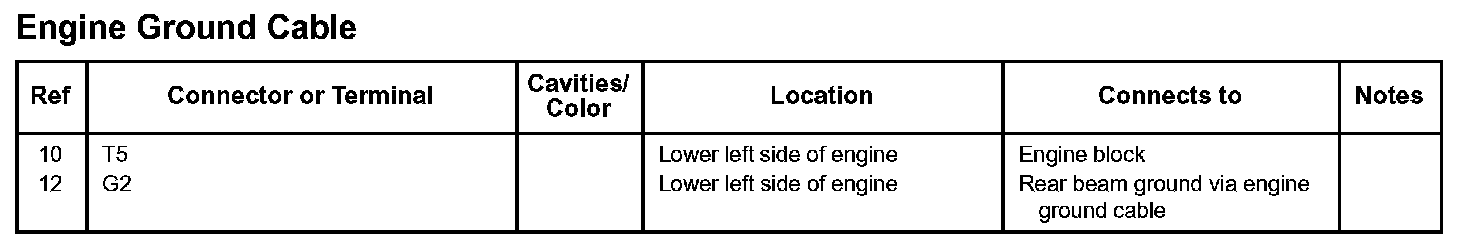

Engine Ground Cable:

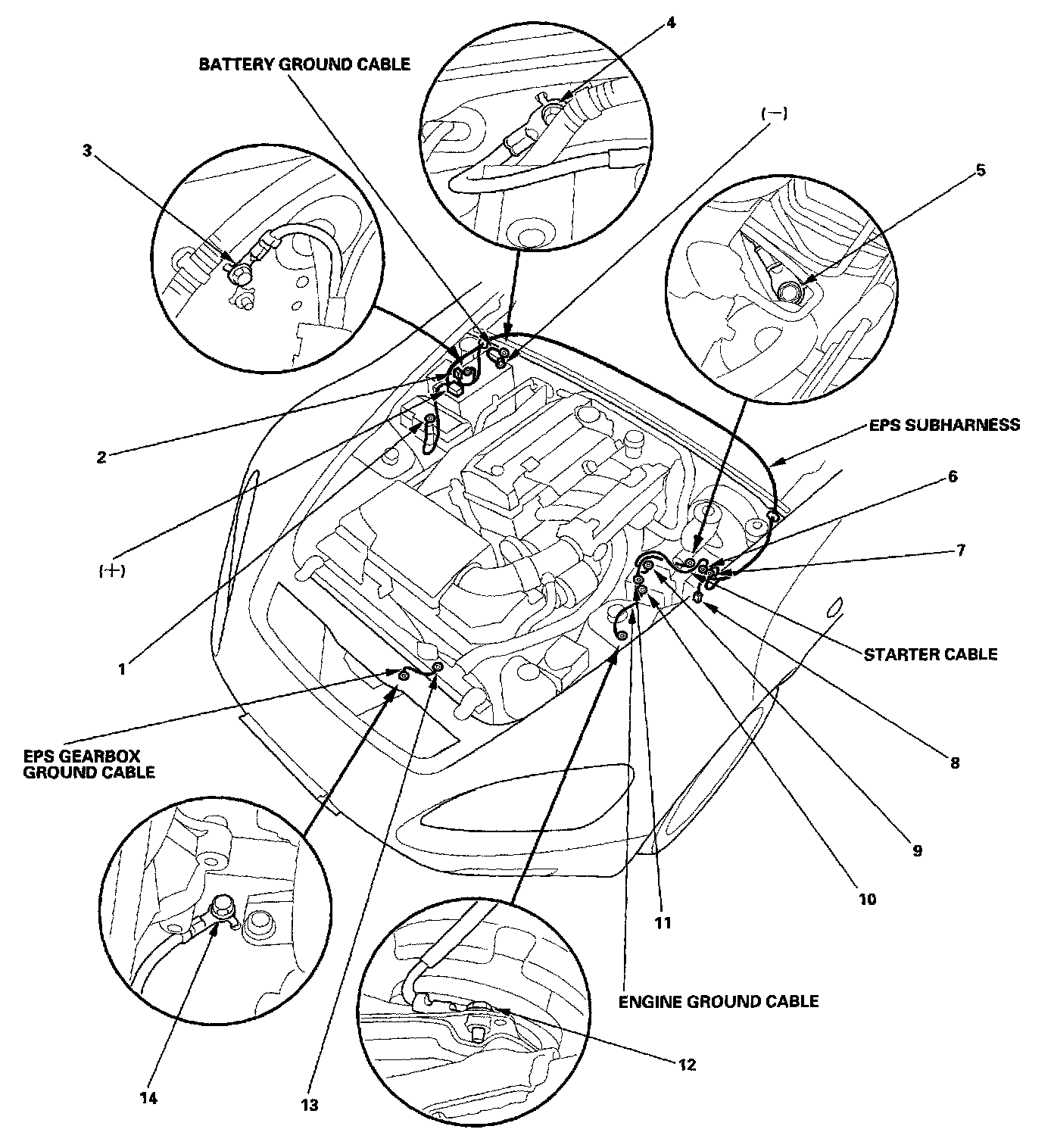

Harness Location View:
