Manual Transmission/Transaxle
>>
System Diagram
>>
Disassembly
Disassembly
Transmission Disassembly

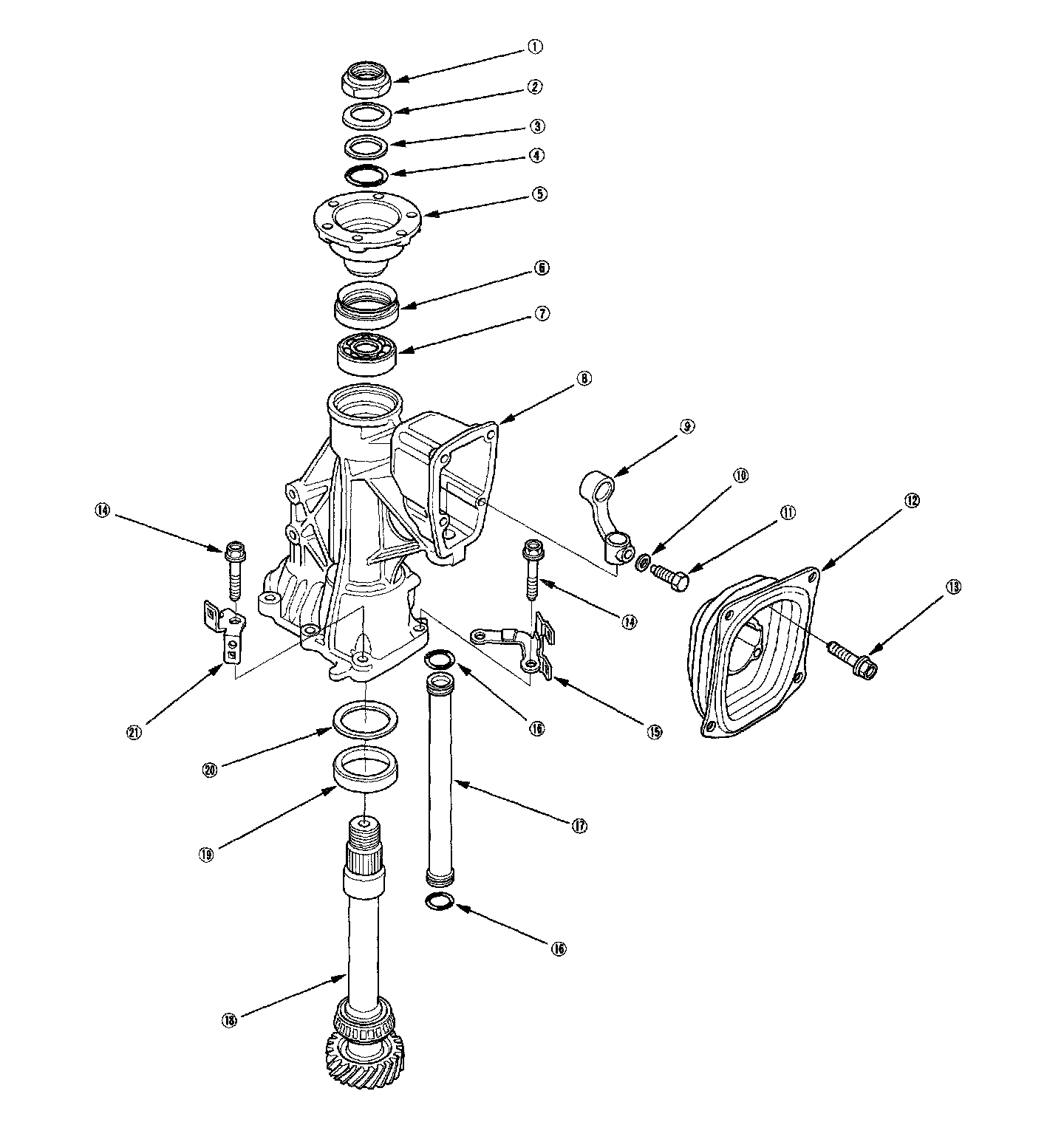

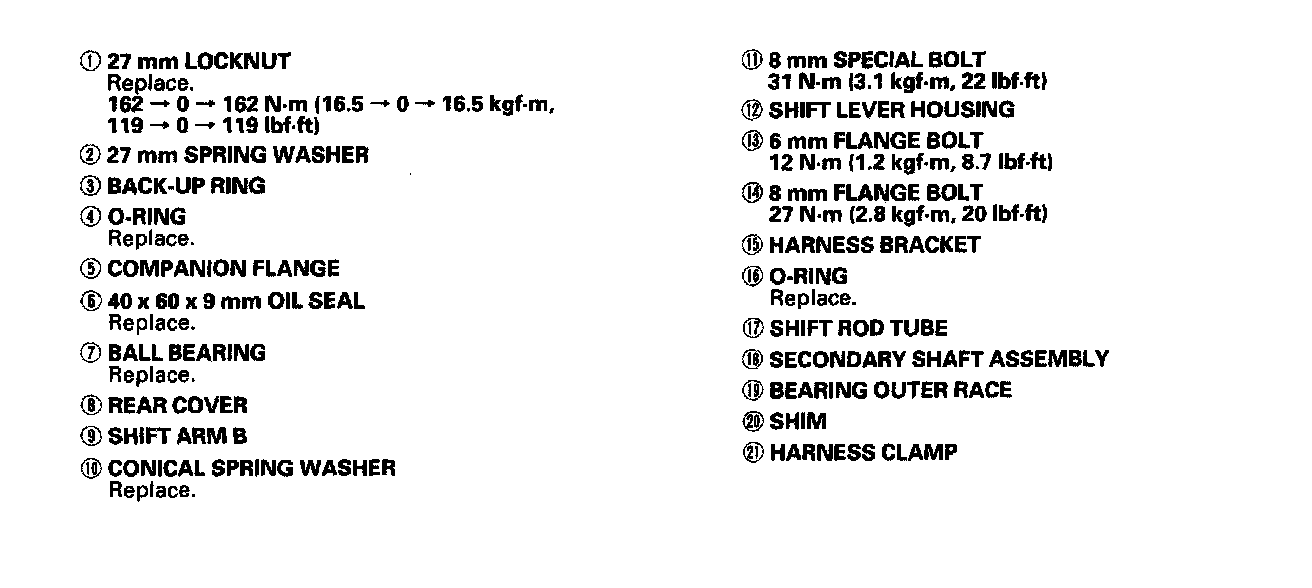

Exploded View-Rear Cover

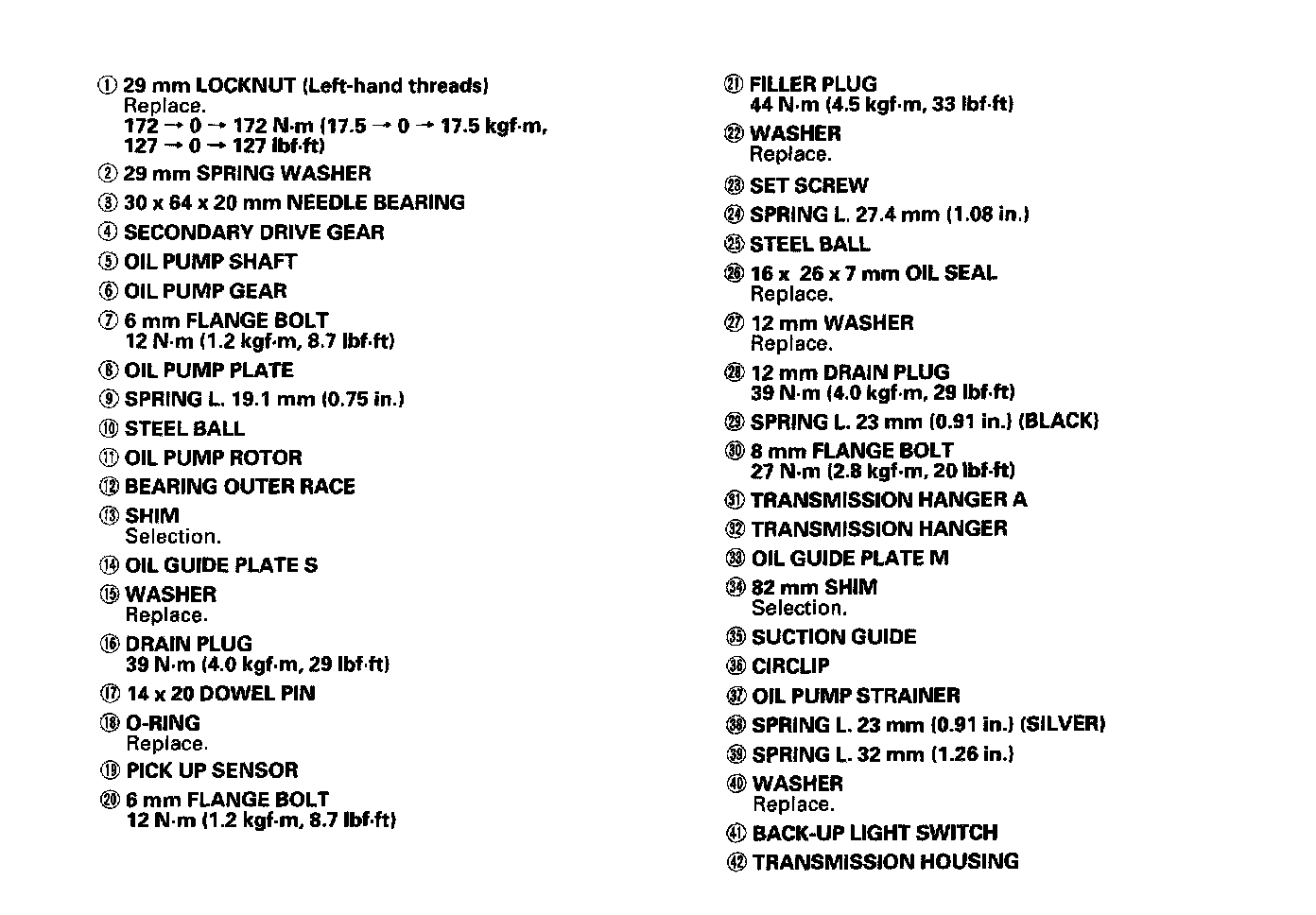

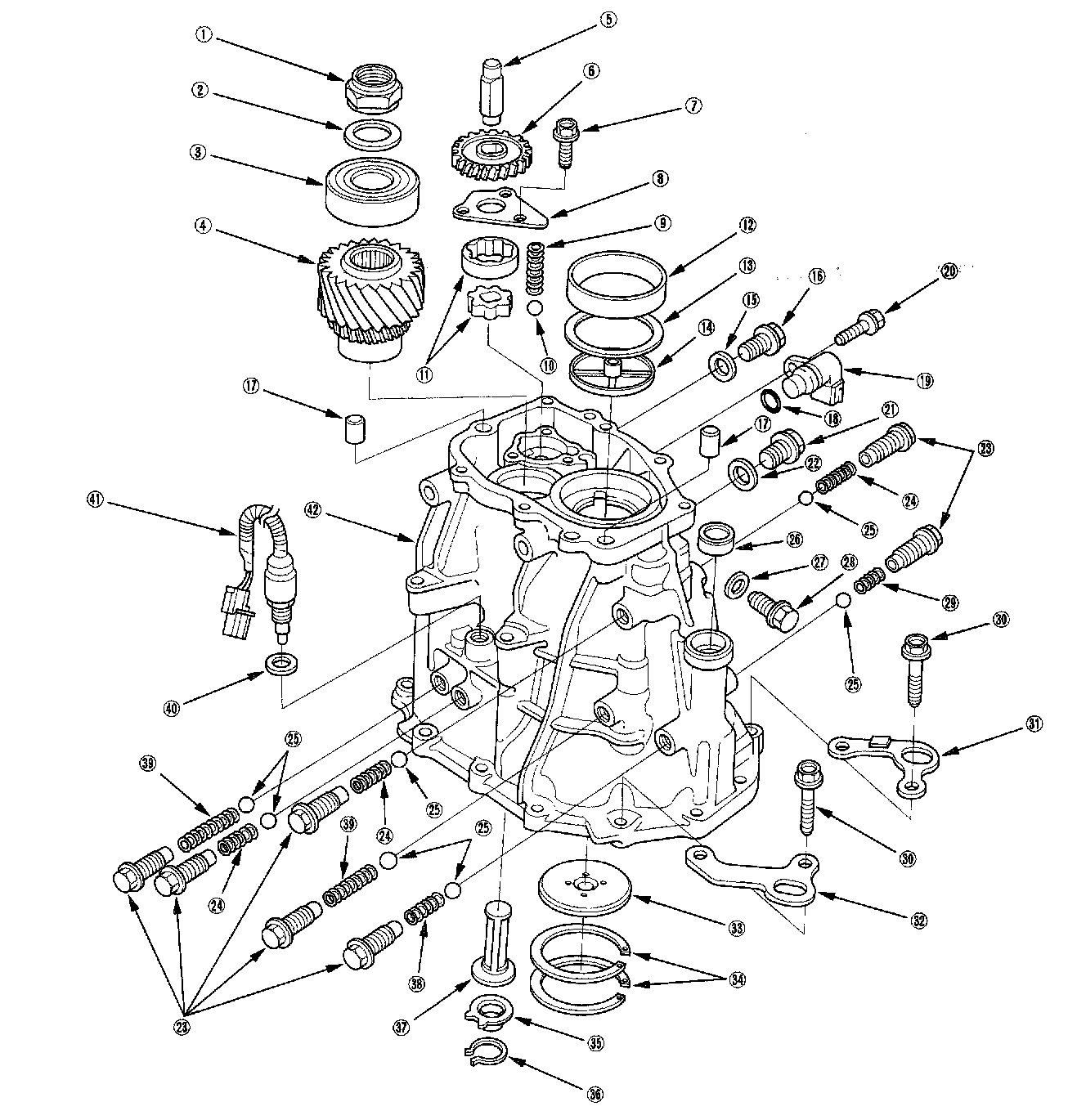

Exploded View-Transmission Housing

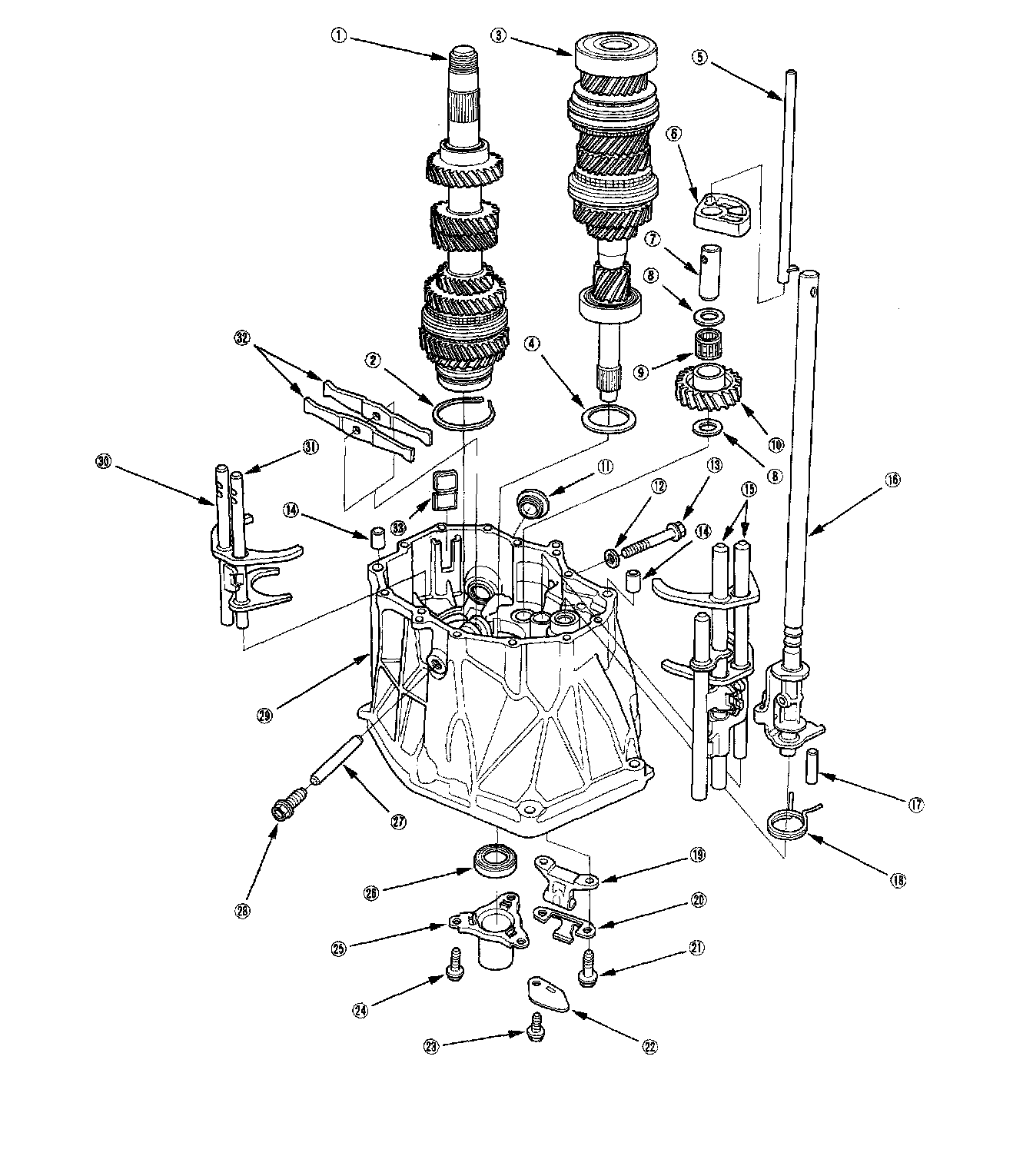

Exploded View-Clutch Housing
