Connector Views
>>
Power Locks
>>
System Diagram
System Diagram

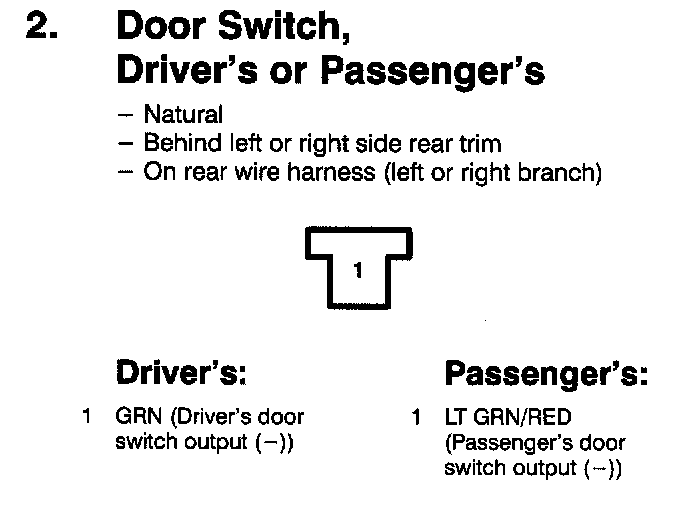

2. Door Switch, Driver Or Passenger's:

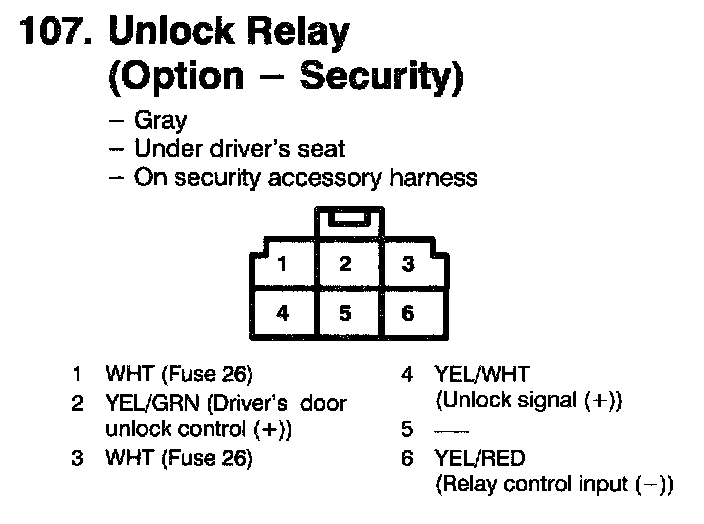

107. Unlock Relay (Option - Security):
