Honda
>>
2004
>>
S2000 L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
Electronic Brake Control Module

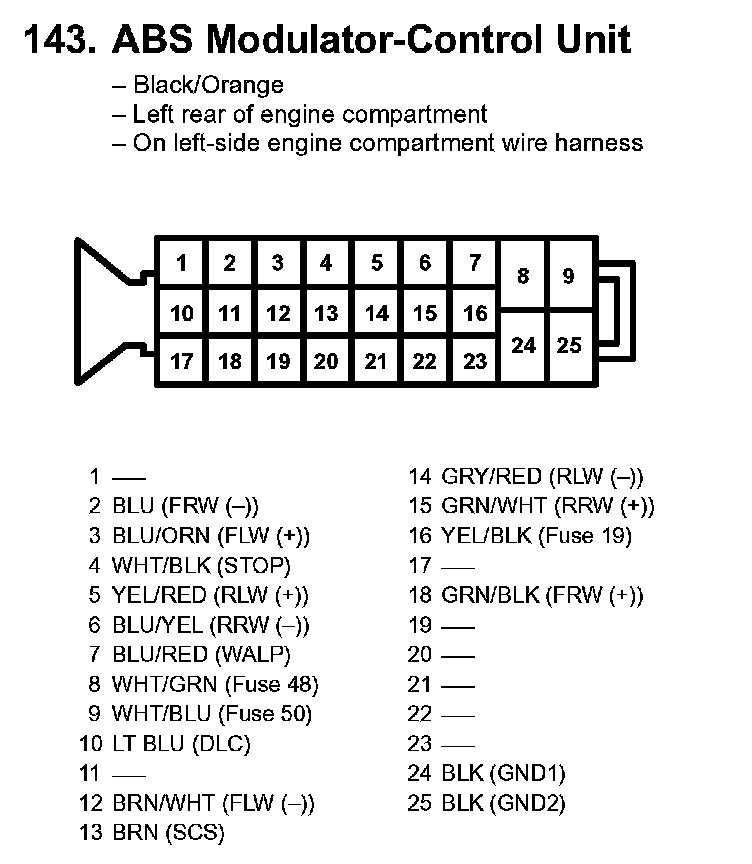

143. ABS Modulator-Control Unit:
