Main Relay (Computer/Fuel System): Locations

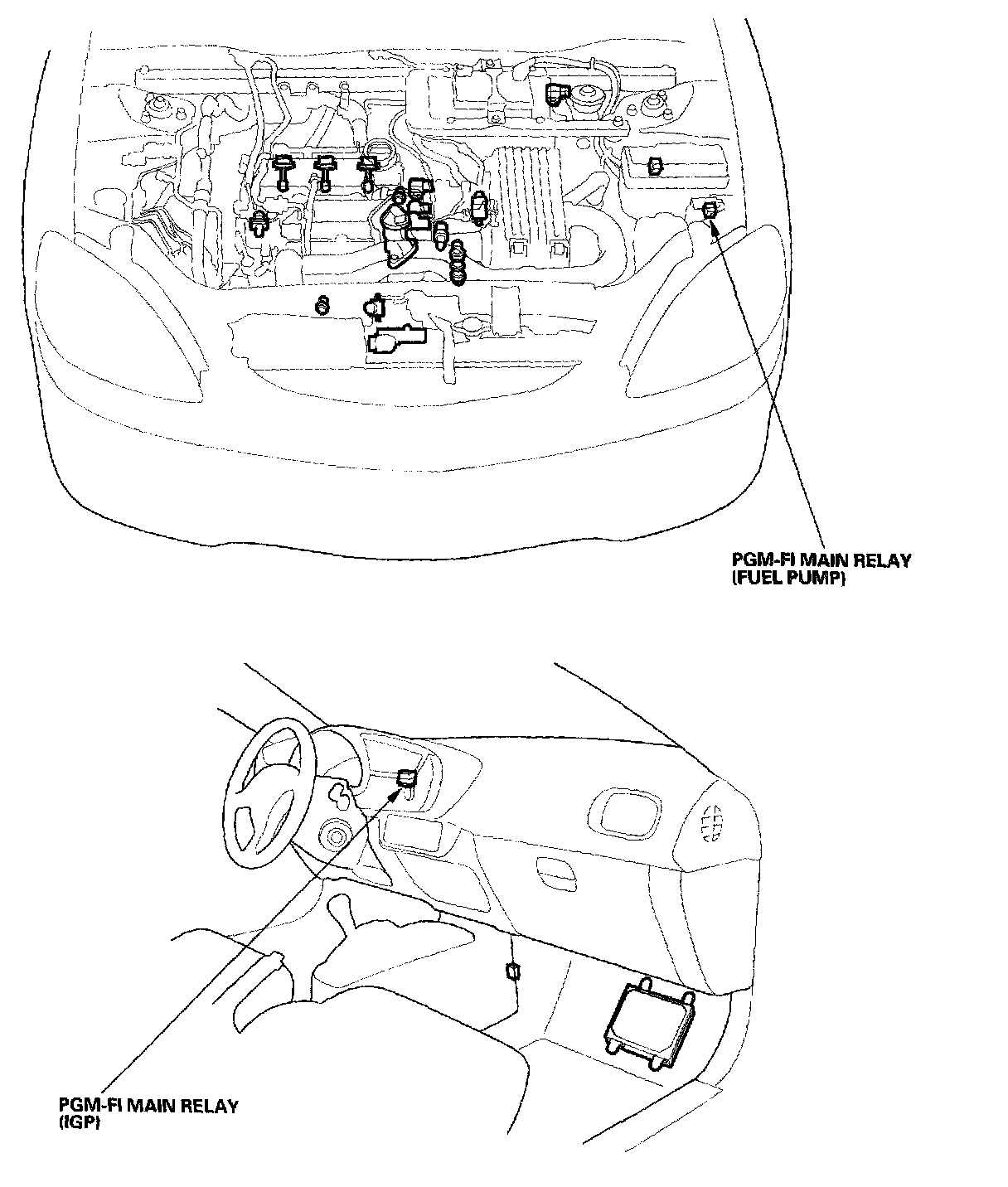

Fuel Supply System - Component Location Index Part 2:

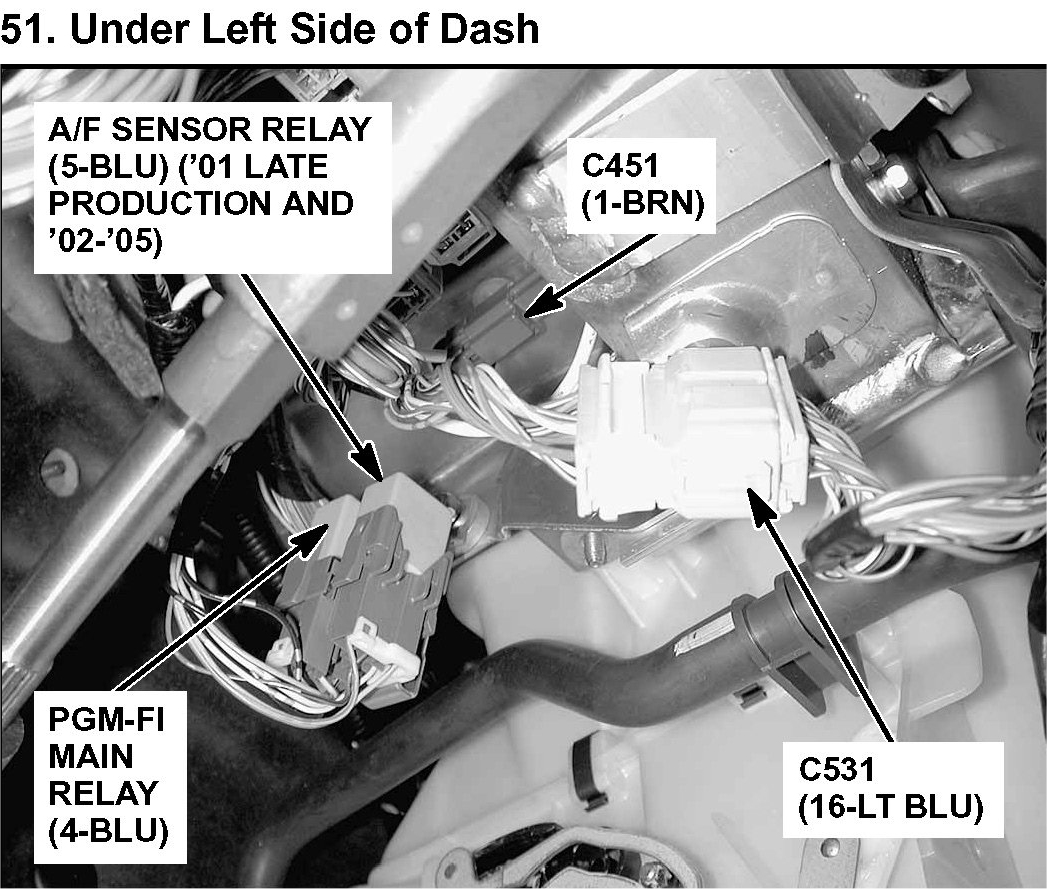

51. Under Left Side of Dash:

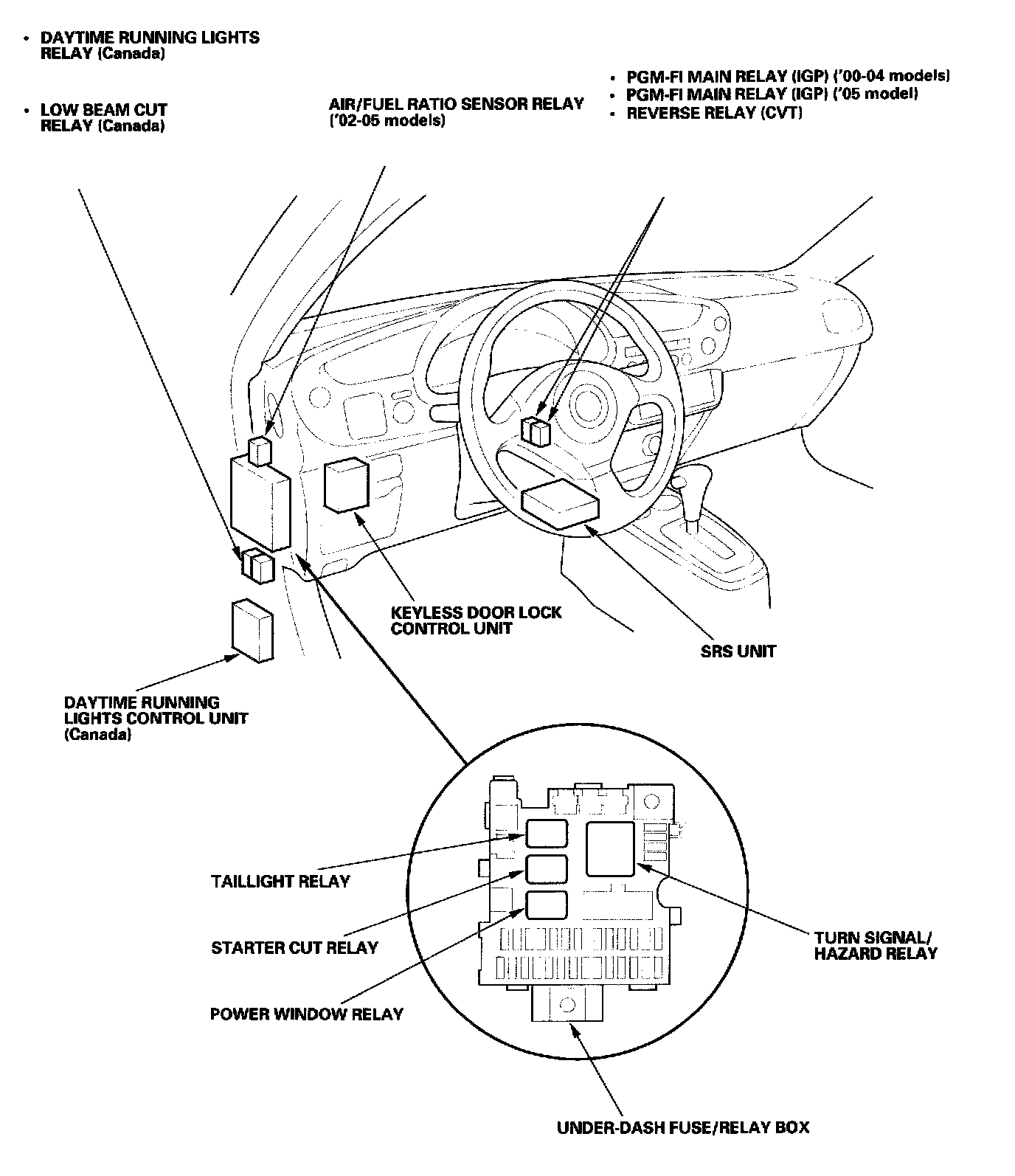

Relay And Control Unit Locations - Dashboard:
