Pinout Values and Diagnostic Parameters

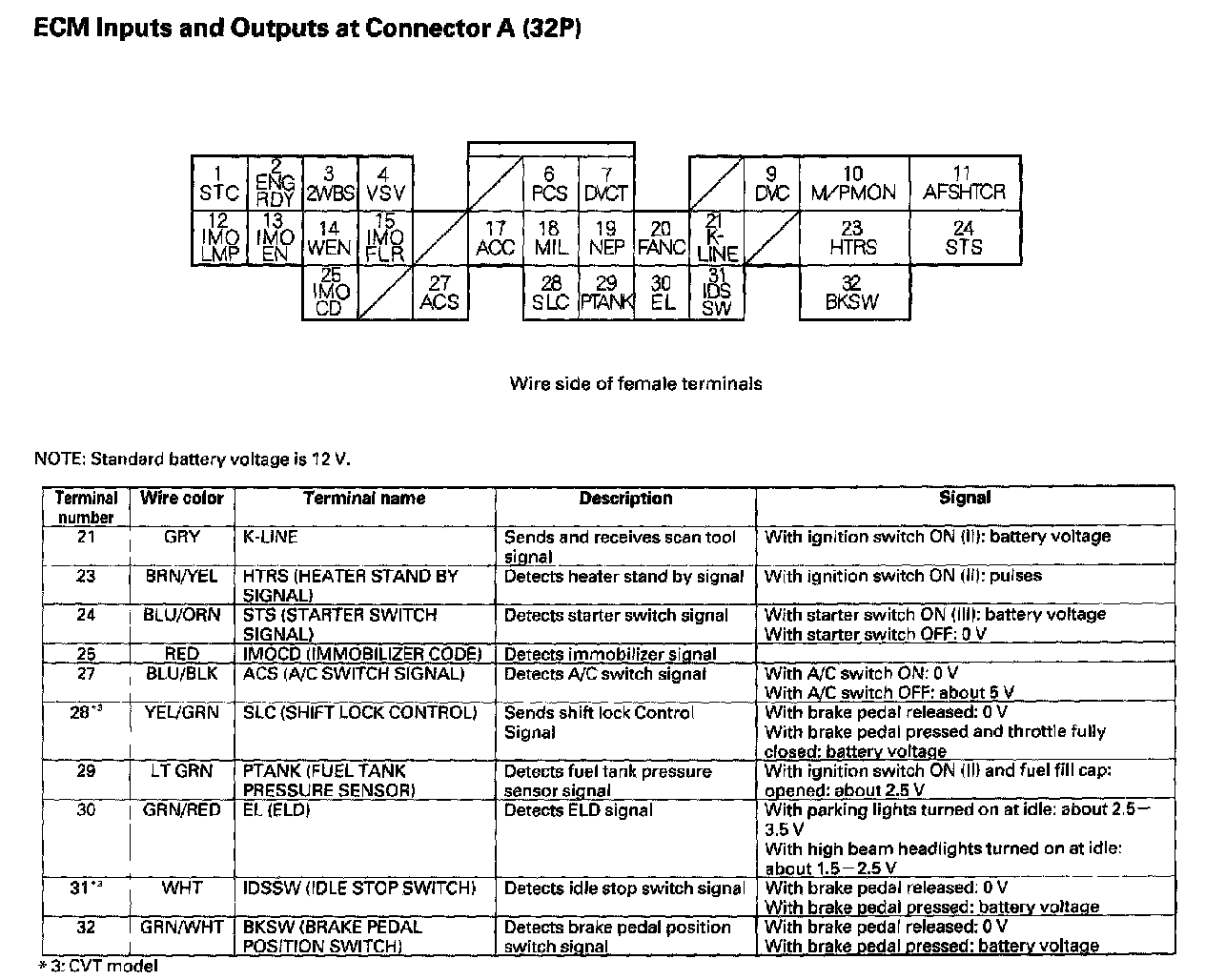

ECM Inputs And Outputs At Connector A (32P) Part 1:

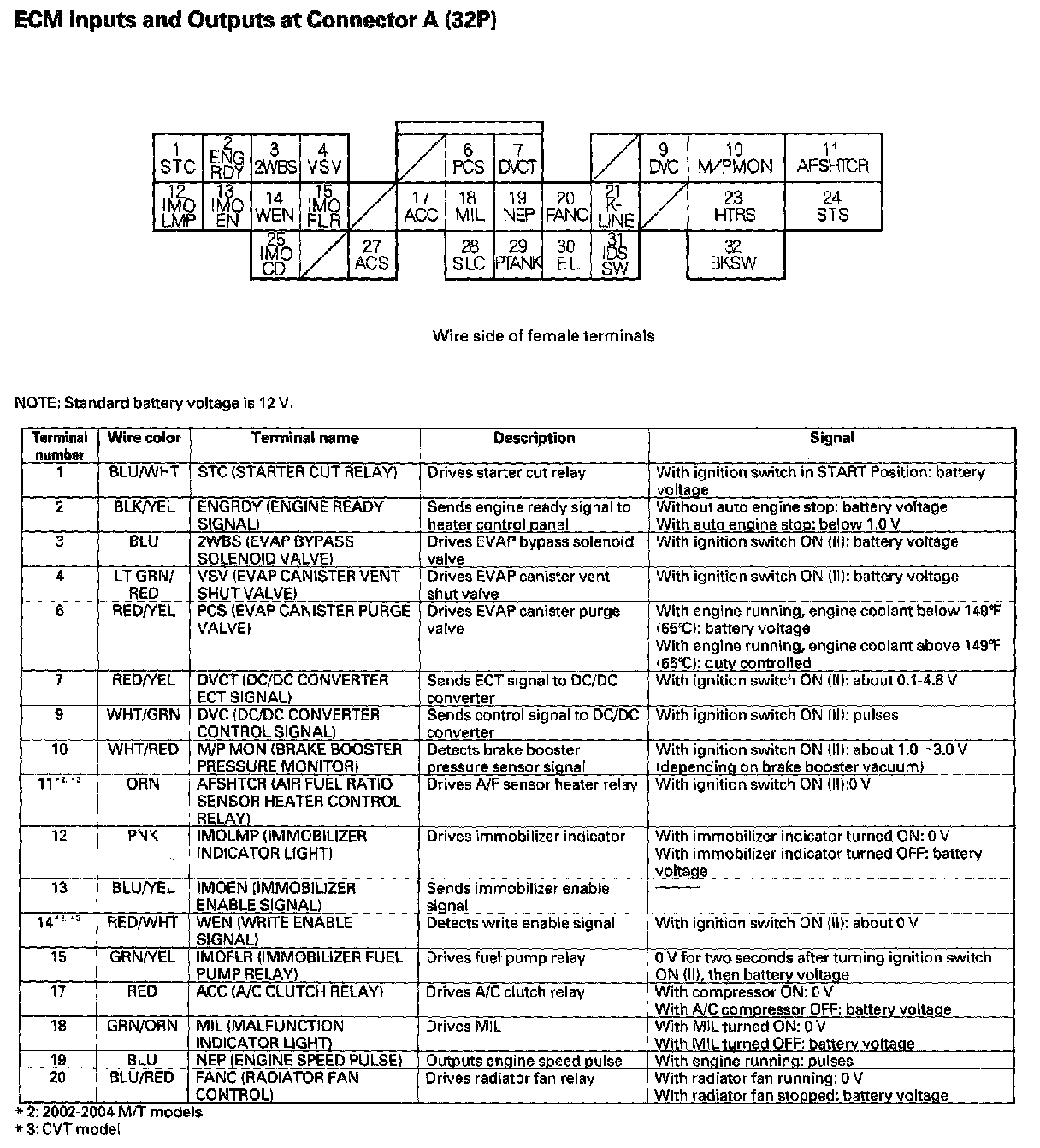

ECM Inputs And Outputs At Connector A (32P) Part 2:

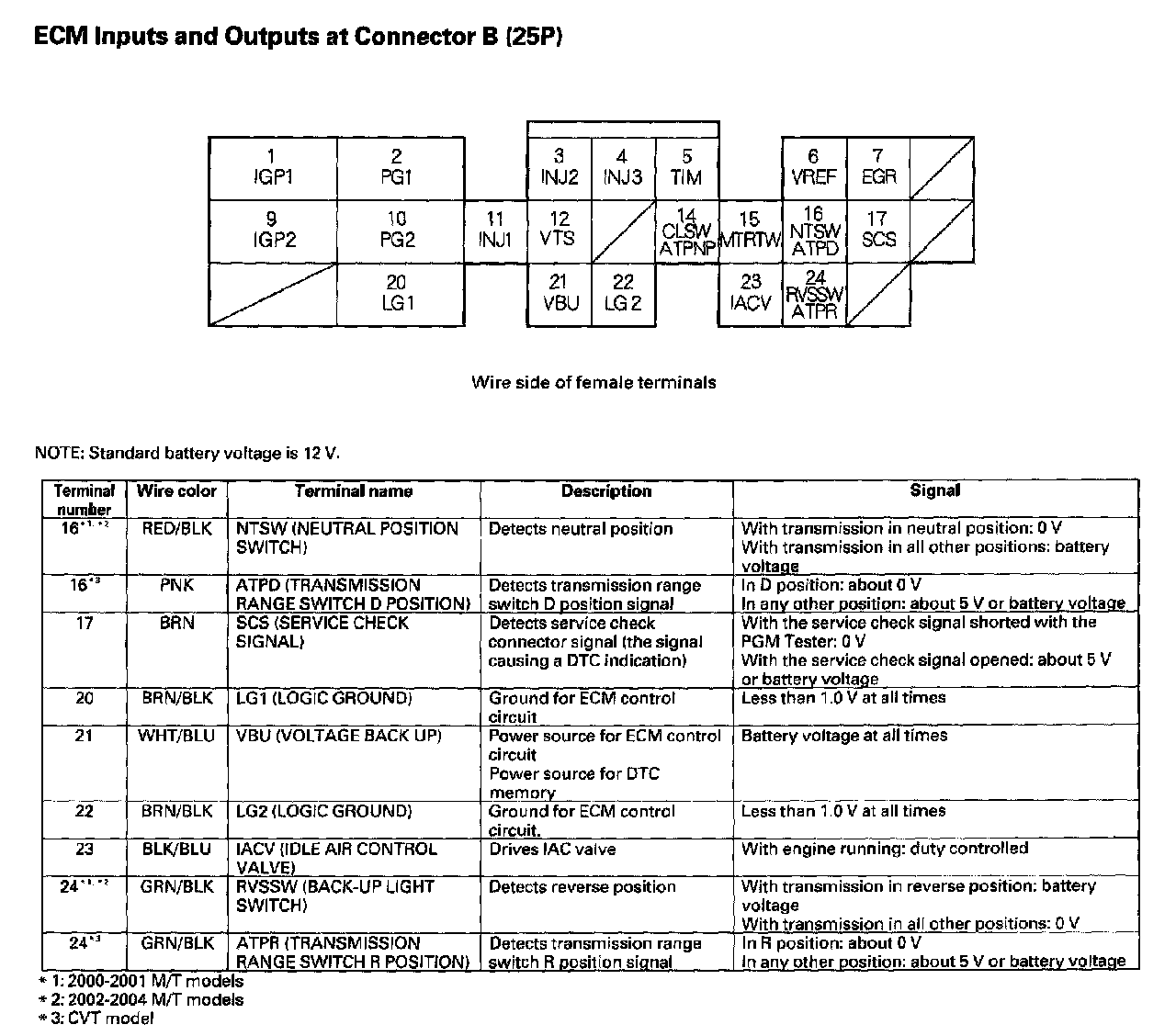

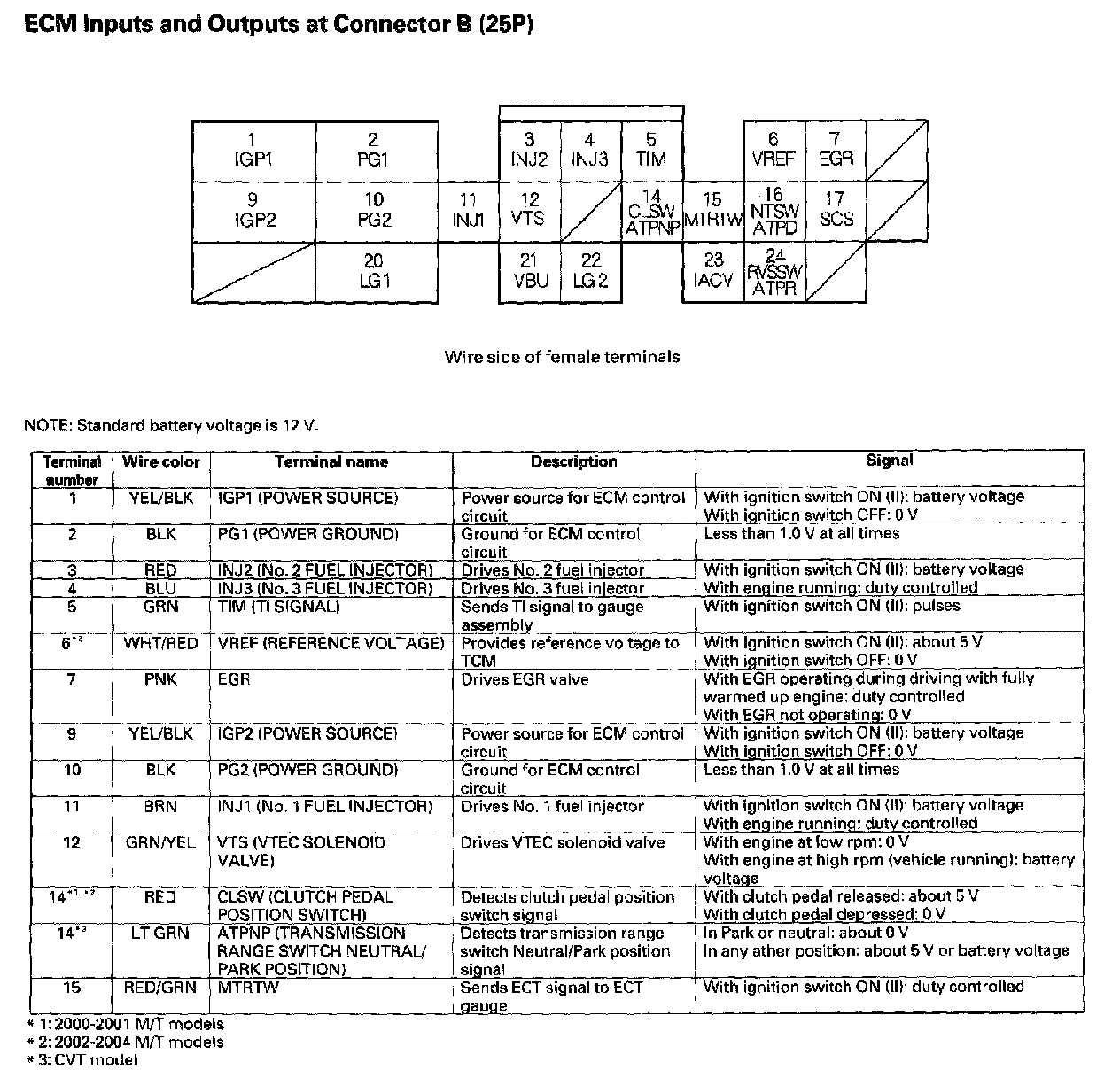

ECM Inputs And Outputs At Connector B (25P) Part 1:




ECM Inputs And Outputs At Connector B (25P) Part 2:

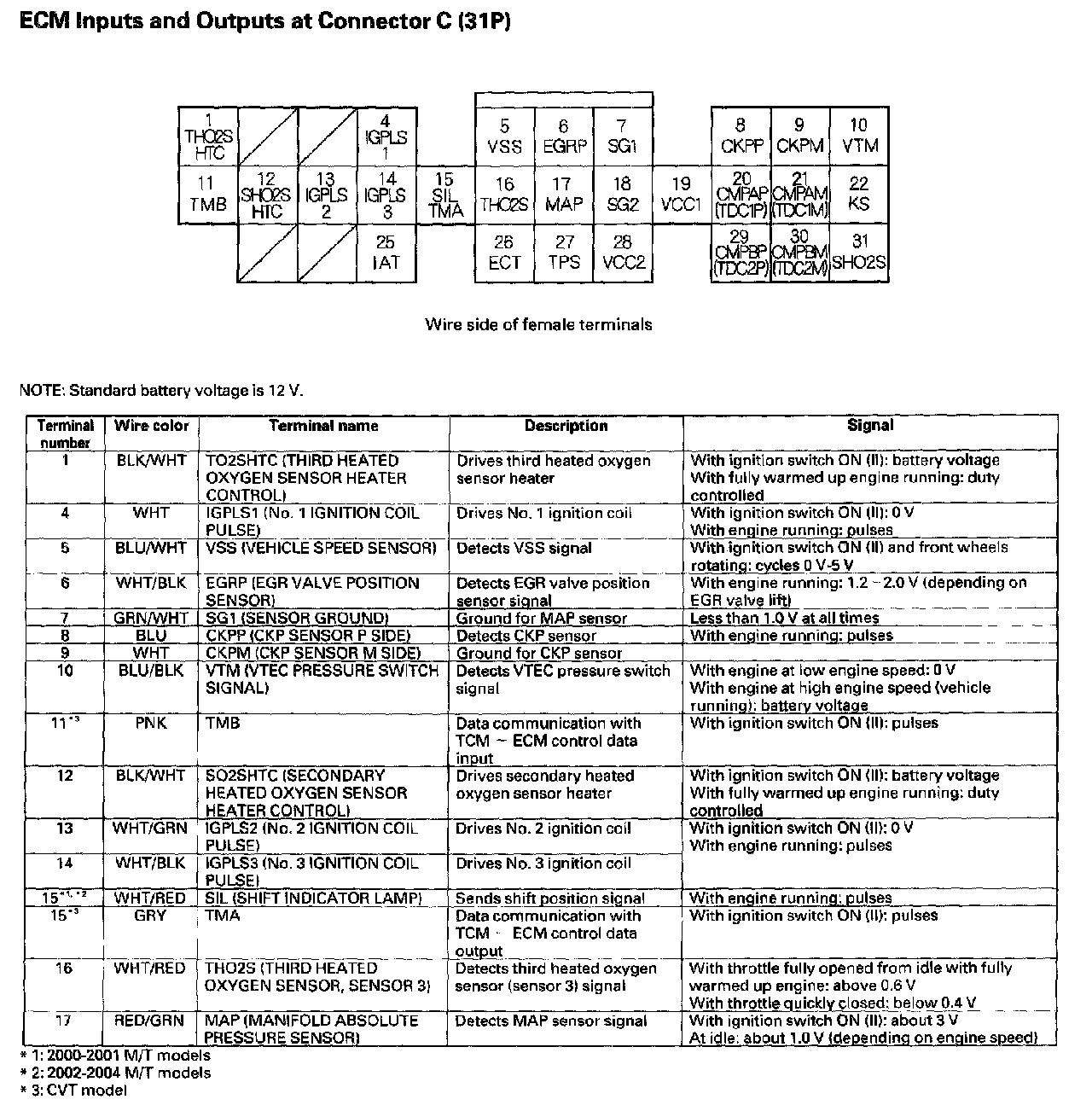

ECM Inputs And Outputs At Connector C (31P) Part 1:

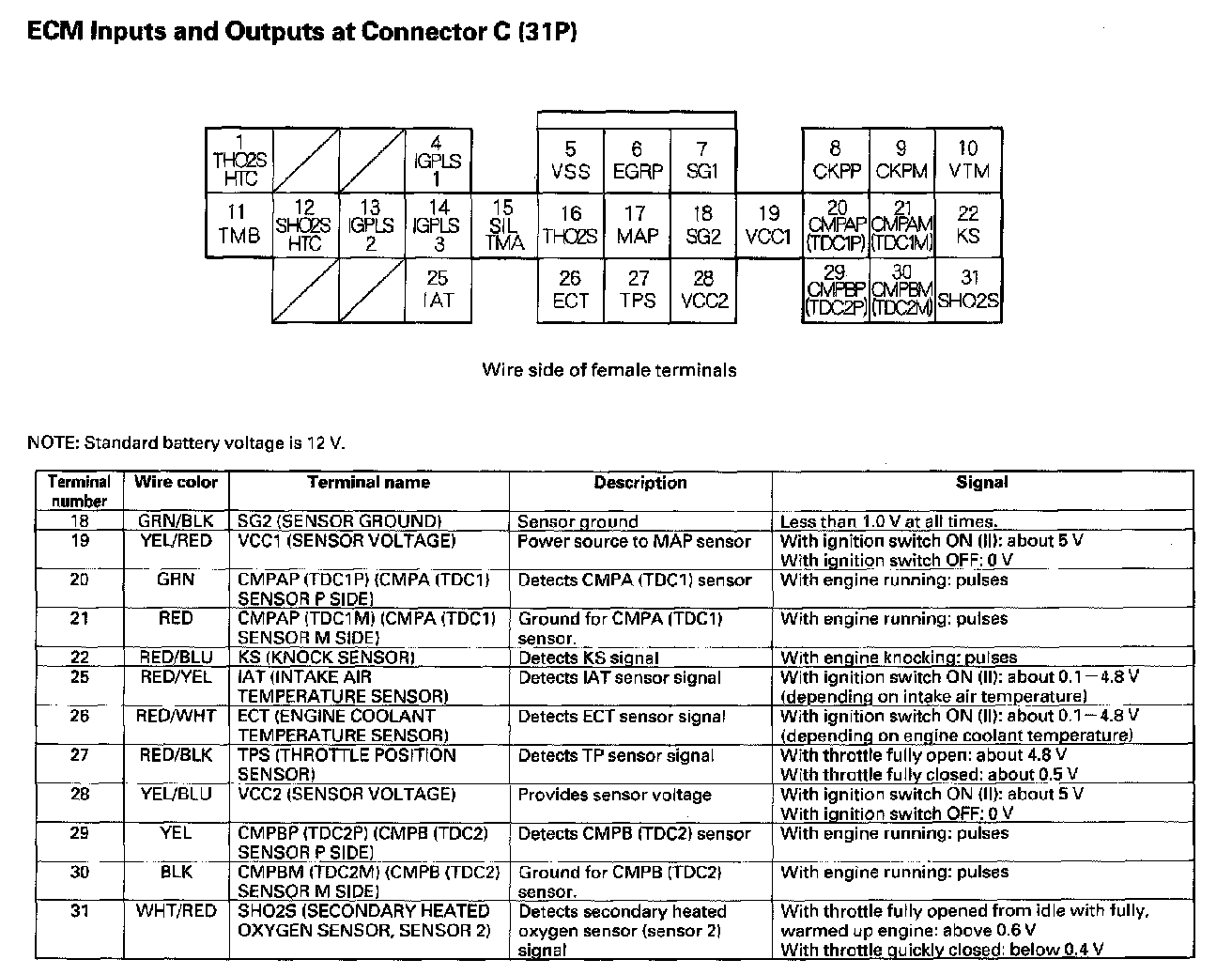

ECM Inputs And Outputs At Connector C (31P) Part 2:

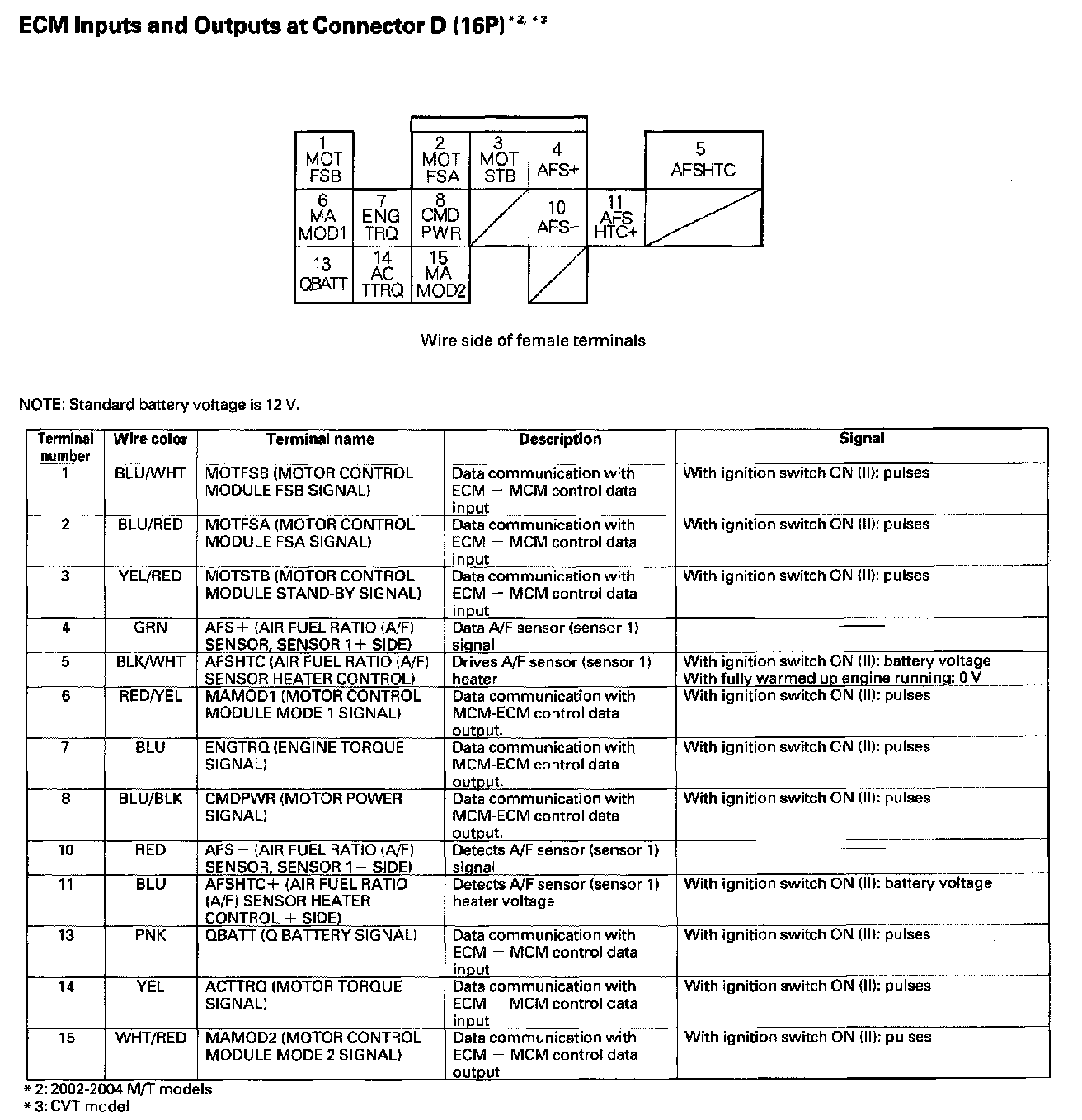

ECM Inputs And Outputs At Connector D (16P):
