Component Locations
Component Locations

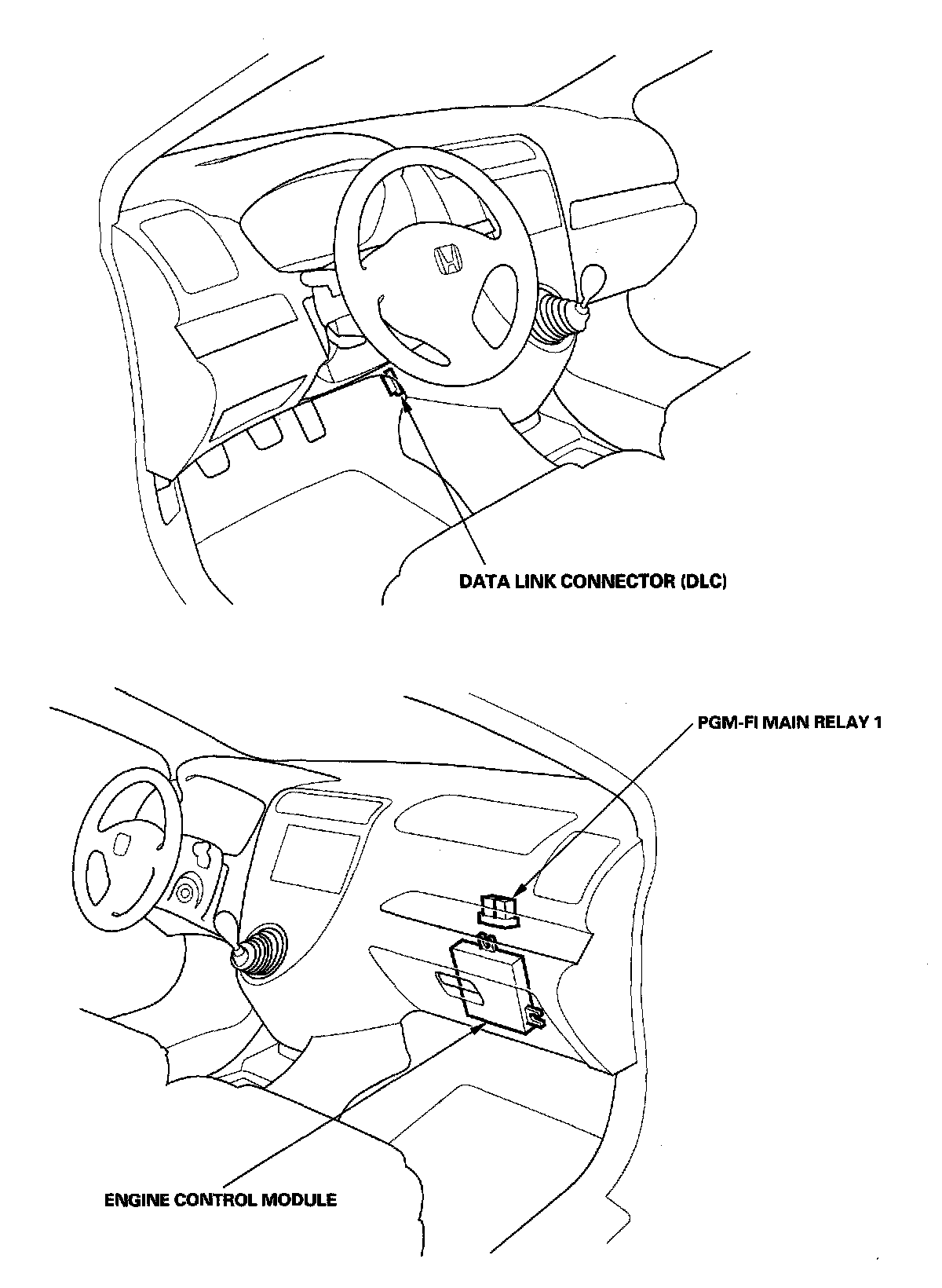

PGM-FI System - Component Location Index:

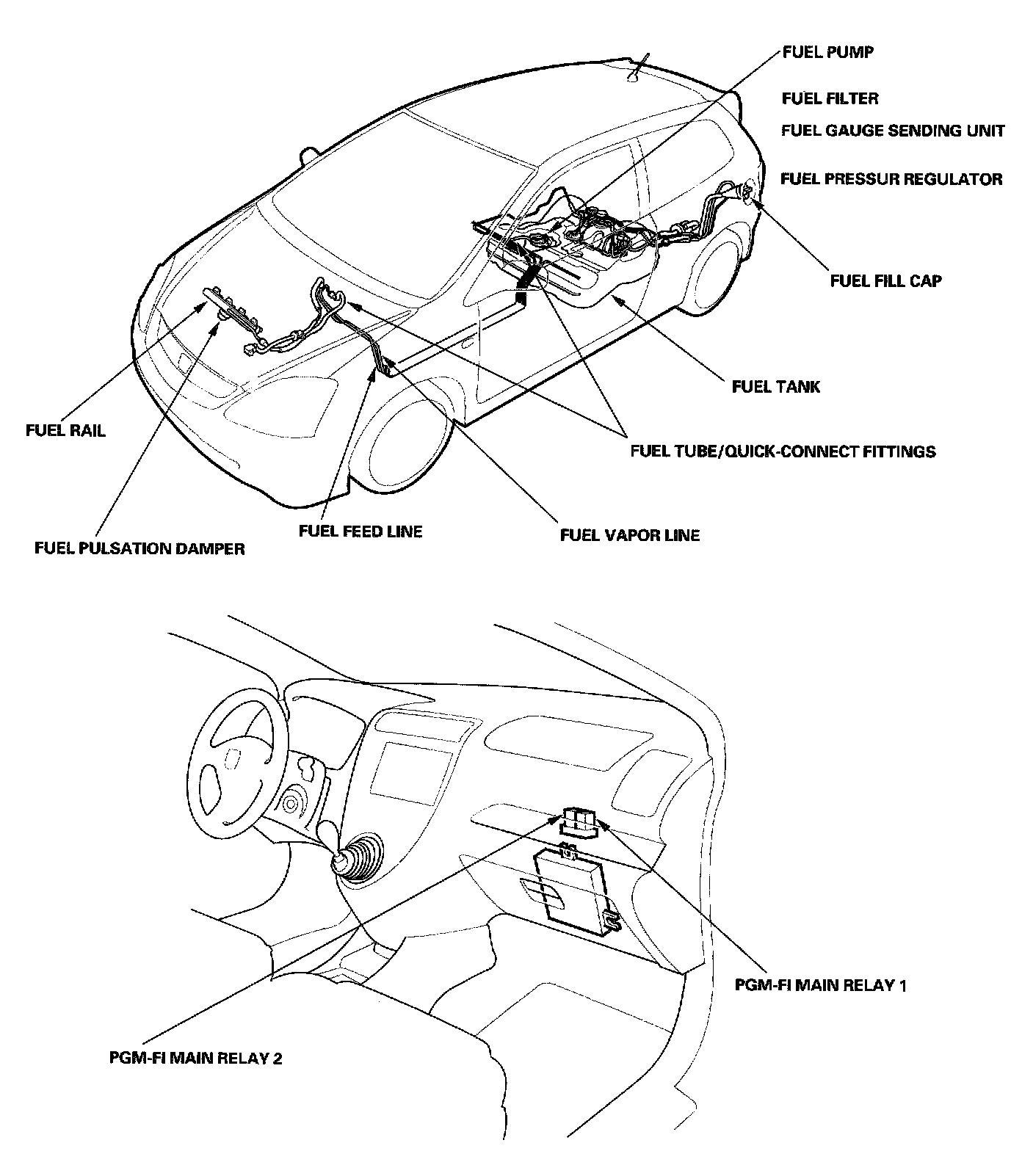

Fuel Supply System - Component Location Index:

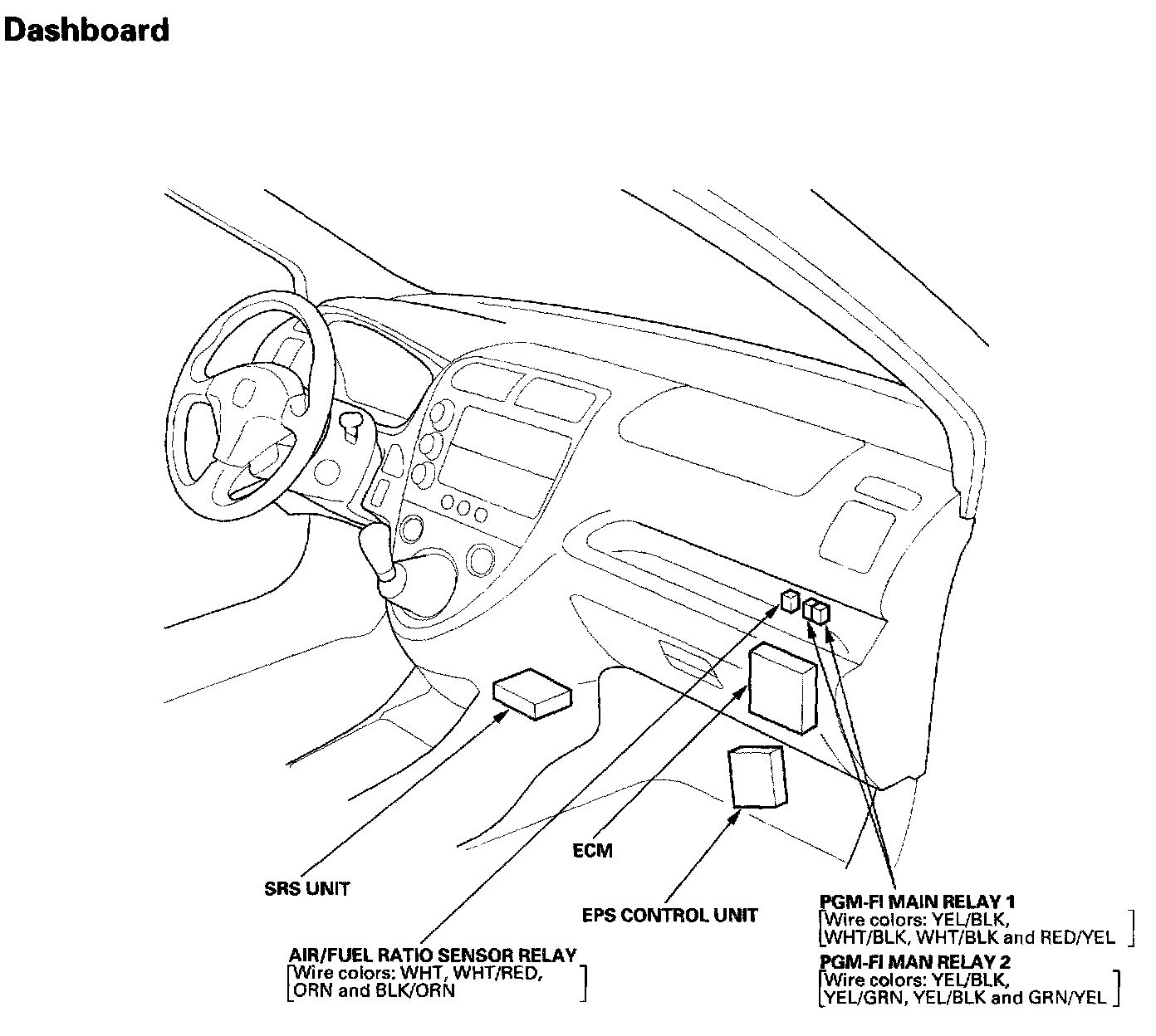

Relay And Control Unit Locations - Dashboard:
