Keyless Entry Module: Locations

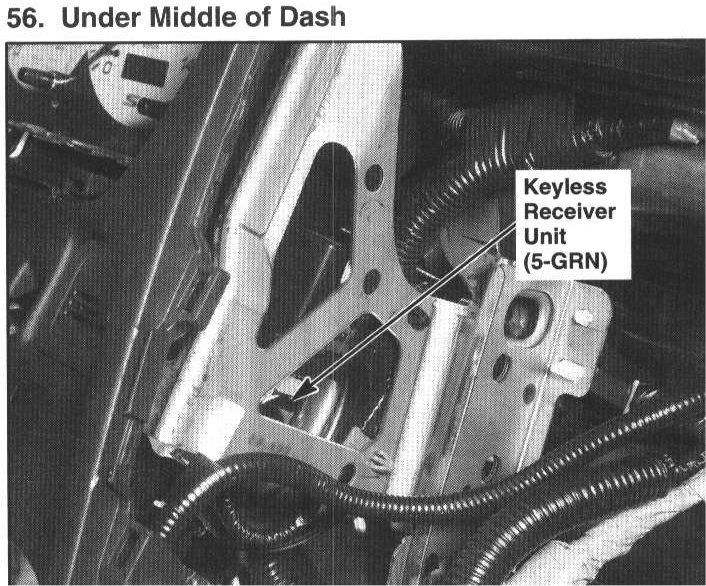

56. Under Middle of Dash:

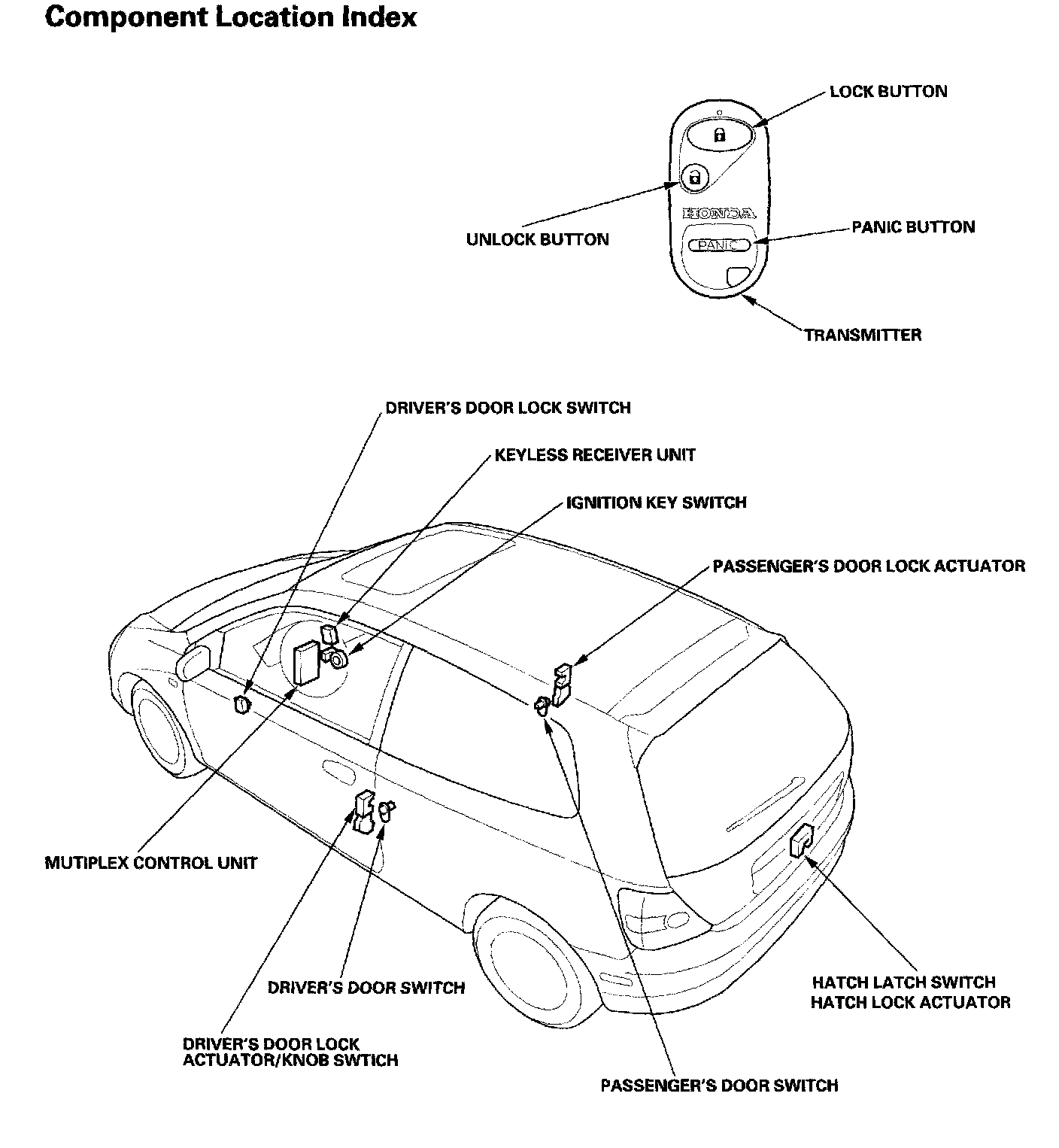

Keyless/Power Door Lock System - Component Location Index:

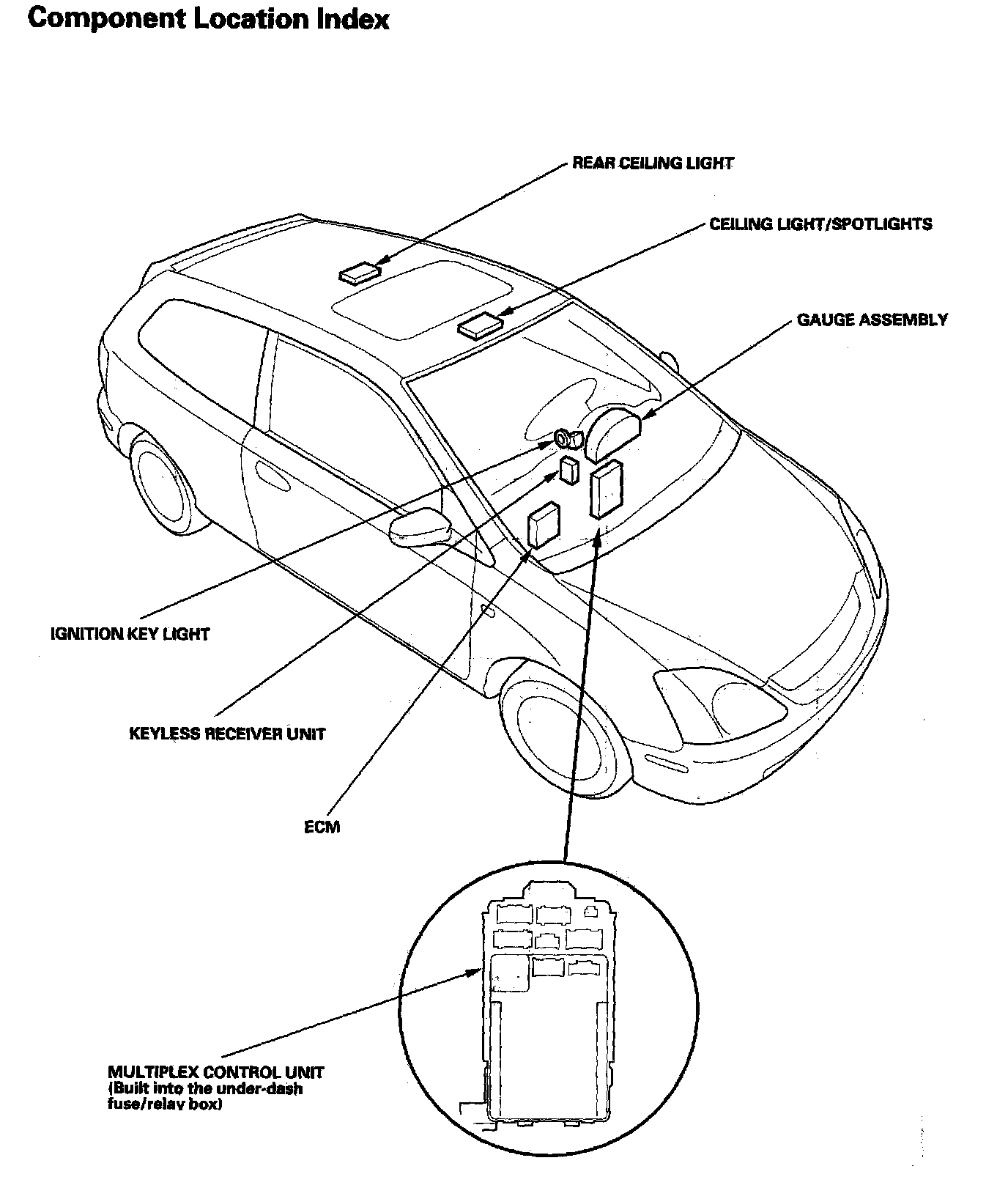

Multiplex Control System - Component Location Index:
