Oxygen Sensor
>>
Locations
>>
Connector Locations
Connector Locations

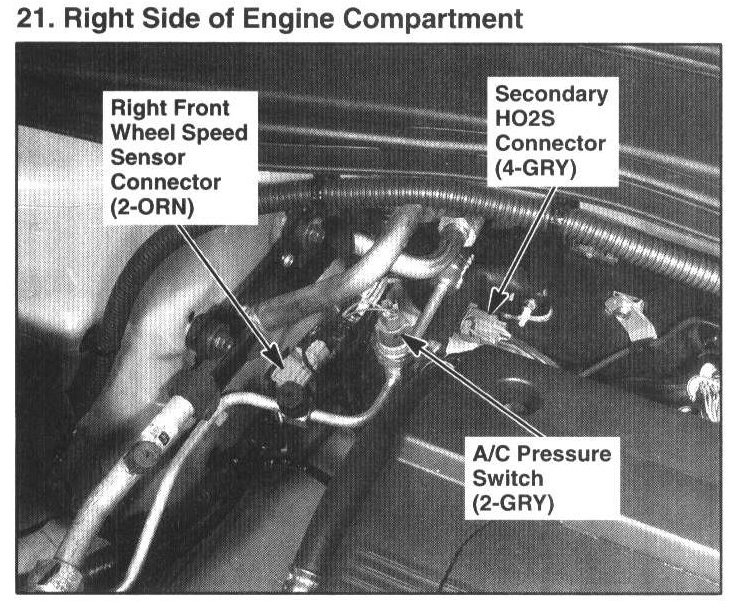

21. Right Side of Engine Cowl Compartment:

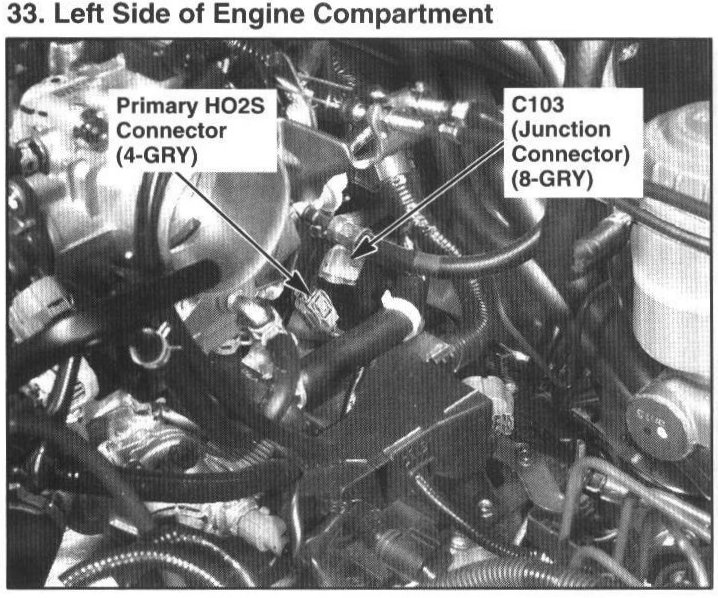

33. Left Side of Engine Compartment:
