Relay Box Locations

Starting System Component Location Index:

Charging System Component Location Index:

Relay And Control Unit Locations - Engine Compartment:

Relay And Control Unit Locations - Dashboard:

Relay And Control Unit Locations - Dashboard:

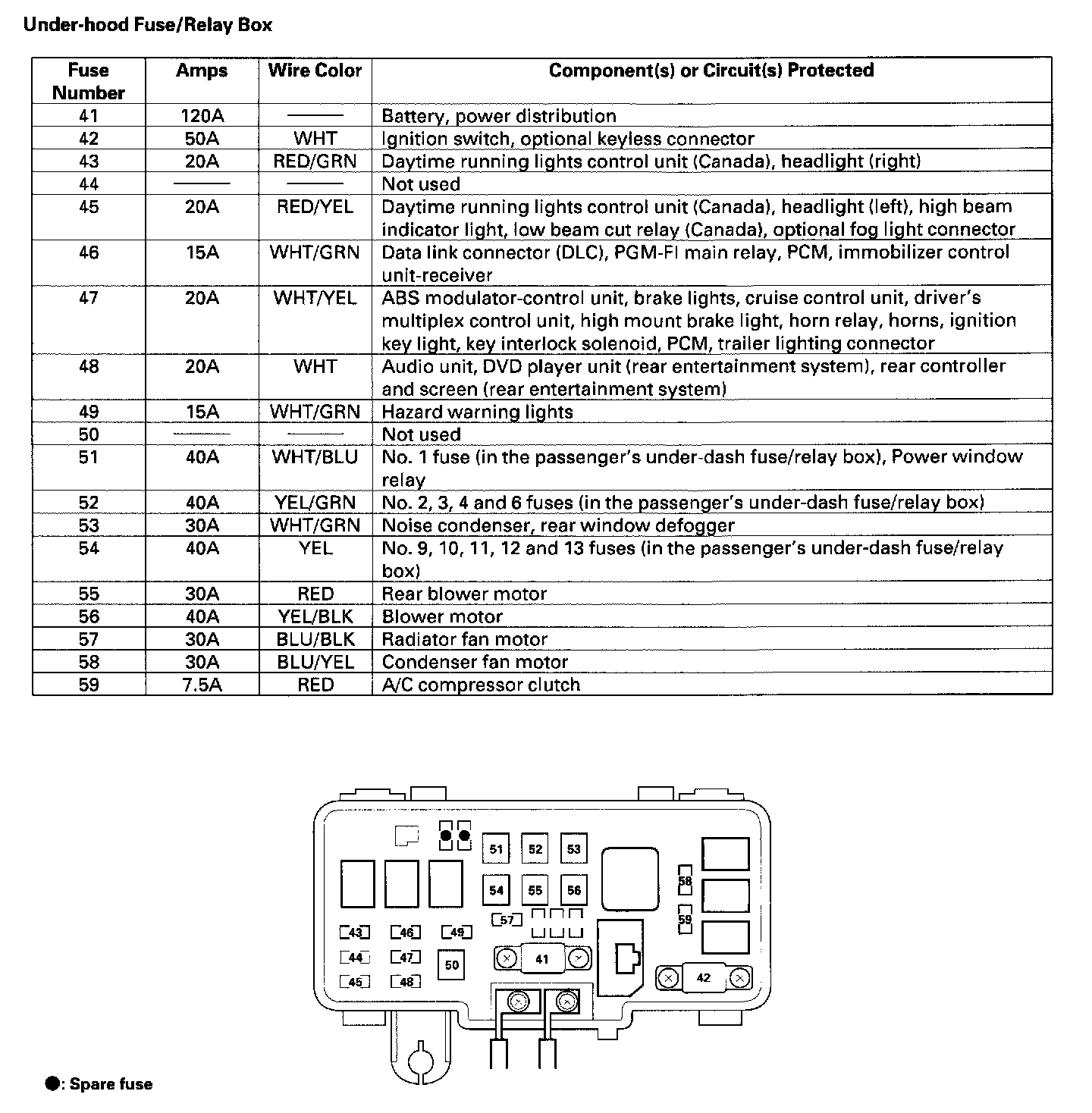

Under-Hood Fuse/Relay Box:

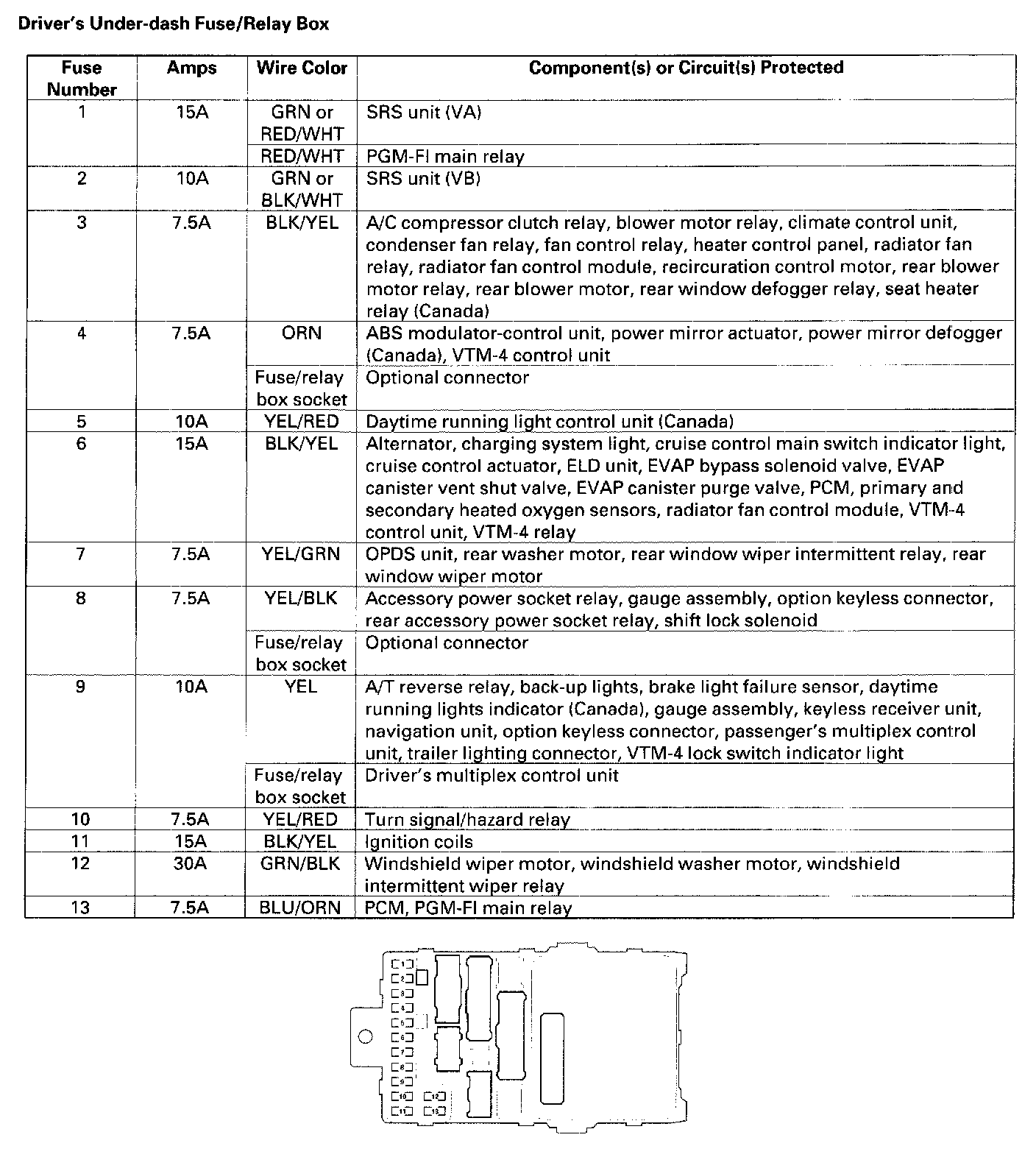

Driver's Under-Dash Fuse/Relay Box:

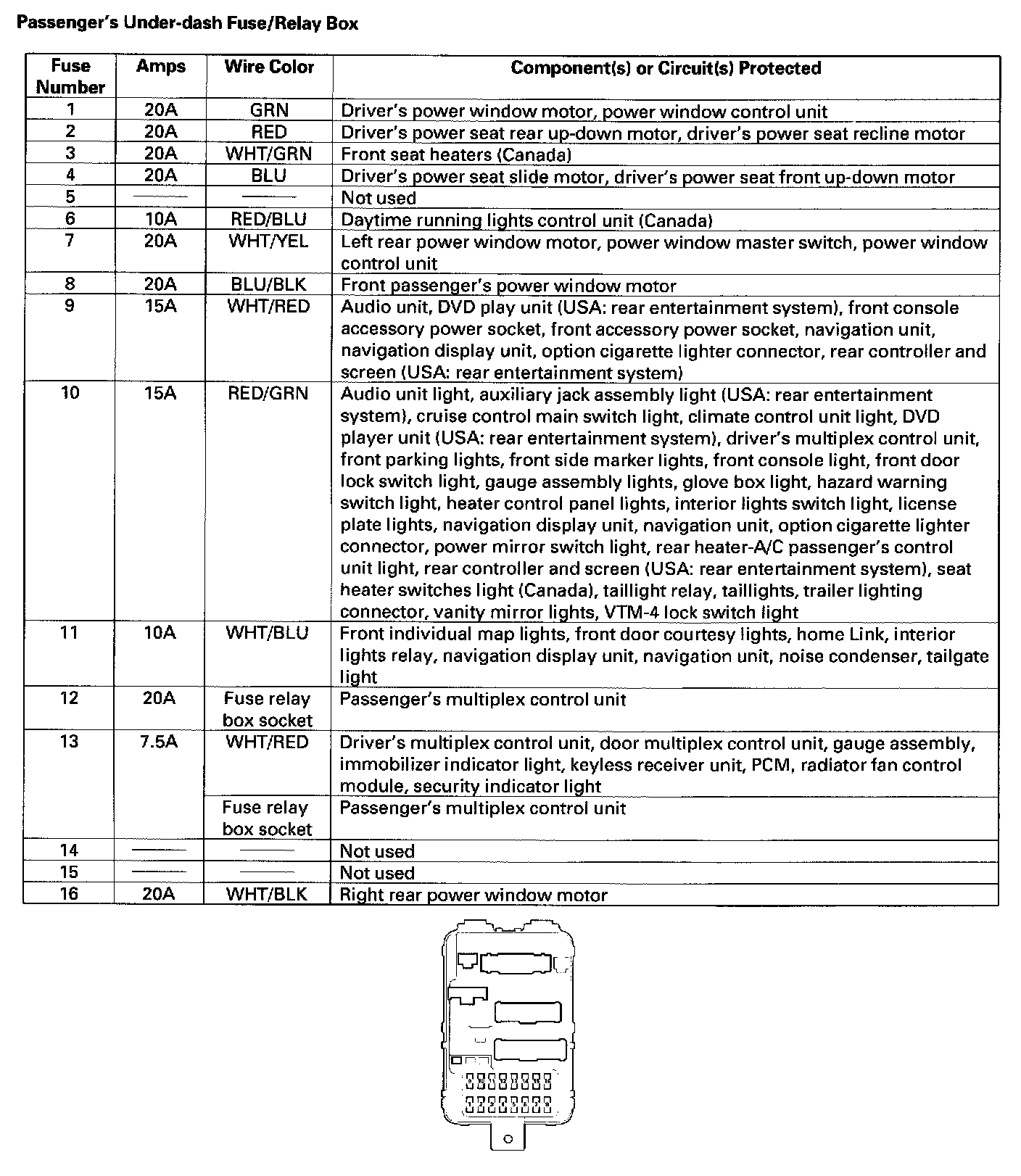

Passenger's Under-Dash Fuse/Relay Box:

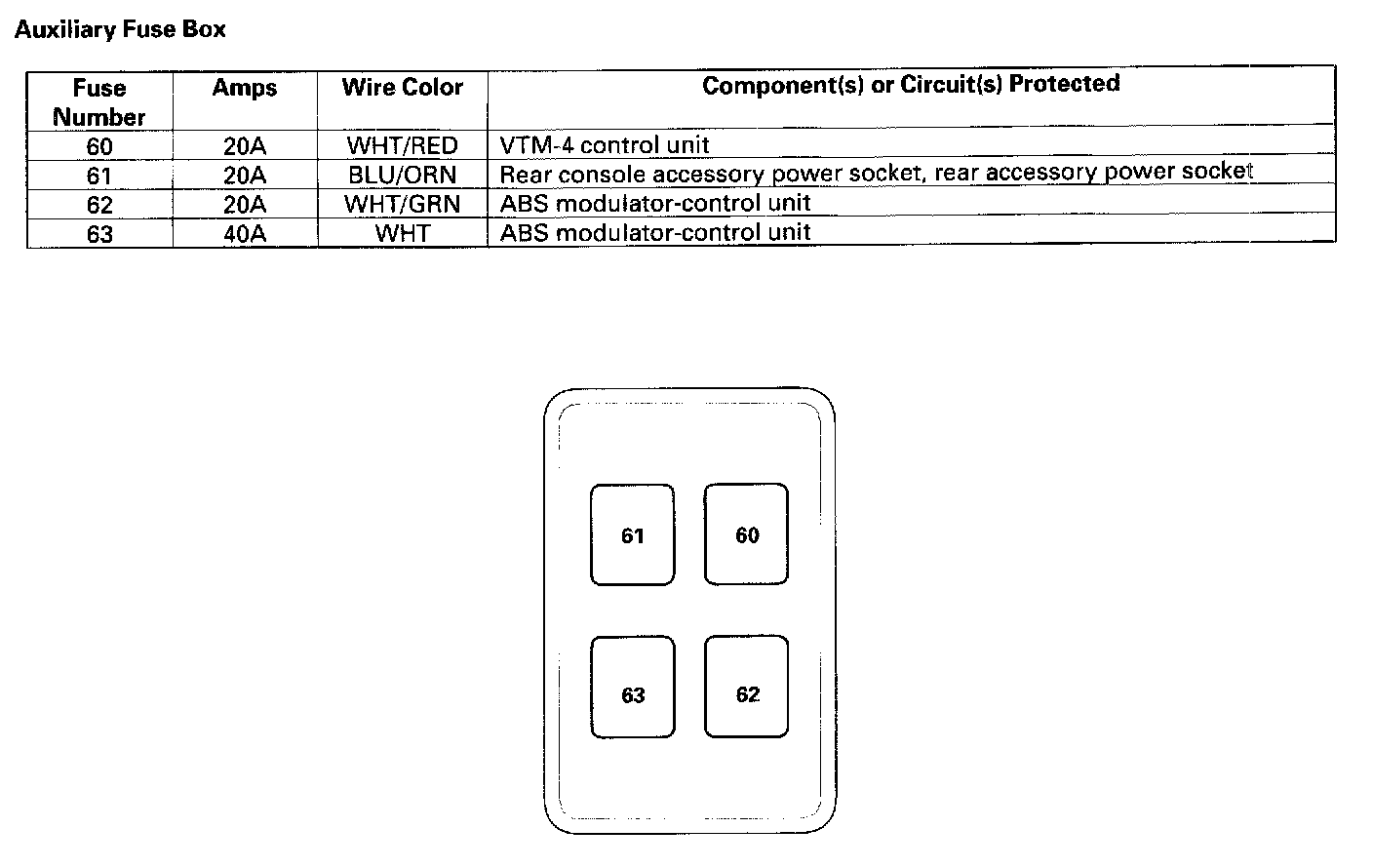

Auxiliary Fuse Box:

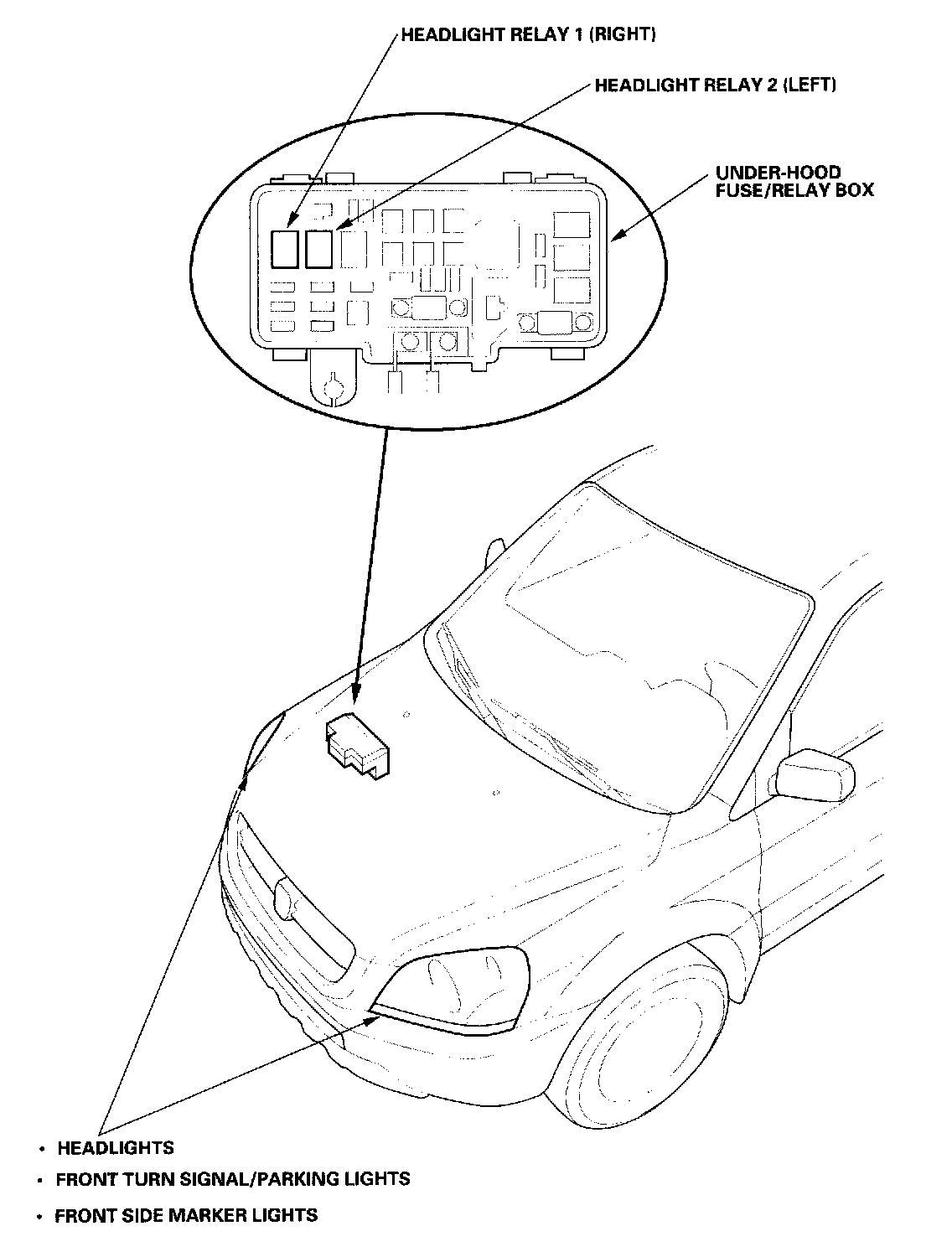

Exterior Lights Component Location Index:

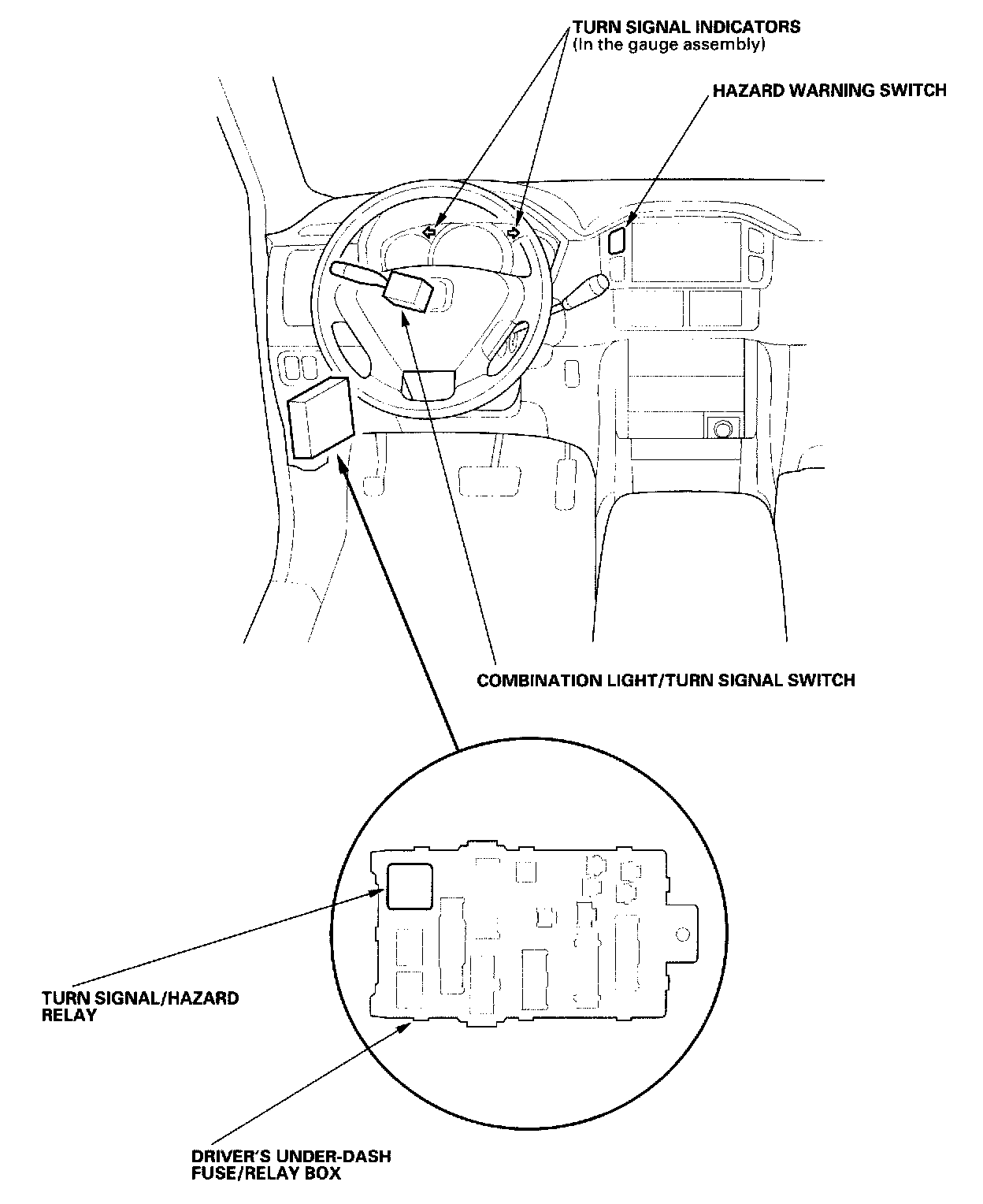

Turn Signal/Hazard Flasher Component Location Index:

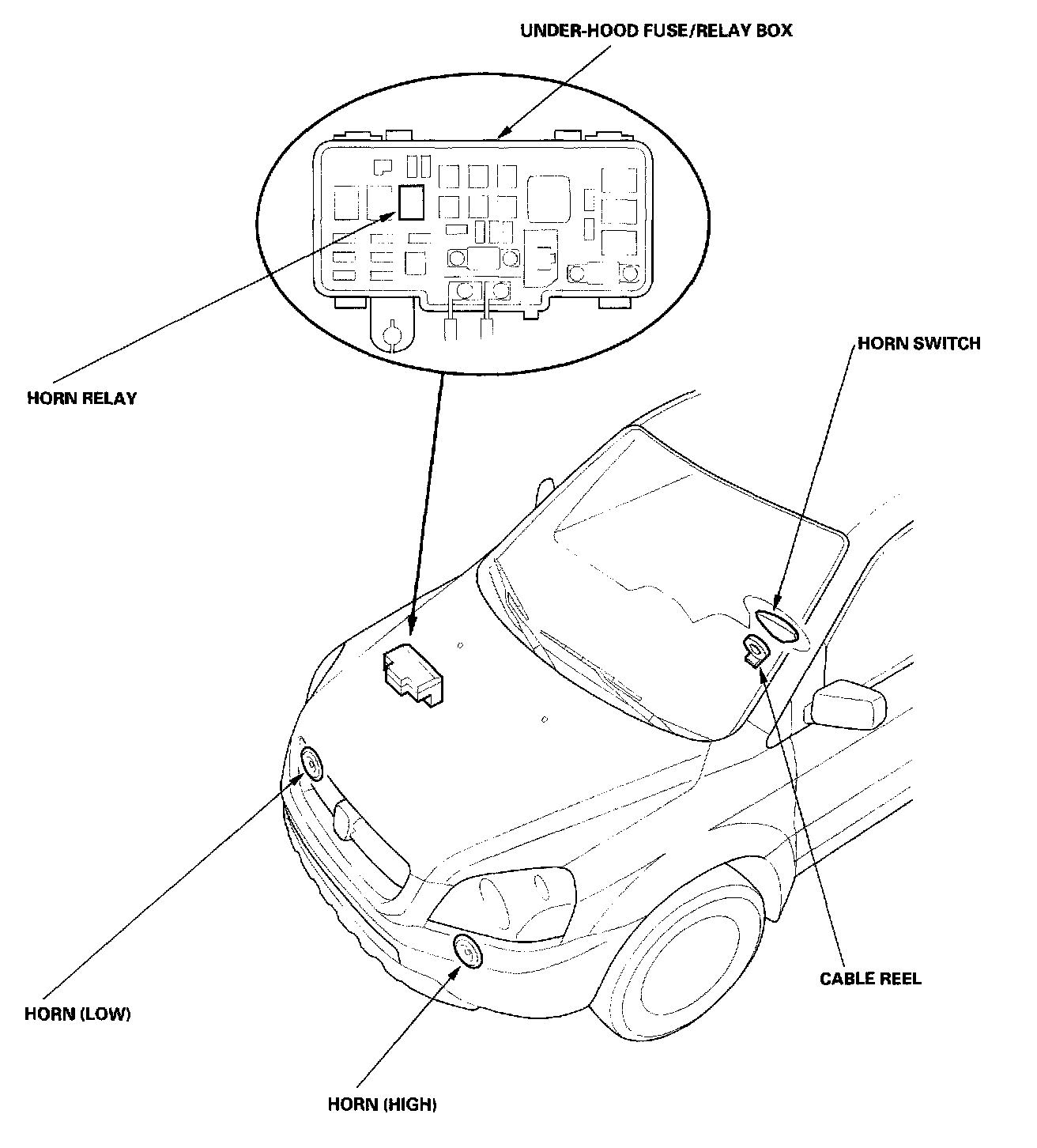

Horns Component Location Index:

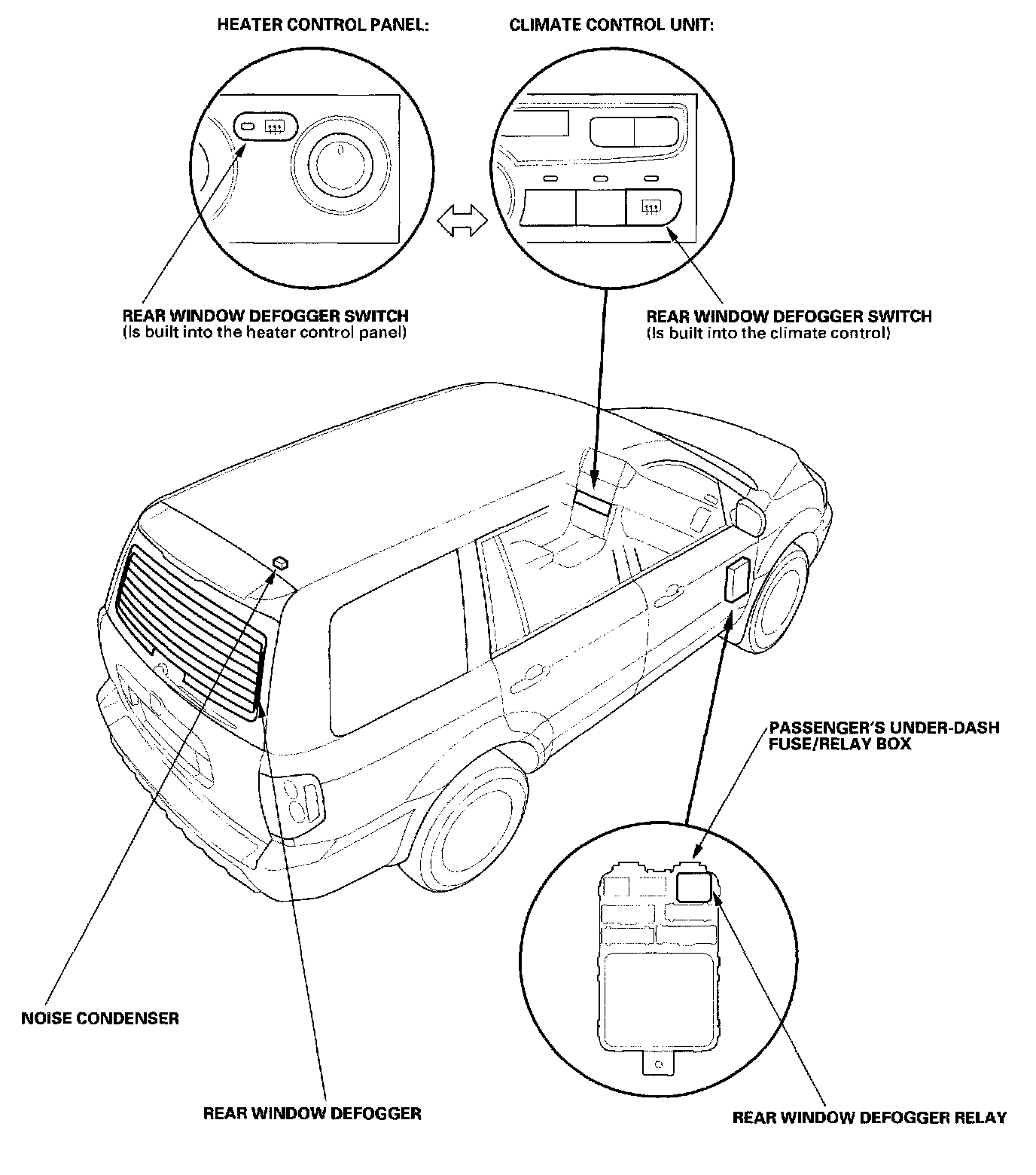

Rear Window Defogger Component Location Index:

Power Windows Component Location Index:

Accessory Power Sockets Component Location Index:
