Drive Belt: Service and Repair

Alternator-compressor Belt Replacement

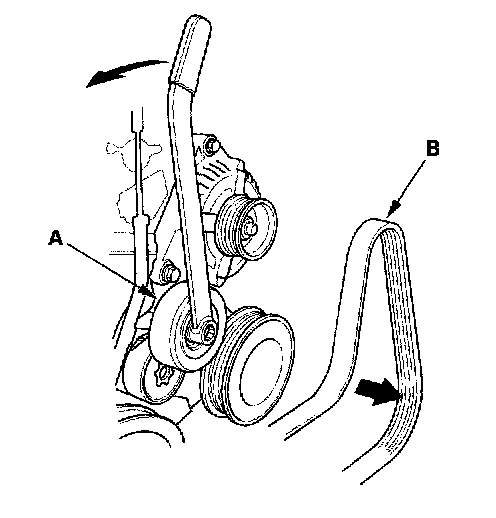

1. Move the auto-tensioner (A) to relieve tension from the alternator-compressor belt (B), and remove the belt.
2. Install the new belt in the reverse order of removal.
