Climate Control

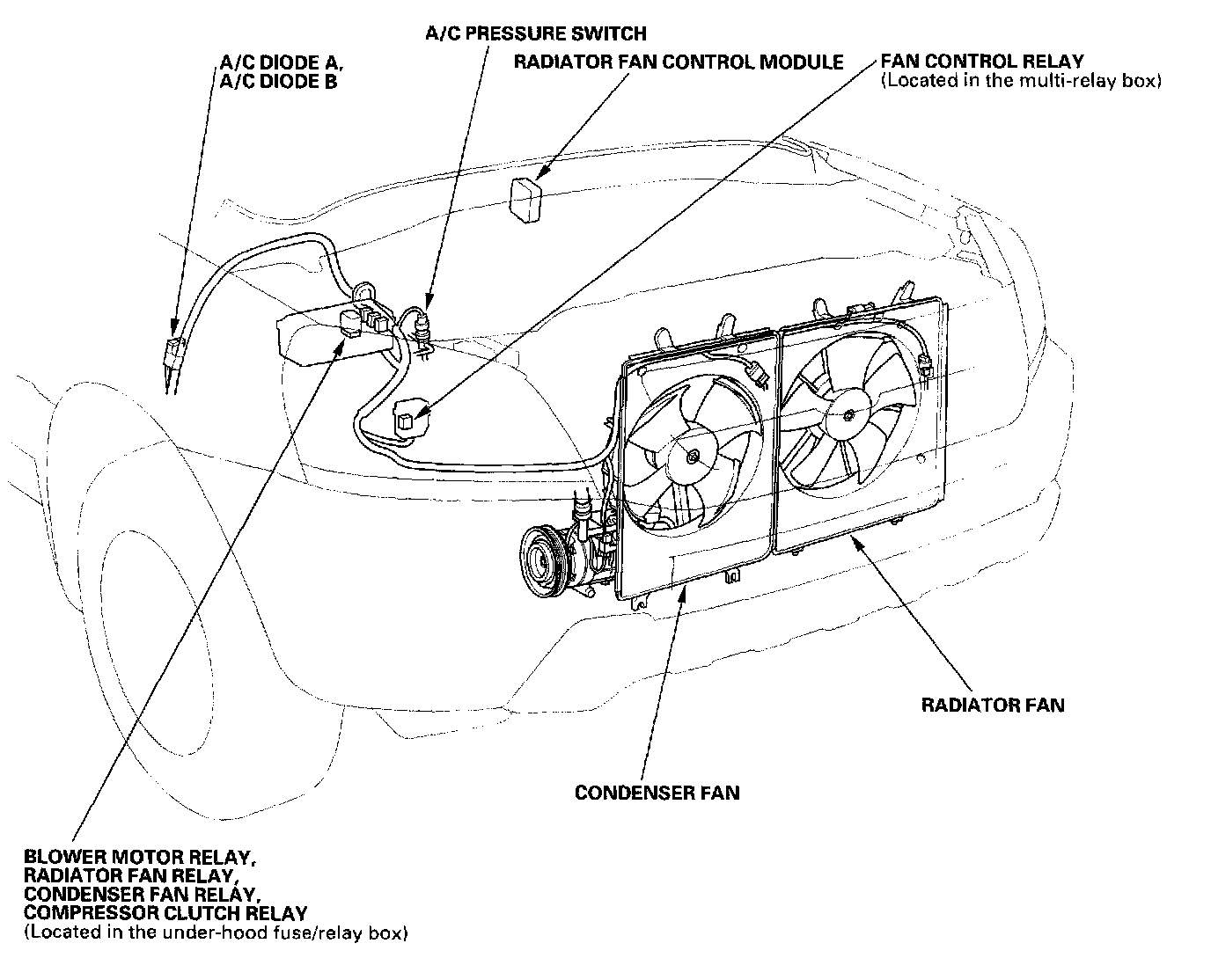

Heating And Air Conditioning Component Location Index:

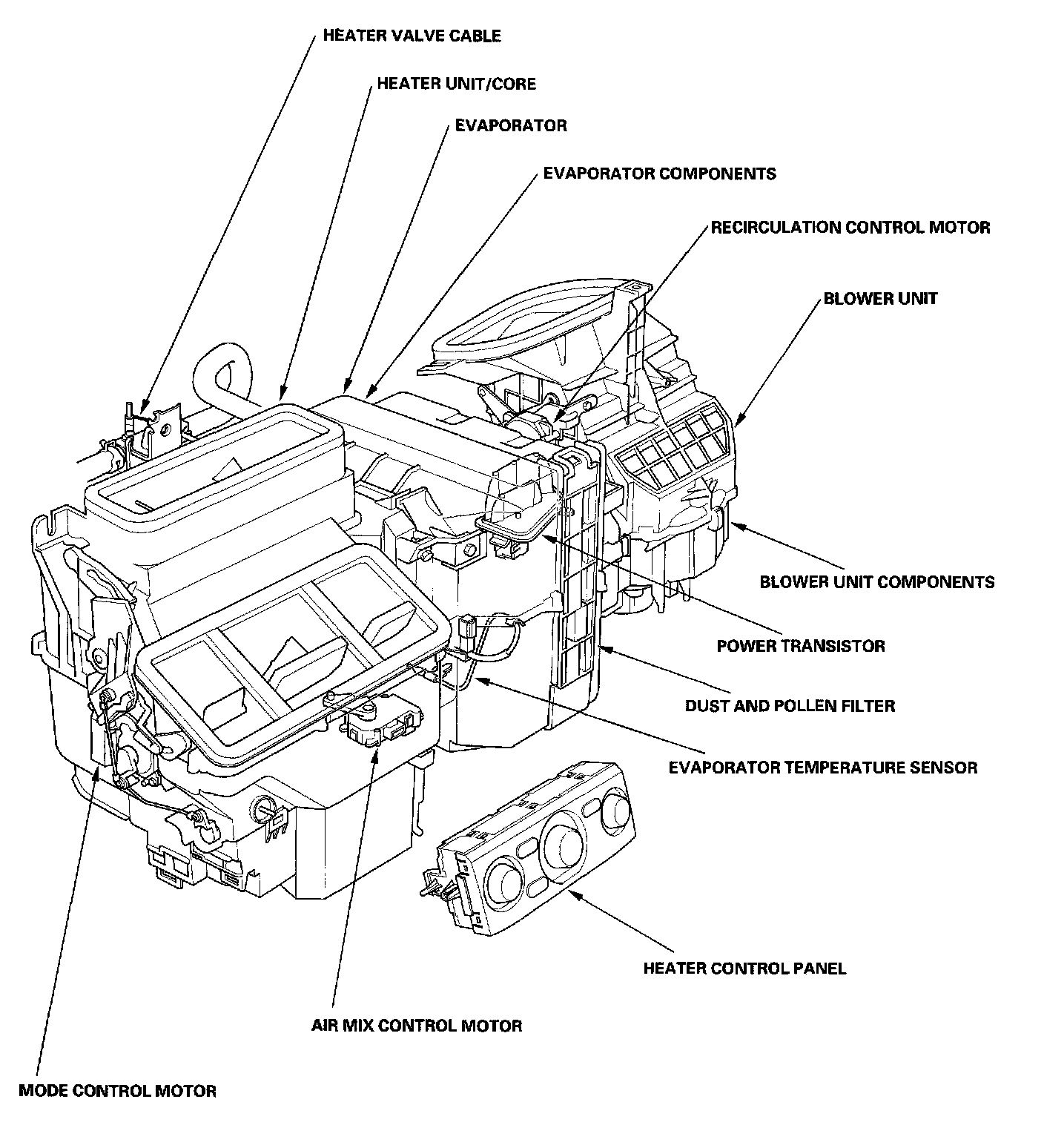

Heating And Air Conditioning Component Location Index:




Heating And Air Conditioning Component Location Index:

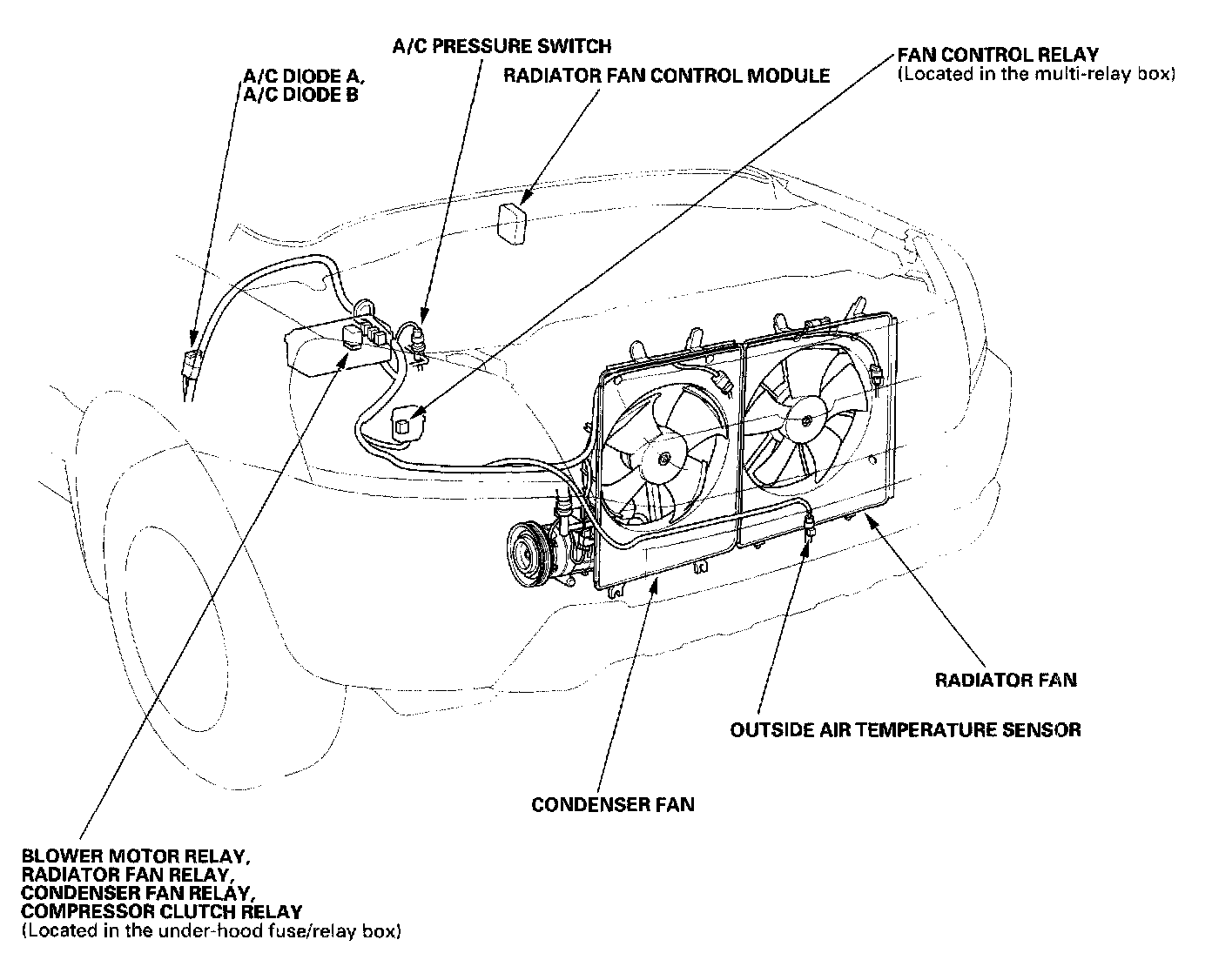

Climate Control Component Location Index:




Climate Control Component Location Index:

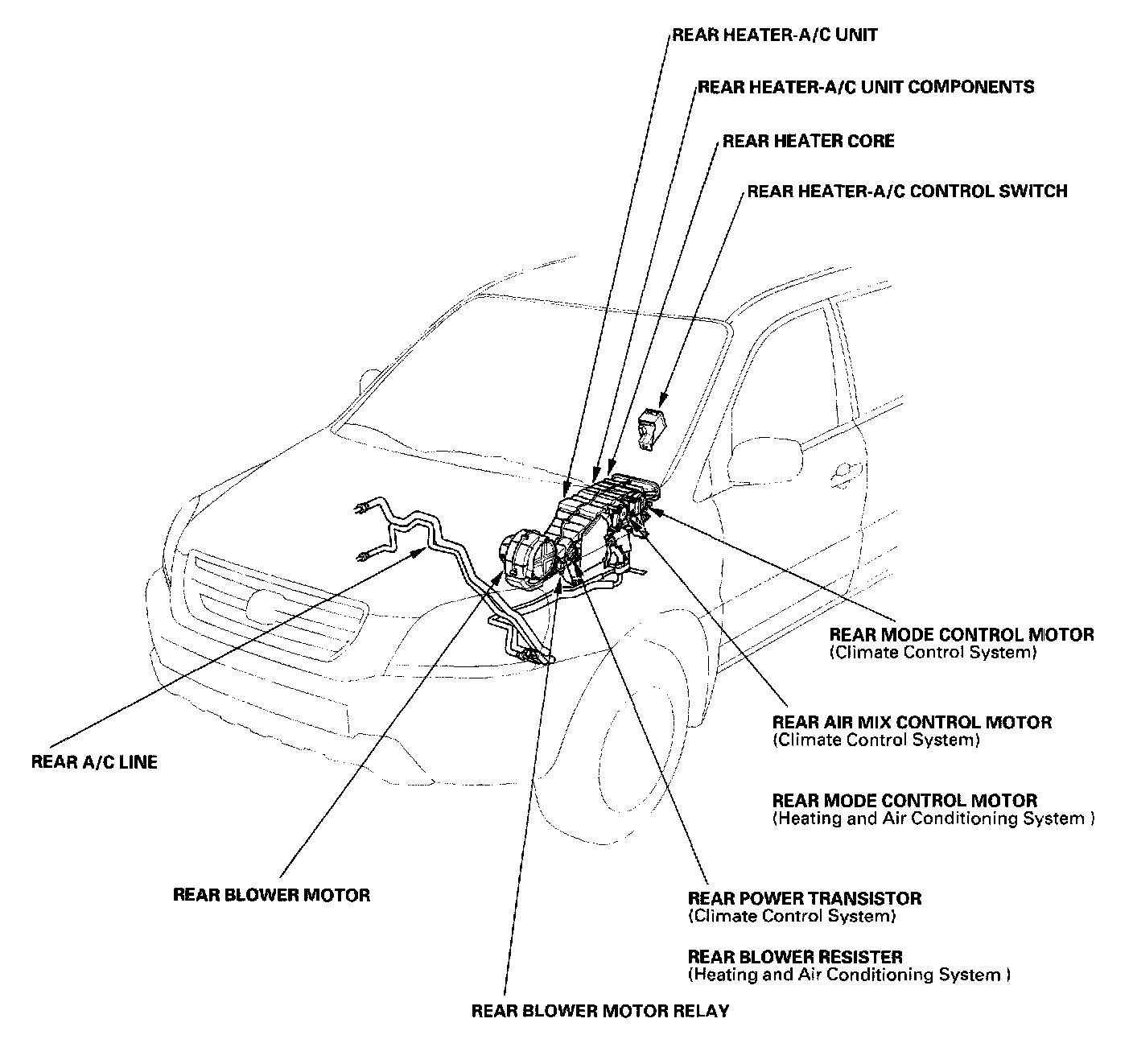

Rear Heater-A/C Component Location Index:
