Honda
>>
2003
>>
Pilot V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Engine Compartment
Engine Compartment
Relay And Control Unit Locations - Engine Compartment:

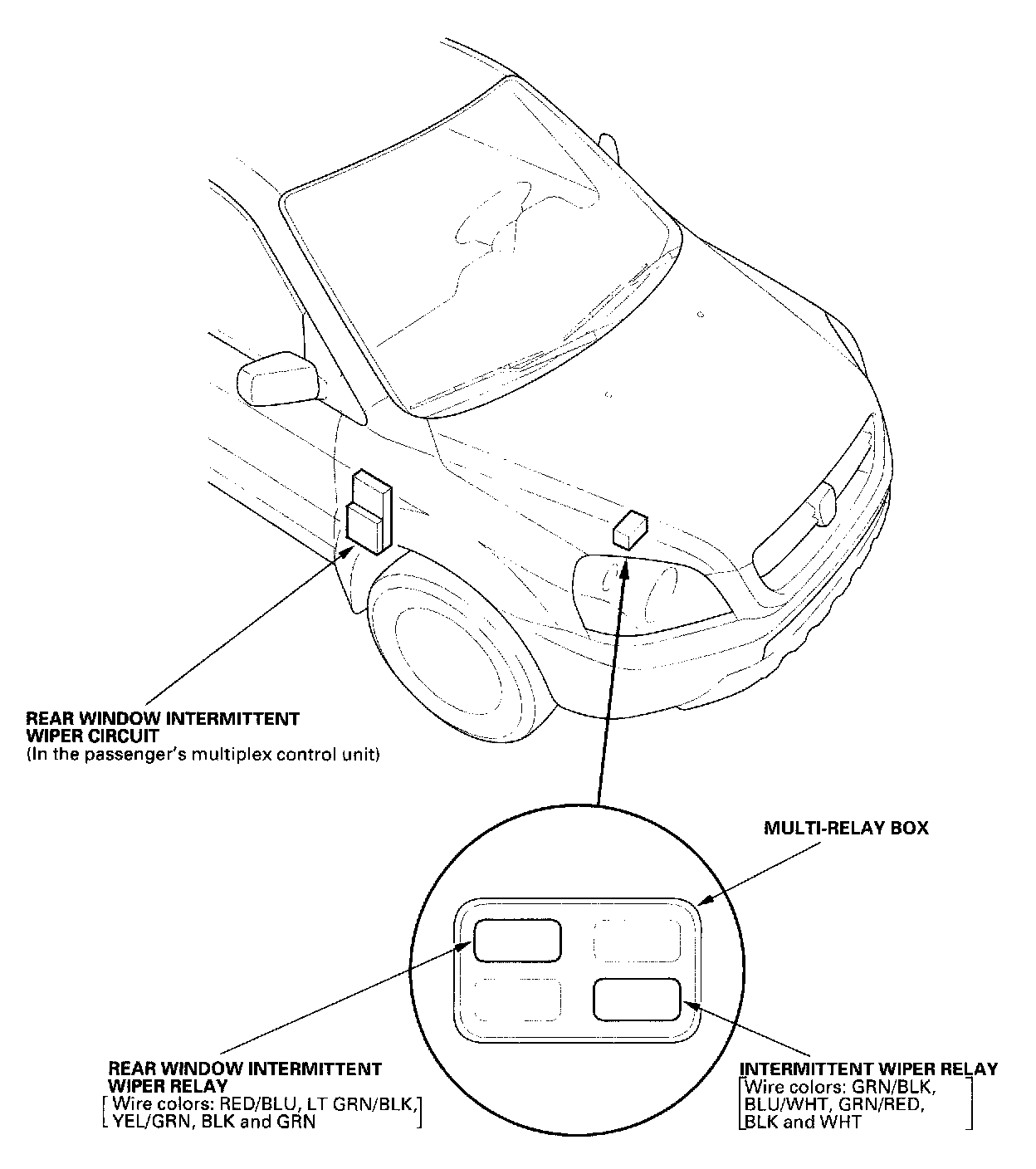

Wipers/Washers Component Location Index:

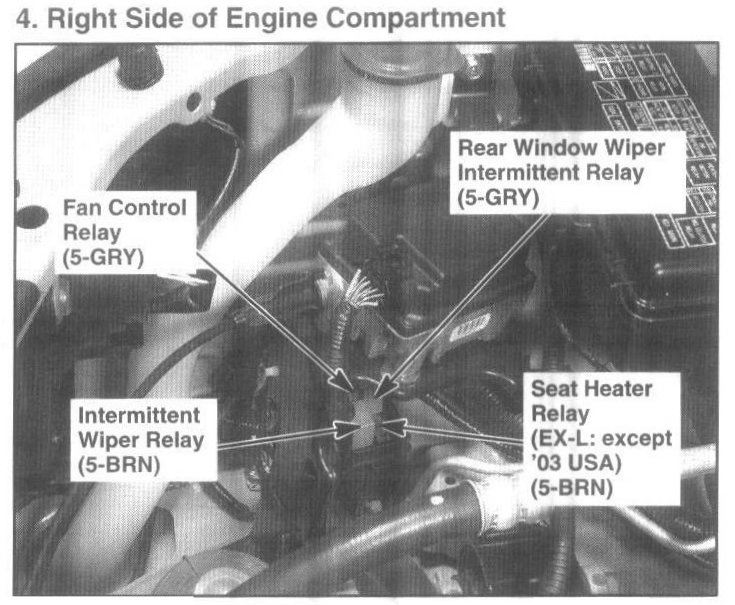

4. Right Side of Engine Compartment:
