Navigation Module: Service and Repair

Navigation Unit Removal/Installation

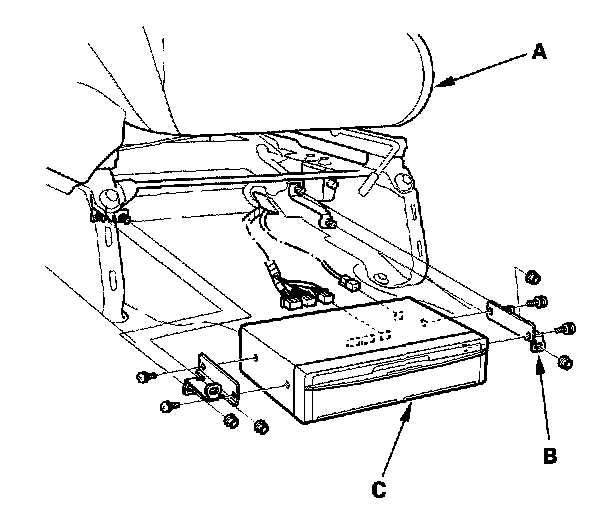

1. Slide the passenger's seat (A) to the rear.
2. Remove the navigation unit bracket (B) from the passenger's seat.
3. Remove the bracket from the navigation unit (C).
4. Install in the reverse order of removal.
