Ignition Key In Signal, Antitheft
Ignition Key In Signal, Antitheft

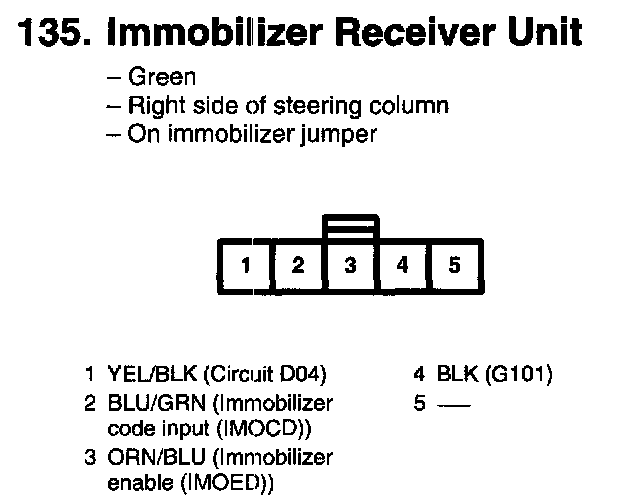

135. Immobilizer Receiver Unit:
204. Keyless Or Keyless And Security Control Unit (LX Model); Security Control Unit (EX Model) (Honda Accessory):
