Home >> Honda >> 2003 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

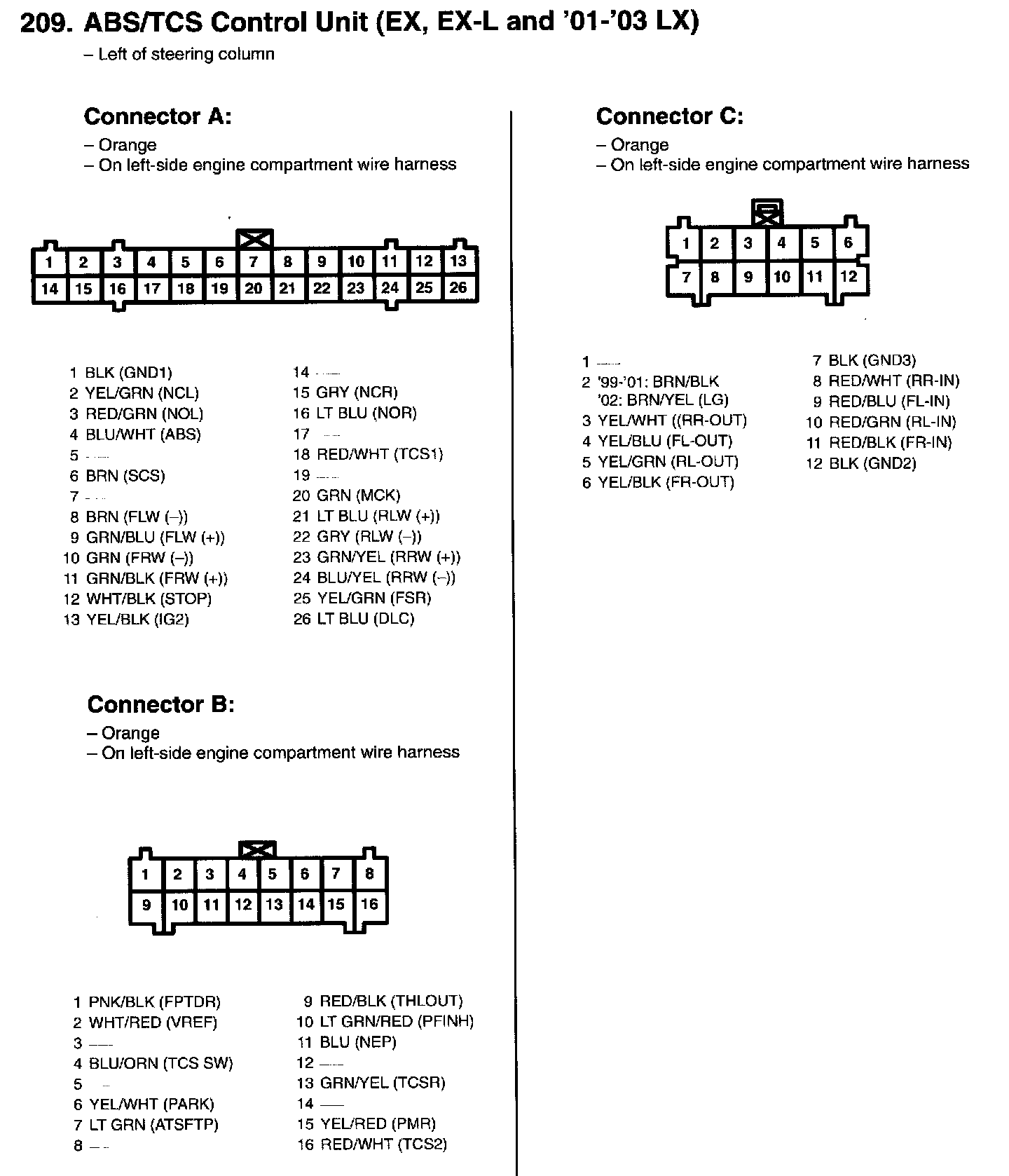

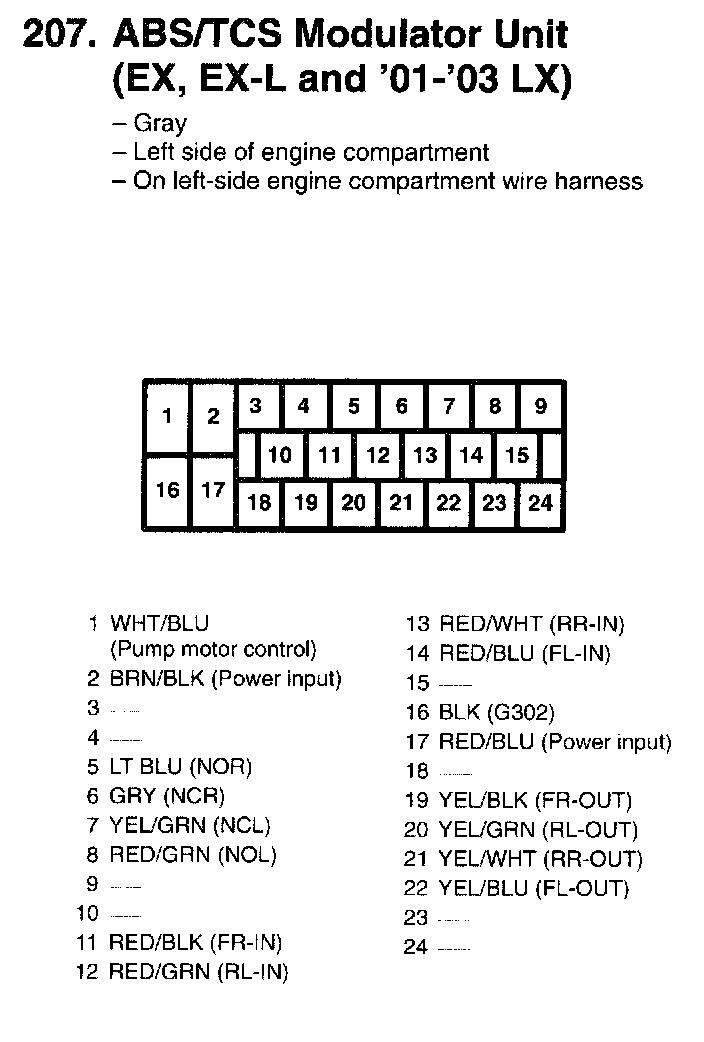

Electronic Brake Control Module

(EX, EX-L And 01-03 LX):

(EX, EX-L And LX):
