CMP Pulse Plate Replacement

CMP Pulse Plate A Replacement
1. Remove the cylinder head cover.

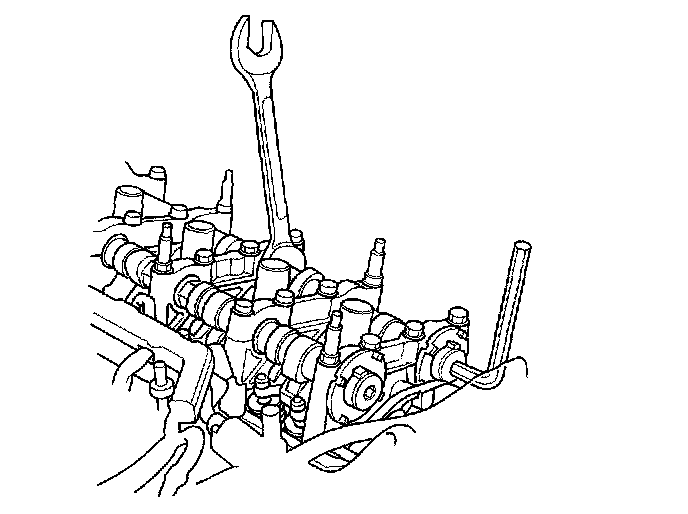

2. Hold the camshaft with an open-end wrench, then loosen the bolt.

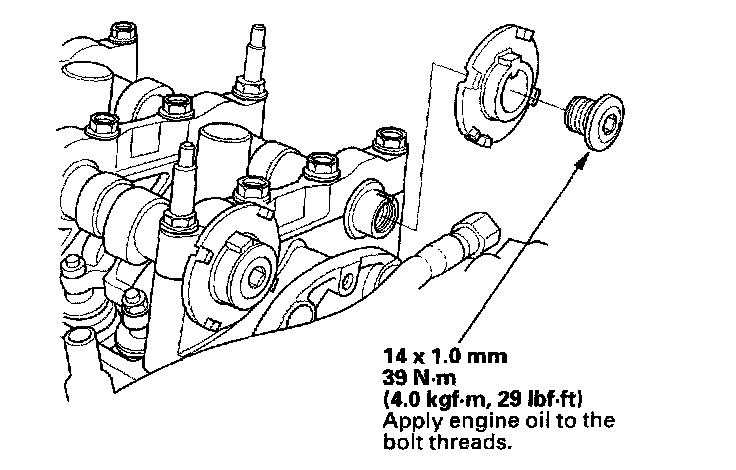

3. Remove the Camshaft Position (CMP) pulse plate A.
4. Install the CMP pulse plate A in the reverse order of removal.

CMP Pulse Plate B Replacement
1. Remove the cylinder head cover.

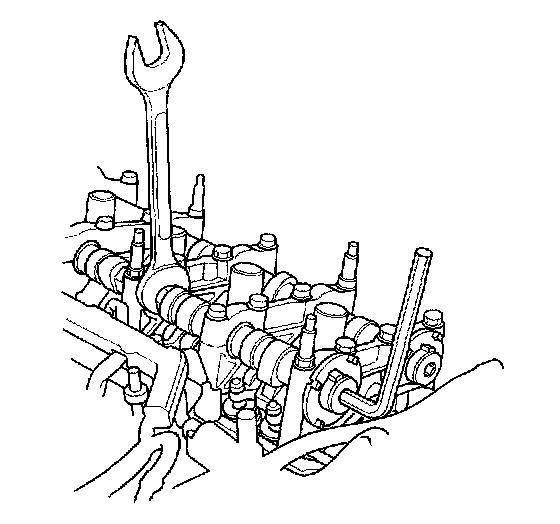

2. Hold the camshaft with an open-end wrench, then loosen the bolt.

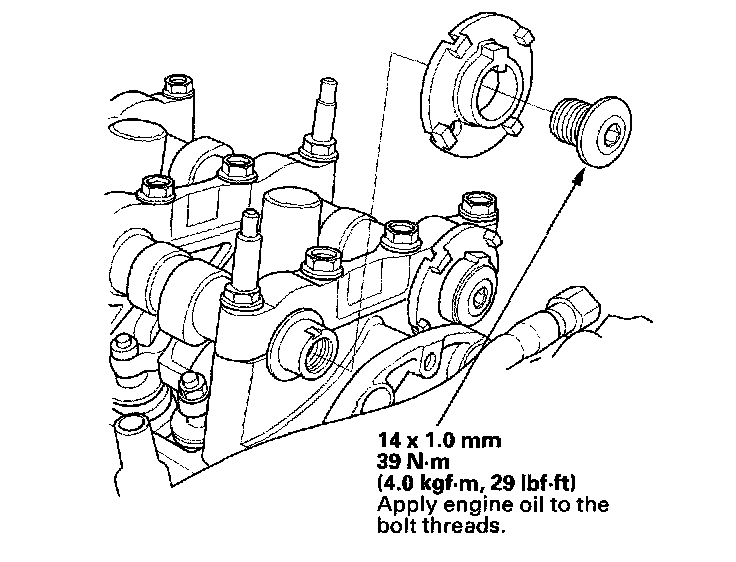

3. Remove the Camshaft Position (CMP) pulse plate B.
4. Install the CMP pulse plate B in the reverse order of removal.
