Drive Belt: Service and Repair

Drive Belt Replacement

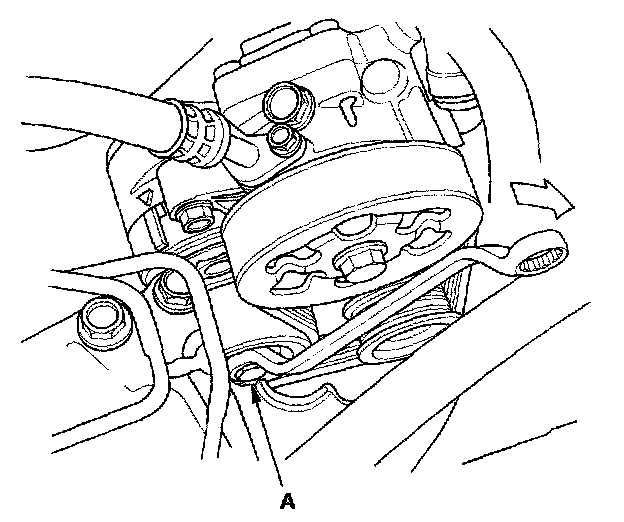

1. Move the auto-tensioner (A) to relieve tension from the drive belt, and remove the drive belt.
2. Install the new belt in the reverse order of removal.
