Subframe: Service and Repair

Subframe Replacement

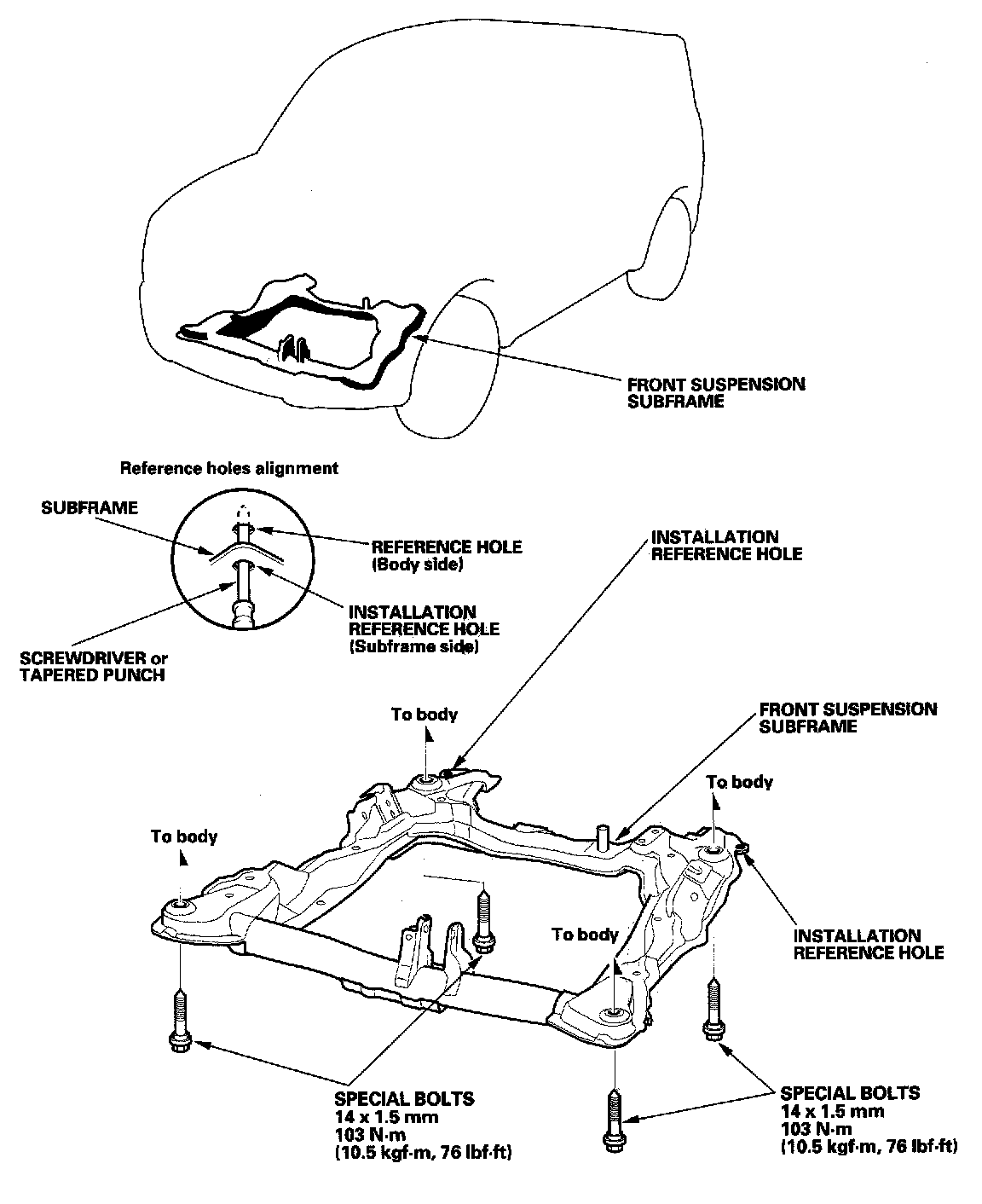

Front Subframe Torque

NOTE: After loosening the subframe mounting bolts, be sure to replace them with new ones.

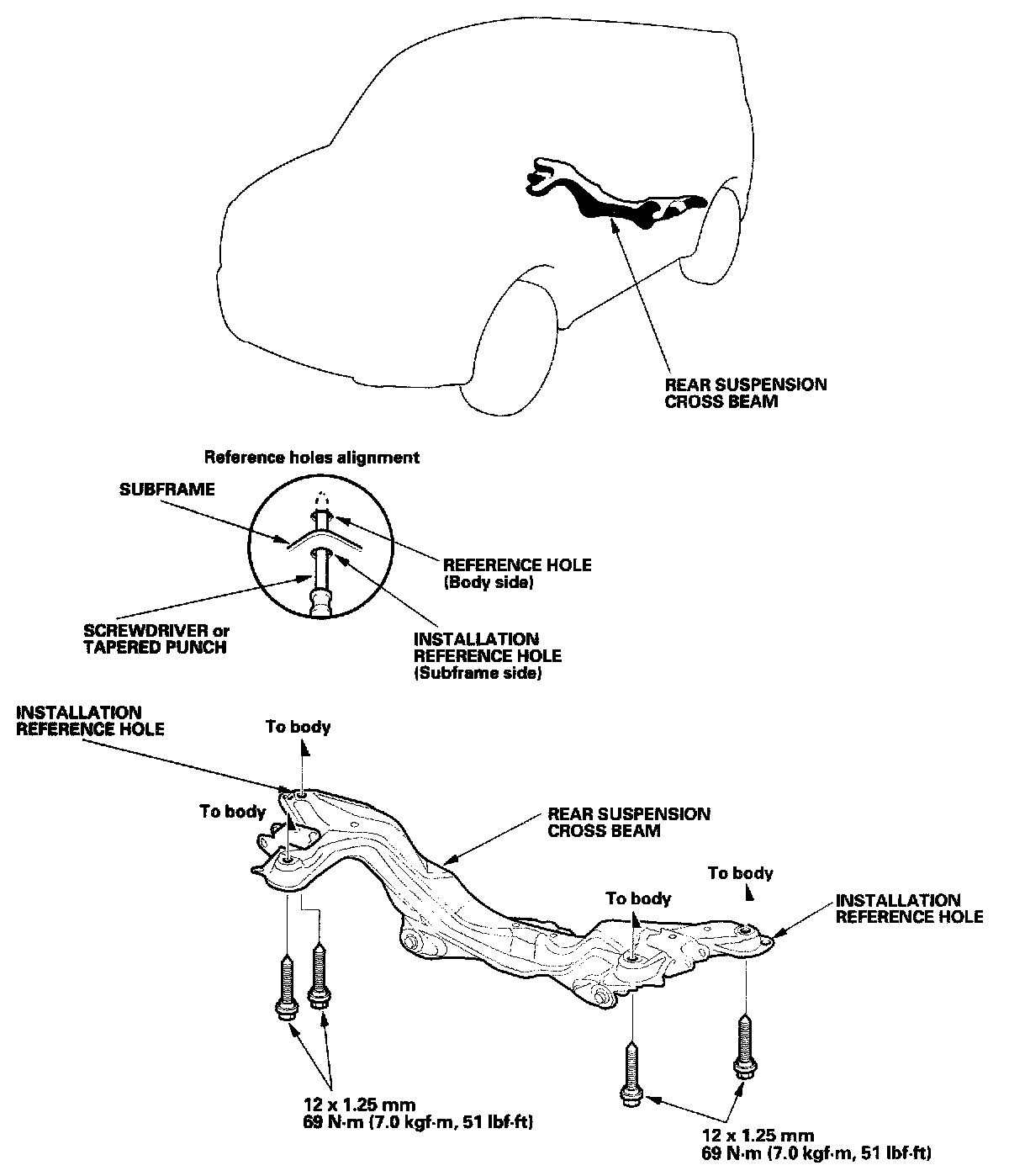

Rear Subframe Torque

NOTE: After loosening the subframe mounting bolts be sure to replace them with new ones.
