Engine Control Module: Locations

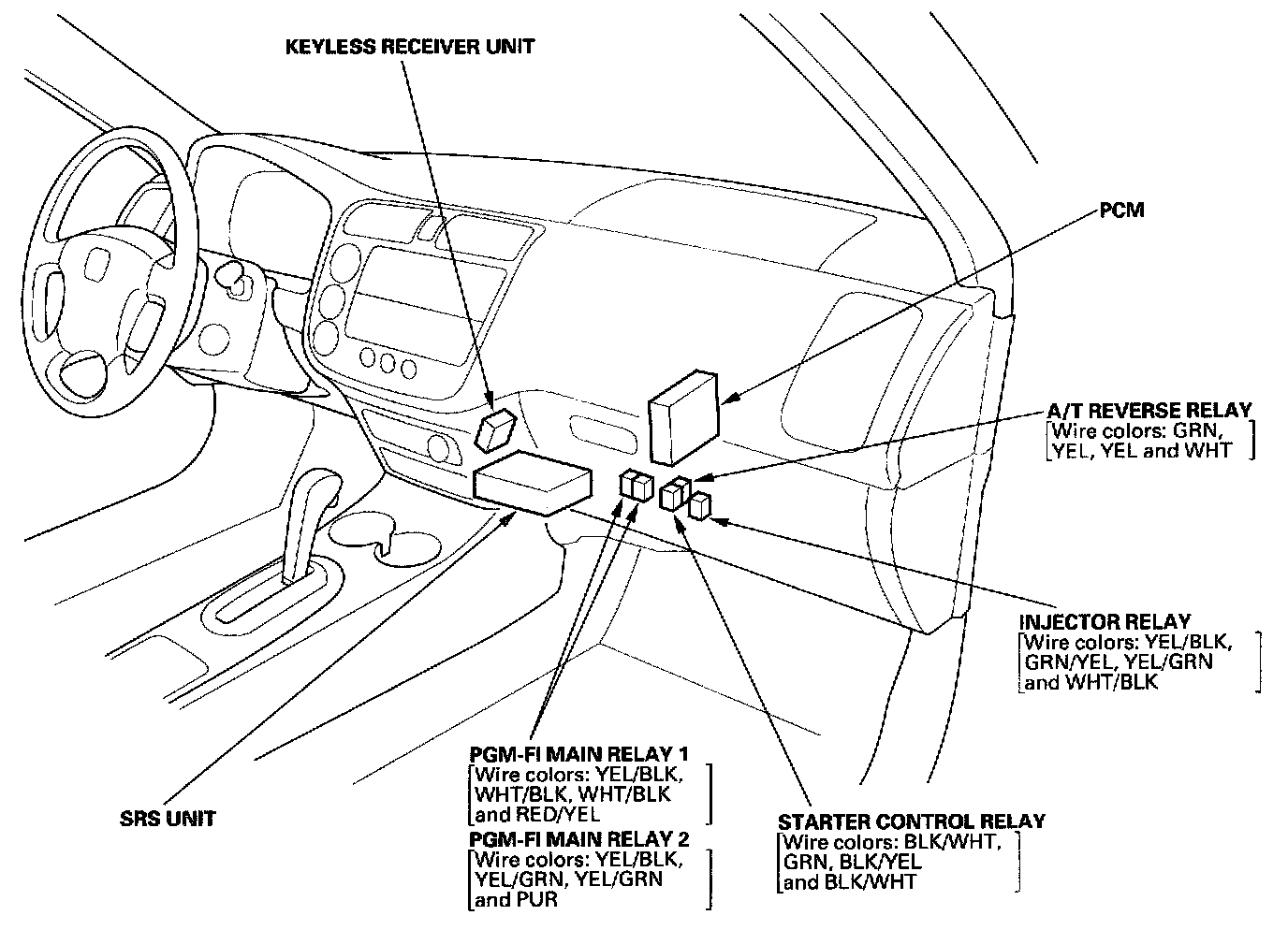

Relay And Control Unit Locations - Dashboard:

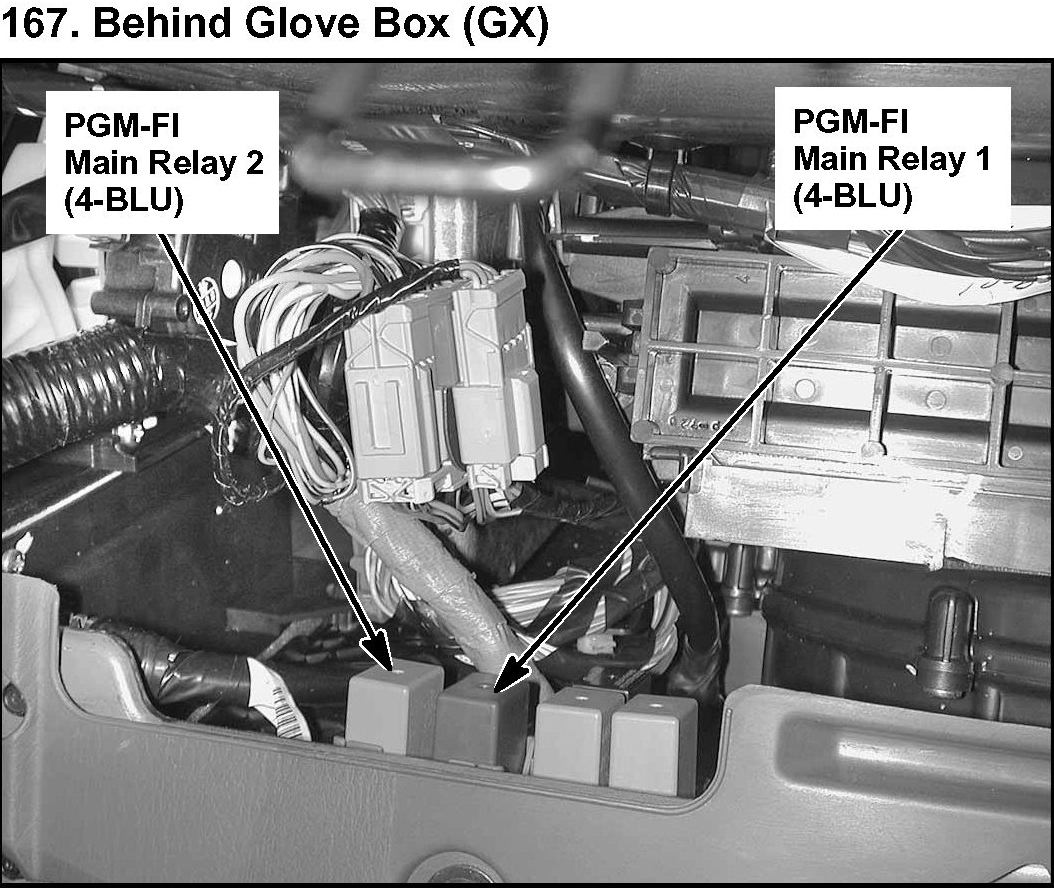

167. Behind Glove Box (GX):
