Home >> Honda >> 2003 >> Civic L4-1.7L CNG >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Module >> Locations

Keyless Entry Module: Locations

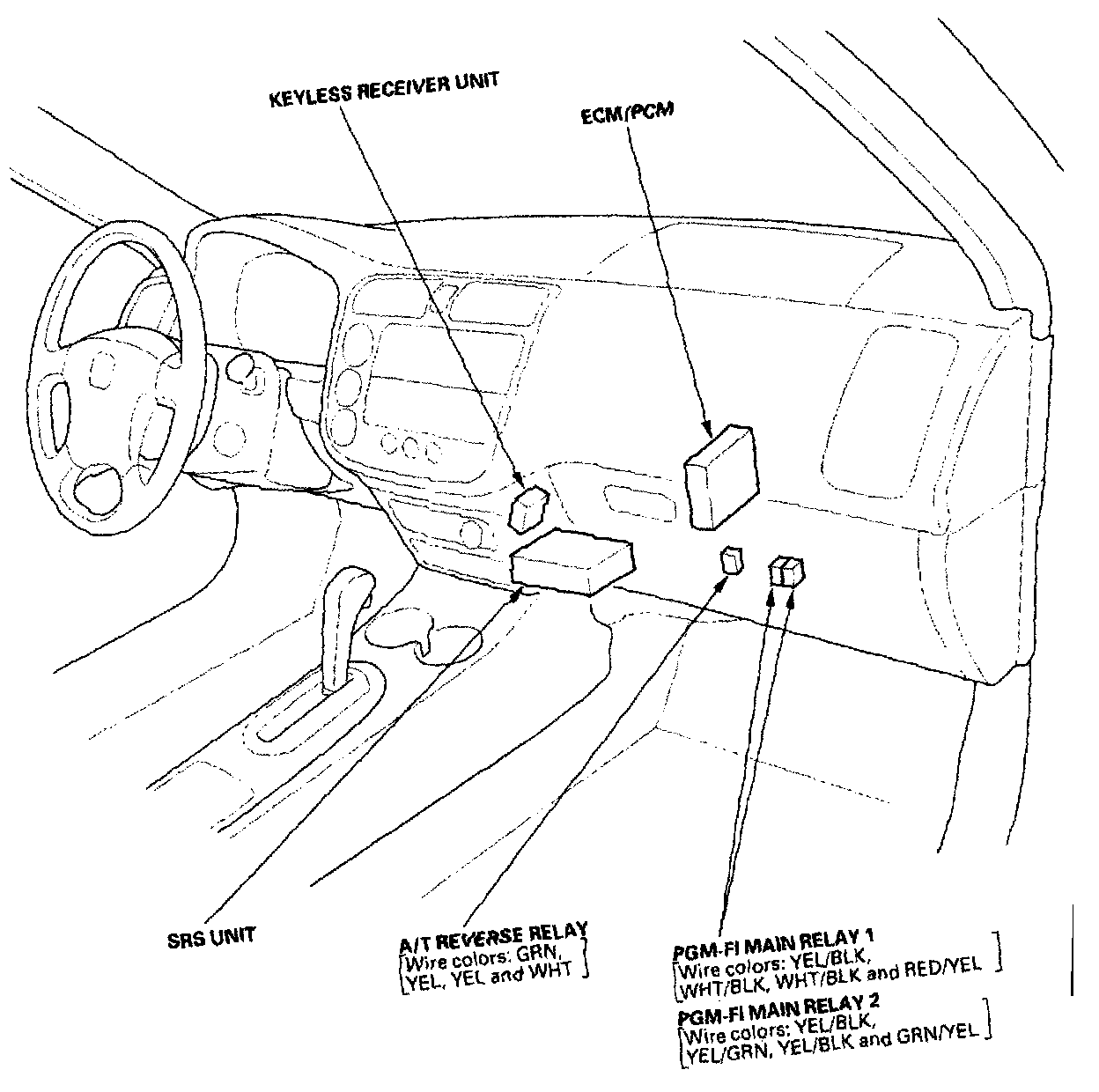

Relay And Control Unit Locations - Dashboard:

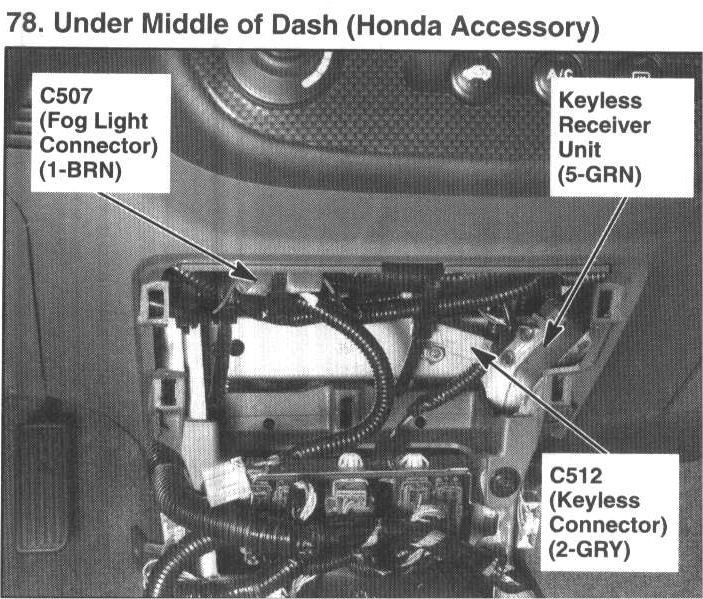

78. Under Middle of Dash (Honda Accessory):

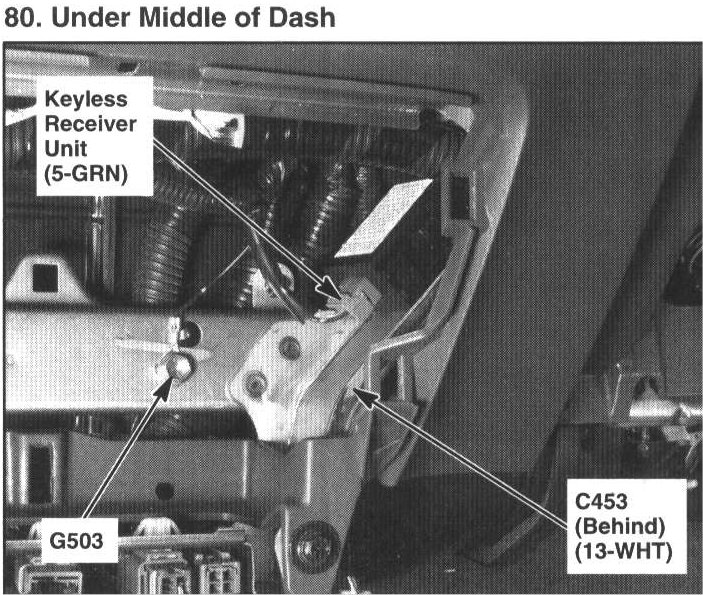

80. Under Middle of Dash:
