Torque Specifications

Rod Bearing Caps:

Torque the bolts to 20 Nm (2.0 kgf-m, 14 ft. lbs.).

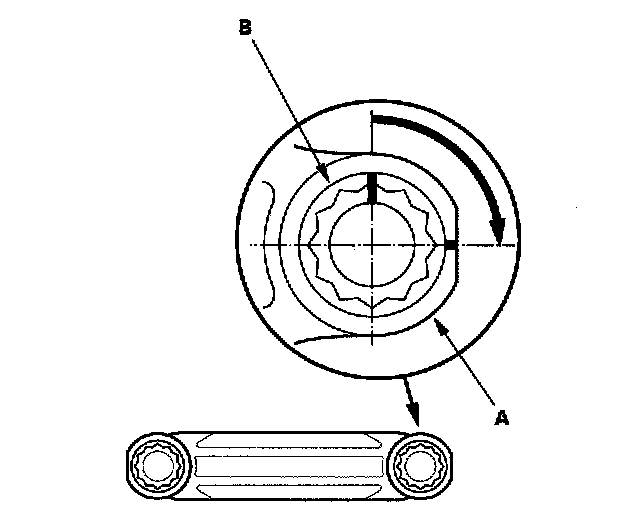

Tighten the bolts an additional 90°.

Connecting Rod Bolt Reusabillity:

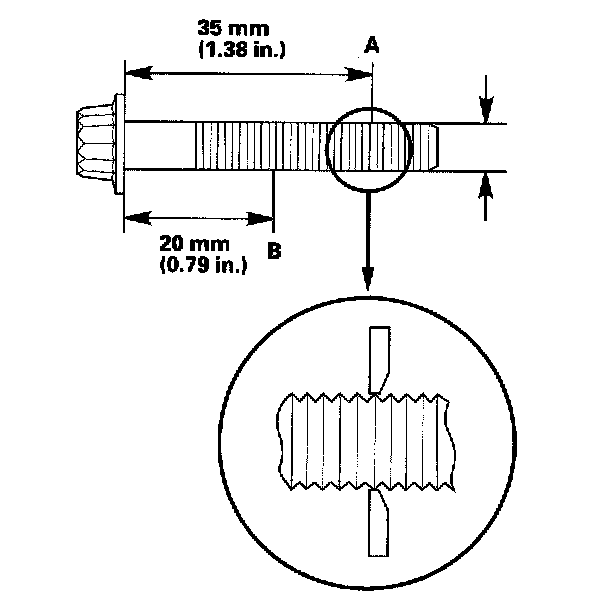

Measure the diameter of each connecting rod bolt at point A and point B.

Specification: 0 - 0.1 mm (0 - 0.004 inch)

If the difference in diameter is out of tolerance, replace the connecting rod bolt.
