Home >> Honda >> 2003 >> Accord V6-3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Diagrams

Throttle Position Sensor: Diagrams

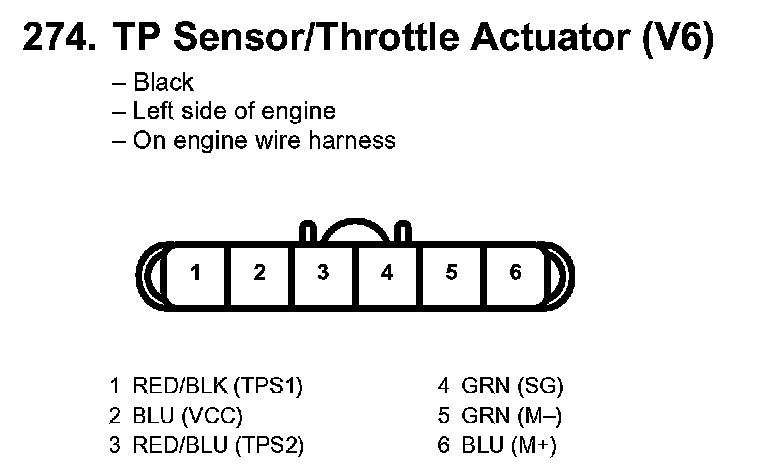

274. TP Sensor/Throttle Actuator:
