Home >> Honda >> 2003 >> Accord V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> ECM/PCM

ECM/PCM

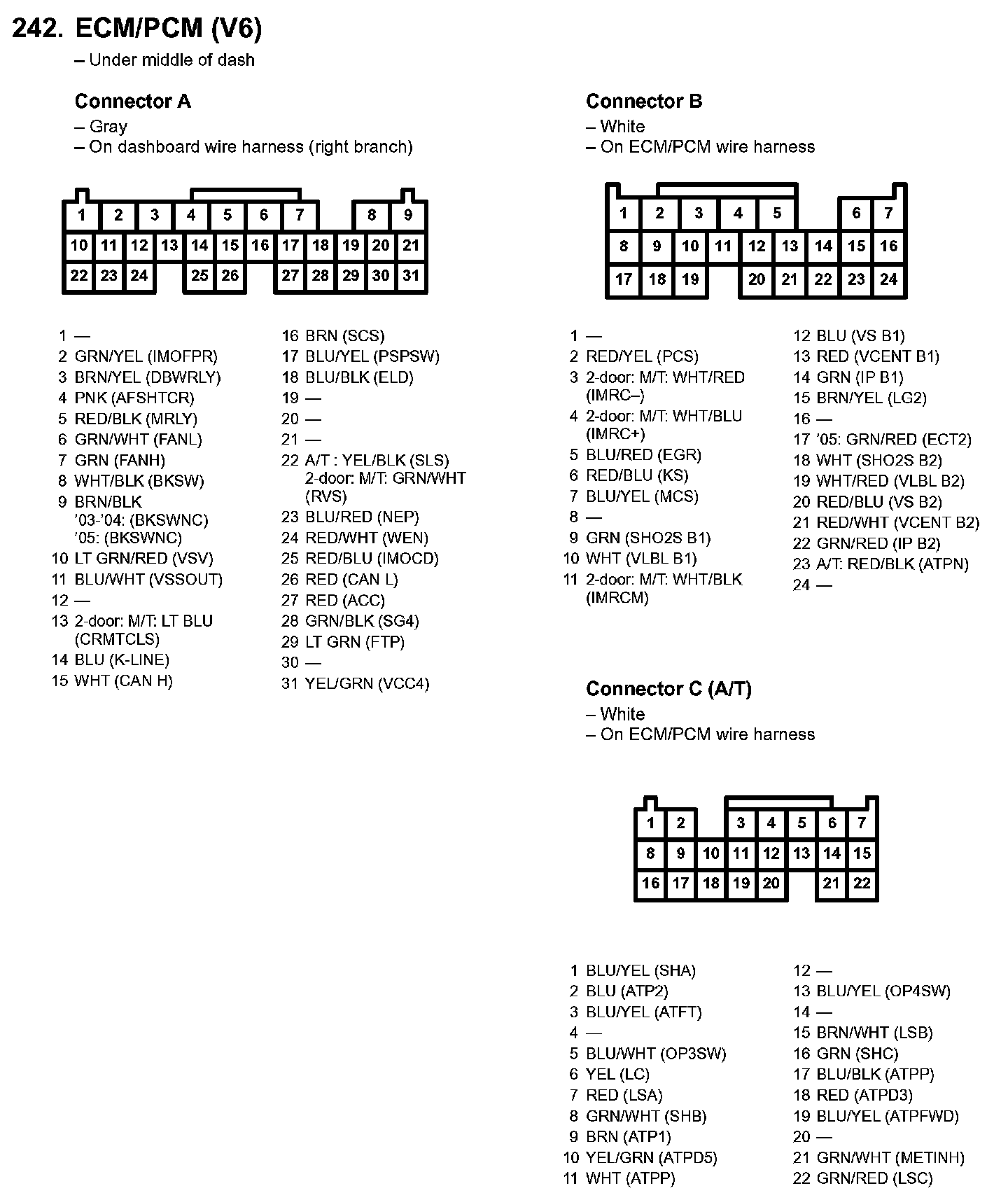

242. ECM/PCM Part 1:

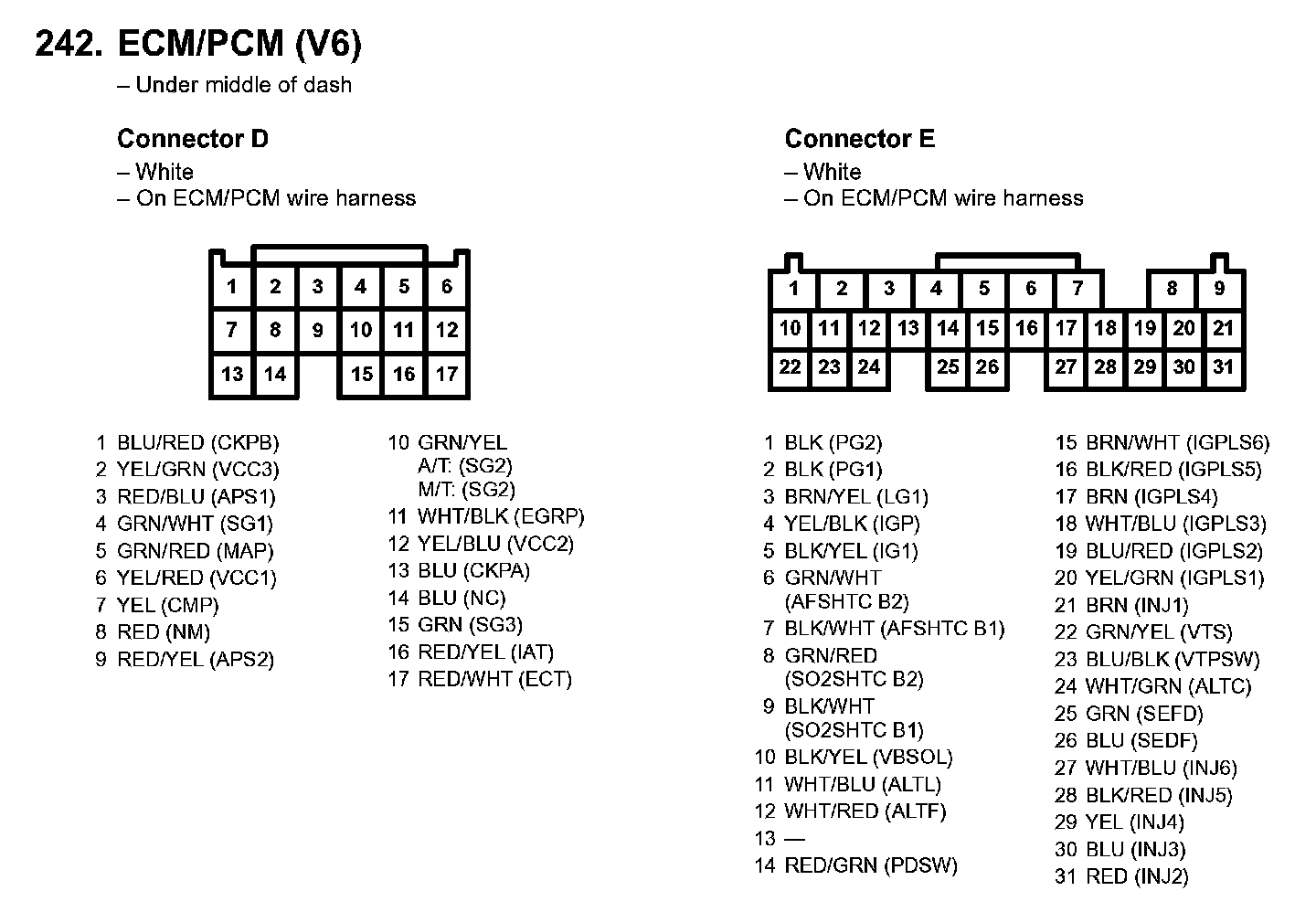

242. ECM/PCM Part 2:
