Electronic Throttle Control Module
Electronic Throttle Control Module

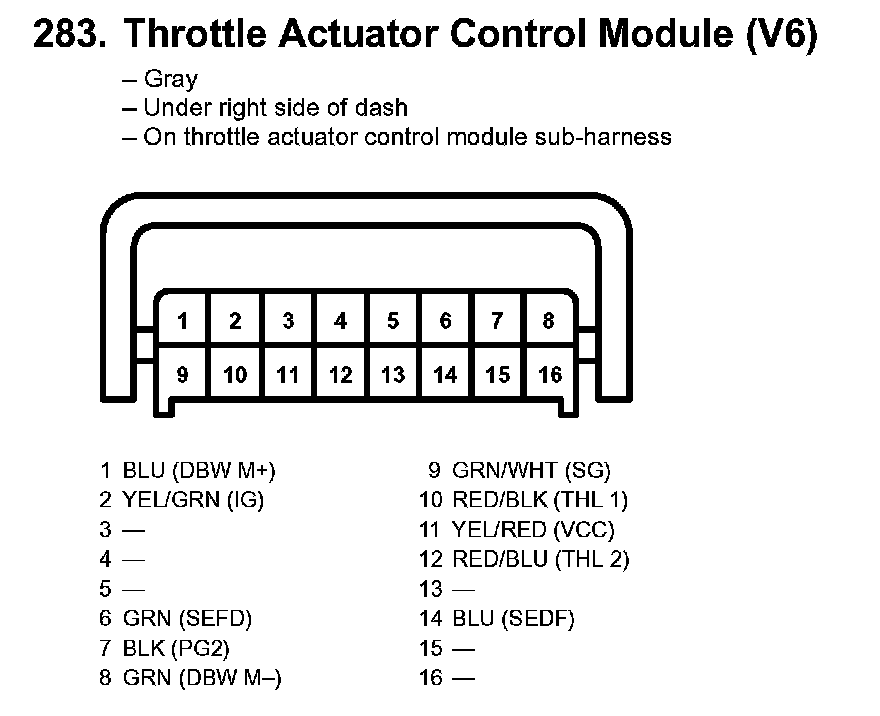

283. Throttle Actuator Control Module:
