Electronic Brake Control Module
Electronic Brake Control Module

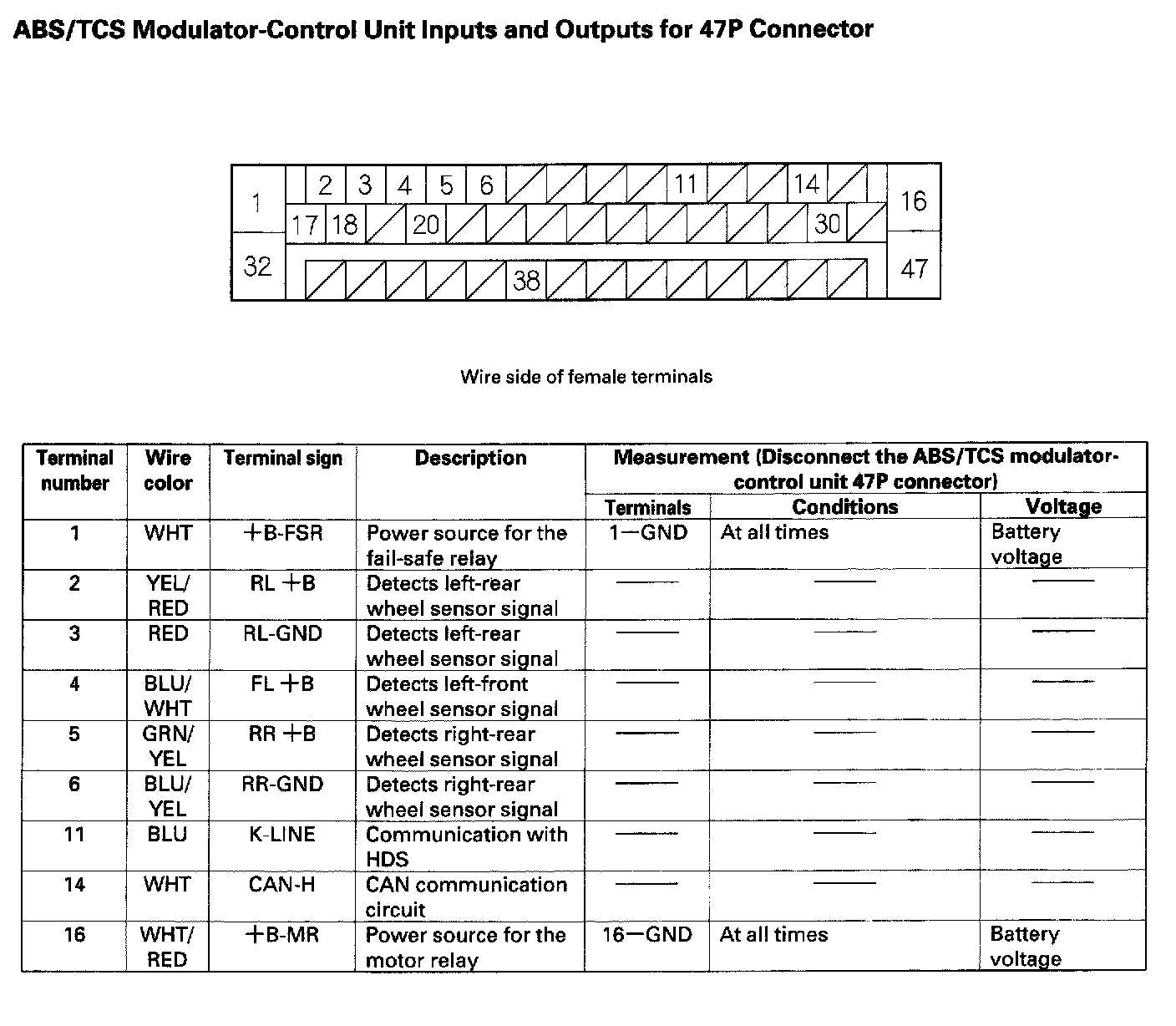

ABS/TCS Modulator-Control Unit Inputs And Outputs For 47P Connector:
ABS/TCS Modulator-Control Unit Inputs And Outputs For 47P Connector:
