Relays and Modules - Instrument Panel
>>
Instrument Panel Control Module
>>
Diagrams
>>
Connector Views
Connector Views

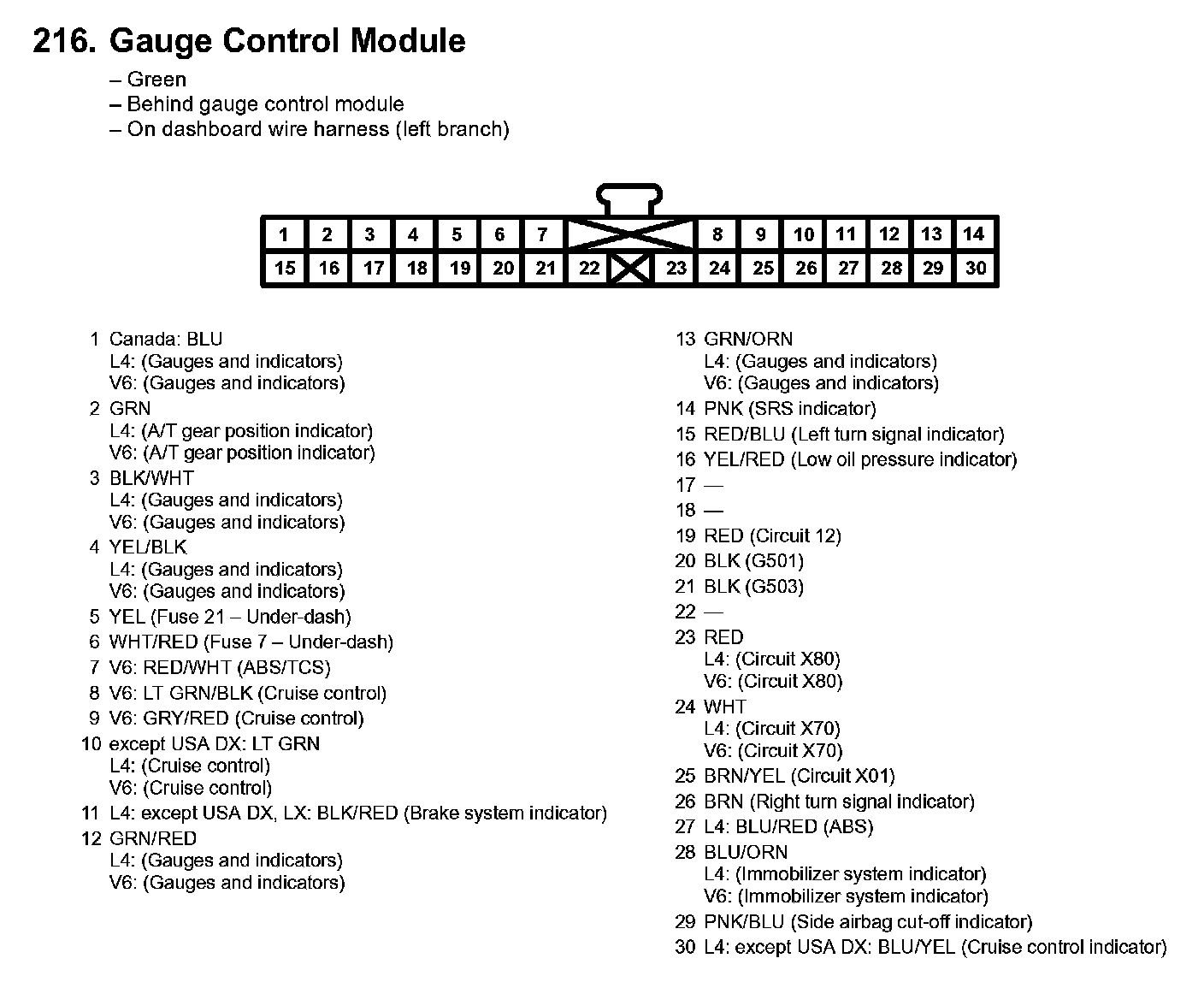

216. Gauge Control Module:
