Home >> Honda >> 2003 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Intake Manifold

Intake Manifold

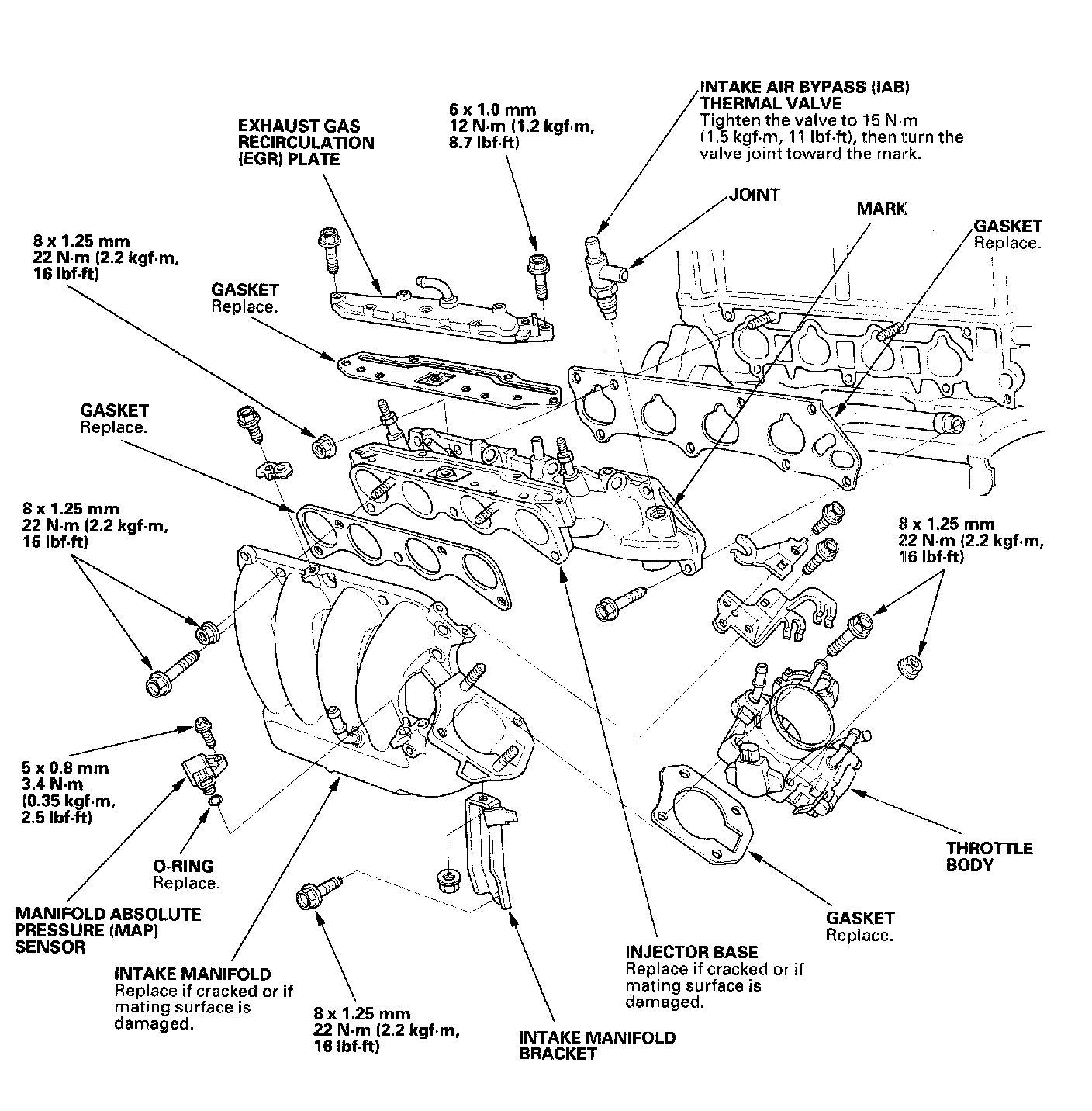

Exploded View - Intake Manifold:
