Home >> Honda >> 2003 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> ECM/PCM

ECM/PCM

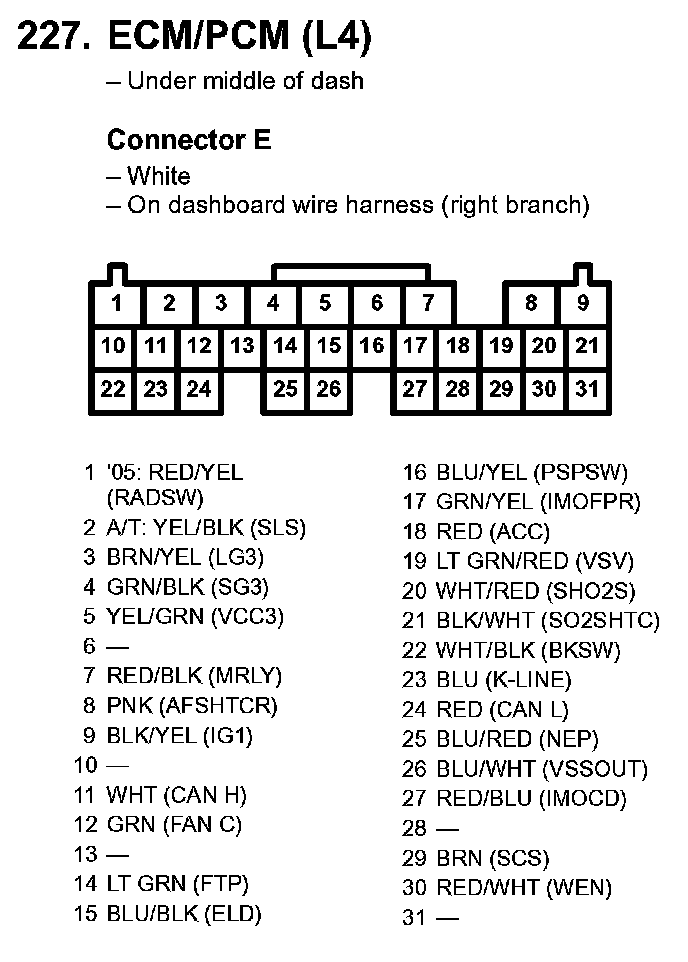

227. ECM/PCM Part 1:

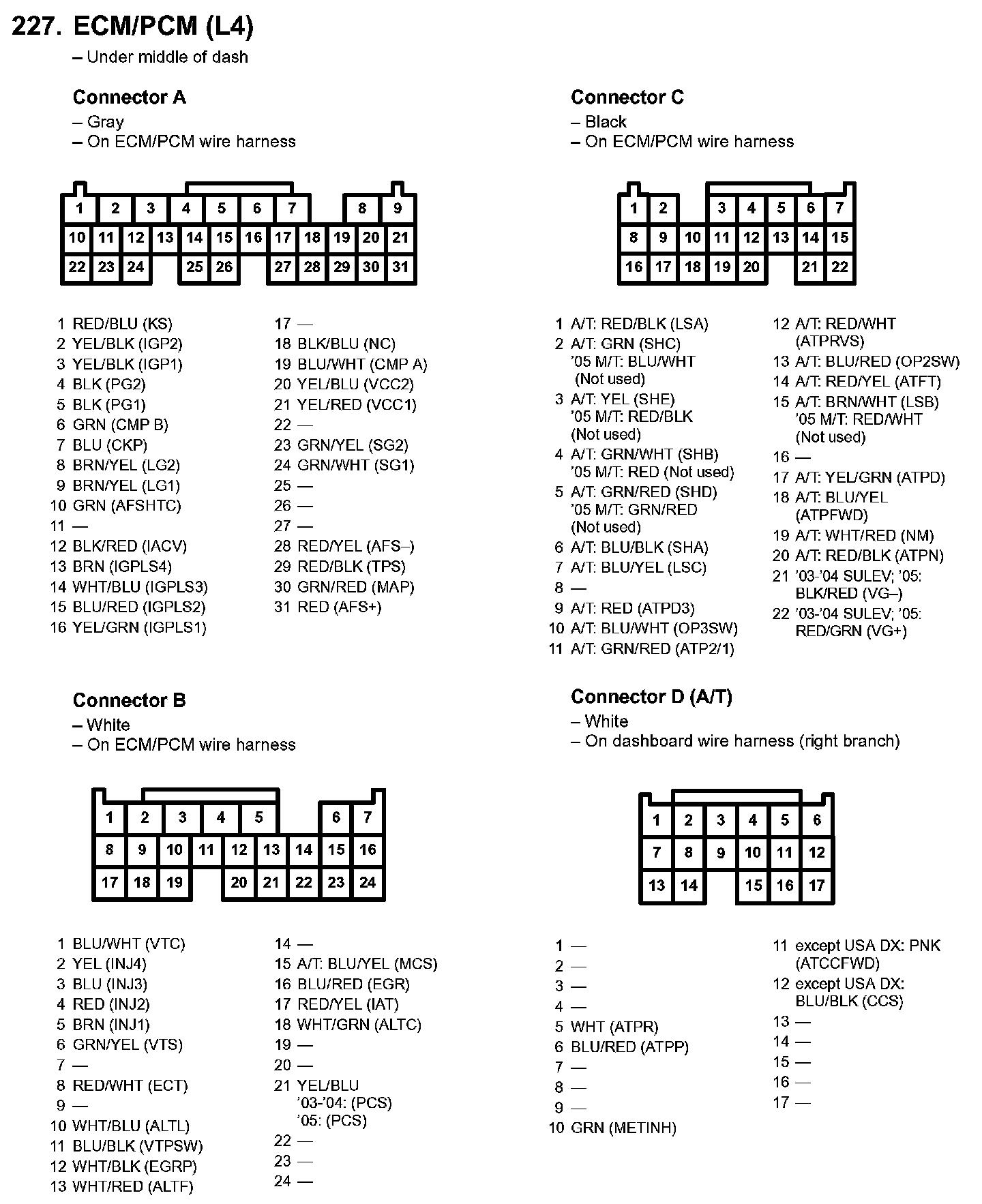

227. ECM/PCM Part 2:
