Electronic Brake Control Module
Electronic Brake Control Module

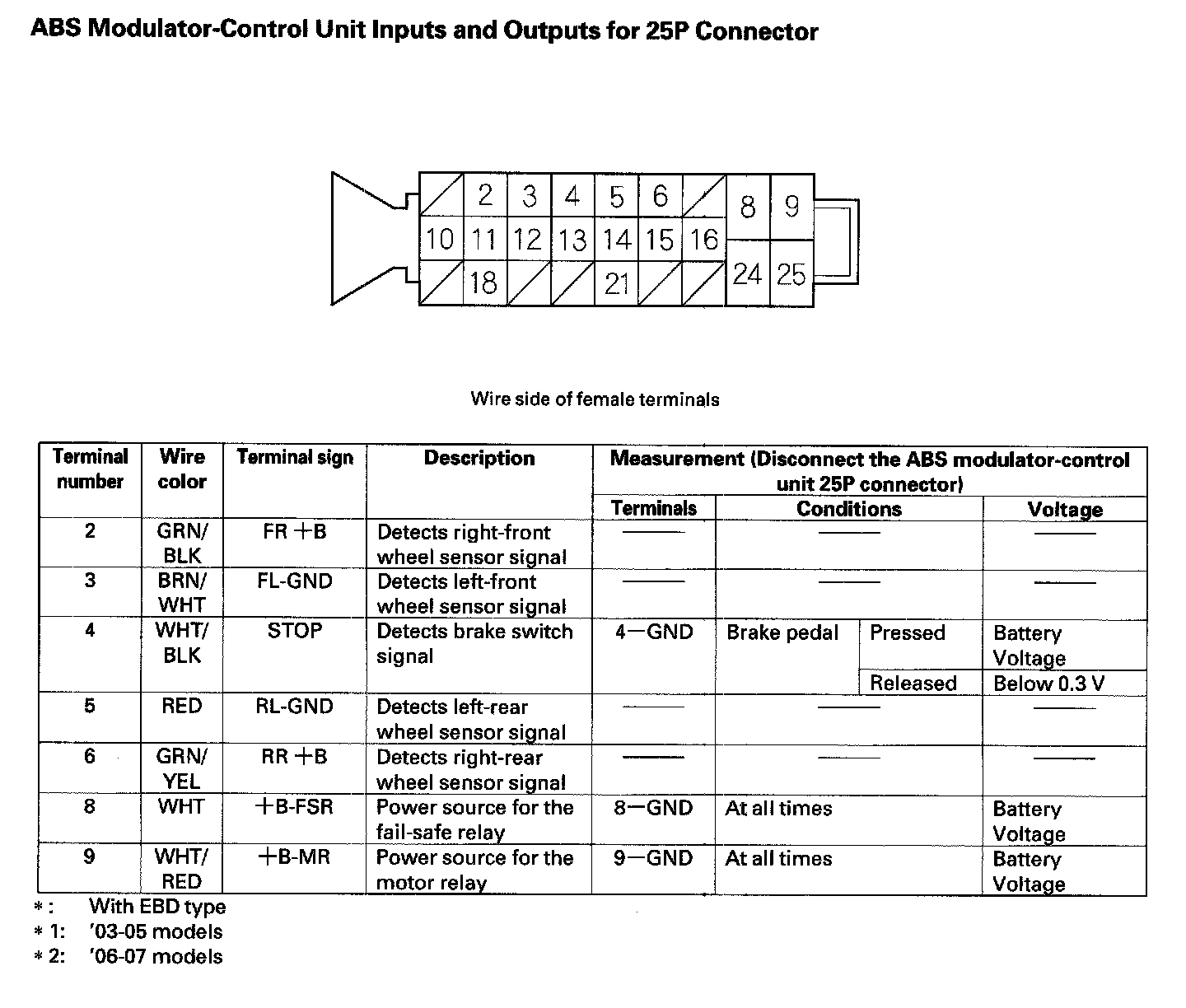

ABS Modulator-Control Unit Inputs And Outputs For 25P Connector:

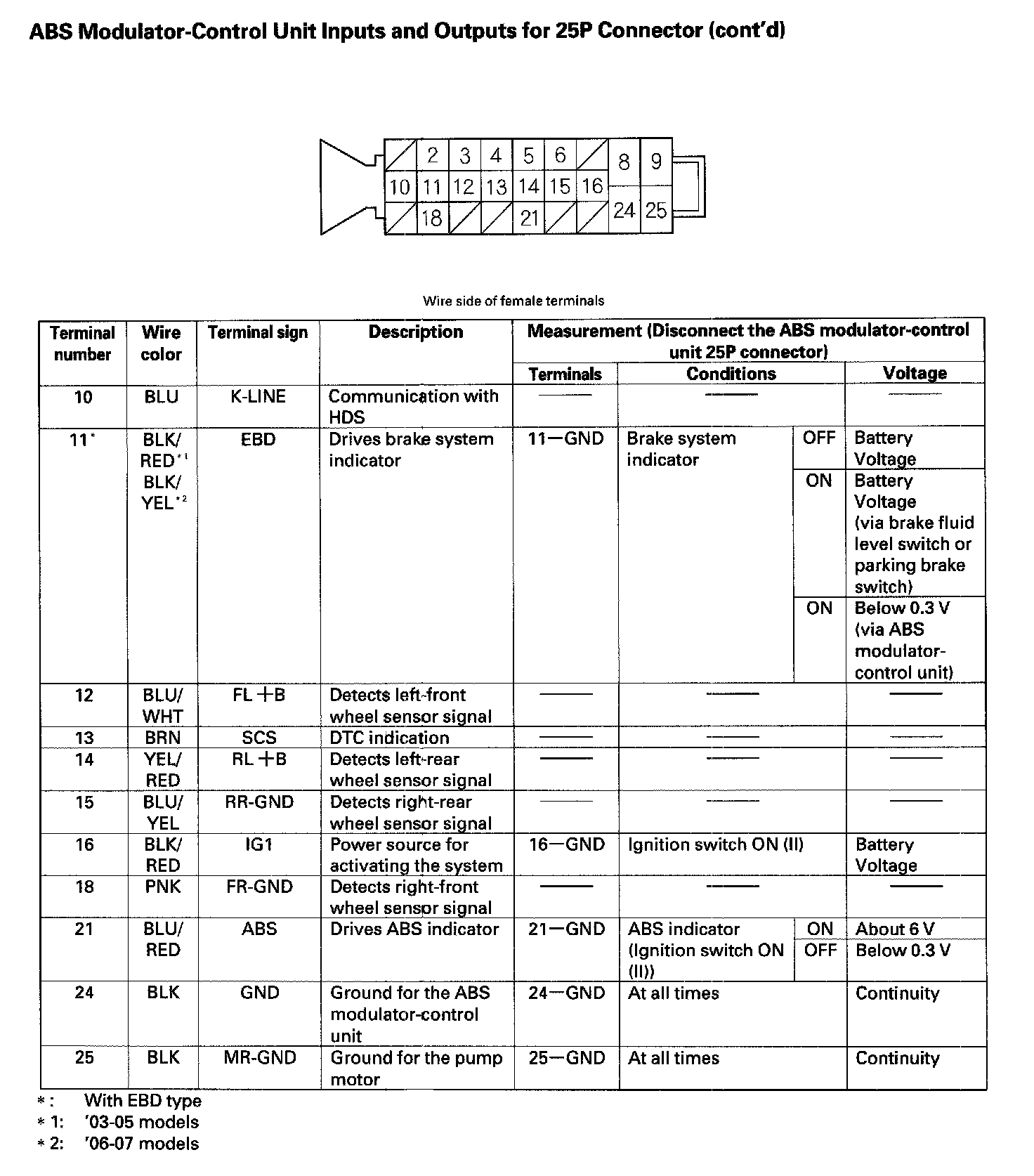

ABS Modulator-Control Unit Inputs And Outputs For 25P Connector:
