Home >> Honda >> 2003 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

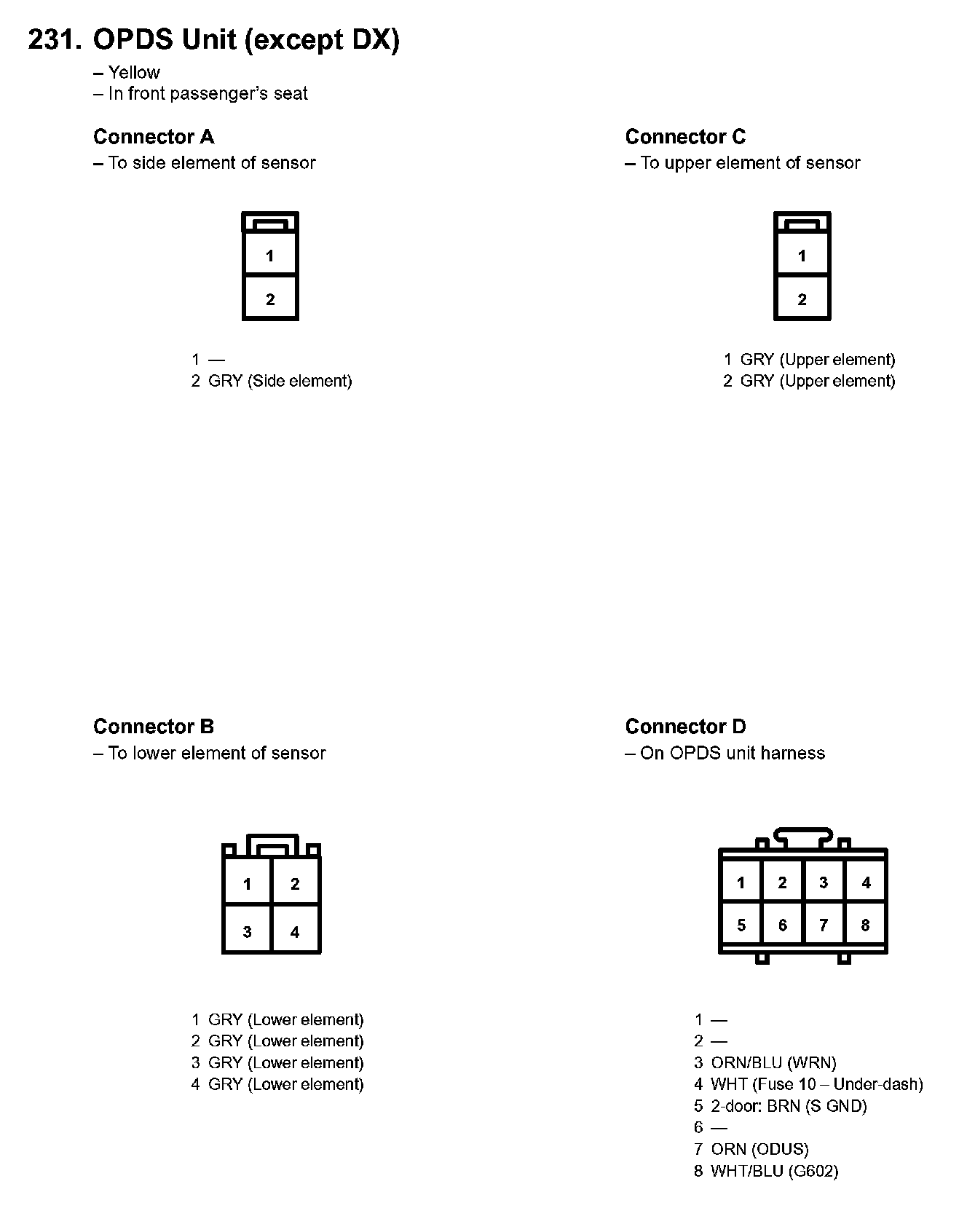

231. OPDS Unit (except DX):

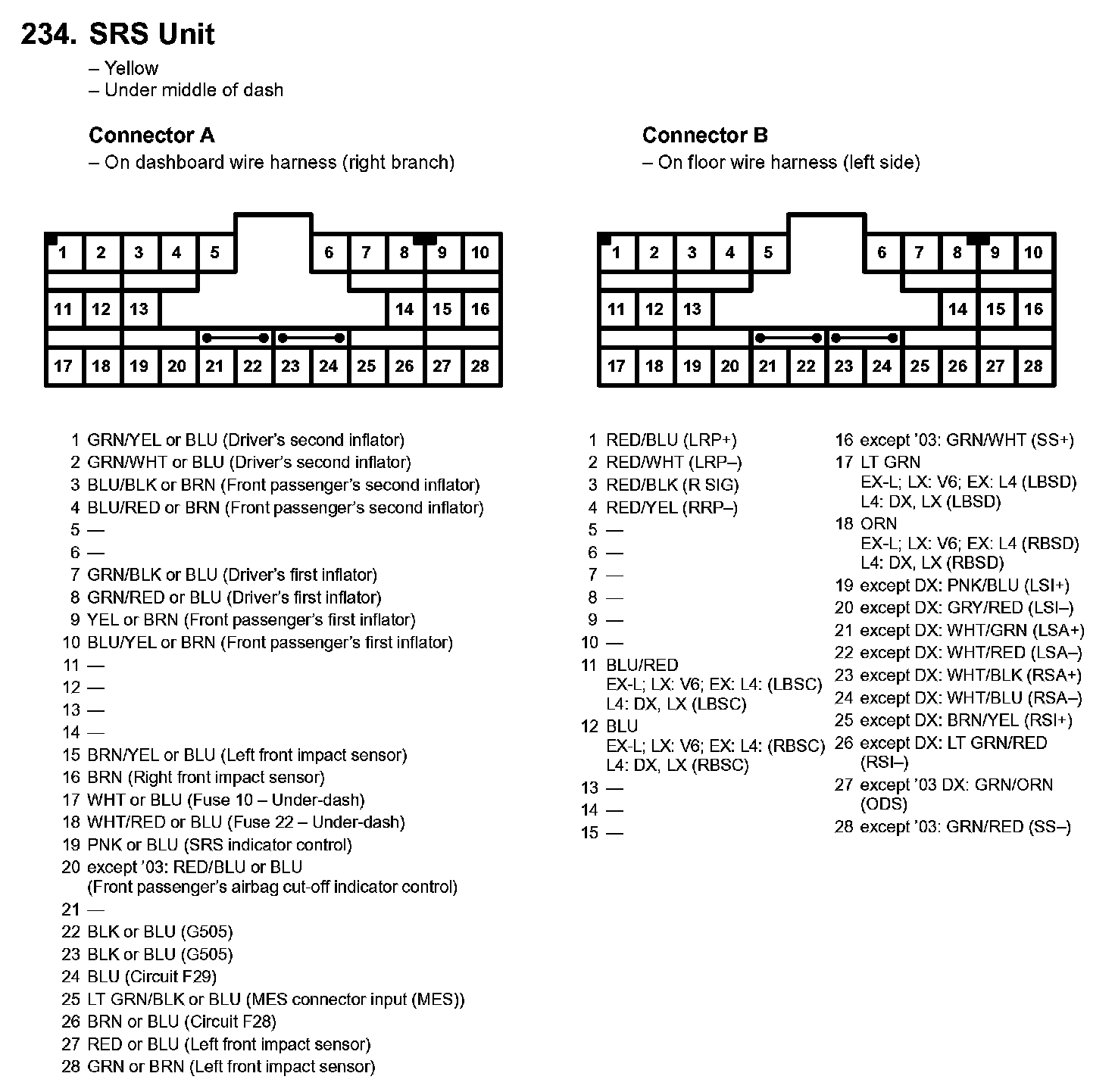

234. SRS Unit Part 1:

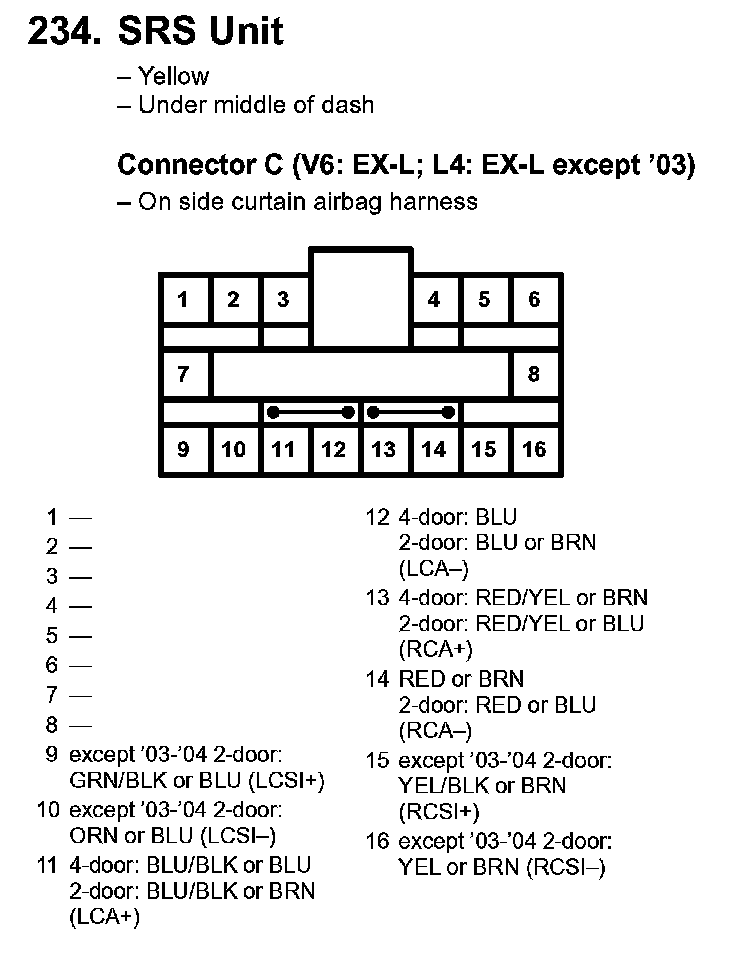

234. SRS Unit Part 2:
