Honda
>>
2002
>>
Odyssey EX V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Entry
>>
Keyless Entry Module
Keyless Entry Module

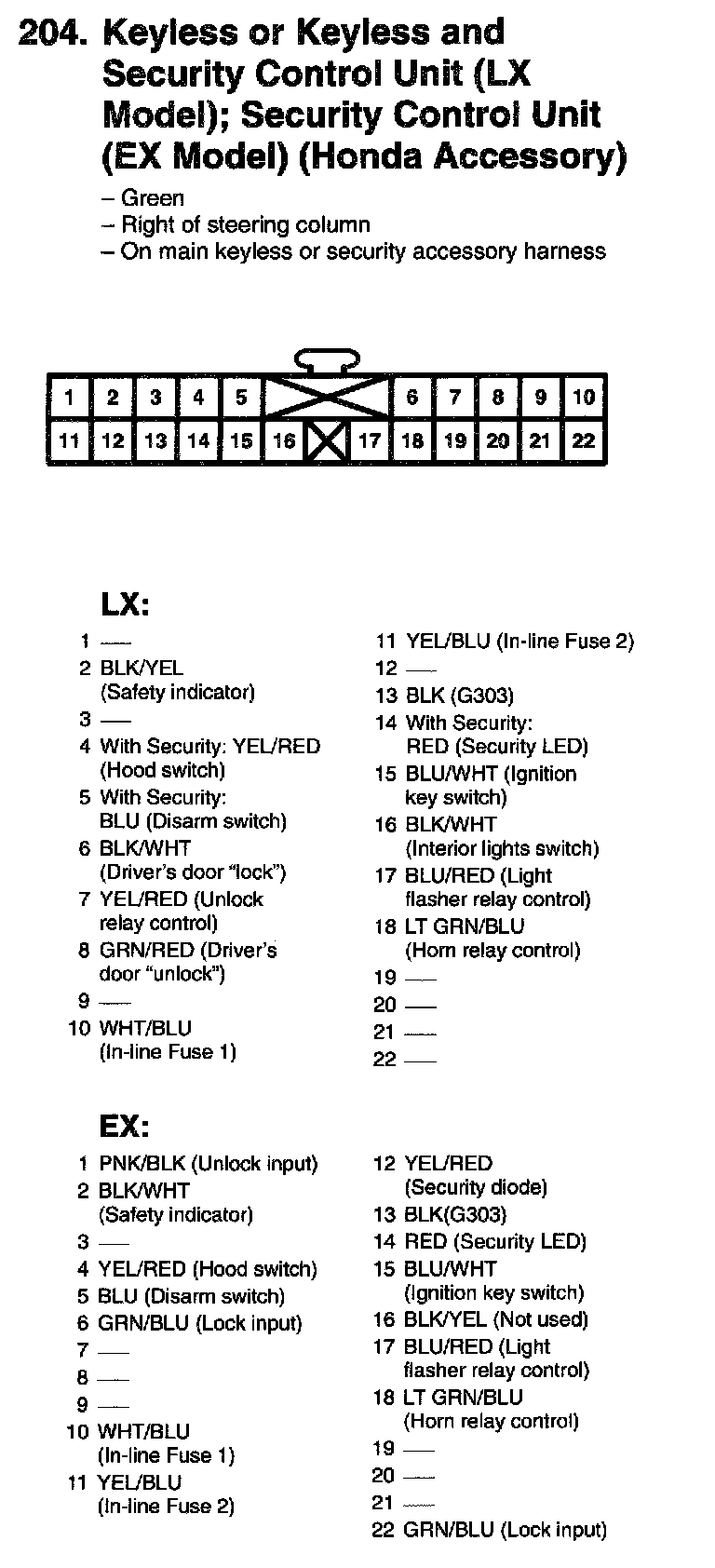

204. Keyless Or Keyless And Security Control Unit (LX Model); Security Control Unit (EX Model) (Honda Accessory):
