Pinout Values and Diagnostic Parameters

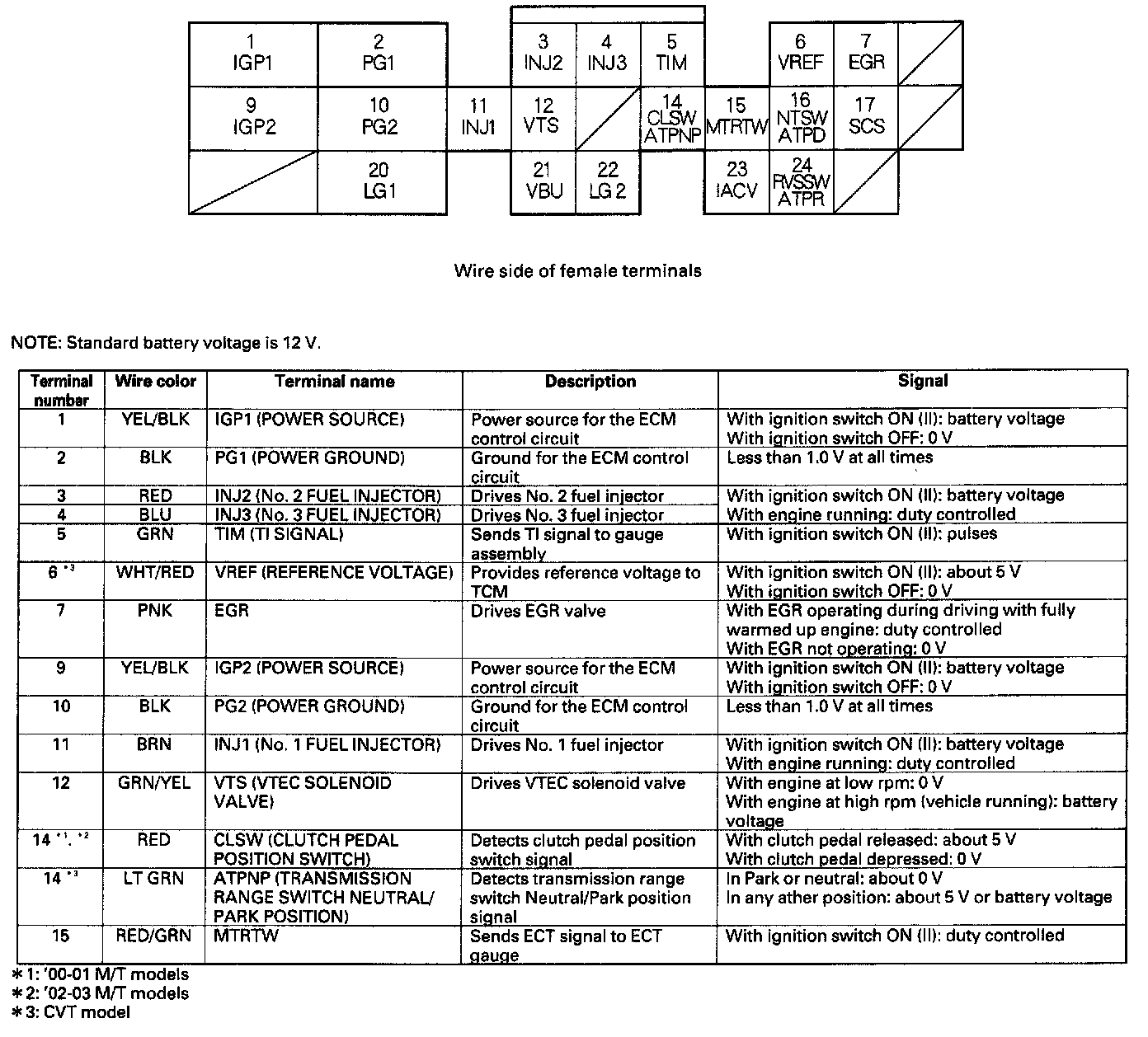

ECM/PCM Inputs And Outputs At Connector A (32P) Part 1:

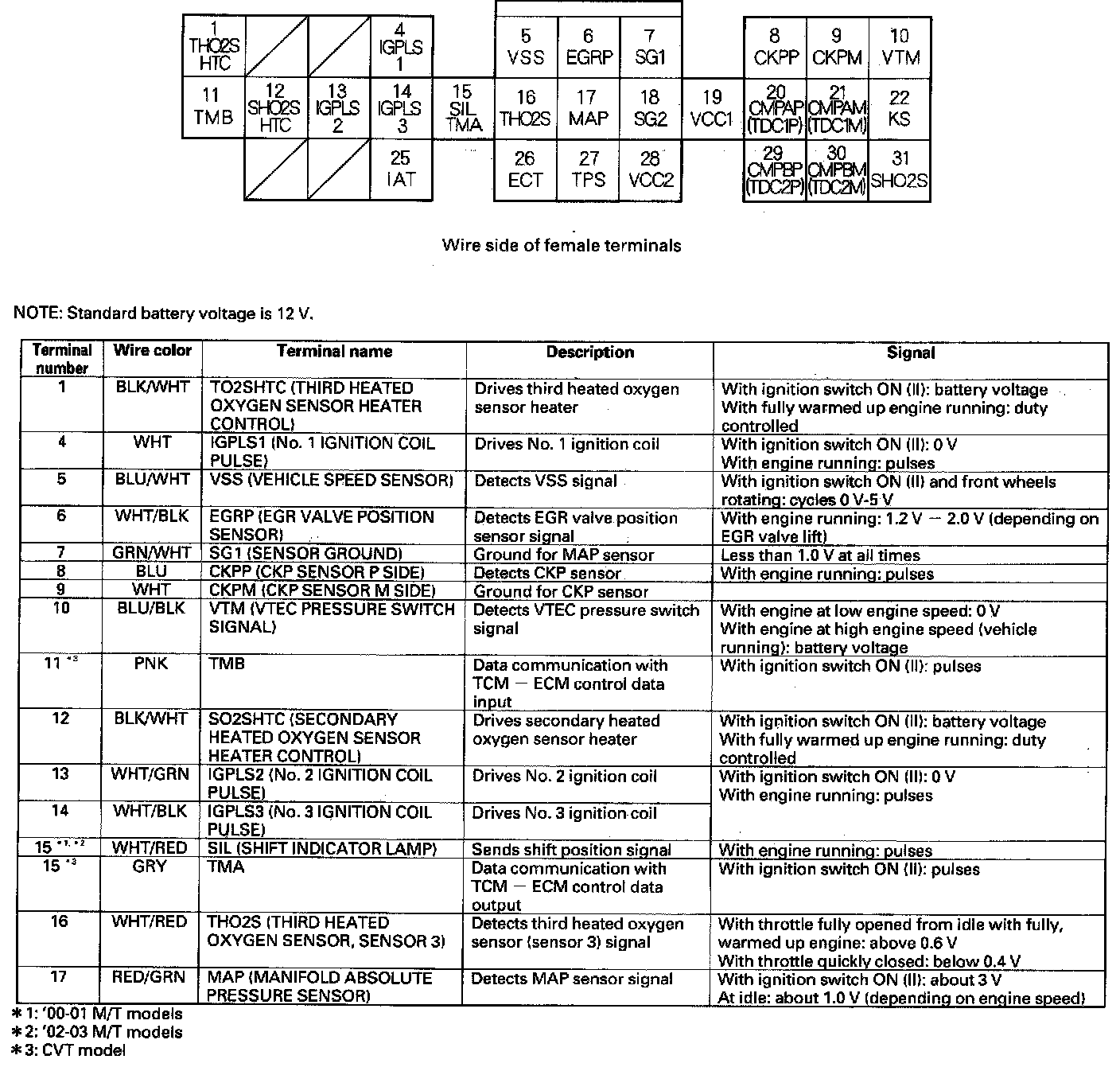

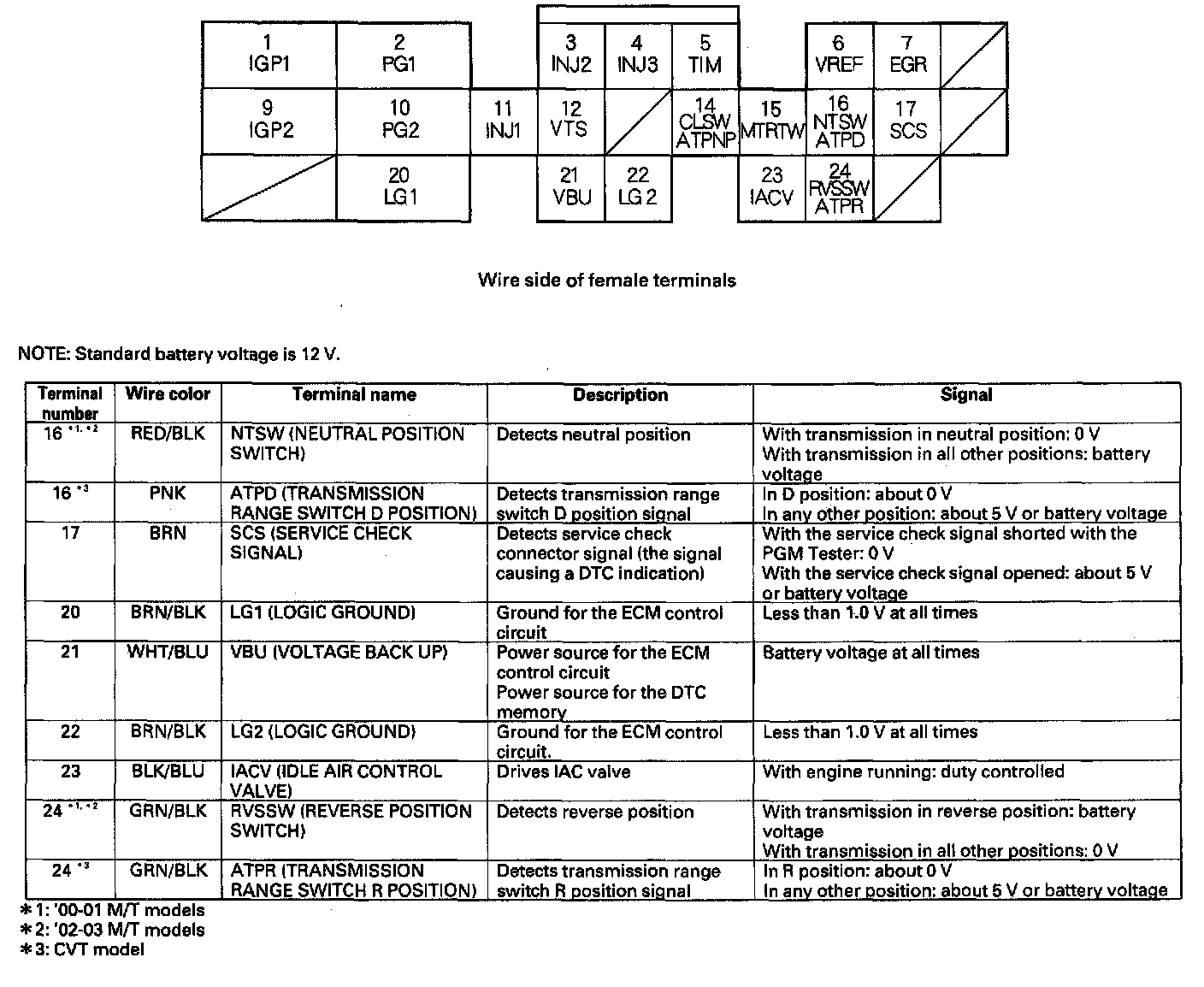

ECM/PCM Inputs And Outputs At Connector A (32P) Part 2:

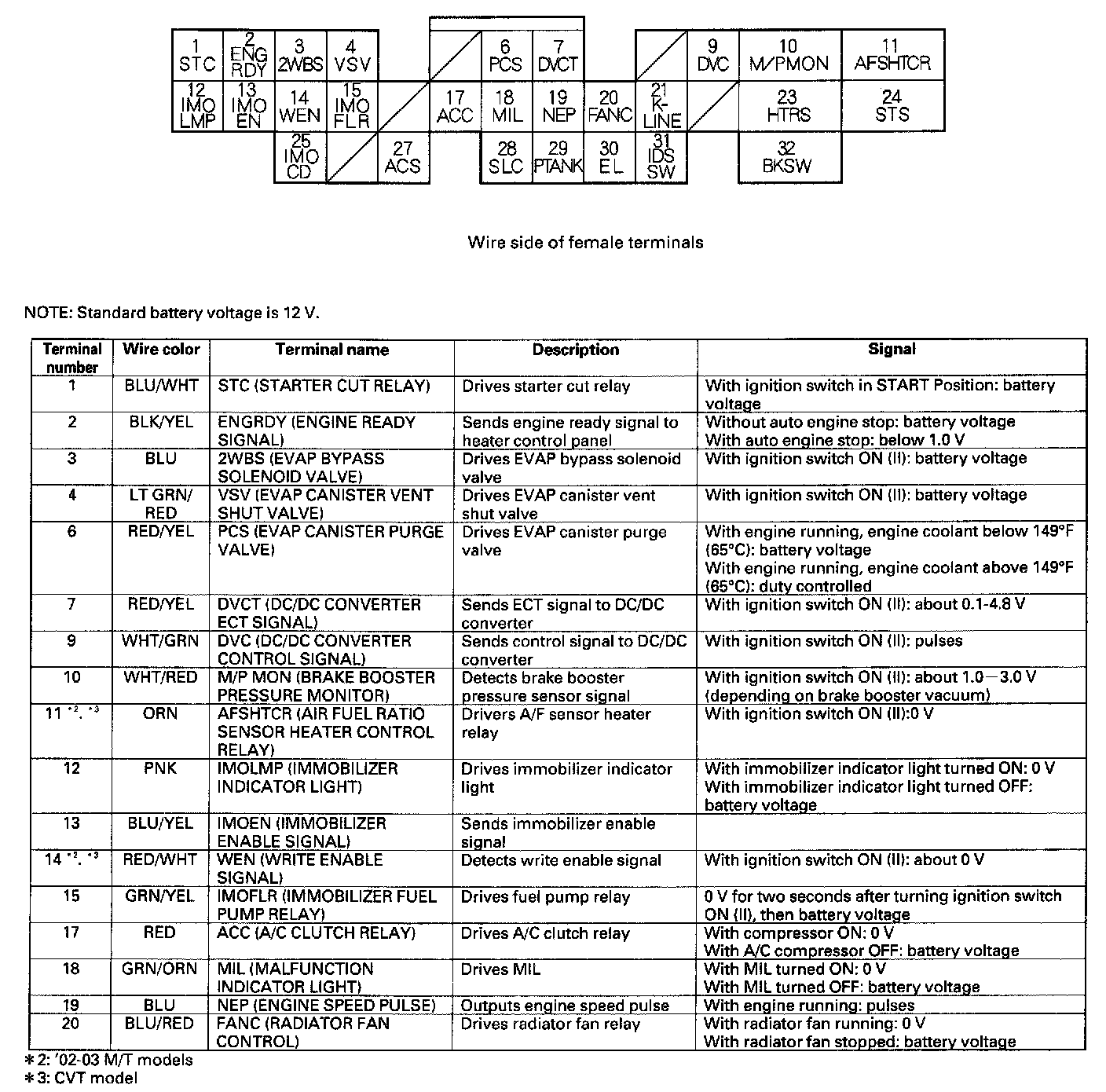

ECM/PCM Inputs And Outputs At Connector B (25P) Part 1:

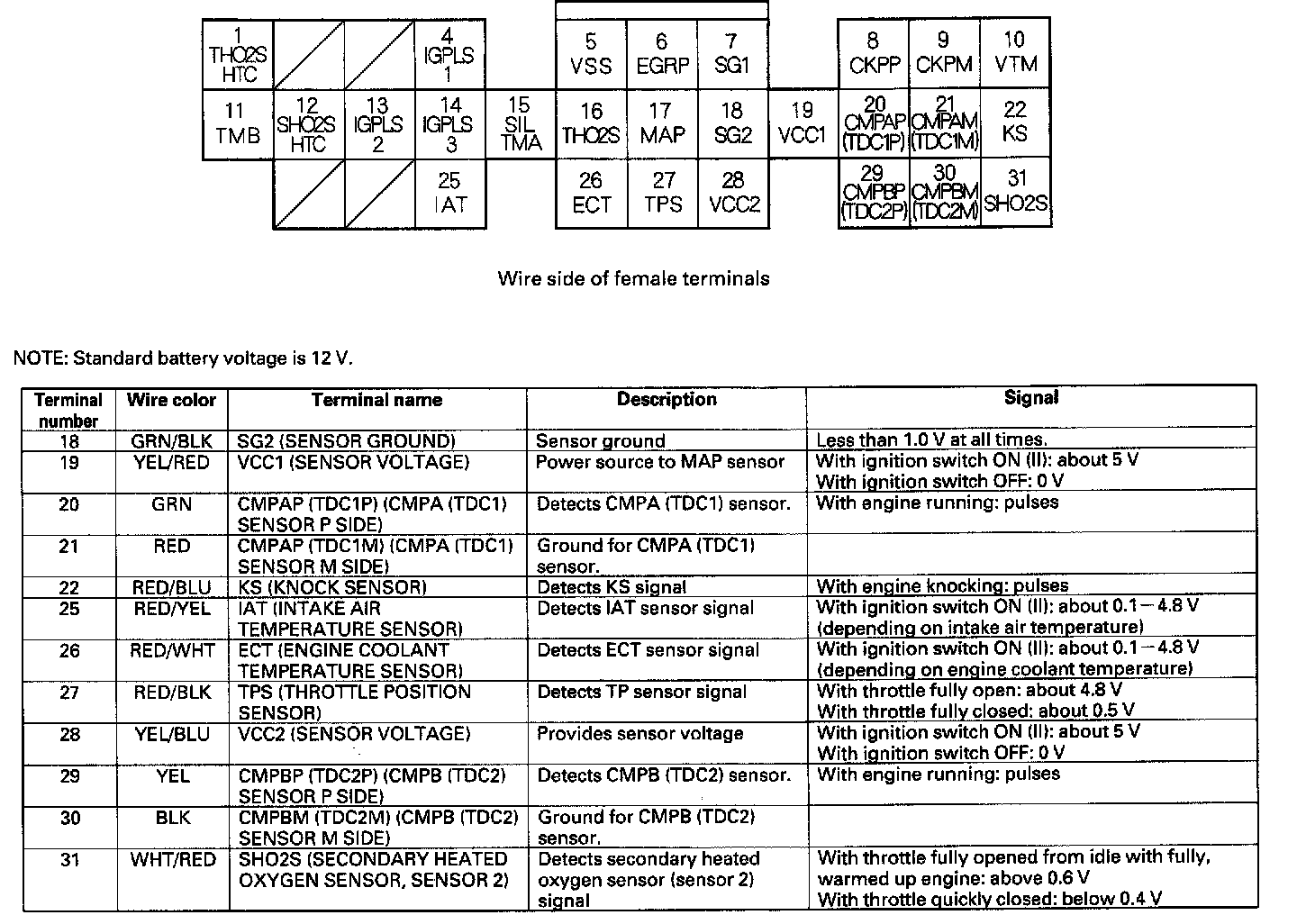

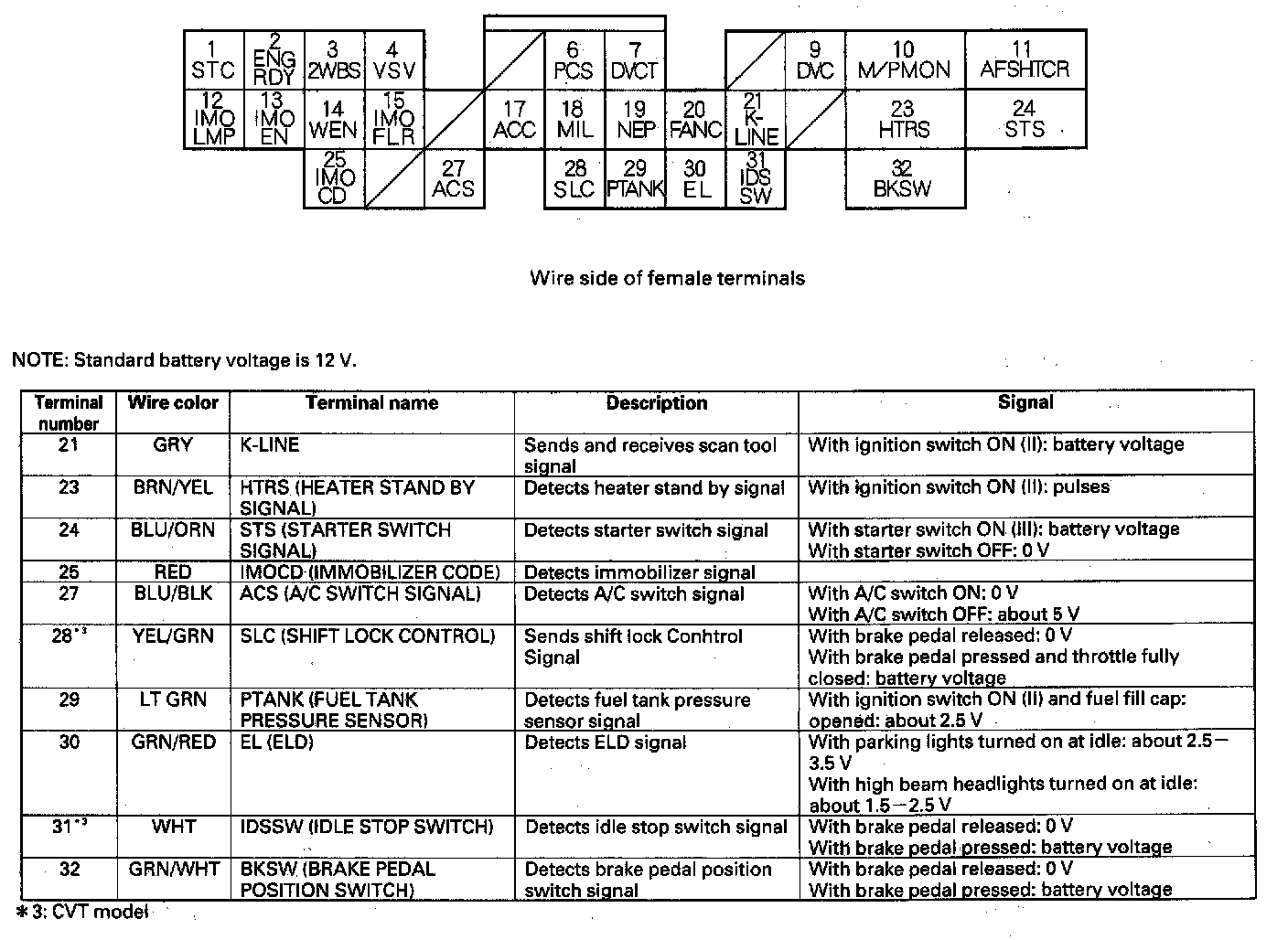

ECM/PCM Inputs And Outputs At Connector B (25P) Part 2:

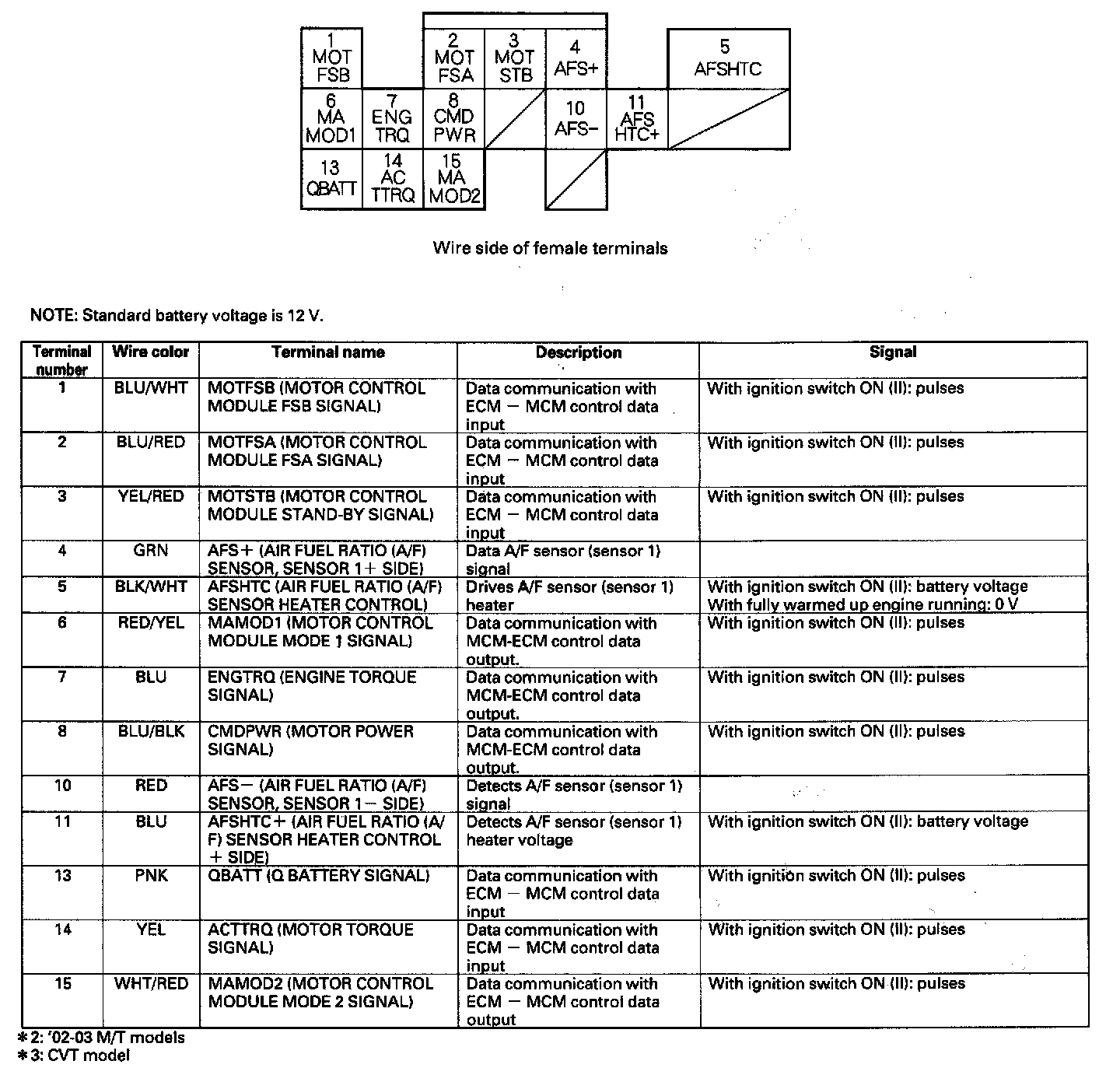

ECM/PCM Inputs And Outputs At Connector C (31P) Part 1:

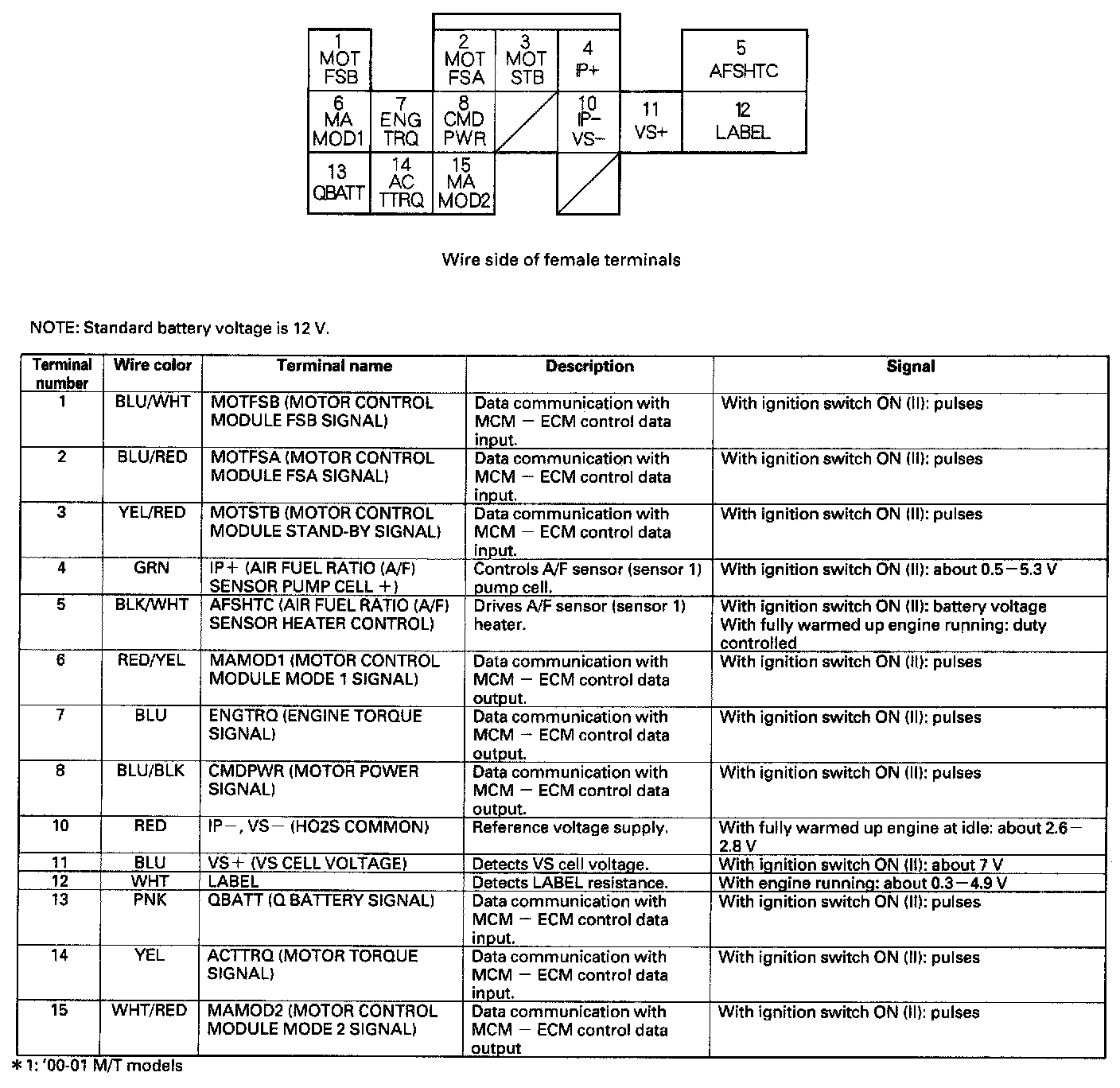

ECM/PCM Inputs And Outputs At Connector C (31P) Part 2:




ECM/PCM Inputs And Outputs At Connector D (16P) Part 1:




ECM/PCM Inputs And Outputs At Connector D (16P) Part 2:
