Home >> Honda >> 2000 >> Insight L3-1.0L Hybrid >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electric Load Sensor >> Locations

Electric Load Sensor: Locations

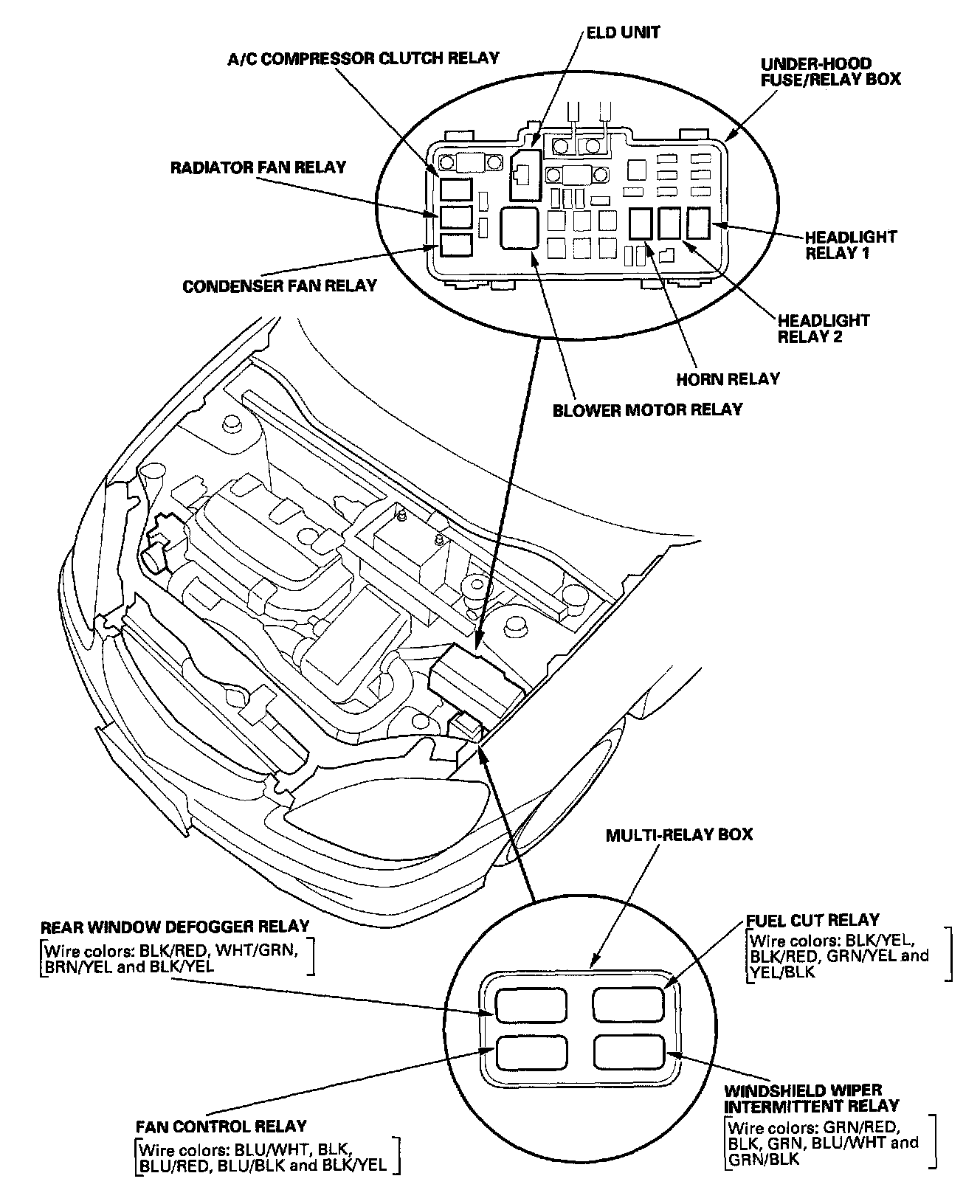

Relay And Control Unit Location - Engine Compartment:



Wipers/Washers - Component Location Index:

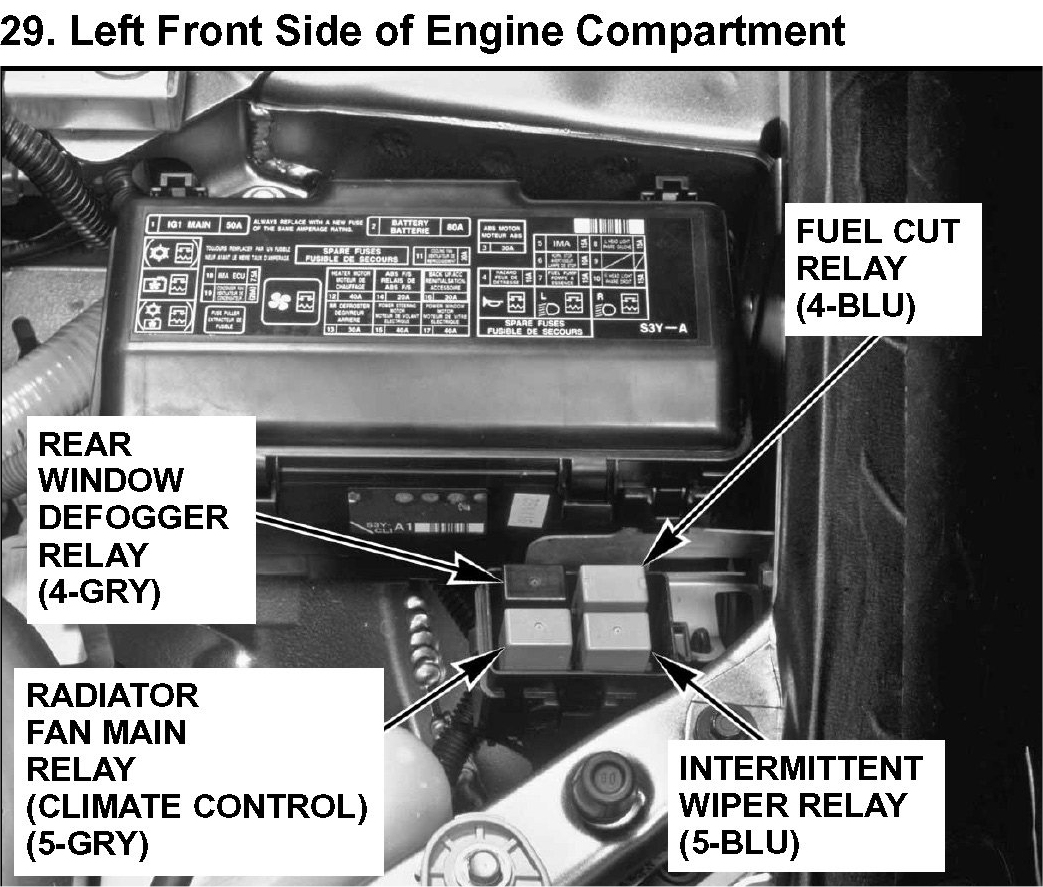

29. Left Front Side of Engine Compartment:
