Drive Motor Control Module: Locations

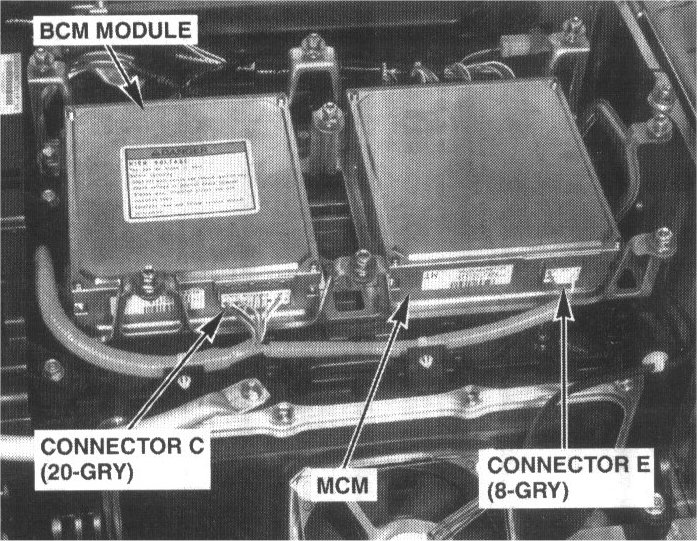

108. Top Front of Battery Module:

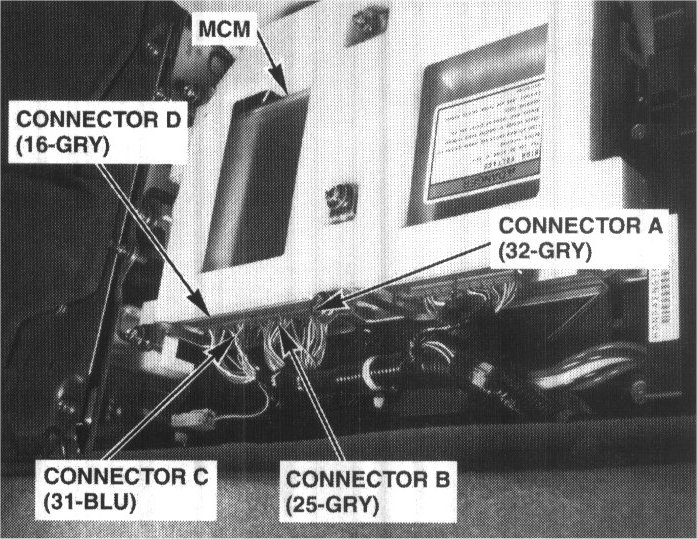

110. Top Rear of Battery Module:

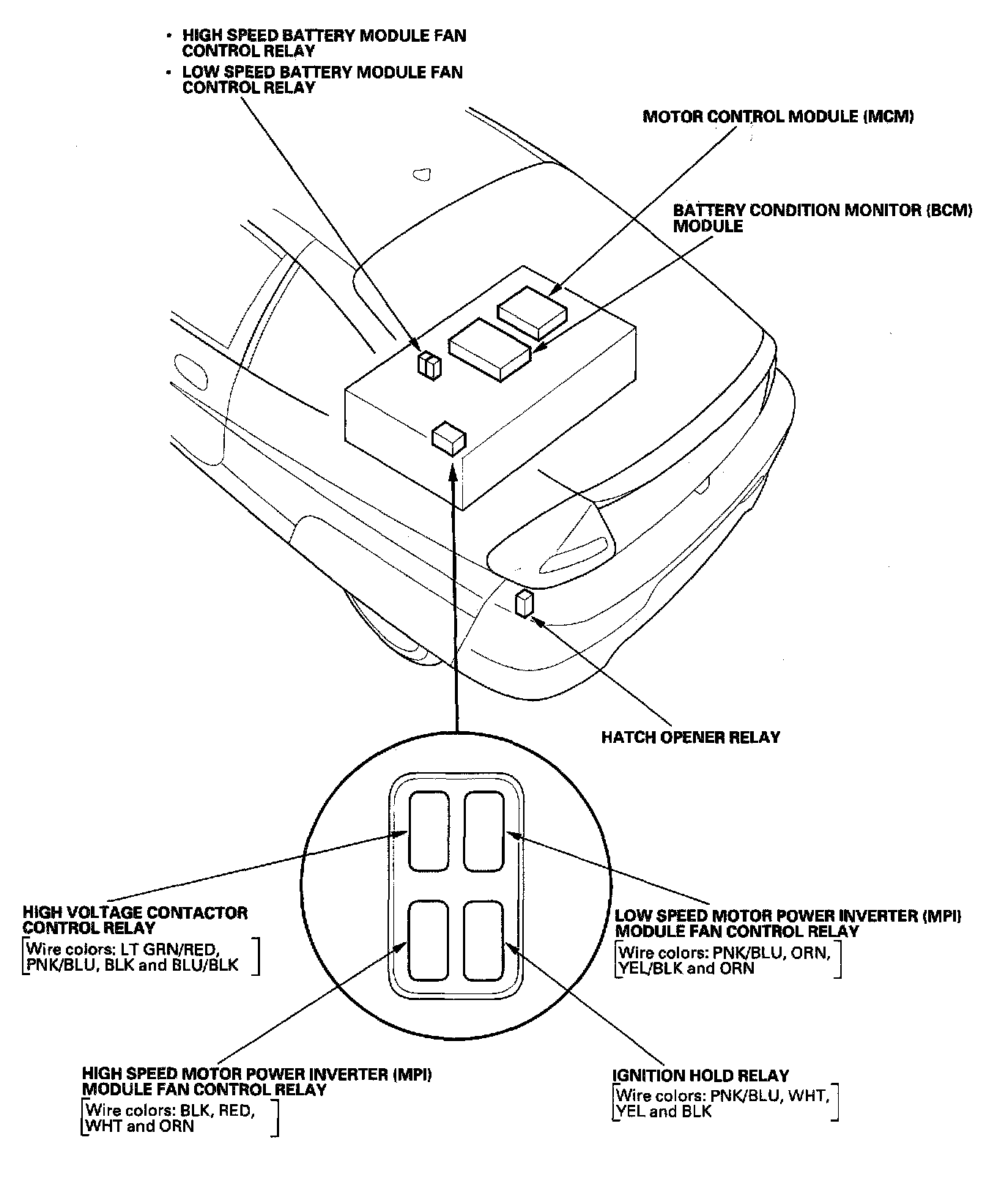

Relay And Control Unit Locations - Floor And Rear:
