Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

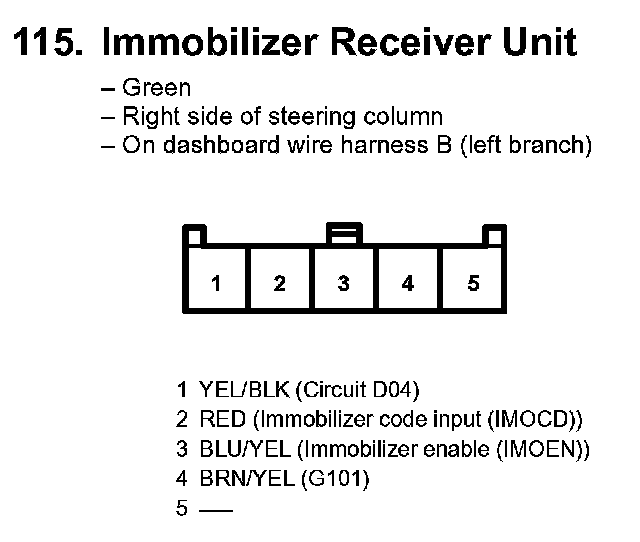

115. Immobilizer Receiver Unit:

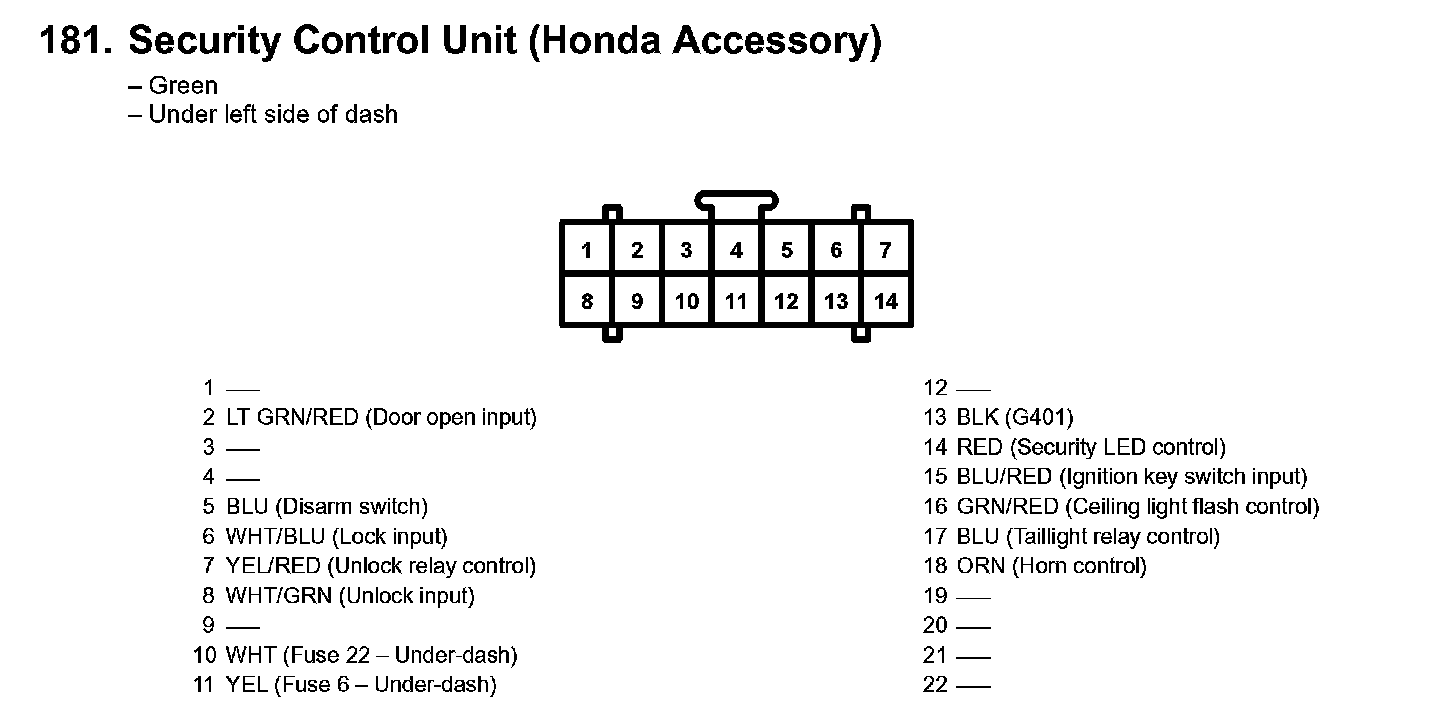

181. Security Control Unit (Honda Accessory):
