Home >> Honda >> 1987 >> Prelude L4-1955cc 2000 >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Distributor >> Distributor Advance Unit >> Specifications

Distributor Advance Unit: Specifications

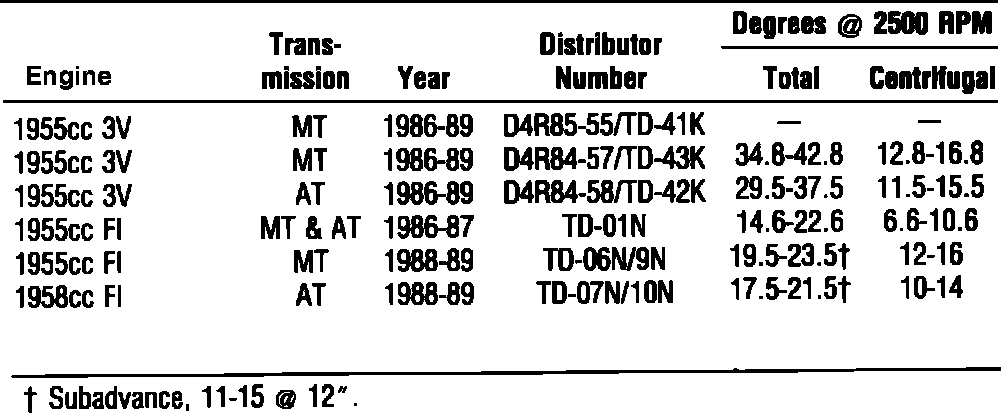

Fig. 016 Distributor Timing Advance Specifications:
