Distributor, Ignition
>>
Hitachi
Hitachi

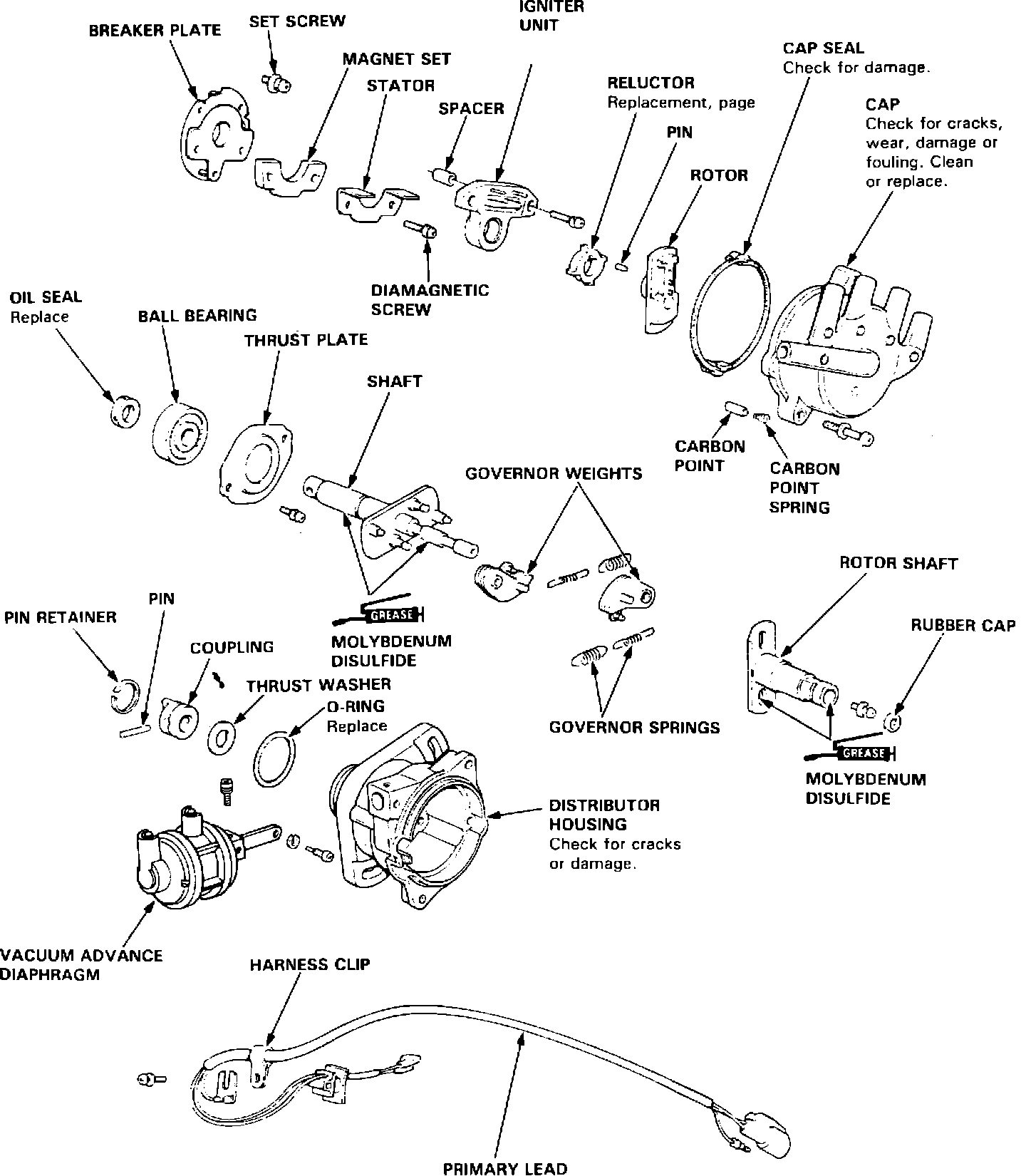

Fig. 11 Typical Hitachi Electronic Distributor Exploded View.:
