Vehicle Speed Sensor
>>
Locations
>>
Automatic
Automatic

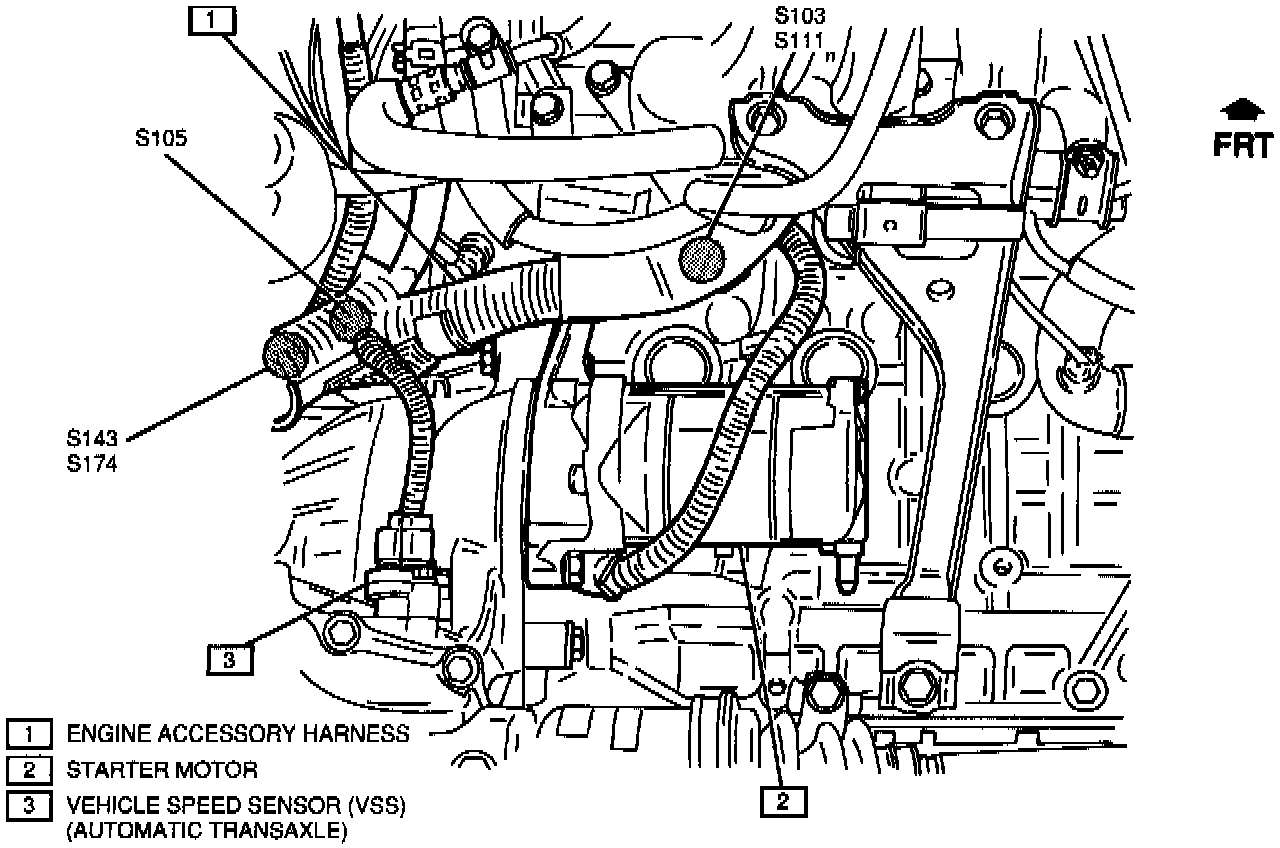

Figure B - LH Rear Of Engine:
The Vehicle Speed Sensor is located above the differential on the transaxle.
