Home >> Geo >> 1994 >> Prizm L4-1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Locations

Transmission Position Sensor/Switch: Locations

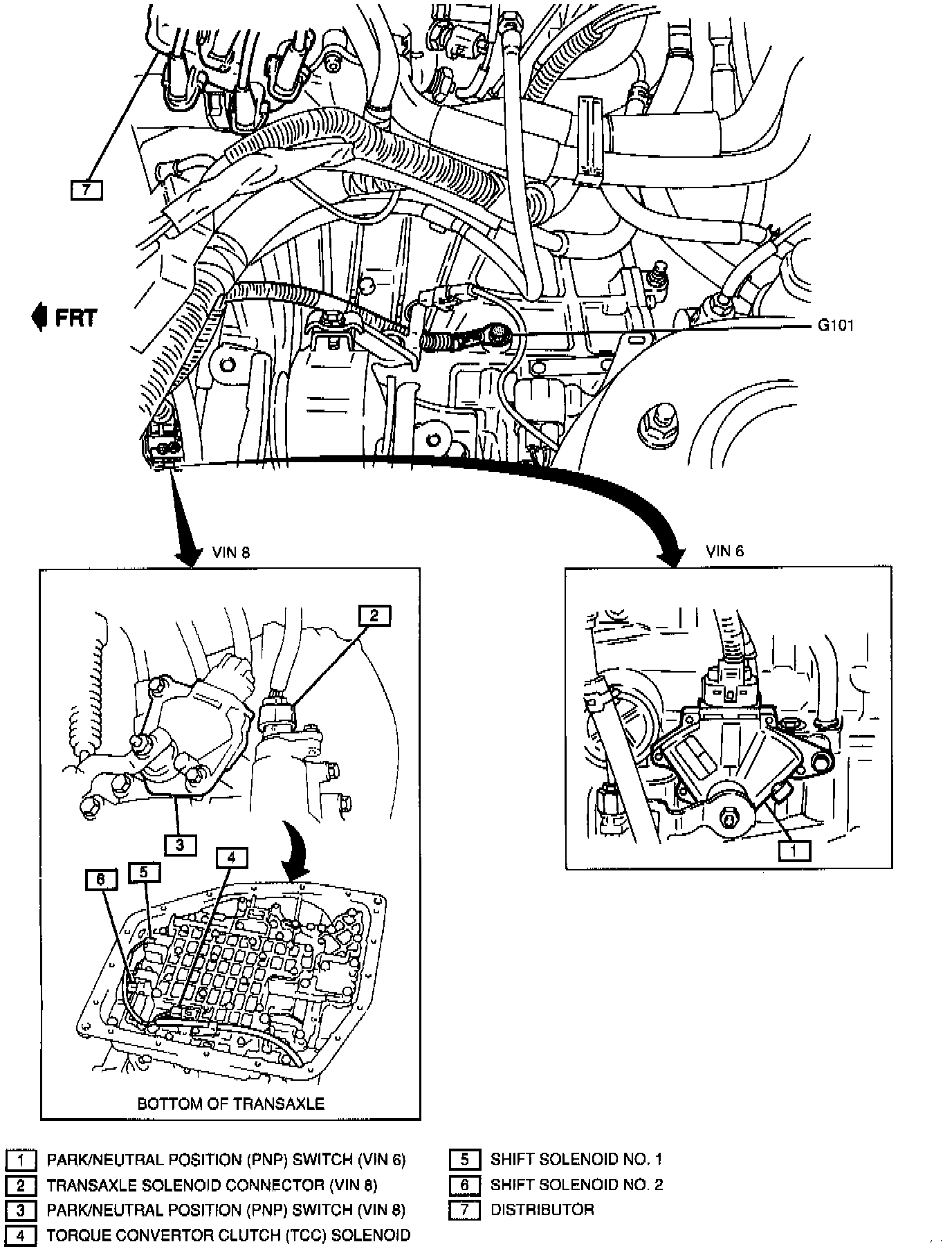

Figure A - Automatic Transaxle Wiring:
