Coolant Temperature Sensor/Switch (For Computer): Locations

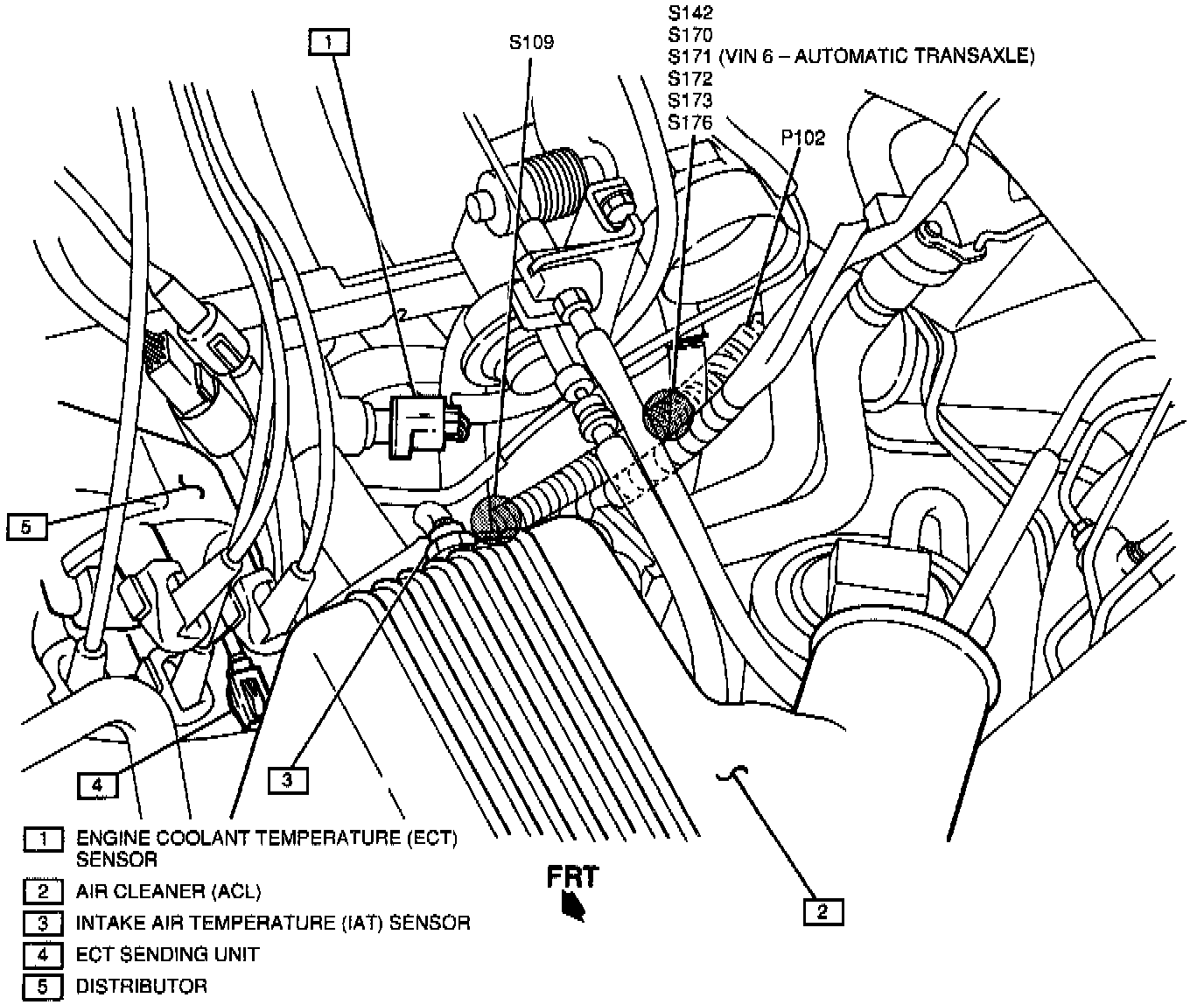

Figure A - LH Engine Compartment Wiring:

The Engine Coolant Temperature (ECT) sending unit is located in the thermostat housing below the distributor.
