Home >> Geo >> 1994 >> Prizm L4-1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shift Interlock Control Module >> C2

C2

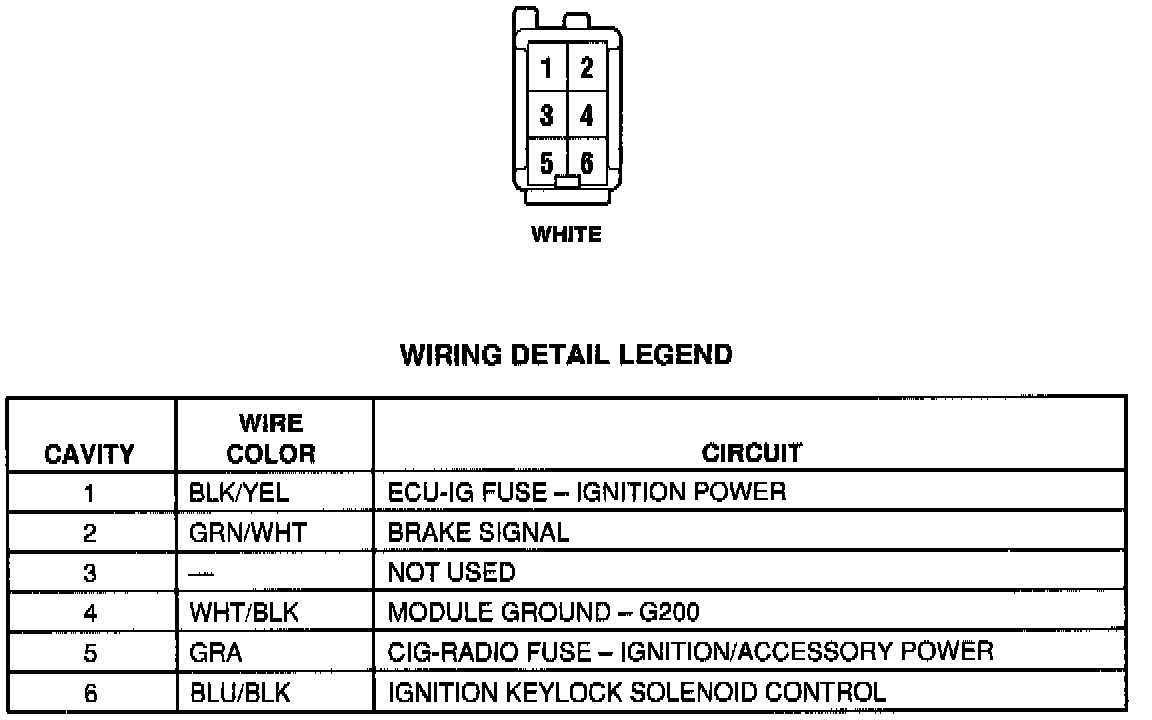

A2: Shift Lock Control Module Connector C2:
