Prizm L4-1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Modules
>>
Cruise Control Module
Cruise Control Module

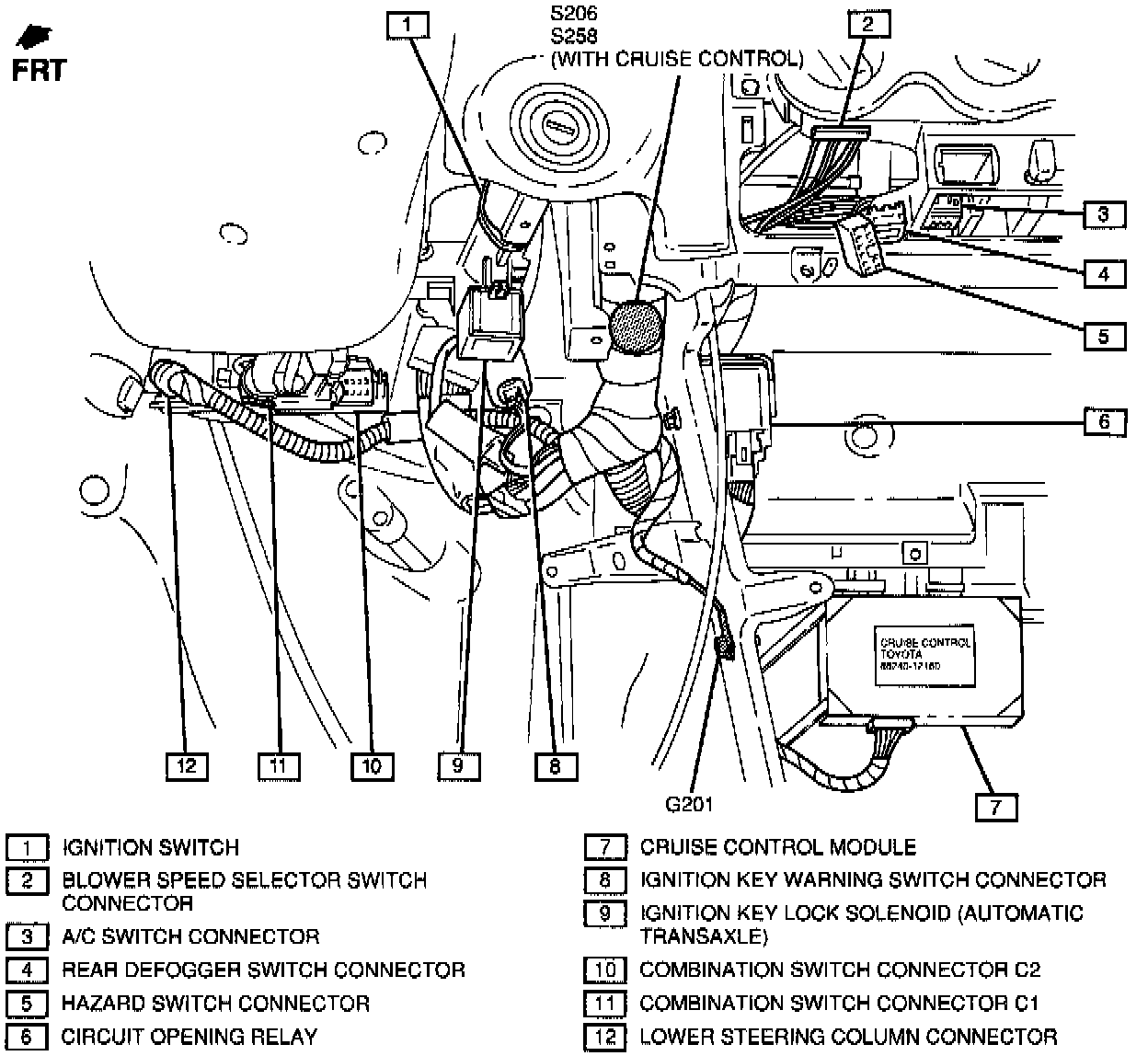

Figure A - Lower Instrument Panel Wiring:
