Prizm L4-1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Cruise Control Diode
Cruise Control Diode

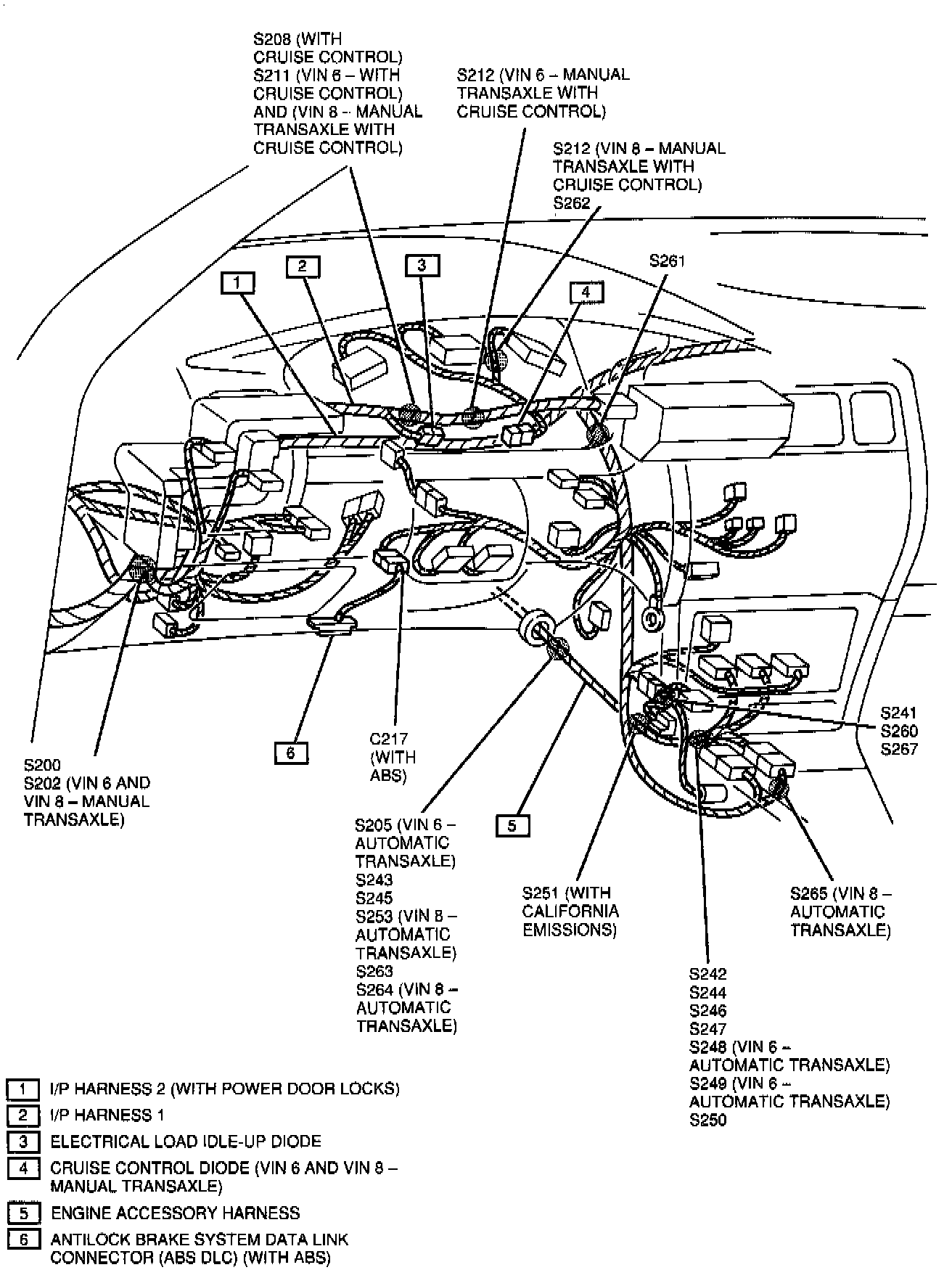

Figure A - LH Instrument Panel Wiring:
