1994
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
With Standard Emissions
>>

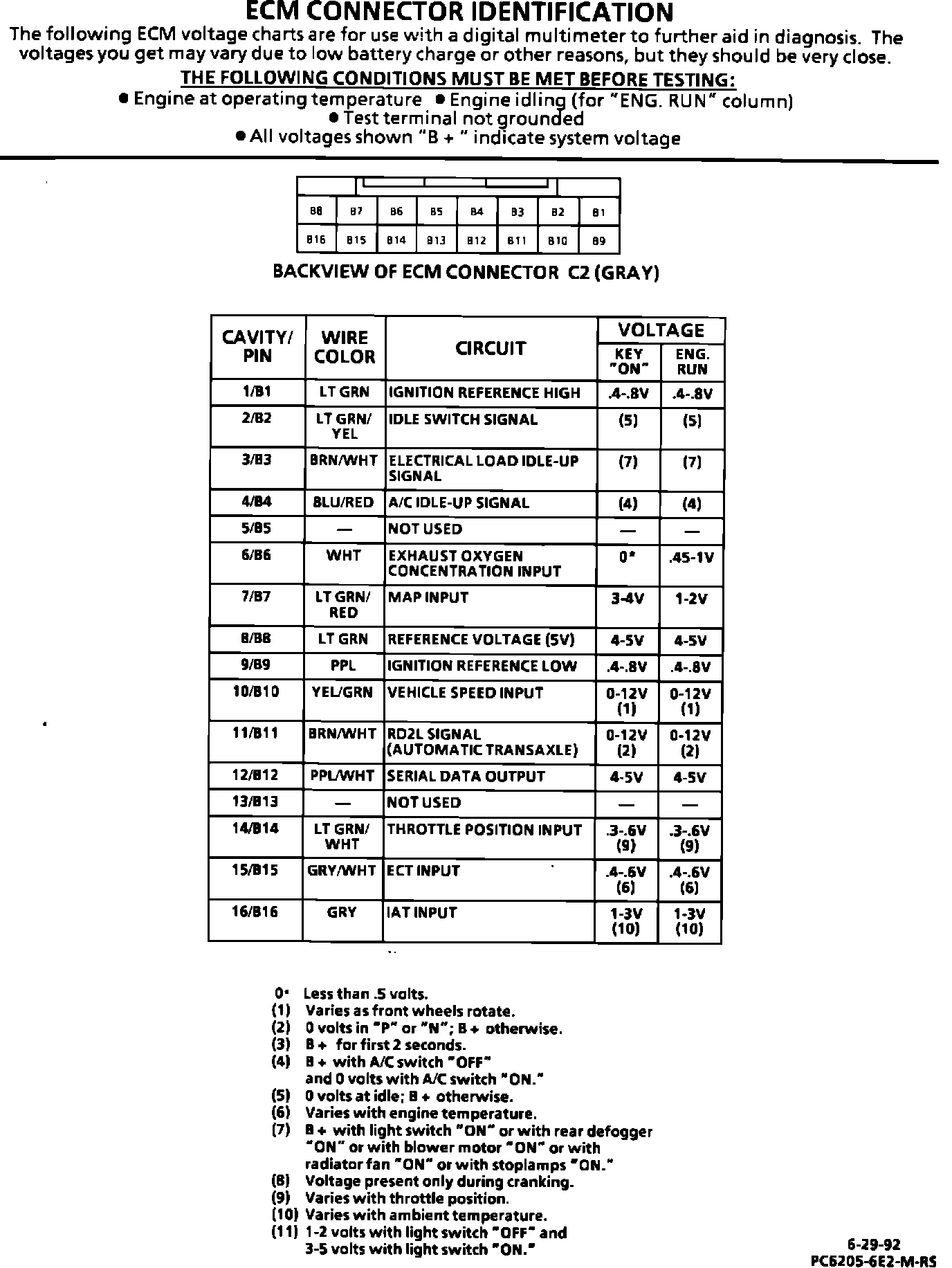

Connector C2
Connector C2
ECM Connector With Standard Emissions:
