Home >> Geo >> 1993 >> Tracker 4x2 L4-1590cc 1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

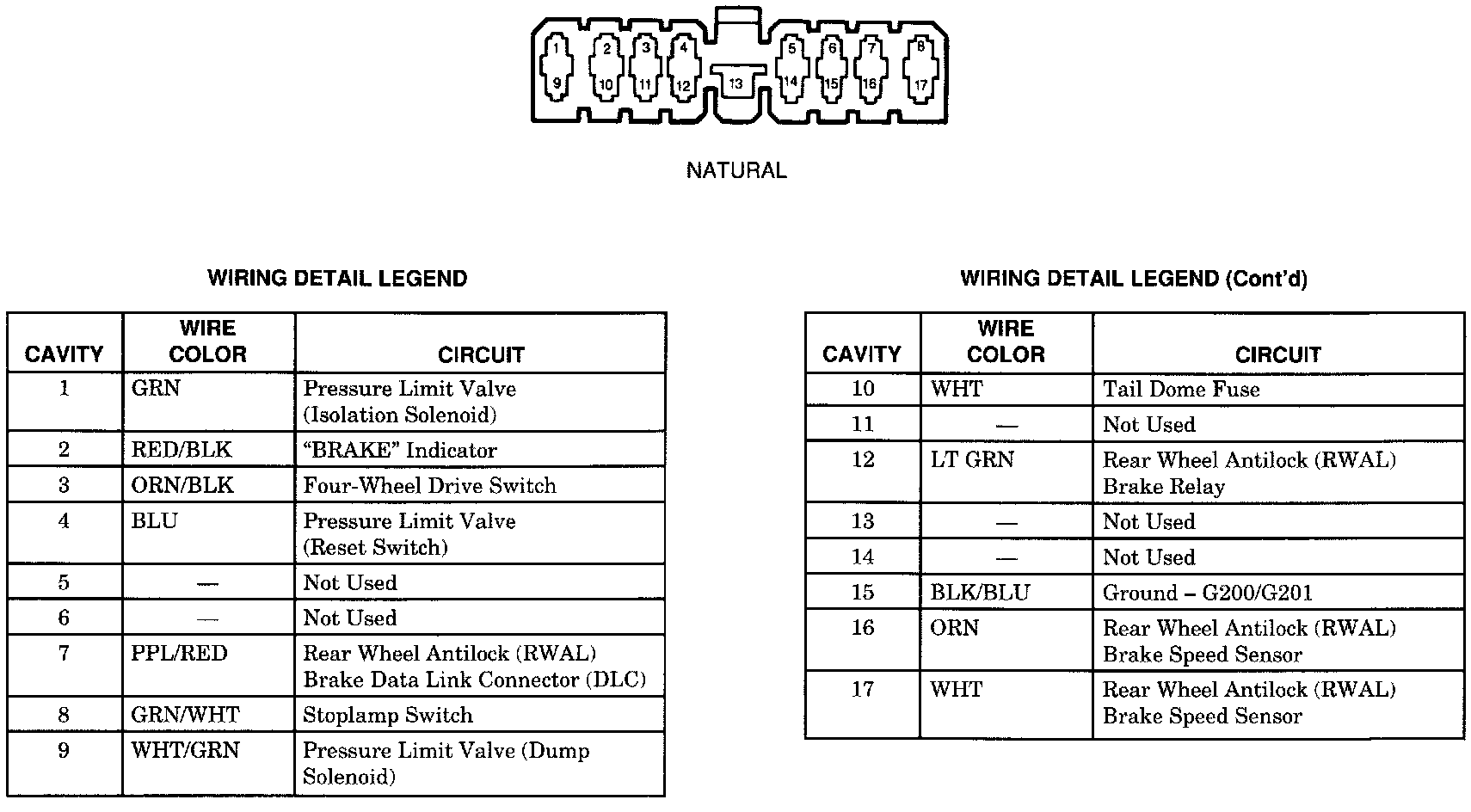

Electronic Brake Control Module (EBCM) Connector:
